Product description

The cameras from the manufacturer Watec are extremely sensitive analogue video cameras with a CCD micro lens chip with a light sensitivity of 0.000005 lux. They are ideal for live demonstrations of deep sky objects, meteor photography and small planet star occultations, for example.

(CCIR version)

Our expert comment:

Watec and Mintron cameras are extremely sensitive analogue video cameras featuring a CCD micro-lens chip. They are widely used in astronomy as they are ideally suited to live demonstrations of deep-sky objects, meteor photography and the observation of minor planet occultations. The Watec is the successor to the Mintron camera.

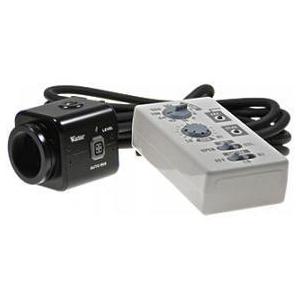

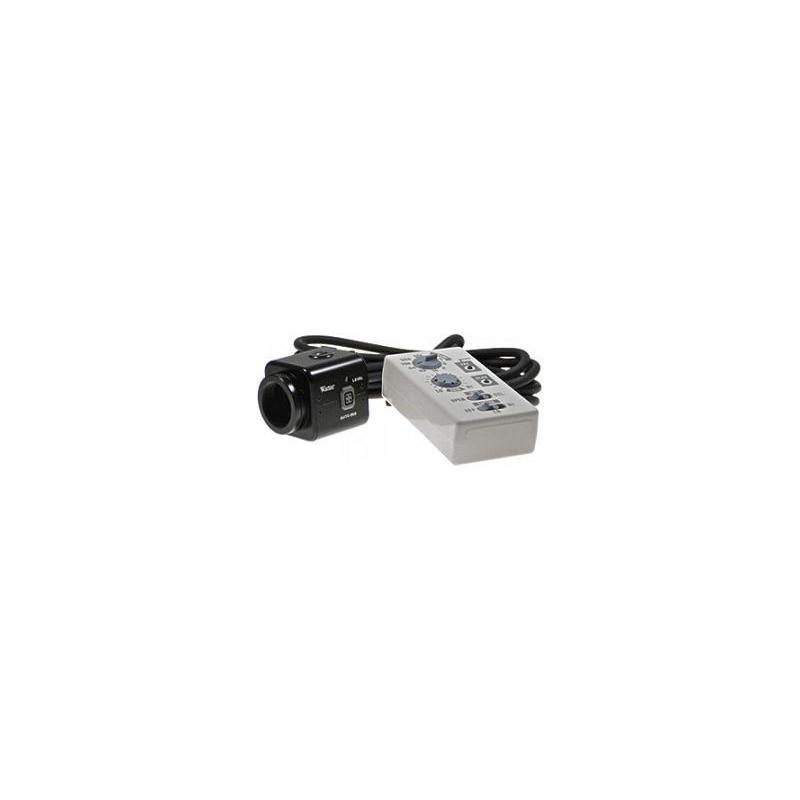

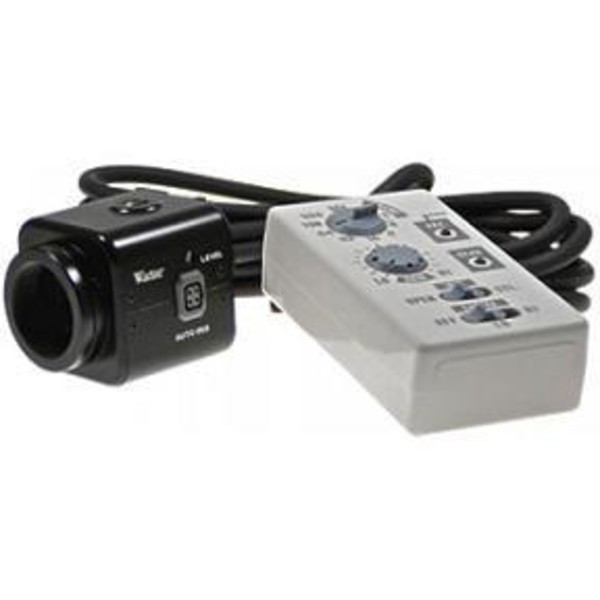

The Watec 910 RC allows exposure times of up to 5.12 seconds whilst achieving extreme sensitivity. It outputs an analogue video signal and is ideal for live demonstrations on a TV monitor. Astrophotography is also possible, though this requires an external video grabber available from computer retailers. Two versions of the Watec 910 are available. With the Watec 910 RC, camera settings are adjusted via a keypad on the rear panel of the camera. The Watec 910 RC/HX comes with a more convenient external control unit.
Further information on the product can be found here.

(Bernd Gährken)

Specifications

Capacity


Type of camera
Astro video camera
Sensor type
CCD-chip
Megapixel
0,4
Sensitivity to light (lx)
0,00002
Signal/noise ratio (dB)
52
Min. exposure time
0,04
Max. exposure time (min)
1/6
Operating temperature
-10 bis 40
Power supply
12
Power consumption (mA)
160
Interfaces
Video-Out
Connection (to the telescope)
C-Mount
Pixel size
8,6x8,3
Video function
yes
Resolution video (Pixel)
752x582
Video format
Composite Video

General


Length (mm)
64
Width (mm)
43,5
Height (mm)
44
Weight (g)
150
Series
WAT
Colour
black
