Astrophotography > Cameras > Astronomical Cameras > ZWO > ASI 178 > ZWO Camera ASI 178 MM-Cool Mono
Product no.: 51292

Camera ASI 178 MM-Cool Mono

$ 850.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The ASI camera series from ZW Optical is very popular with astrophotographers. This is due to their excellent workmanship, very good value for money and exceptional ease of use.
ASI cameras have always been especially suitable for planetary photography, but now ZW Optical also offers these excellent cameras suitable for deep sky photography - photosensitive CMOS sensors combined with active cooling ensure this. Powerful Peltier cooling provides up to 45°C of cooling below ambient temperature for zero-noise recordings.

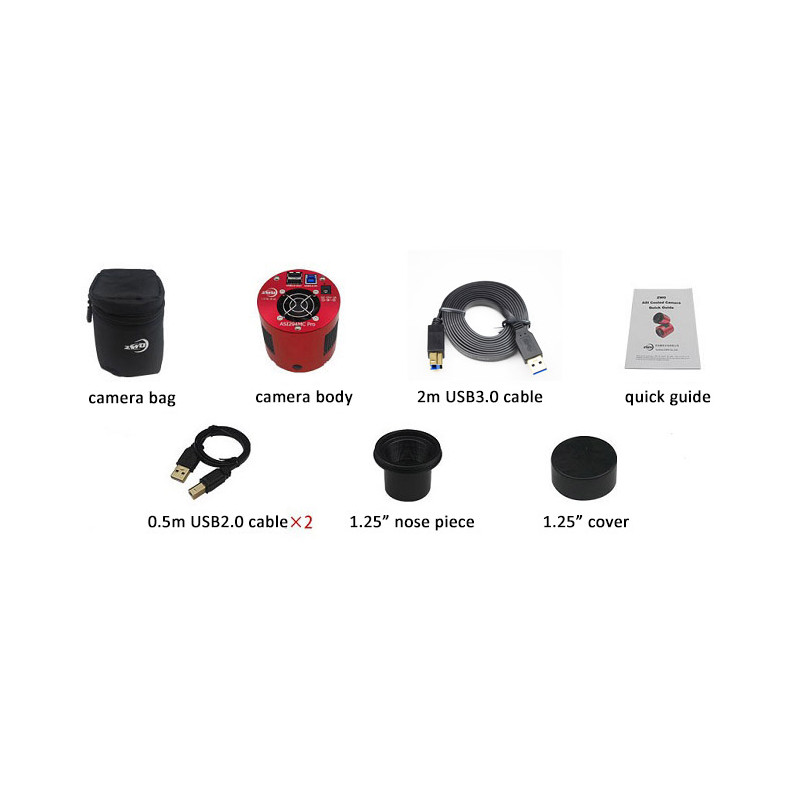

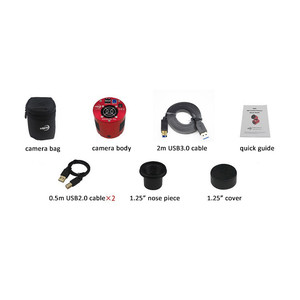

Included in delivery:

  • camera
  • 1.25" adapter with filter thread
  • desiccant cartridges
  • quick reference guide
  • USB cable

You can connect the camera to the focuser of your telescope with the 1.25 "adapter, the 2" sleeve or the T2 thread.

The latest driver software for all ASI camera models is available for free download from ZW Optical at http://astronomy-imaging-camera.com/software/

Colour or mono? Black and white cameras have the advantage of higher sensitivity and resolution than colour cameras. However, more effort is required to obtain a colour image. You also need colour filters and a filter wheel

Software and drivers are available for free download on the manufacturer's website: software drivers

Cooled ZWO ASI cameras need a 12V power supply, If you don’t have one, please check the recommended accessories for a suitable power adapter.

Our expert comment:

For installation, please use the 'ZWO ASI camera drivers for other cameras.exe' file in the 'Driver' folder.

We recommend the 'SharpCap' freeware as image capture software: http://www.sharpcap.co.uk/sharpcap/downloads

The camera is designed for USB-3 and can freeze if the data transmission rate is too low.

The following parameters are recommended for initial testing:

Capture Area - 3096x2080

Binning - 2

Frame Rate Limit - maximum

Turbo USB - 97

Highspeed Mode - On

Hardware Binning - On

The sliders for exposure and gain should be so adjusted so that the camera is not overloaded.

The menu settings for the computer's performance can be adjusted after a first live image is displayed.

Select the appropriate model in the Sharp Cap 'Camera' menu. If no image is displayed on older computers when using 'Binning 2', please try again with 'Binning 4'.

(Bernd Gährken)

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX178)
Megapixel
6,4
Resolution Photograph (Pixel)
3096 x 2080
Pixel size
2,4
Interfaces
USB 3.0
Bit depth (Bit)
12
Active cooling
yes
Connection (to the telescope)
1,25"
Colour camera
no
Min. exposure time
32µs
Flange focal distance (mm)
17,5
Size of chip (mm)
7,37 x 4,92
Reading noise
2,2
Max. cooling difference below room temperature
45
Chip - Diagonal (mm)
8,86

Special features


Filter thread
yes
Infrared filters
yes

Equipment


Filter wheel
no

General


Weight (g)
410
Series
ASI 178
Length (mm)
86
Diameter (mm)
78

Area of application


Autoguider
no
Moon & Planets
yes
Nebulae & galaxies
yes
AllSky, Meteore
no
