Product no.: 75719

Camera ASI 662 MC Color

RRP: $ 494.00 Our price:
$ 413.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Compare the article with this offer: Omegon Camera veLOX 662 C Color
  • Very high resolution: 2.9 µm pixel size

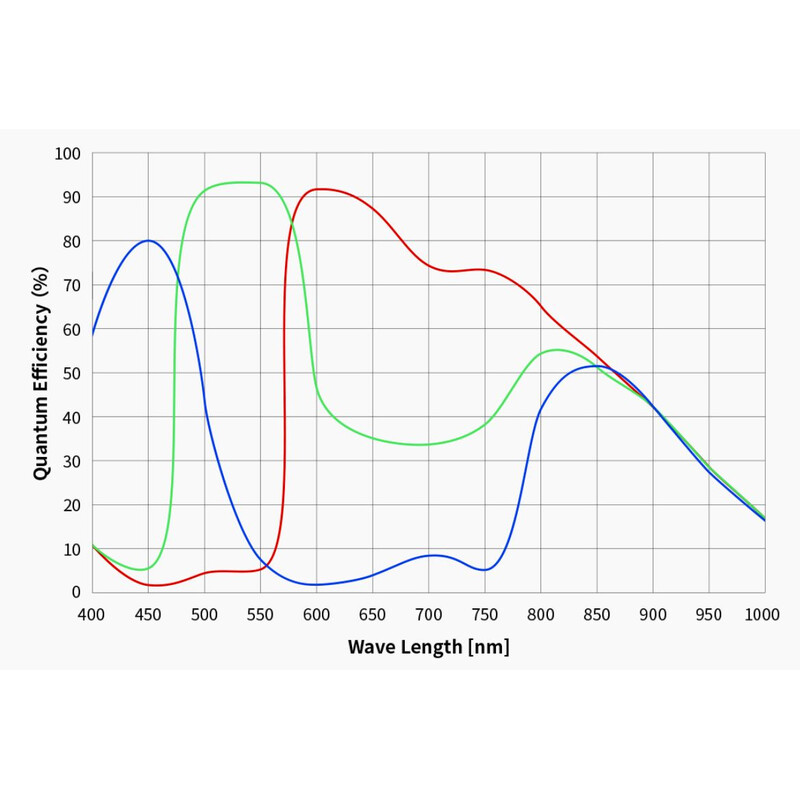

  • With approx. 91% QE, high sensitivity for short exposure times

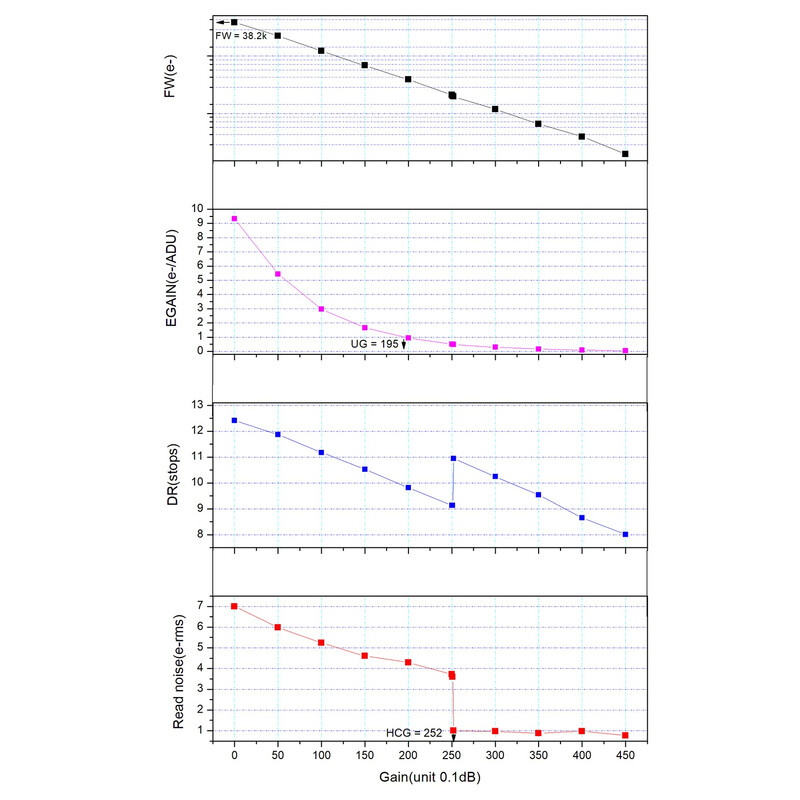

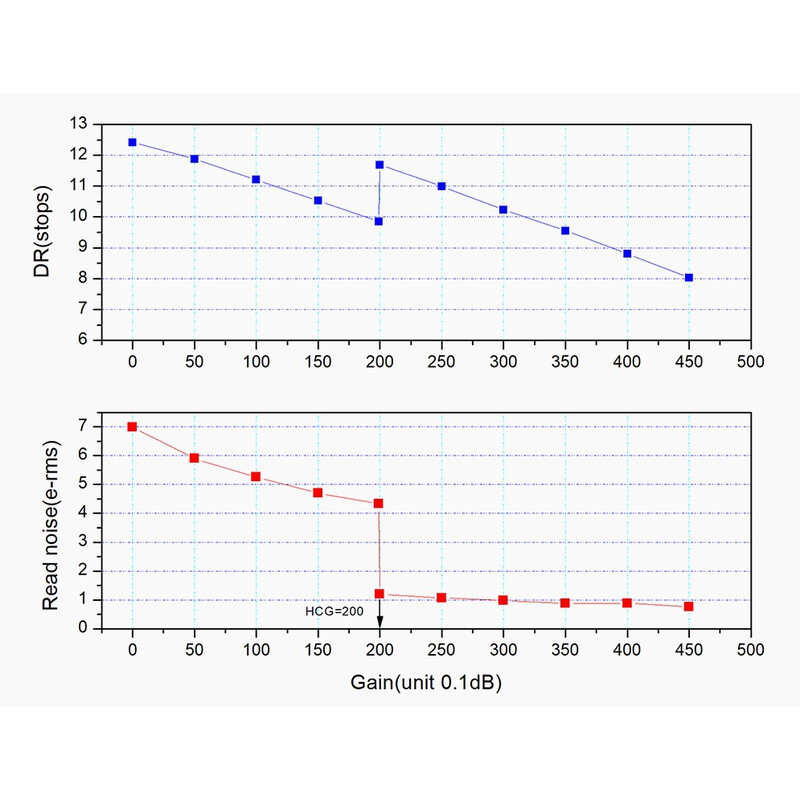

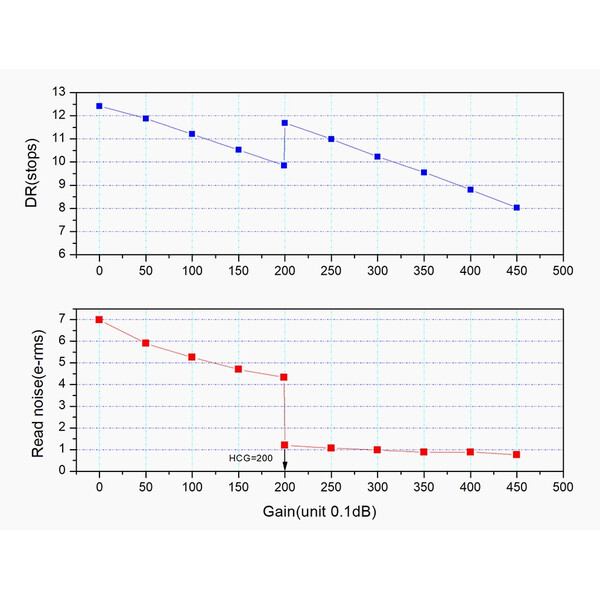

  • Very low readout noise (from 0.8 e-)
  • No more amp glow detectable

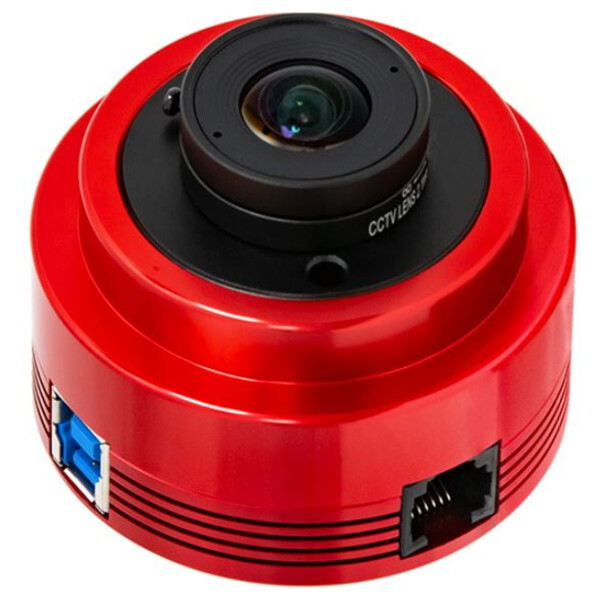

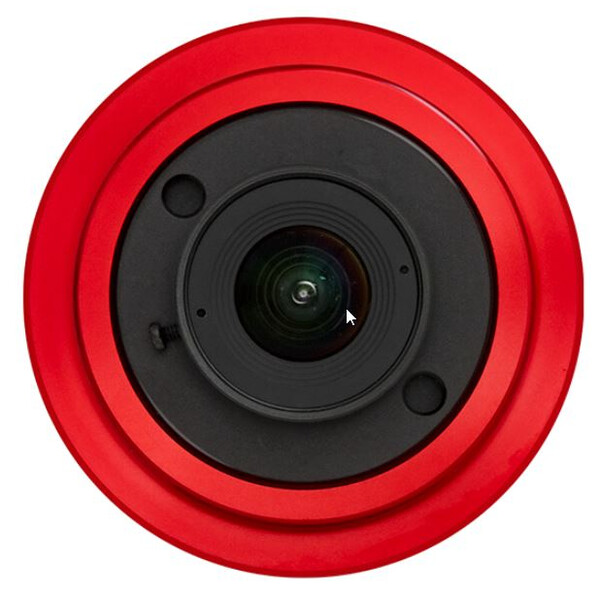

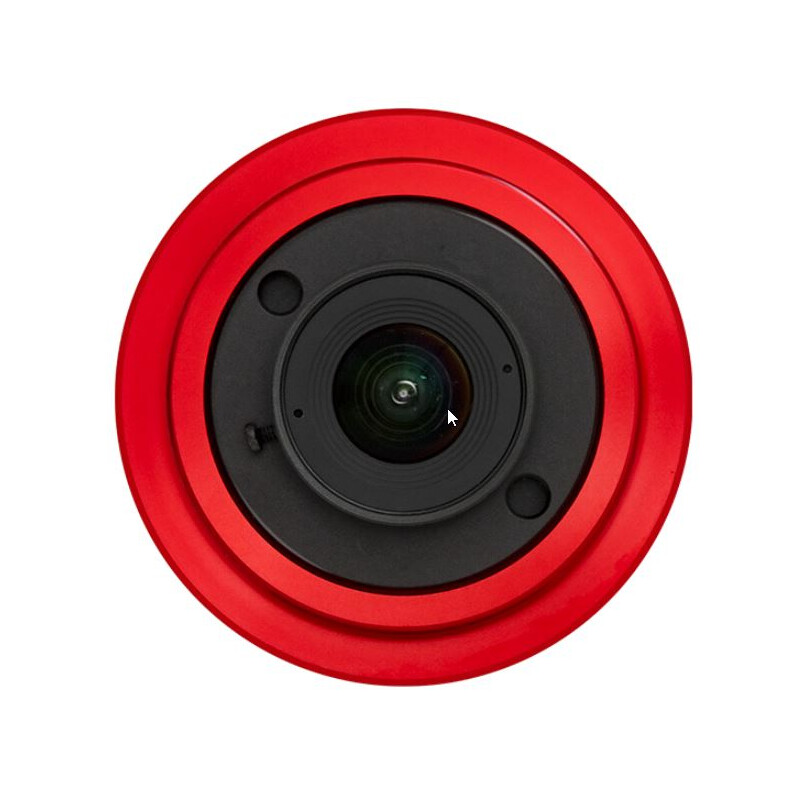

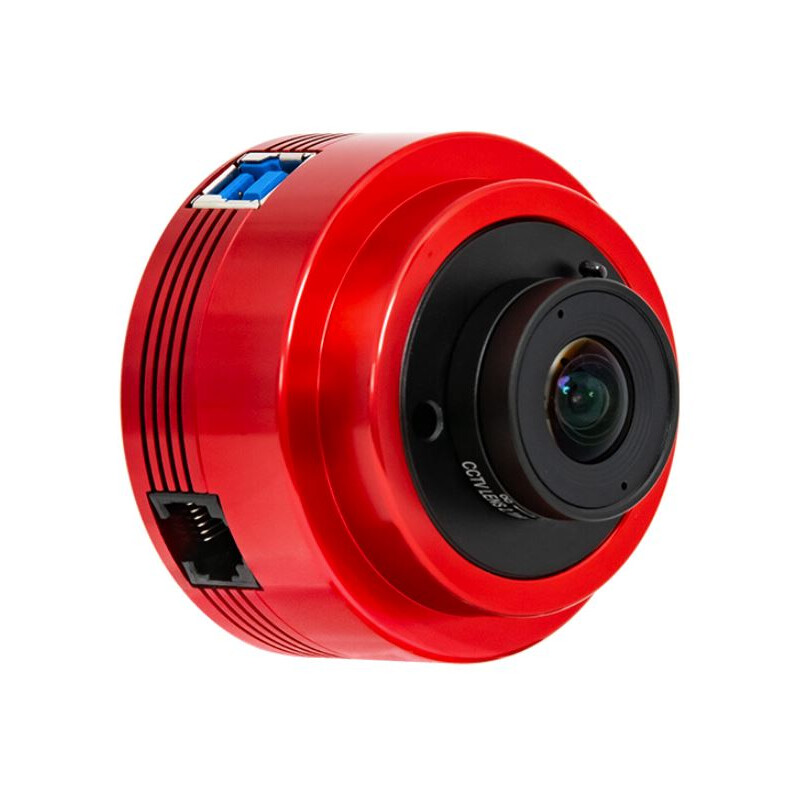

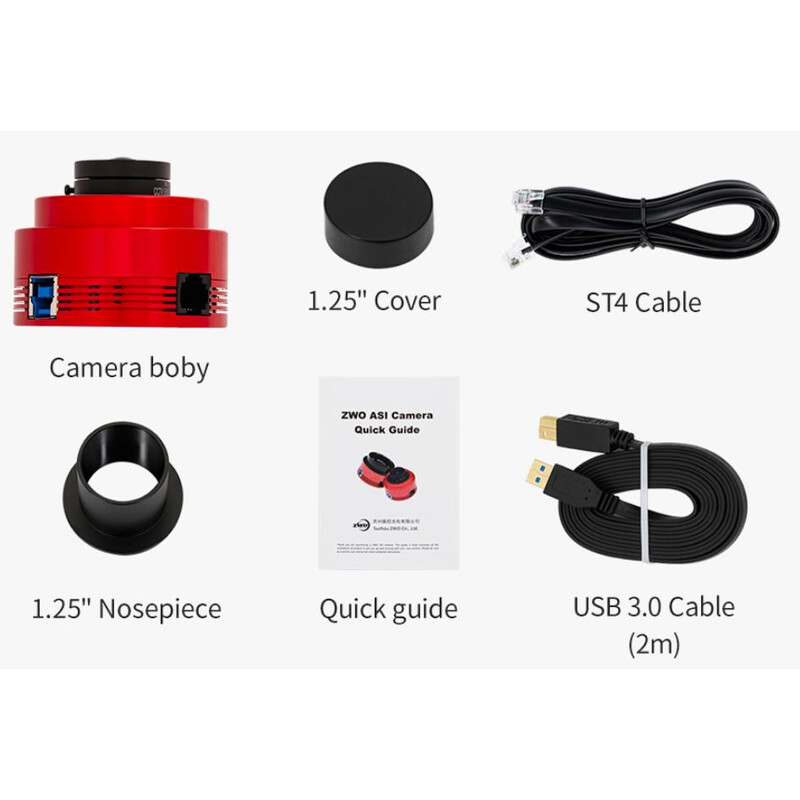

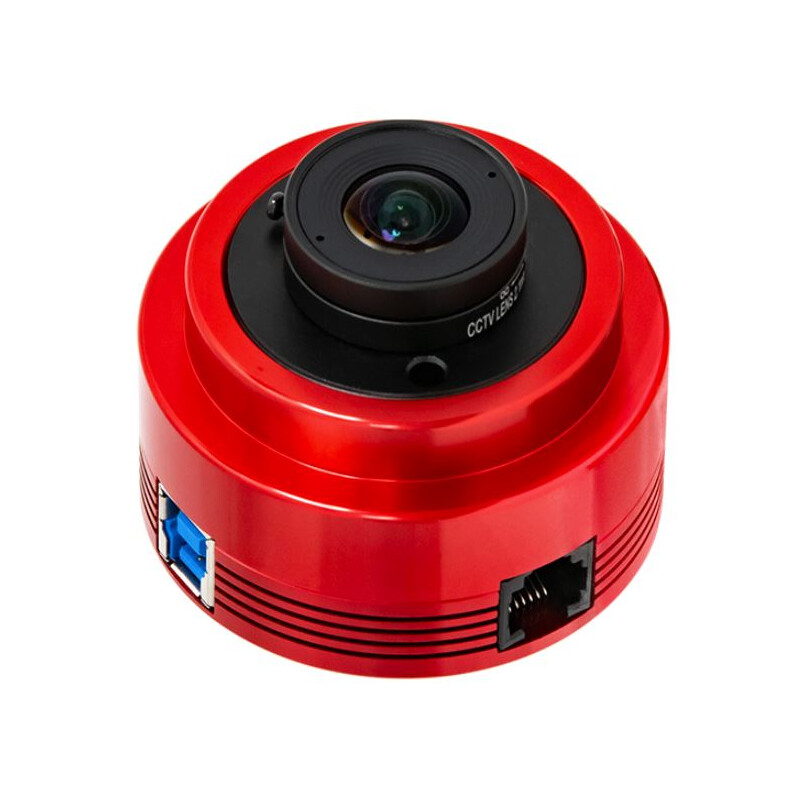

  • Wide-field lens included in delivery

Product description

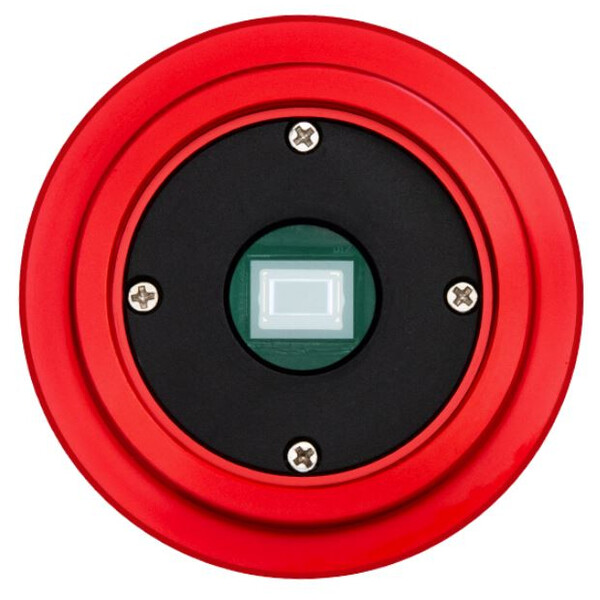

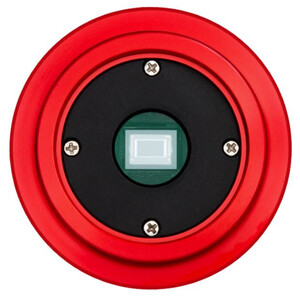

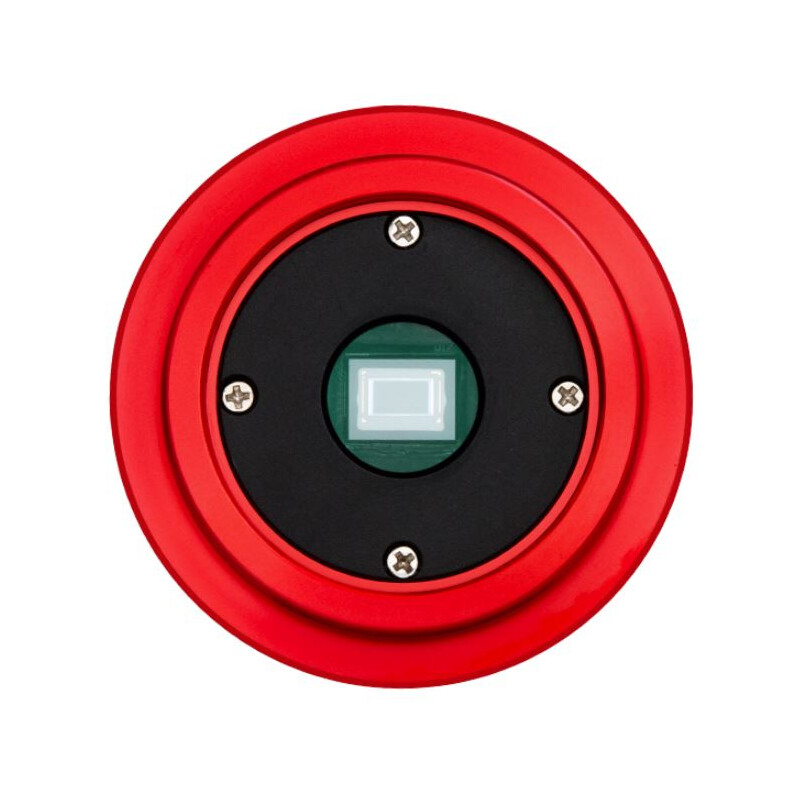

The ASI 662MC offers very high resolution, making it perfect for moon and planet photography. However, EAA (Electronically Assisted Astronomy) and DeepSky astrophotography are also possible with this uncooled camera. This CMOS camera is equipped with a modern 1/2.8" sensor with 1920*1080 pixels. In addition to modern back-illumination technology, the IMX662 sensor offers an extremely smooth image without amplifier glow (amp glow) and also impresses with its high resolution (2.9µm pixels) at a high frame rate.

The ZWO ASI 662MC is primarily used for detailed planetary photography and high-resolution images of the moon's surface, solar photography (always with a suitable filter!), images of compact brighter nebulae (planetary nebulae) and globular clusters. Exposure times of up to 2000 seconds are possible here.

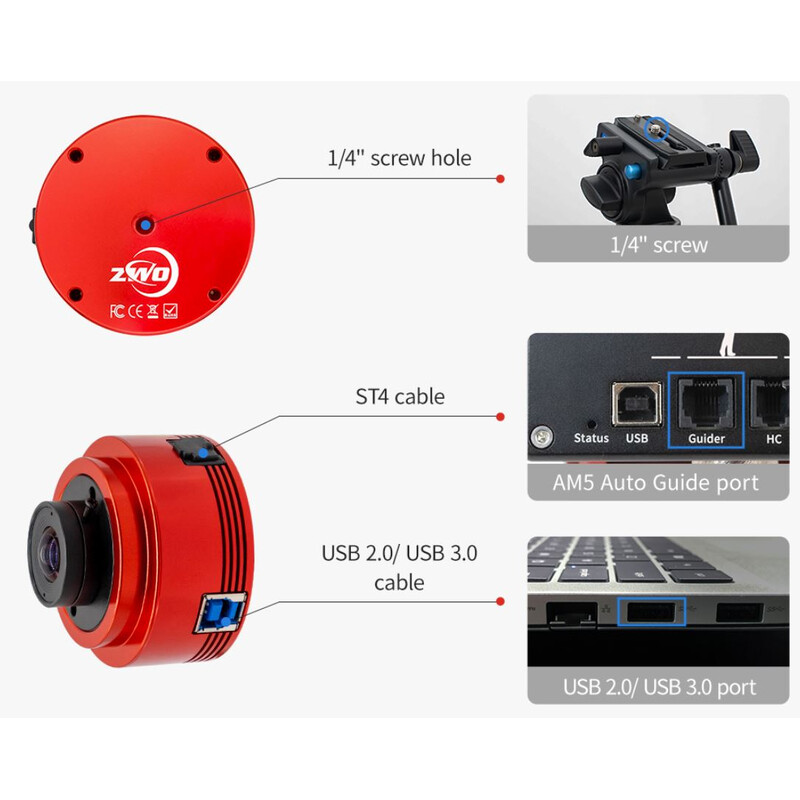

This camera model can also be used very well for infrared photography (less seeing influence) or as an autoguider.

The high resolution, combined with a high frame rate of 108 fps (RAW8 format), also enables real-time observations of planets and details on the Sun and Moon. The built-in clear glass filter prevents dust from entering the sensor. With the right selection of contrast filters, nebulae filters, IR pass filters or UV/IR blocking filters, you have full control over which light falls on the sensor.

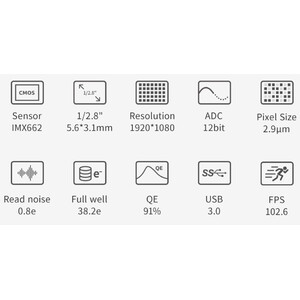

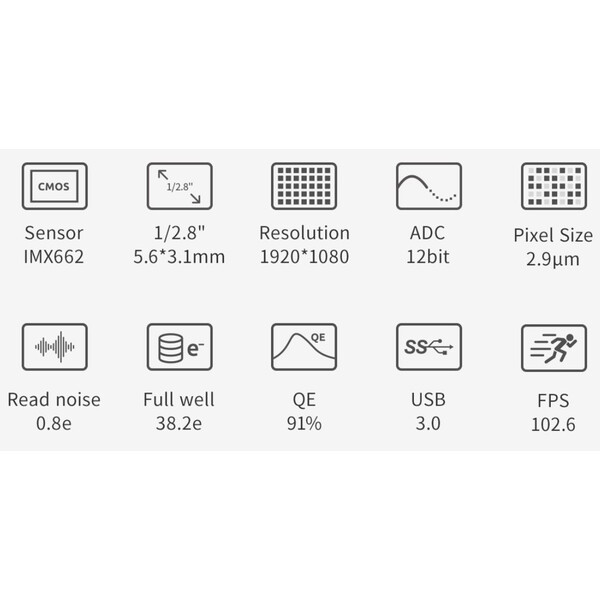

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX662)
Size of chip (mm)
5,6 x 3,1
Megapixel
2,1
Pixel size
2,9
Resolution Photograph (Pixel)
1920 x 1080
Bit depth (Bit)
12
Active cooling
no
Interfaces
USB 3.0

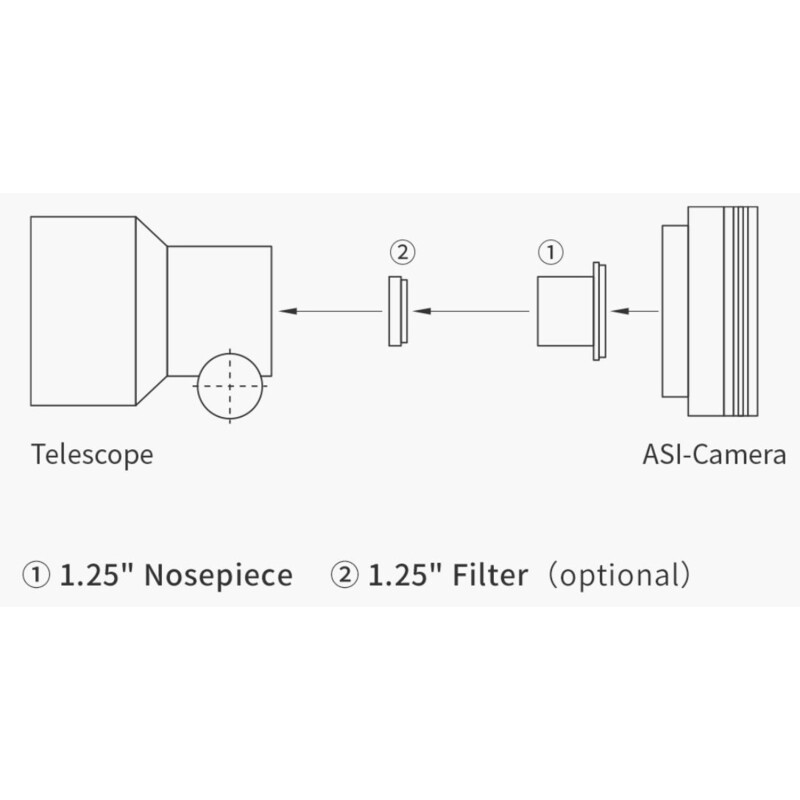

Connection (to the telescope)

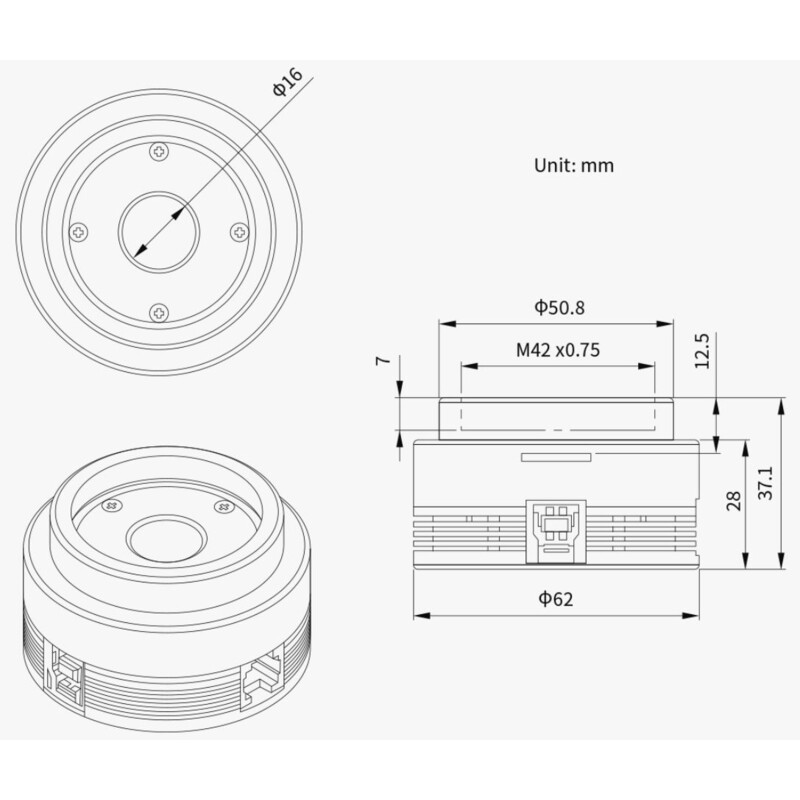

T2 (M42 x 0,75)
Colour camera
yes
Operating temperature
-5° bis +45°
Max. exposure time (min)
33,3
Min. exposure time
32
Images per second
107 (at full resolution)

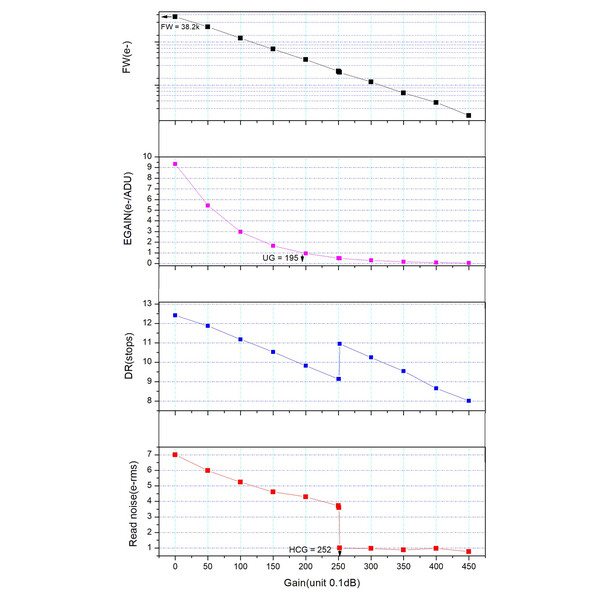

Reading noise
0,8
Full Well Capacity
38,2

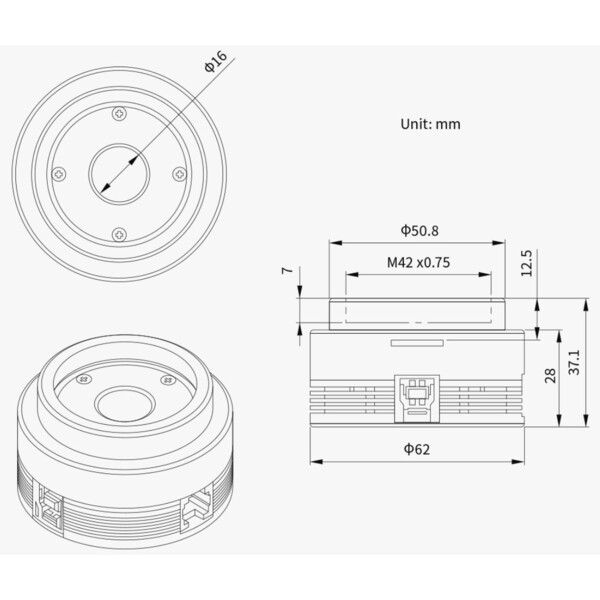

Flange focal distance (mm)
12,5
Power supply
5 (via USB)
Chip - Diagonal (mm)
6,4

Equipment


Filter wheel
no

General


Weight (g)
126
Series
ASI 662
Diameter (mm)
36
Length (mm)
62

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes

Product safety

Manufacturer: Suzhou ZWO Co., Ltd., Moon bay road 6, SuZhou Industrial Park, 215123 SuZhou, CN, www.zwoastro.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
