iOptron Mount SkyGuider Pro iPolar Set

Product no.: 64683
Manufacturer: iOptron

$ 820.00

incl. VAT
plus shipping costs

Express shipment possible for delivery tomorrow, 23.10.2020!

too expensive?

ready for shipping in 24 h + lead time

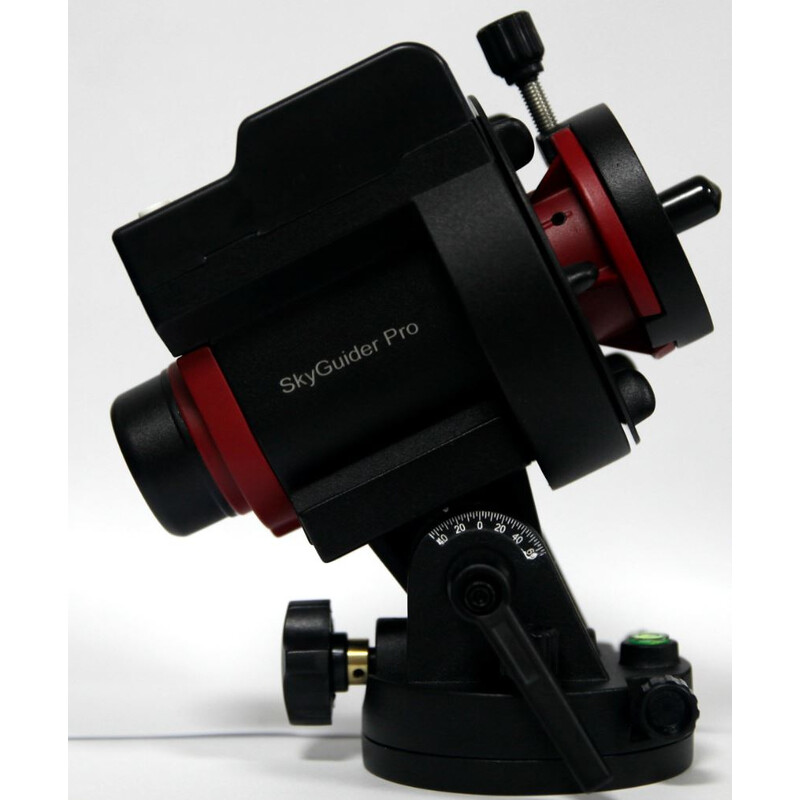

iOptron Mount SkyGuider Pro iPolar Set
iOptron Mount SkyGuider Pro iPolar Set
iOptron Mount SkyGuider Pro iPolar Set
Product description
Specifications
Customer reviews
Recommended accessories
Downloads

Product description:

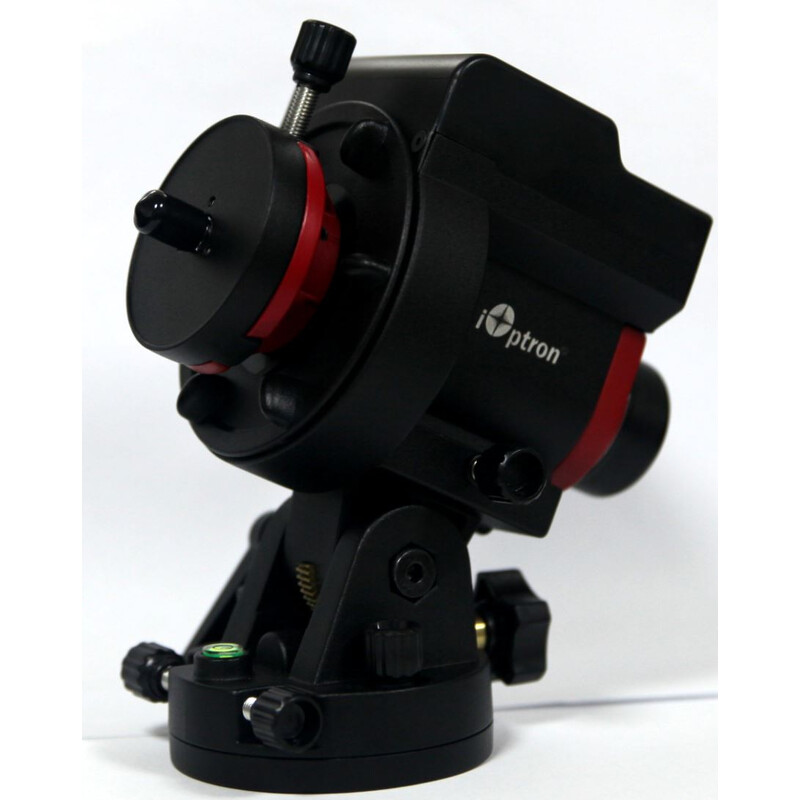

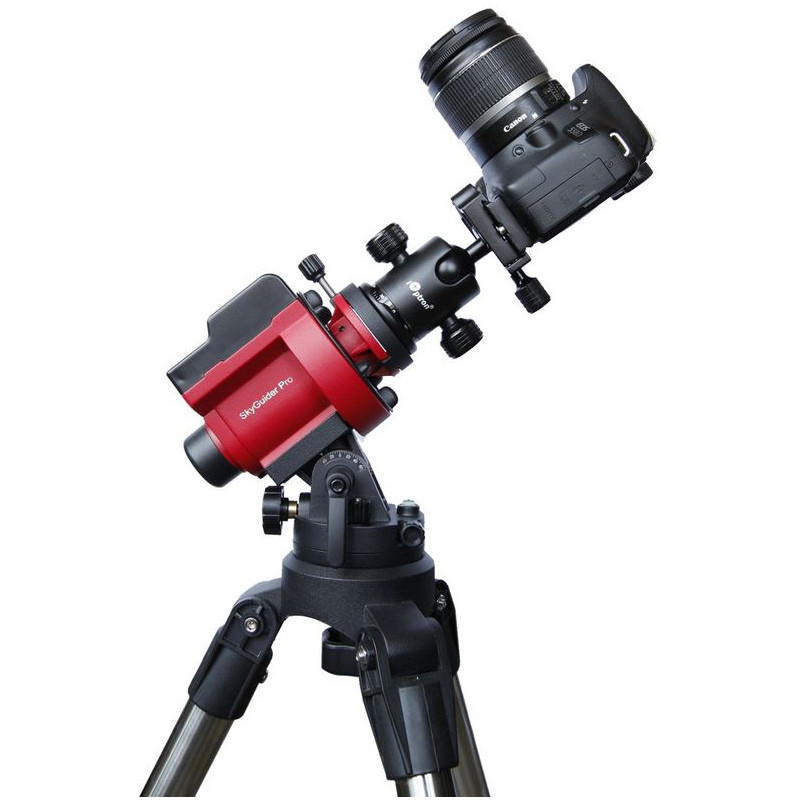

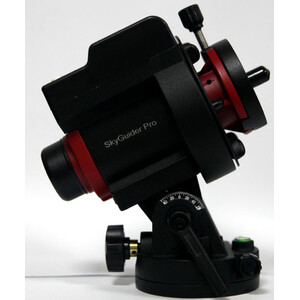

The redesigned SkyGuide Pro mount head is more compact, small enough to fit on your palm, better precision, silent tracking, built-in rechargeable power source, ST-4 guiding port and camera trigger port. The improved precision polar scope maintains a fine engraved reticule, now features adjustable illumination with different brightness levels.

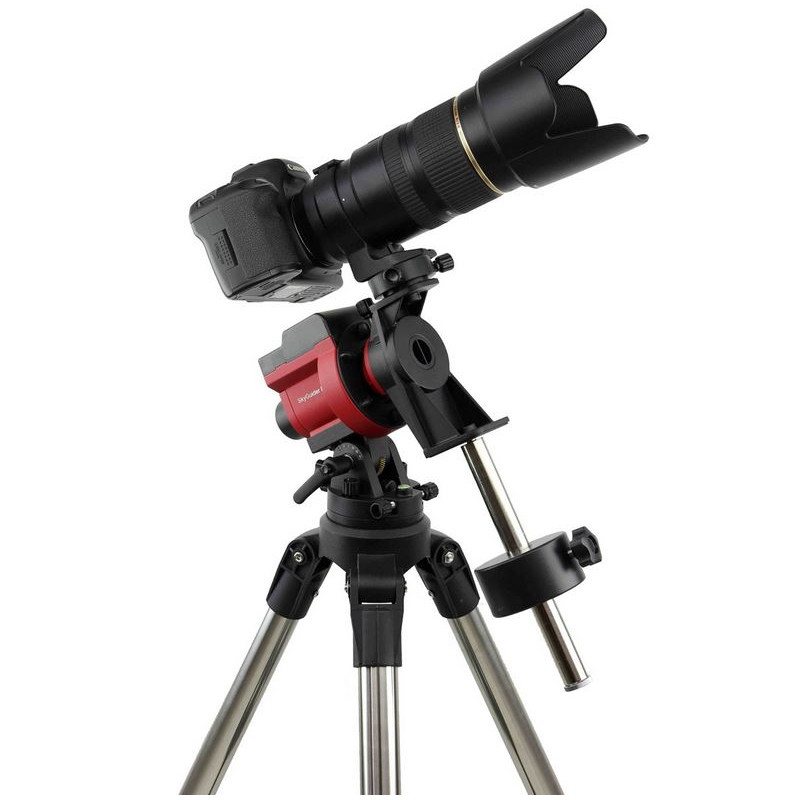

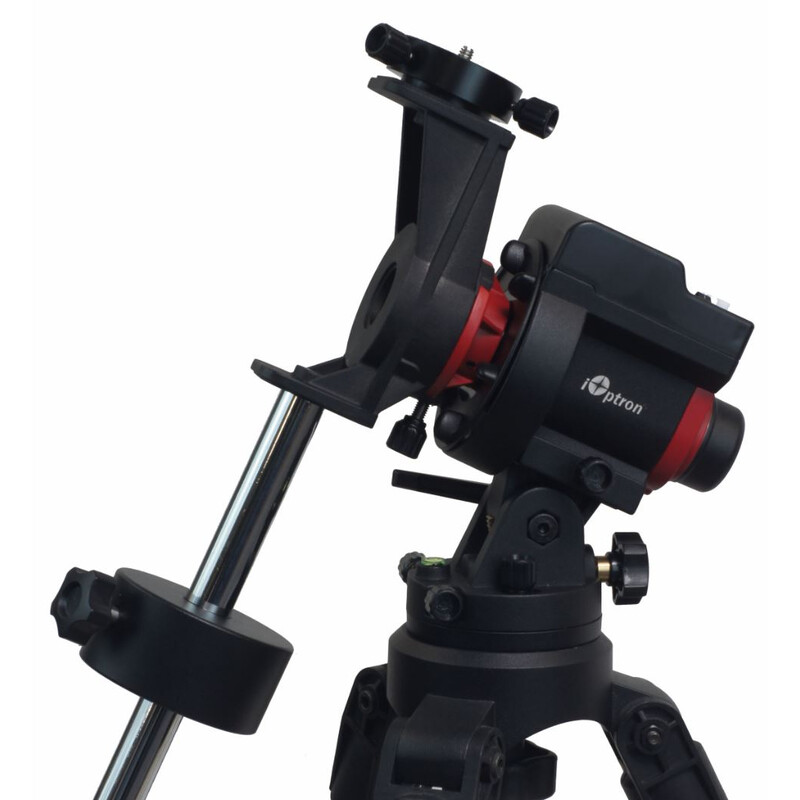

The DEC mounting bracket allows you to balance a heavy camera and/or lens better, or even mount a light telescope. The optional Go2Nova hand controller allows you to check the Pole Star position for the polar alignment, slew the mount, adjust the guiding rate, change the mount settings and control the camera trigger.

The SkyGuider Pro features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres. iOptron have also added a quick slew mode with both forward and reverse to help quickly reframing your image without disrupting the cameras position.

PoleMaster - a high precision, easy to use electric polar scope

Achieving a high precision polar alignment is not an easy feat. You may spend tens of minutes, if not hours, to have a good polar alignment. After you get everything ready and begin taking exposure, you bumped the mount, and you have to restart from the beginning. An iOptron’s Center-balanced Equatorial Mount (CEM), such as CEM25 and CEM60, which equipped with an all time accessible polar scope, will allow you to make a quick and precise polar alignment in a few minutes. However, you still need to bend yourself, or knee down on the ground to perform the polar alignment

The most straight forward way for polar alignment is just to find the true north point and match its position with the rotation center of your R.A. axis. The PoleMasterTM electronic polar scope employs this idea. This device can be installed on front of the R.A. axis. It use a highly sensitivity camera to capture the image of northern sky. The sensitivity is much higher than the naked eye, so it can see not only the Polaris but also those faint stars nearby. Based on the locations of these stars, it can calculate the position of the true position of North Pole. With some sophisticated methods the PoleMaster can also detect the rotation center of the R.A. axis. It will mark the two points on the computer screen, one is the R.A. rotation center, the other is the virtual polar point. Adjust the mount and let them overlap then the pole is well aligned.

PoleMasterTM electronic polar scope provides a quick and easy solution. It gives you a direct and simple way to align with the pole. Within two minutes you could obtain a very high polar alignment precision up to 30 arcsec.

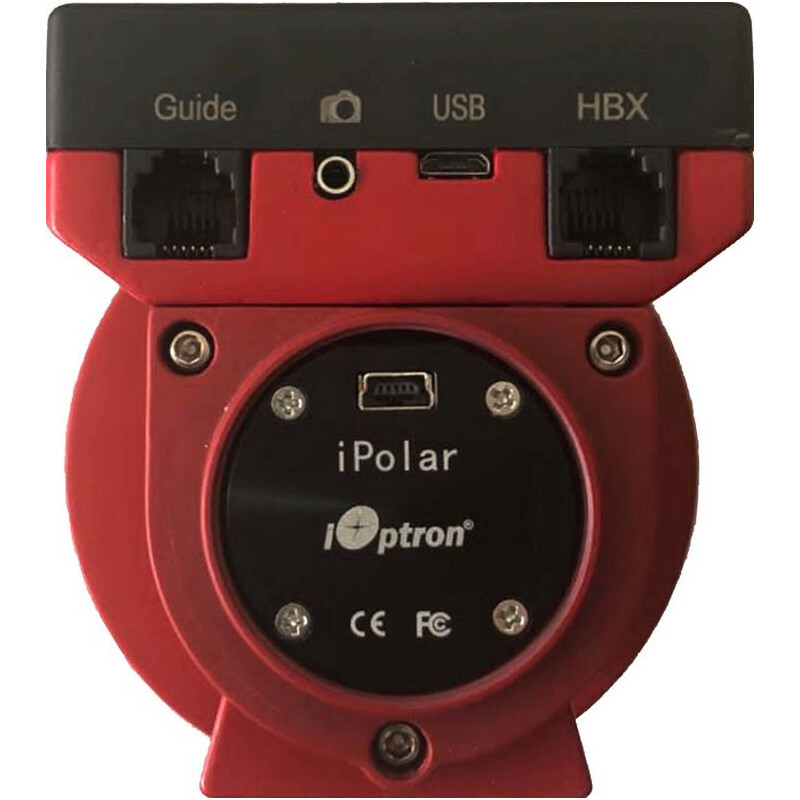

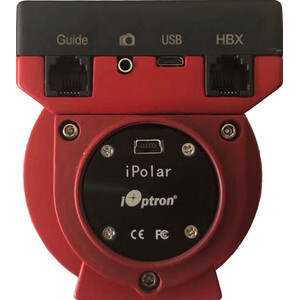

iPolar inside

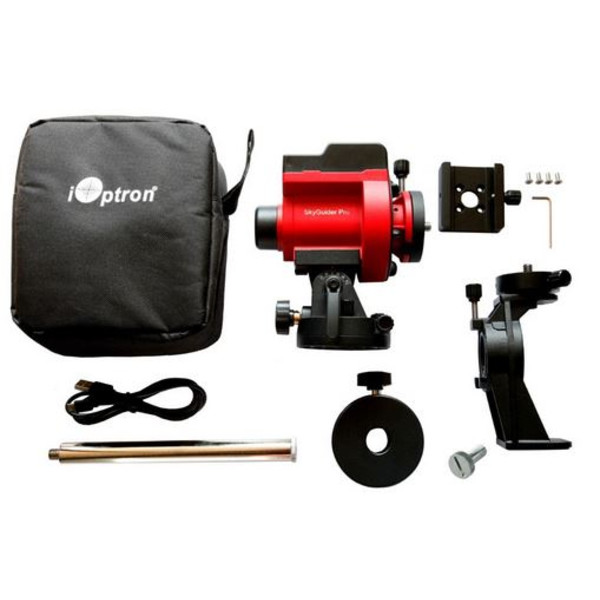

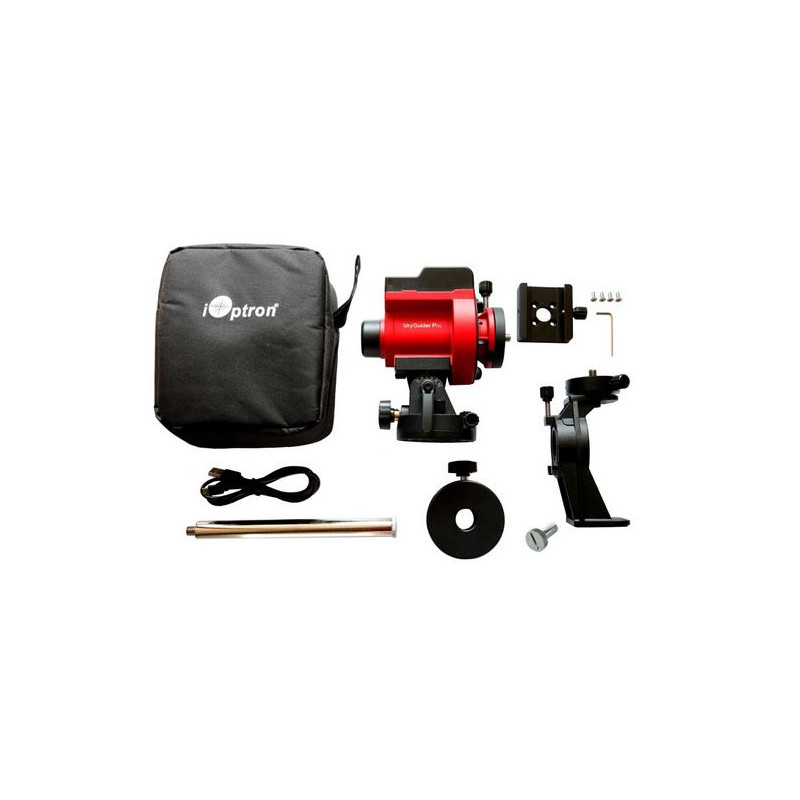

Included in delivery

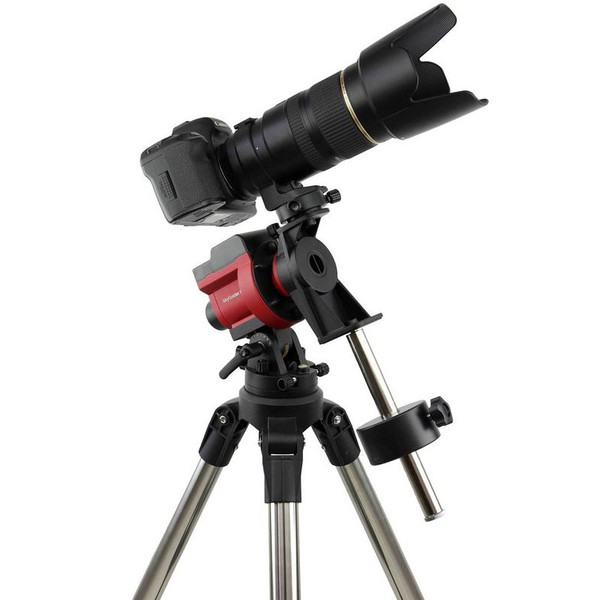

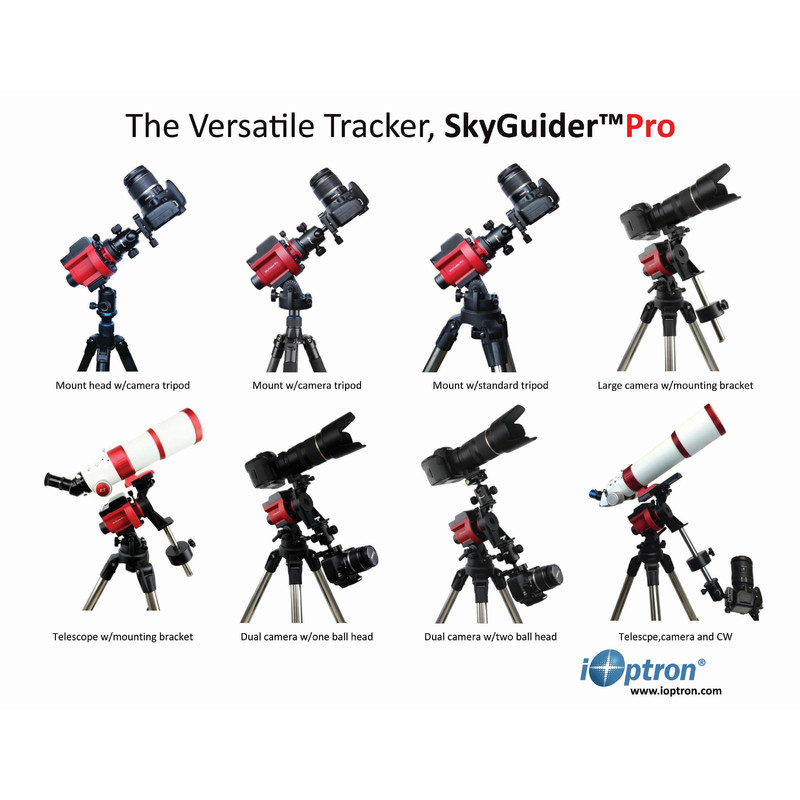

Typical application 1

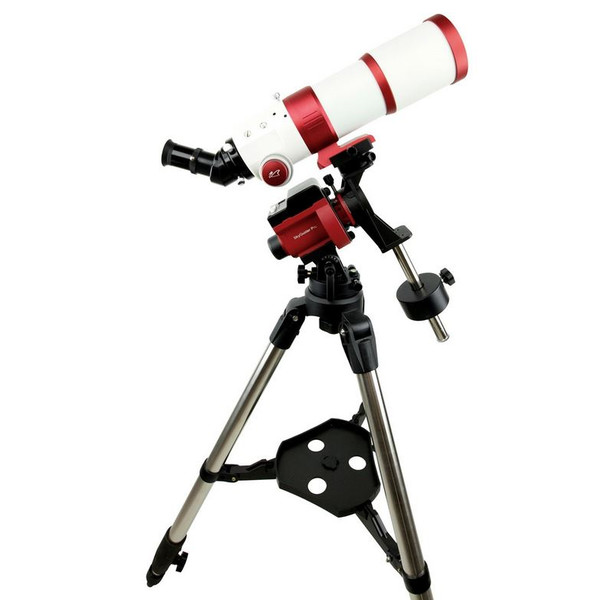

Typical application example 2

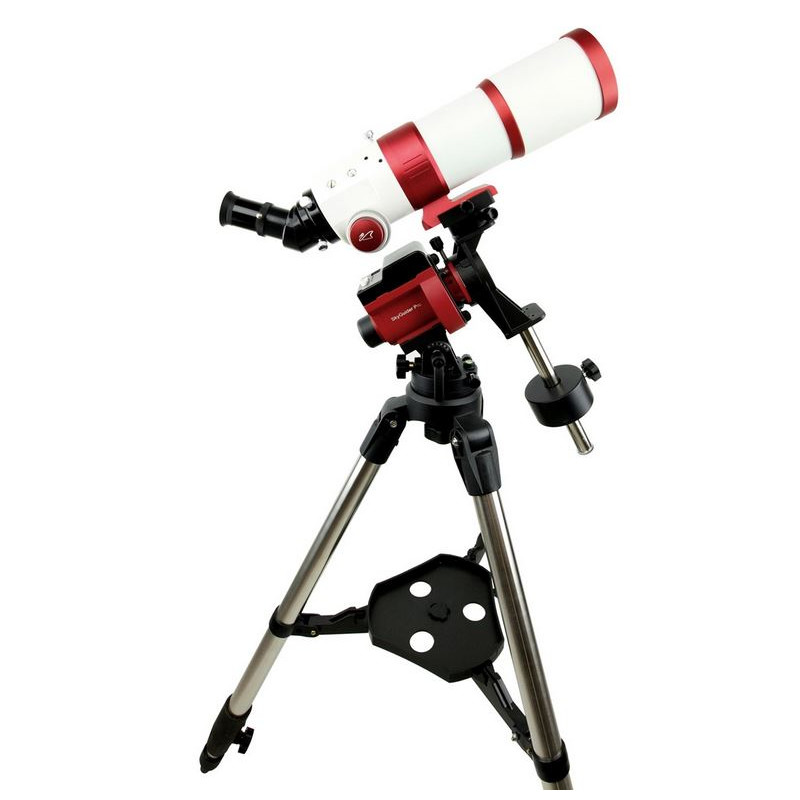

Example of use 3
