Mountings & accessories > Mountings > Camera Mounts > Omegon > MiniTrack > Omegon Mount MiniTrack LX Quattro NS SET (with Ball-Head + Polar-Wedge)
Product no.: 71927

Mount MiniTrack LX Quattro NS SET (with Ball-Head + Polar-Wedge)

$ 419.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
This product is available in the following variants:
Variant name Price
MiniTrack LX Quattro NS $ 249.00
MiniTrack LX Quattro NS SET (with Ball-Head + Polar-Wedge) $ 419.00
MiniTrack LX4 Quattro NS SET (with Ball-Head) $ 279.00

Product description

MiniTrack LX Quattro: astronomy photos that succeed

The Omegon MiniTrack LX Quattro is a mini-mount for astrophotography using wide-angle and lightweight telephoto lenses. This will allow you to capture fascinating images of the night sky - even if you haven't had anything to do with astrophotography until now.

This astrotracker is purely mechanical, without batteries - and now also takes heavy cameras and lenses weighing up to 4 kilograms. But there's even more to it: the MiniTrack LX Quattro has been redesigned from scratch and is now better than ever. For successful astrophotography that's addictive.

The highlights at a glance:

  • Successfully and effortlessly capturing the night sky
  • No need to recharge: functions using a mechanical system, independent of battery and power cables
  • Wind up the mechanism and get going immediately
  • Perfect for wide shots of the starry sky and telephoto lenses
  • Fits in every backpack: the perfect mount for travelling - wherever the road takes you.

The special advantages of the MiniTrack LX Quattro:

  • Even stronger: the new MiniTrack now takes even heavy cameras up to 4 kg
  • A needle roller bearing ensures smooth running - for better-tracked images
  • Newly developed spring system: the stronger spring system replaces a counterweight and reliably guides cameras even with heavy one-sided loads
  • CNC body: the MiniTrack consists of a piece of machined aluminium - high quality, stable, the perfect companion on every trip
  • Optical polar finder for exact alignment to the celestial pole - Optionally available is the Omegon polar finder light for MiniTrack LX2, LX3, LX Quattro and EQ mounts with light unit
  • Simple conversion for astrophotography in the southern hemisphere
  • Simple to assemble: built-in Vixen GP-style plate - no additional rail needed

Better astronomy photos when travelling or at home

Now bring home not only holiday snaps but also impressive astronomy photos from your travels. It's easier than you might think. All you need: a tripod, the MiniTrack, a ball head and your camera. Reduced to the essentials, it has just one mission: good astrophotography that everyone can manage. Here's how it's done...

60 minutes of mechanical tracking

The MiniTrack has a mechanical heart - there's no place for electronics here. The accurate clockwork precisely guides your camera. Wind up the MiniTrack like an analogue clock and the tracking is activated. This mount never fails, even at sub-zero temperatures. Your new mount keeps a cool head, even with telephoto lenses. It is not without reason that this wide-field photography expert has conquered the hearts of amateur astronomers.

The smallest counterweight in the world?

The MiniTrack LX Quattro has a completely new spring system. It's not a counterweight, but it works like one. It ensures that the LX Quattro remains as compact and travel-ready as ever. It's simply got better and stronger. The spring directly drives the axle and guides your camera like a strong and precise arm.

Tip: an ideal tracking speed is reached when the mechanism ticks at 130-135 times per minute. You may need to adjust the spring tension, depending on the weight of your camera. We recommend that you measure the ticks per minute with a TapTempo BPM app for smartphones. These apps are created for the music industry and are supposed to automatically measure the tempo of a song. But you can use such an app to measure the MiniTrack's speed.

Needle roller bearing: track the stars precisely

The MiniTrack's integrated needle roller bearing performs the same role as power-steering in a car: It runs as smooth as silk. This is exactly what is needed, because the MiniTrack tracks the stars smoothly and precisely even when carrying heavier loads.

Looks great, inside and out: CNC housing made completely of aluminium

A real eye-catcher: The body of the MiniTrack LX Quattro now consists of a single piece of aluminium. No corners have been cut here, which makes this model even more stable. Whatever you demand from your MiniTrack, it will accompany you up mountains or on your travels and will succeed in every astronomy adventure with a smile.

High load-bearing capacity of 4 kilogrammes

The MiniTrack has now become fitter and can carry cameras weighing up to 4 kilogrammes. At the same time, our developers have kept the old and proven form. So the MiniTrack Quattro still fits in any bag. Have you always wanted to use a large and particularly fast lens? Until now, unfortunately it was always too big - but now it's possible.

Find the celestial pole more precisely

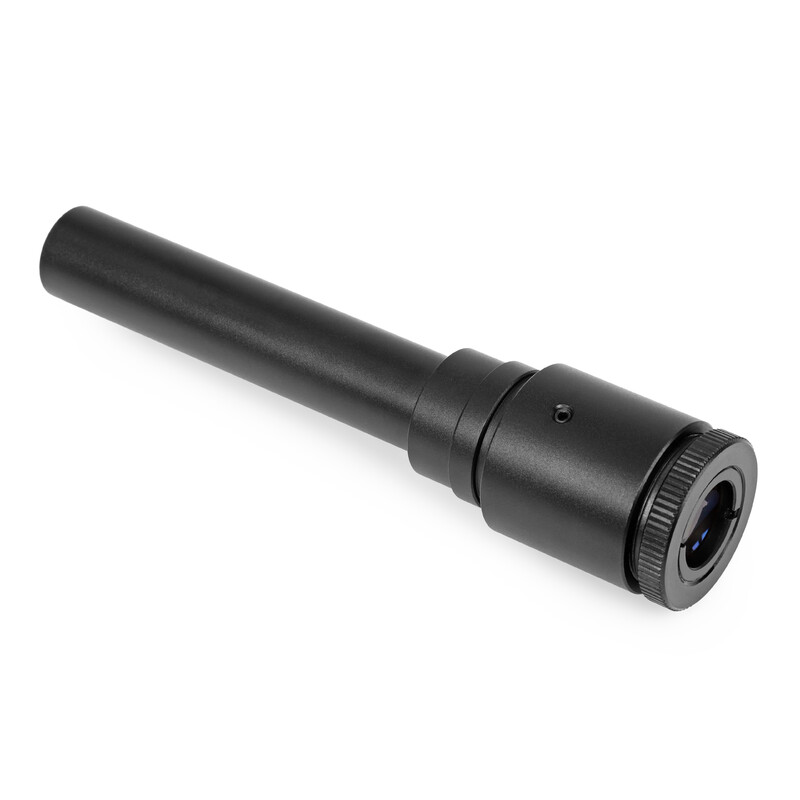

Simply use the optical polar finder to find the celestial pole. The MiniTrack comes with a holder and a polar finder, as also seen on large mounts. This makes it even easier to align the MiniTrack for images with point-shaped stars.

Fits on every photographic tripod

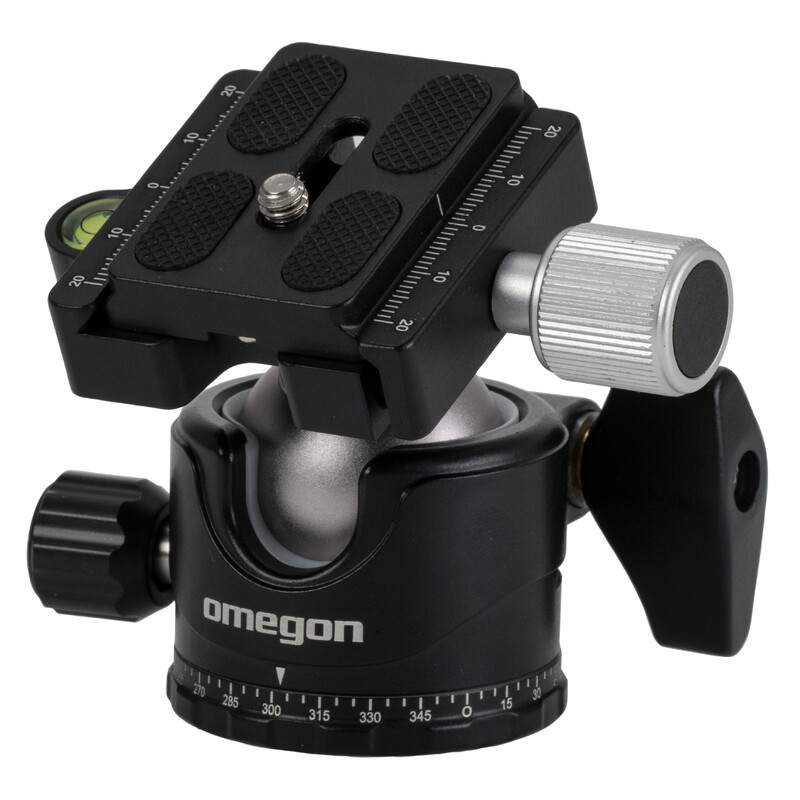

The MiniTrack has two connectors: for the tripod and for your camera or a ball head. Attach the mount to your photographic tripod as usual using a 1/4" thread, and align the MiniTrack as required. On the other side, attach a ball head using a 3/8" thread.

GP plate for mounting

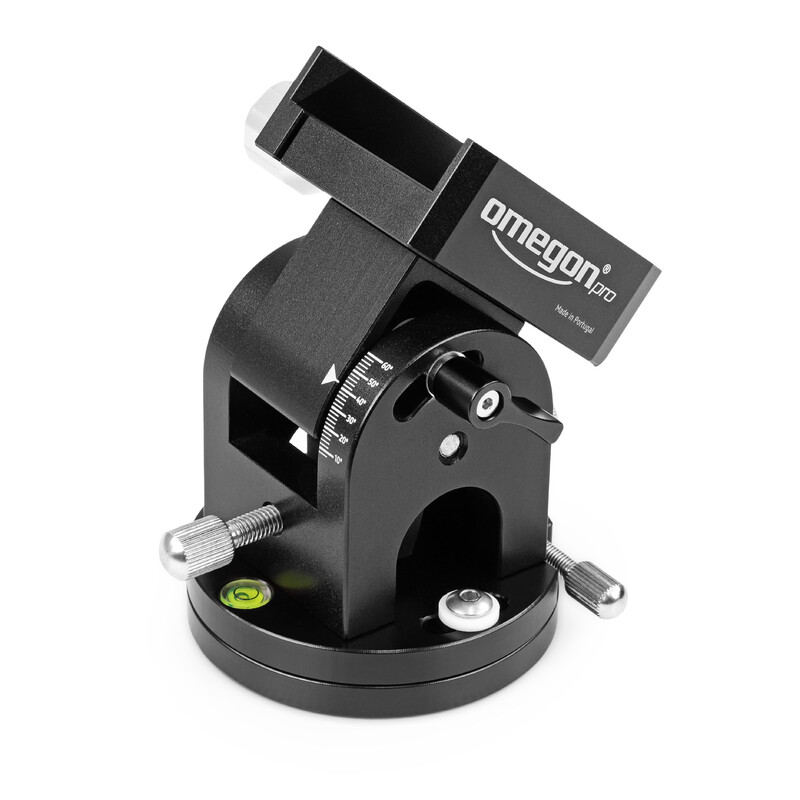

Simply attach the MiniTrack to a polar wedge. You don't need a prism rail. A GP Vixen-style plate has been incorporated into the body. Here everything is fully integrated and you no longer need to waste time on screws or spanners.

And if you want to mount the MiniTrack onto a tilt head? There is an integrated 1/4" and 3/8" thread for this purpose.

Invented by Cristian Fattinnanzi, further developed by Omegon

The MiniTrack was developed by Christian Fattinnanzi from Italy. Together with the inventor, Omegon has further developed the MiniTrack and realised it technically. It is now a perennial favourite and is used by thousands of astrophotographers all over the world. To ensure consistently high quality, we manufacture the MiniTrack exclusively in Portugal, where it is assembled and tested by our specialists.

With this fully mechanical mini-mount, you can take astronomy photos in no time at all. No power. No charging. No batteries. Just take photographs. Anytime, anywhere.

Tags: MiniTrack, Mini Track, LX2, LX3, LX4, Lx Quattro

Scope of delivery:

Our expert comment:

What's the best way to take successful astro-photos?

You can find out in our article Your first astronomy photo in 7 easy steps using the MiniTrack.

To adjust the polar finder you need a 1.5mm Hex key, for example the Omegon 1.5mm Hex key.



Fits ...
Camera tripod
Operating temperature
-20 - 60
Max. additional load capacity (kg)

Special features

Tracking on DEC axis
Tracking on RA axis


Tripod <p>
without tripod
Pole finder
Ball head
Other contents
Polar wedge


Silver mat
Weight (g)
Overall size LxWxH (cm)
21 x 8 x 22
Type of build
Camera mount
Variant name
MiniTrack LX Quattro NS SET (with Ball-Head + Polar-Wedge)

Recommended accessories

Telescope accessories (2)
Carry case

Omegon Carry case for the MiniTrack

$ 29.90*
Photo Tripods (1)

Berlebach Threaded sleeve C (reduction)

$ 3.90*
Astronomy (1)

Omegon polar finder light for MiniTrack LX2, LX3, LX Quattro and EQ mounts with light unit

$ 59.00*

*All prices include VAT plus shipping costs.

Omegon Mount MiniTrack LX Quattro NS SET (with Ball-Head + Polar-Wedge)

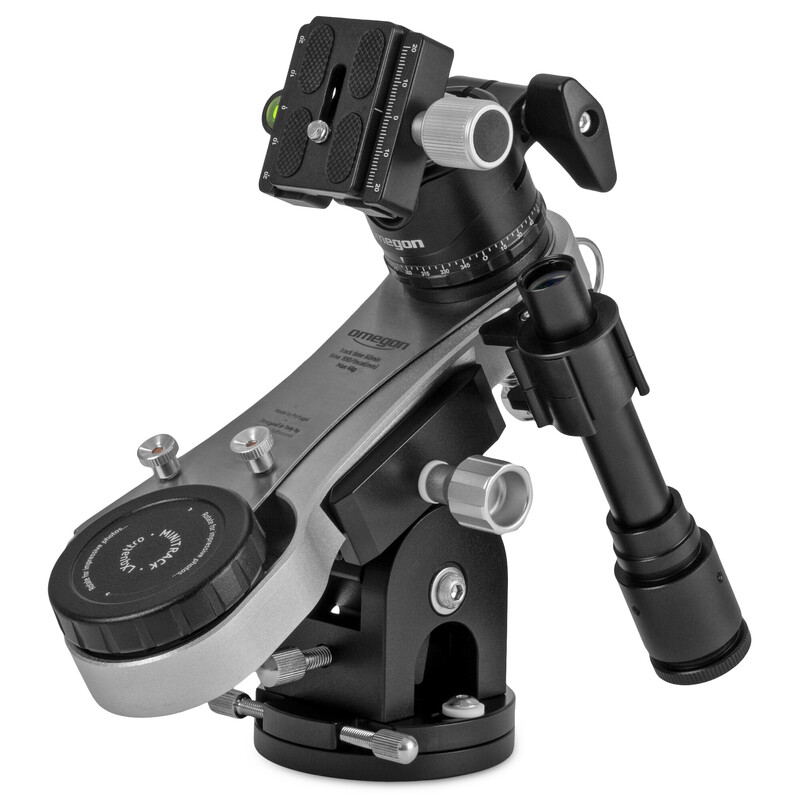

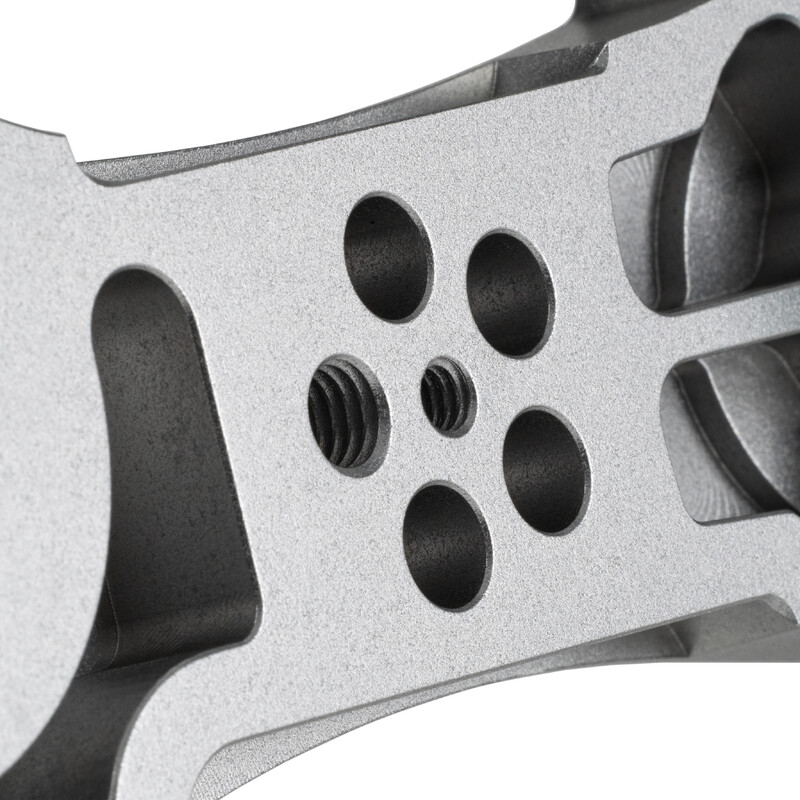

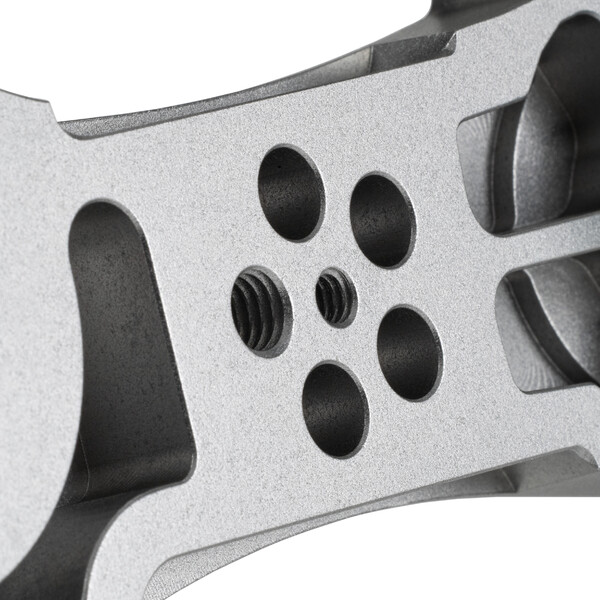

Integrated GP holder and 1/4" and 3/8" photo threads

Omegon Mount MiniTrack LX Quattro NS SET (with Ball-Head + Polar-Wedge)

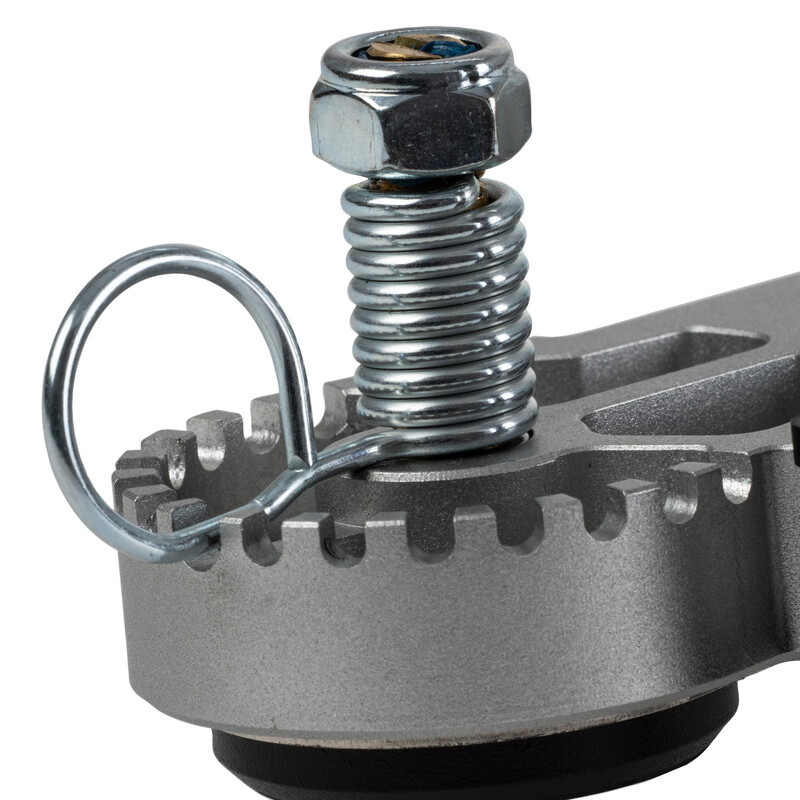

The strong spring system ensures precise tracking for cameras up to 4kg

Omegon Mount MiniTrack LX Quattro NS SET (with Ball-Head + Polar-Wedge)

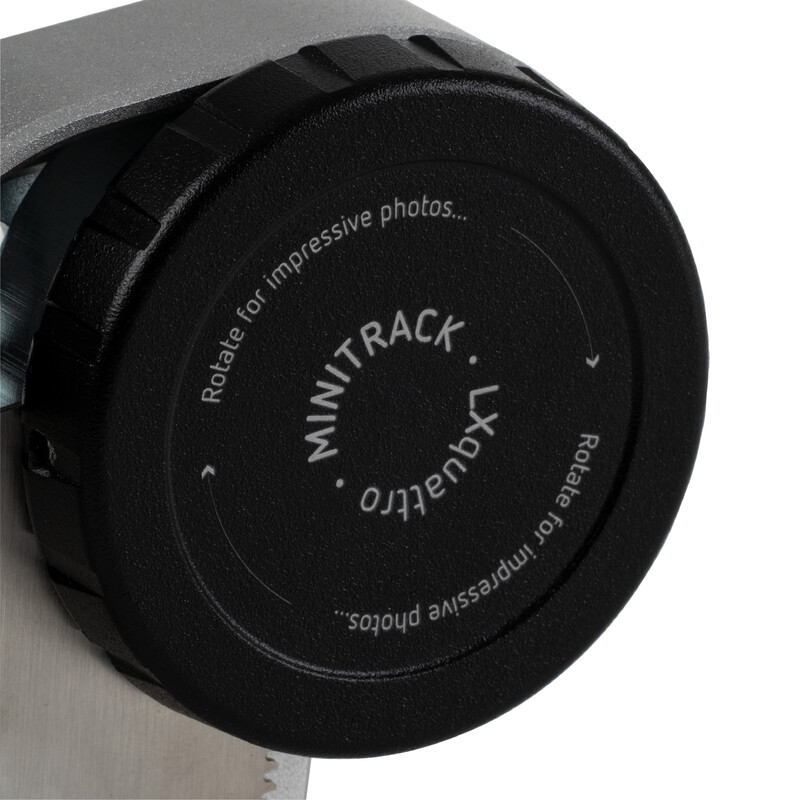

Mechanical tracking: simply wind up and get going

Omegon Mount MiniTrack LX Quattro NS SET (with Ball-Head + Polar-Wedge)

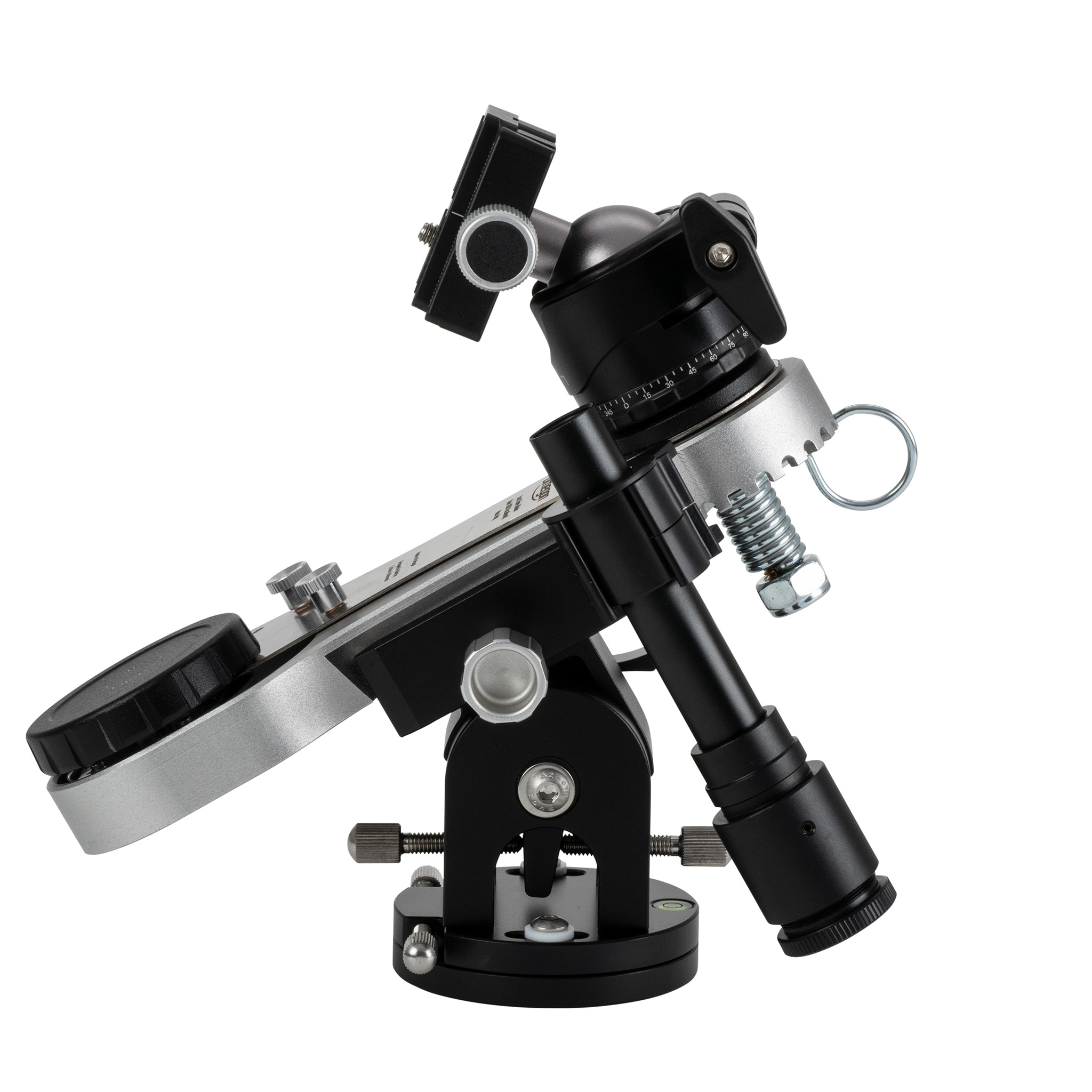

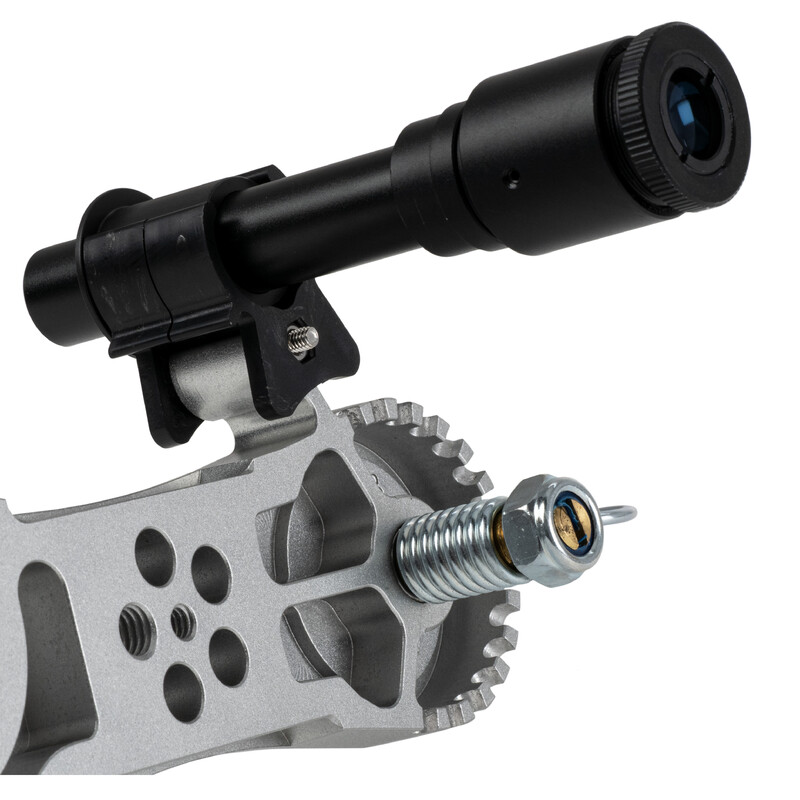

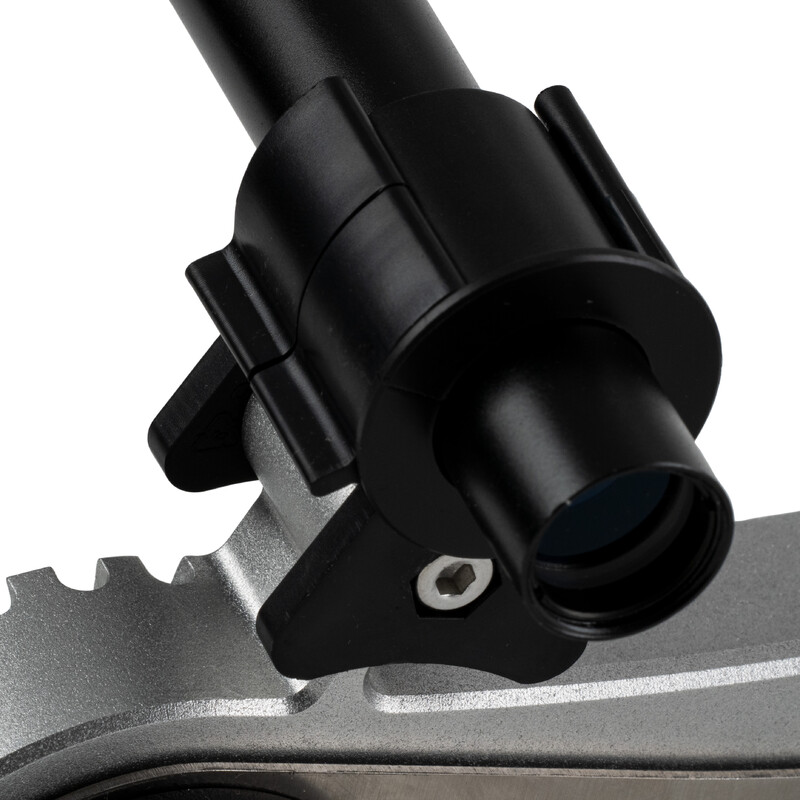

With the parallel-mounted optical polar finder, you can precisely polar-align the MiniTrack
