Product description

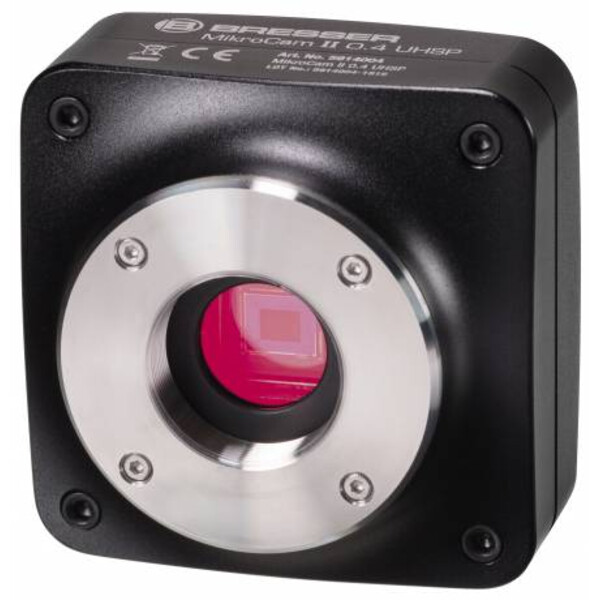

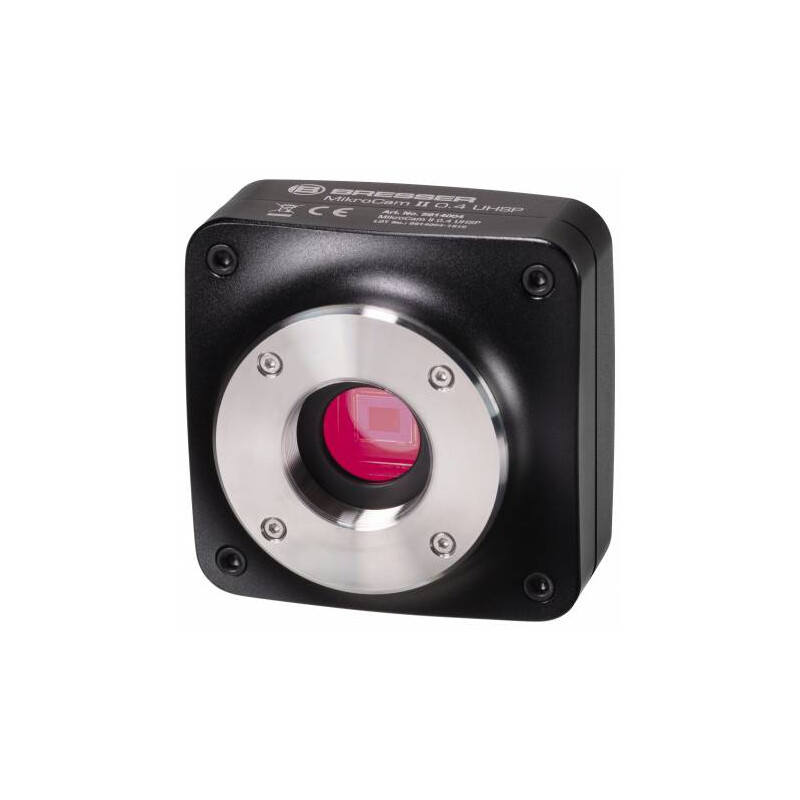

BRESSER MikroCam II 0.4 UHSP microscope camera

The BRESSER MikroCamII 0.4 UHSP Microscope camera is the perfect tool for demanding microscopy applications where high sensitivity and short exposure times are crucial. The camera will enhance results from demanding contrast techniques like darkfield and phase contrast. The camera is able to "freeze" even the fastest motions from live biology samples or in machine vision applications. The camera is able to capture video with framerates up to 300 images per second. Record fast motions from live samples without blur with ultrashort exposure times as low as 1/30.000 second. The "Global Shutter" technology gives distortion free images of fast moving objects.

The MikroCam II 0.4 UHSP is the perfect camera for a wide range of applications:

  • documentation
  • analysis
  • presentation, lectures
  • quality control
  • automation
  • machine vision

The MikroCamII 0.4 UHSP is fully suitable as an industry camera with an attractive price level.

FEATURES

  • High quality machined metal housing with c-mount connector
  • professional software suite included with functions like measurements, automatic image analysis, focus stacking, live mosaic
  • capture images, video and time-lapse
  • compatible with almost all microscopes
  • Highspeed USB 3.0 connection
  • ultra sensitive Sony® IMX287 CMOS Sensor
  • 1/4'' connection for tripods etc.
  • can be used with c-mount lenses

SCOPE OF DELIVERY

  • Camera housing
  • USB 3.0 cable
  • adapters with 23.2 mm; 30.0 mm und 30.5 mm
  • Software package for Windows

SYSTEM REQUIREMENTS

  • Windows 7 / 8 / 10 (32/64 Bit)
  • 2,8 GHZ Quad Core processor
  • 4 GB RAM
  • 2 GB free HDD space
  • CD or DVD drive
  • USB 3.0

DIMENSIONS & WEIGHTS

Total length 68 mm

Total width 68 mm

Total height 46 mm

Net weight 300 g

Specifications

Capacity


Size of chip (mm)
4,97 x 3,73
Megapixel
0.4
Resolution Photograph (Pixel)
720 x 540
Internal memory (Megabyte)
-
Zoom (digital)
-
Optical zoom
-
TV output
-
Interface
USB 3.0
Power supply
USB 3.0
Video function
yes
frame rate (fps)
300

Camera


Megapixel
0.4
Peltier cooling
no
Colour camera
yes
Pixel size
6,9
Image transmission
USB 3.0
sensor
CMOS (Sony IMX287)
Software
MikroCamLab II
Resolution Photograph (Pixel)
720x540
frame rate (fps)
300
Shutter
Global Shutter
Min. exposure time (ms)
0.03
adapter required
0.5x
Supported operating systems
Win 7/8/10

General


Colour
black
Weight (g)
300
Length (mm)
68
Width (mm)
68
Height (mm)
46
Series
MikroCam II

Miscellaneous


supplier product number
5914004
Bresser Camera MikroCamII, color, CMOS, 0.4 MP,  USB 3.0
