Microscopy > Microscopy accessories > Cameras > Cameras > Euromex > CMEX-Pro > Euromex Camera CMEX-10 Pro, CMOS, 1/2.3", USB 3.0, 10 MP
Product no.: 56044

Camera CMEX-10 Pro, CMOS, 1/2.3", USB 3.0, 10 MP

$ 610.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

CMEX-3/5/10/18 Pro

The high speed USB-3 cameras with ImageFocus Alpha capture and analysis software are the perfect solutions for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Material Science microscopes as well as stereo microscopes CMEX-3 Pro, CMEX-5 Pro, CMEX-10 Pro and CMEX-18 Pro USB 3.0 high speed camera The CMEX-3 Pro, CMEX-5 Pro, CMEX-10 Pro and CMEX-18 Pro cameras are equipped with relatively 3.1, 5.1, 10 or 18 MP CMOS sensors with 12 bits grayscale conversion and a 24 bits color rendering. This cameras are equipped with a USB- 3 data interface enabling fast frame rates (up to 101 f/s) and are supplied with ImageFocus Alpha software Besides capturing of images and videos, the software allows measurements on still and live images and to perform annotations on captured images. Compatible with Windows XP, Vista, 7, 8 and 10, both 32 and 64 bits configurations. A 2 GB RAM 2.8 GHz computer and 17 inch display is recommended as minimum requirement

TECHNICAL SPECIFICATIONS CMEX-10 PRO (DC.10000-Pro)

  • Sensor: CMOS 1/2.3 inch
  • Pixels: 3584 x 2746 pixels, 10.0 MP
  • Scan mode: Progressive, rolling shutter
  • Pixel size: 1.67 µm x 1.67 µm
  • Filter: RGB
  • Mount: C-mount
  • Max fps:
  • Up to 10 frames per second (3584 x 2746 pixels)
  • Up to 25 frames per second (1792 x 1372 pixels)
  • Exposure: automatic or manual
  • White balance: automatic/manual
  • Dynamic range: 63.5 db
  • S/N max: 35.5 db
  • Data interface: USB 3.0 high speed 80 Mb/s
  • Operation: 0 – 50°C, 30-80 % humidity
  • Storage temperature: -20 to 60° Celsius
  • Power supply: 5V over PC USB port
  • Housing: integrated CNC aluminum alloy

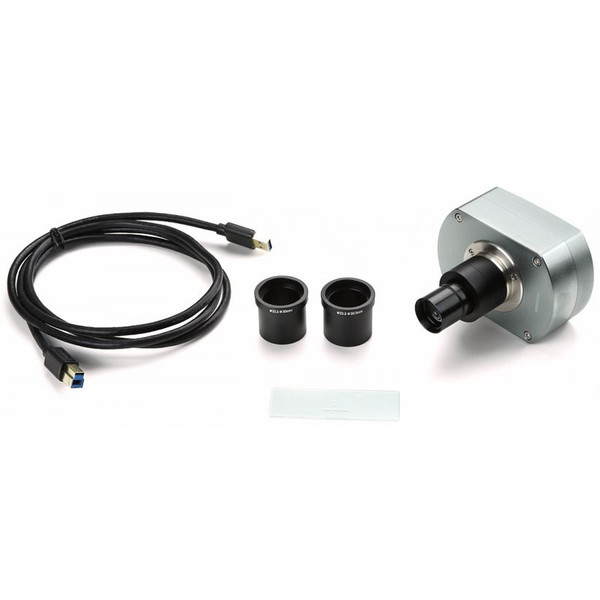

  • Supplied with 0.5x objective with C-mount, USB 3 cable, 30 and 30.5 mm adapters for stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), CD ROM with ImageFocus Alpha software, carton box
  • Software: supplied with ImageFocus Alpha capture with measuring software
  • PC requirements: Compatible with Intel Core 2, 2.8 GHZ or higher, 2GB, USB-3 high speed, Win XP (32bit), Vista/ 7/ 8/ 10 (32 and 64 bit configurations)
  • Product number: DC.10000-Pro

Specifications

Capacity


Size of chip (mm)
1/2.3"
Megapixel
10
Resolution Photograph (Pixel)
3584 x 2746
Resolution video (Pixel)
1729 x 1372
Internal memory (Megabyte)
-
TV output
yes
Interface
USB 3.0
Video function
yes
frame rate (fps)
25

Camera


Megapixel
10
Peltier cooling
no
Colour camera
yes
Resolution Photograph (Pixel)
3584x2746
Pixel size
1,67
Image transmission
USB 3.0
sensor
CMOS
Size of chip (″)
1/2.3
adapter required
0.5x
Software
ImageFocus Alpha
Shutter
Rolling Shutter
frame rate (fps)
25
Min. exposure time (ms)
1
Max. exposure time (ms)
2000
Sensitivity (mV/s)
0.31 V/lux sec
Supported operating systems
Win 7/8/10 Mac OS

General


Series
CMEX-Pro

Area of application


Low magnification
yes
High magnification (100x)
yes
Live
no

Miscellaneous


supplier product number
DC.10000-Pro
