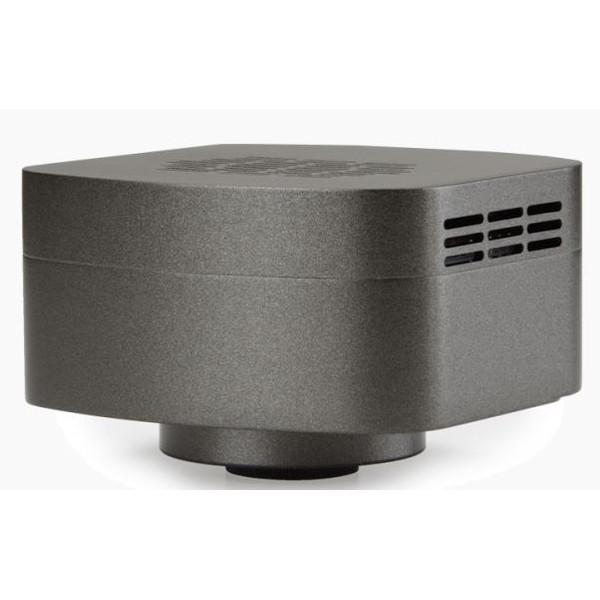

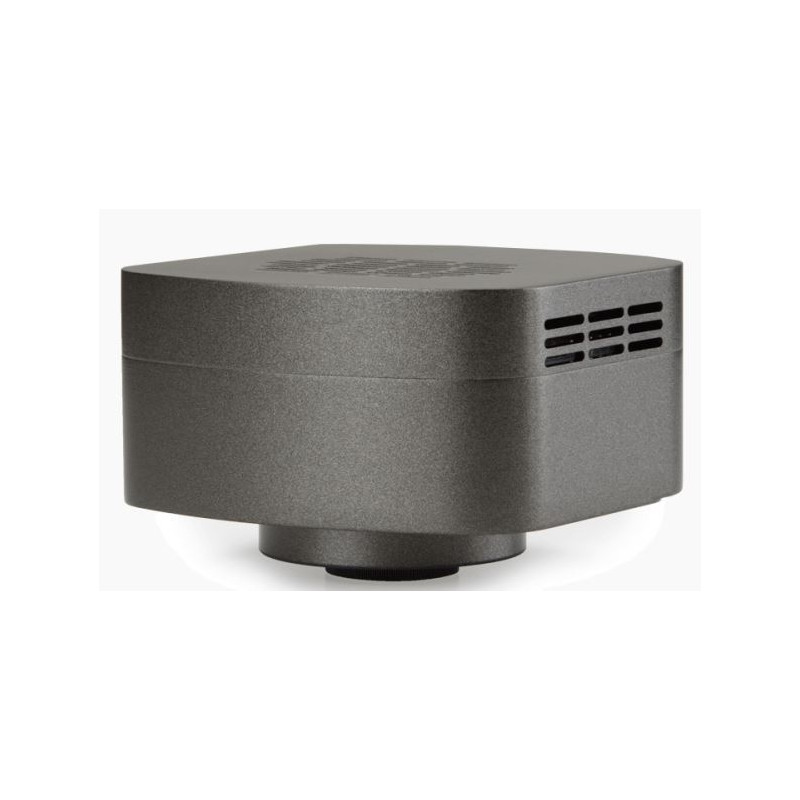

5 MP cooled colour camera CCD
The Euromex 2/3 inch CCD Peltier cooled colour camera has a Peltier cooling element, which makes the camera suitable for fluorescence applications. The camera has a USB 2 interface for connection to a computer and comes with ImageFocus4 software. In addition to capturing images and videos, this software allows measurements to be made on still and live images. Comments can also be added to recorded images. The software has specific functions for fluorescence and the option of combining captured fluorescence images. Compatible with Windows 7, 8 and 10, 32 and 64 bit configurations.
Cooled camera for universities, laboratories and industry
- 5 Mpix CCD colour USB 2.0 camera
- 2/3" sensor, 2580 x 1944 pixels
- 16-bit ADC, 36-bit colour
- For fluorescence applications and low light conditions
- Cooling via Peltier element down to -30°C below ambient temperature
TECHNICAL DATA CMEX-5000i (DC.5000i)
Sensor: High resolution CCD 2/3 inch
Pixels: 2580 x 1944 pixels, 5.0 Mpix
Scan mode: Progressive, rolling shutter
Pixel size: 3.4 µm x 3.4 µm
Colour filter: RGB
Connection: C-mount thread. Supplied with lens
Max fps: 3 f/s (2580 x 1944 pixels)
12 fps (1280 x 932 pixels)
ADC: 16 bits
Colour: 36 bits
Sensitivity: 1.5 V/lux-sec @ 550 nm
Exposure: automatic or manual from 0.1 ms to 20 min
White balance: automatic/manual
Signal-to-noise ratio: 74 dB
Sensitivity: 500 mV @ 3200 K and 706 cd/m2, 1/30 sec accumulation
Interface: USB-2 at 480 Mb/s
Peltier cooling: -30° C below ambient temperature
Dimensions: 130 x 111 x 54 mm (h x w x d)
Weight: 920 grams
Operation: 0 – 60° C, 10-85 % humidity
Supplied with: 23.2 mm 0.75x C-mount lens, USB 2.0 cable, 100-240 Vac, 5Vdc/4A power supply for Peltier cooling, 76 x 24 mm calibration glass (1mm/100), CD ROM with software. Supplied in aluminium transport cases.
Product number: DC.5000i
