Microscopy > Microscopy accessories > Cameras > Cameras > Euromex > HD > Euromex Camera HD-Autofocus, VC.3034-HDS, color, CMOS, 1/1.9", 2 MP, HDMI, USB 2.0, Tablet 11.6"
Product no.: 65774

Camera HD-Autofocus, VC.3034-HDS, color, CMOS, 1/1.9", 2 MP, HDMI, USB 2.0, Tablet 11.6"

$ 1,960.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

More about the series HD...

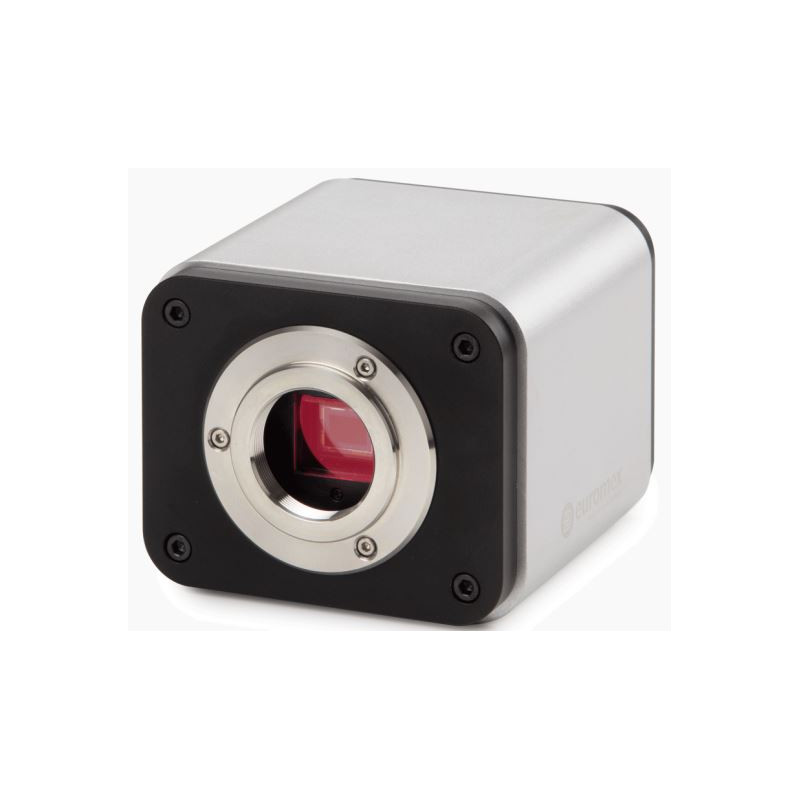

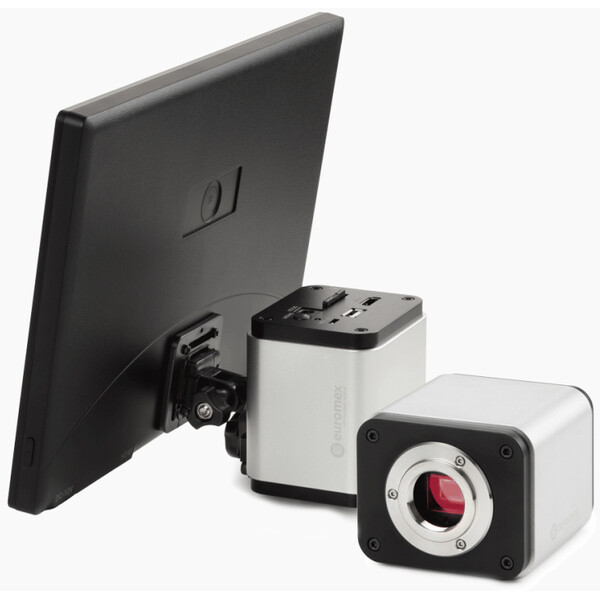

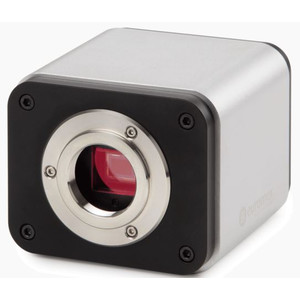

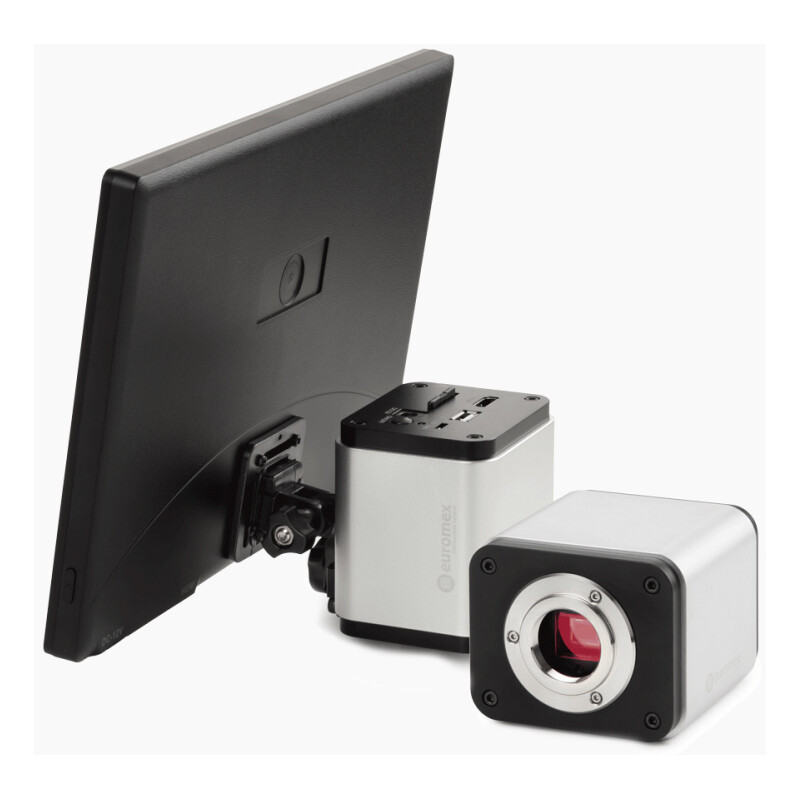

HD-Autofocus, VC.3034, HDMI

The Euromex HD-Autofocus camera offers the perfect solution to modern microscopy for education, industry and laboratories where real time images are needed. The autofocus function eliminates the need of re-focusing when changing subjects or while scanning objects that are different in height. Ideal for all sorts of quality control set-ups! This HD image quality camera can be used for stereo, biological and metallurgical microscopes. Automatic focusing high definition HD1080p CMOS color camera with HDMI interface and on-screen measurement function. The real time images generated with this stand-alone camera provide excellent color rendering at high frame rates, up to 60 frames per second. The HD-Autofocus high definition camera is a stand-alone system, no need for computer (knowledge). With embedded mouse-driven software and measurement function. Images and videos are saved to included SD-Card.Camera is easily mounted into the eyepiece tube or on the trinocular port, using the included c-mount objective.

Highlights

  • HD 1080p high definition video camera
  • Autofocus system
  • Real time images directly on TV, monitor or beamer (HDMI)
  • Stand alone system
  • Built-in mouse-driven software
  • C-mount interface
  • HDMI and SD memory card

TECHNICAL SPECIFICATIONS

  • Sensor SONY IMX185 2.0Mega Pixels CMOS
  • high sensitive sensor
  • Format 1/1.9”, HDTV 1080p (50/60Hz)
  • Pixels 1920 x 1080 pixels (capture mode)
  • 1920 x 1080 pixels (live view), HDMI 60 fps
  • Pixel size 3.75 x 3.75 um
  • Video 1080p pixels video recording mode
  • Scan mode Progressive scan, rolling shutter
  • Noise De-noise function supported
  • Senitivity 1120mv with 1/30s
  • Exposure Automatic/ manual
  • White balance Automatic/ manual
  • Dynamic range N/A
  • S/N Max N/A
  • Interfaces Digital HDMI
  • Storage High speed 16 GB SD Memory card
  • (larger capacity SD cards are optional)
  • Camera buttons On/ Off
  • Mounting C-mount interface
  • Power supply DC 12V/1A Adapter
  • Operation -10~ 50 ° Celsius, 30~80 % humidity
  • Storage temperature -20~ 60 70° Celsius, 10~60%RH
  • Measurement Supported

EMBEDDED SOFTWARE

  • displayed on TV, no need for computer
  • Capture images and videos to SD
  • Playback images from SD
  • Measurements(like Angle, Line, Horizontal Line, Vertical Line, Rectangle, Circle, Ellipse, Annulus, Two Circles, Polygon, Curve, etc)
  • Compare images
  • Grids
  • Digital zoom in/out
  • Flip
  • Pause
  • Camera settings (white balance, color control etc)

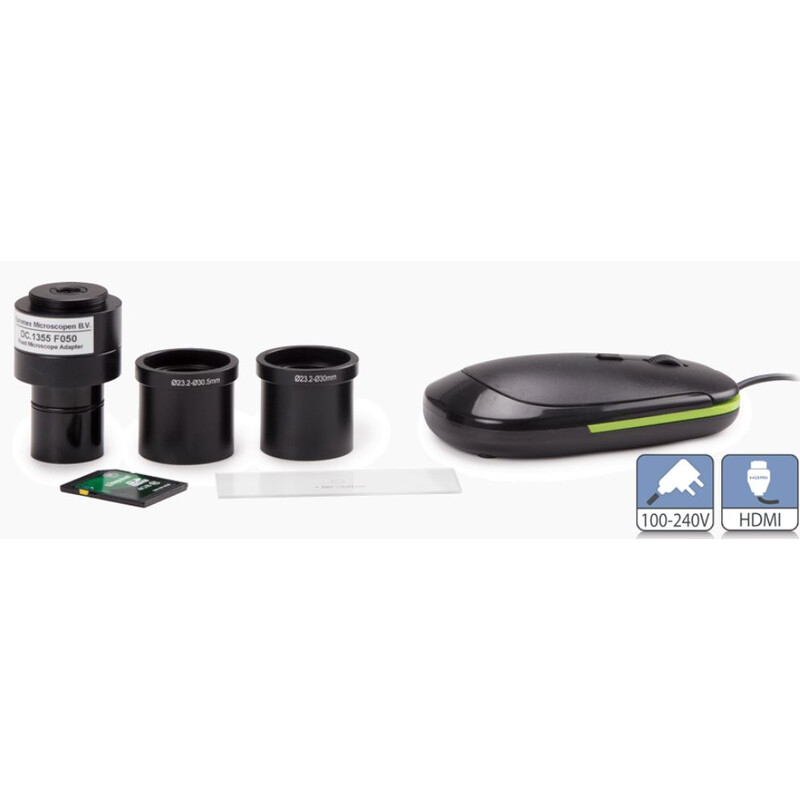

Delivery

  • 0.5x objective with C-mount
  • High speed 16 GB SD Memory card
  • USB 3 cable
  • 30 and 30.5mm adapter for stereo microscopes
  • 12V/1A power adapter, HDMI cable,
  • USB mouse
  • 76x24mm calibration slide (1mm/100),
  • carton box

Specifications

Capacity


Size of chip (mm)
1/1.9
Megapixel
2
Resolution Photograph (Pixel)
1920 x 1080
Resolution video (Pixel)
1920 x 1080
Internal memory (Megabyte)
-
Extendable storage
SD-card 16 Gb
TV output
yes
Interface
HDMI-Exit
Video function
yes

Camera


Megapixel
2
Peltier cooling
no
Colour camera
yes
Pixel size
3,75
LCD screen
11.6
Image transmission
HDMI
sensor
CMOS
Size of chip (″)
1/1.9
Resolution Photograph (Pixel)
1920x1080
frame rate (fps)
60
Shutter
Rolling Shutter
Min. exposure time (ms)
0.06
Max. exposure time (ms)
918
Sensitivity (mV/s)
1.12 V @ 1/30 s
adapter required
0.5x

General


Length (mm)
81
Width (mm)
65
Height (mm)
78
Weight (g)
500
Series
HD

Miscellaneous


supplier product number
VC.3034
