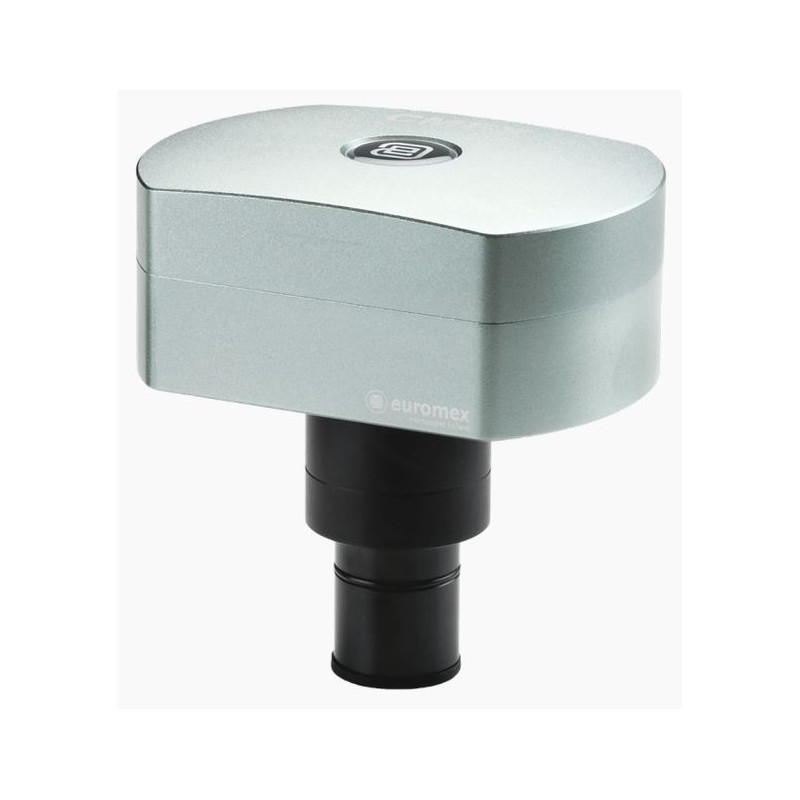

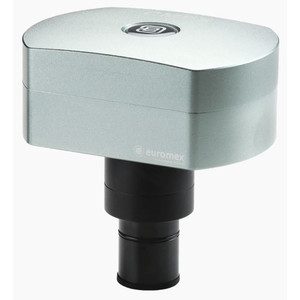

The Euromex CMEX-10 PRO, 10 Mpix USB-3 CMOS digital camera with ImageFocus Alpha analysis software is the perfect solution for modern digital microscopy in education, industry, life sciences and demanding amateur applications. The CMEX-10 PRO is suitable for biological and material microscopes as well as for stereo microscopes.
It transmits live images and is also suitable as a camera with high sensitivity for bright field and dark field, phase contrast and epi lighting. It is easy to use and fits on a standard 23.2 mm trinocular tube or eyepiece tube. Supplied with a USB 3.0 cable.
The camera is to be used in conjunction with the Euromex ImageFocus 4 software, which can be downloaded free of charge from our website. The software is compatible with Intel Core2, 2.8 GHz, 2 GB RAM, USB-3, Microsoft Windows XP, Windows Vista, Windows 7 and Windows 8, 32 and 64-bit.
Specifications
- Sensor: 1/2.3" CMOS
- Pixels: 10 megapixels
- Output: high resolution 3584 × 2746 pixels
- Pixel size: 1.67 µm × 1.67 µm
- Frame rate:
- @ 3584 x 2746 pixels up to 7.2 f/s depending on camera parameters and exposure
- @ 1792 x 1372 pixels up to 24.5 f/s depending on camera parameters and exposure
- Colour filter: RGB filter
- Mounts: C/CS ring
- ADC: 12 bits
- Colour: 24-bit
- Signal-to-noise ratio: 35.5 dB
- Dynamicrange: 63.5 dB
- Sensitivity: > 0.31V/Lux @ 550 nm
- Exposure: automatic or manual
- Interface: USB 3.0 High Speed

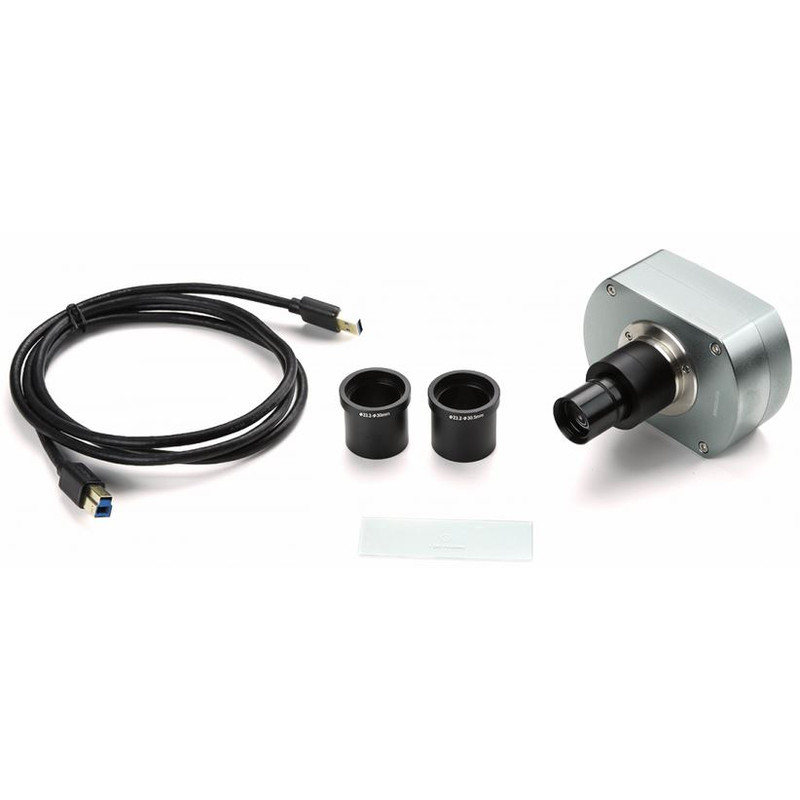

The scope of delivery includes a 0.5 lens with C/CS ring, a USB 3.0 cable, one 30 mm and one 30.5 mm adaptor for stereo microscopes, a 76 x 24 mm calibration glass 1 mm/100, and a CD-ROM with the ImageFocus Alpha software. All components are packed in a sturdy cardboard box.
Please note that there is a small error in the header of the data sheet: the resolution is 3584 × 2746 pixels.
