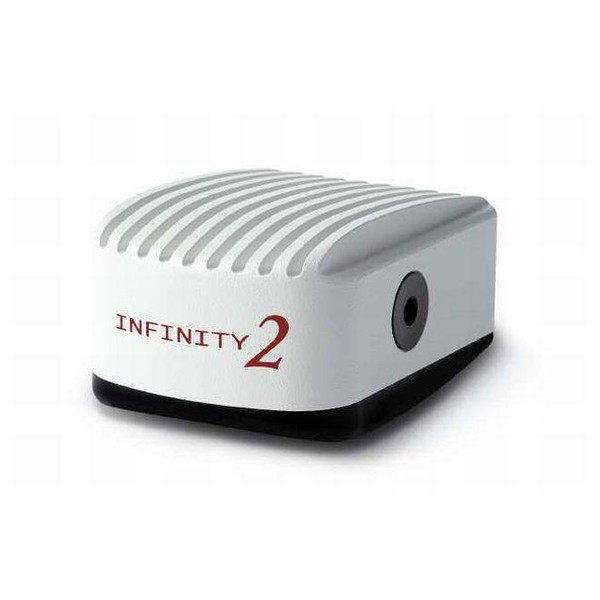

The INFINITY2 CCD USB 2.0 cameras are equipped with a high-quality Sony CCD sensor and offer excellent sensitivity, a wide exposure time range and 12-bit digital data output. Among other things, the following functions are offered: image binning, automatic white balance, programmable gain, partial image and partial area selection. They are ideal for demanding scientific, medical, ophthalmic and natural science applications.
Special features
- 1, 2 and 3 megapixel resolution
- Higher dynamic range for quantitative analysis
- Fast frame rate
- Low-noise electronics
INFINITY Camera Performance Specifications
- Automatic/manual exposure
- Automatic/manual white balance
- Programmable gain, optimisable from 1 to 10X
- INFINITY1, 2 & 3 — C-mount thread
- INFINITY4 — F-mount thread
- USB 2.0 high-speed interface (USB 480 MB/s compared to Firewire 400 MB/s)
- Power supply: INFINITY1 & 2 - USB bus
- Operating temperature 0ºC to +50ºC
- Operating humidity 5% to 95%, non-condensing
INFINITY ANALYZE software
All Lumenera INFINITY cameras include INFINITY ANALYZE software, which provides full camera control and advanced image capture and analysis.
The following features are included:
- Real-time video preview
- Measurements and annotations
- Archiving with search by date, author, description
- Composition of fluorescence images includes RGB look-up tables (LUTs)
- Single image capture and time series
- Image stitching
- Automatic/manual exposure and white balance
- Hue, saturation, gain, contrast, brightness and gamma controls
- Advanced image processing
- User-specific interface for specific applications
- Worksheet with thumbnail views
- Drag & drop measurement data into Excel for analysis
- Save and restore camera settings
- Context-sensitive help function for all functions
- Optional image sharpening
Also included is INFINITY CAPTURE, an intuitive user interface that provides all the basic functions for operating the camera and capturing images. Integrate your INFINITY camera into third-party software applications using TWAIN and DirectX/WDM interfaces (included).
Applications
Bright field, dark field, DIC, live cell image processing, histology, pathology, cytology, failure analysis, semiconductor inspection, metrology
Mac plug-in for INFINITY cameras
- A Mac plug-in is now available for all INFINITY cameras.
- Compatible with Mac OS 10.4 (requires Quick Time V7)
- Visit Lumeneras website and download the latest version

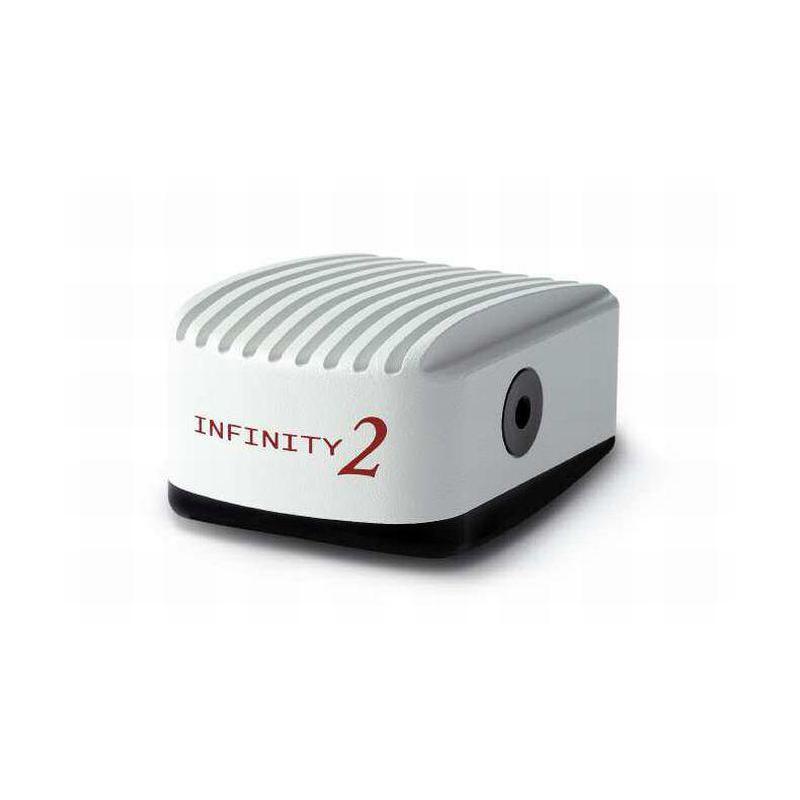

INFINITY2-1RC, CCD, 1.4 MP, color
INFINITY 2-1R
The newly engineered INFINITY 2-1R scientific camera offers a significant performance increase for quantitative and low-light applications over its predecessor. Reduced operating temperatures combined with a much higher dynamic range and 14-bit output have resulted in a versatile entry-level research camera. The INFINITY 2-1R easily manages seconds of exposure time with a dark current rating of less than 1 e-/s.
Superior sensitivity
The INFINITY 2-1R has a dynamic range of 64 dB, allowing users to image unevenly lit samples without worry. The resulting images show detail in bright and dark areas not normally seen in lower dynamic range cameras. Advanced thermal management allows for long exposure times of several minutes without the need for a higher priced cooled camera. Full image analysis software included INFINITY CAPTURE, an intuitive image capture program, and INFINITY ANALYZE, a full image analysis package offering camera control, measurement, annotation, tiling and post-capture enhancement, are both included. Camera and software combined to create a complete microscopy imaging solution for your application.
USB 2.0 plug-and-play interface
Sharing and installation of one or more cameras on a single computer is quick and simple through a high-speed USB 2.0 interface. This camera is compatible with the USB 3.0 interface, supporting the existing USB 2.0 frame rates.
Third-party software integration
INFINITY cameras are integrated into a variety of third-party software packages through direct drivers or with TWAIN/DirectX support.
Mac camera software
A Mac camera driver and ImageJ plug-in are available for the INFINITY 2-1R.
Superior Technical Assistance Centre (TAC)
As a Lumenera customer, you gain access to the TAC group and knowledge base, which provide full support for cameras, software and microscopy applications.
Features
• Improved noise performance over the first generation camera
• Incredibly low dark current noise in an uncooled camera
• High dynamic range of 64 dB
• Low noise progressive scan ½” 1.4 megapixel Sony ICX205 CCD sensor
• Full colour sub-windowing allows for rapid focus and scanning of samples; up to 30 fps at full resolution
• 8 or 14-bit pixel data modes
• Software compatible with Windows 10, 8, 7, Vista, Mac OS X 10.7, 32 and 64-bit operating systems
• Includes TWAIN and DirectX / Direct Show support
Recommended applications
• Brightfield
• Darkfield
• Live cell imaging
• Histology
• Pathology
•Cytology
•Defect analysis
•Semiconductor inspection
•Metrology
•Gel documentation
•Low light fluorescence
•Quantitative Analysis
Warranty
•Four (4) year warranty
Microscope Coupler
•Requires 0.5 x C-mount coupler
