The INFINITY2 CCD USB 2.0 cameras are equipped with a high-quality Sony CCD sensor and offer excellent sensitivity, a wide exposure time range and 12-bit digital data output. Among other things, the following functions are offered: image binning, automatic white balance, programmable gain, partial image and partial area selection. They are ideal for demanding scientific, medical, ophthalmic and natural science applications.
Special features
- 1, 2 and 3 megapixel resolution
- Higher dynamic range for quantitative analysis
- Fast frame rate
- Low-noise electronics
INFINITY Camera Performance Specifications
- Automatic/manual exposure
- Automatic/manual white balance
- Programmable gain, optimisable from 1 to 10X
- INFINITY1, 2 & 3 — C-mount thread
- INFINITY4 — F-mount thread
- USB 2.0 high-speed interface (USB 480 MB/s compared to Firewire 400 MB/s)
- Power supply: INFINITY1 & 2 - USB bus
- Operating temperature 0ºC to +50ºC
- Operating humidity 5% to 95%, non-condensing
INFINITY ANALYZE software
All Lumenera INFINITY cameras include INFINITY ANALYZE software, which provides full camera control and advanced image capture and analysis.
The following features are included:
- Real-time video preview
- Measurements and annotations
- Archiving with search by date, author, description
- Composition of fluorescence images includes RGB look-up tables (LUTs)
- Single image capture and time series
- Image stitching
- Automatic/manual exposure and white balance
- Hue, saturation, gain, contrast, brightness and gamma controls
- Advanced image processing
- User-specific interface for specific applications
- Worksheet with thumbnail views
- Drag & drop measurement data into Excel for analysis
- Save and restore camera settings
- Context-sensitive help function for all functions
- Optional image sharpening
Also included is INFINITY CAPTURE, an intuitive user interface that provides all the basic functions for operating the camera and capturing images. Integrate your INFINITY camera into third-party software applications using TWAIN and DirectX/WDM interfaces (included).
Applications
Bright field, dark field, DIC, live cell image processing, histology, pathology, cytology, failure analysis, semiconductor inspection, metrology
Mac plug-in for INFINITY cameras
- A Mac plug-in is now available for all INFINITY cameras.
- Compatible with Mac OS 10.4 (requires Quick Time V7)
- Visit Lumeneras website and download the latest version

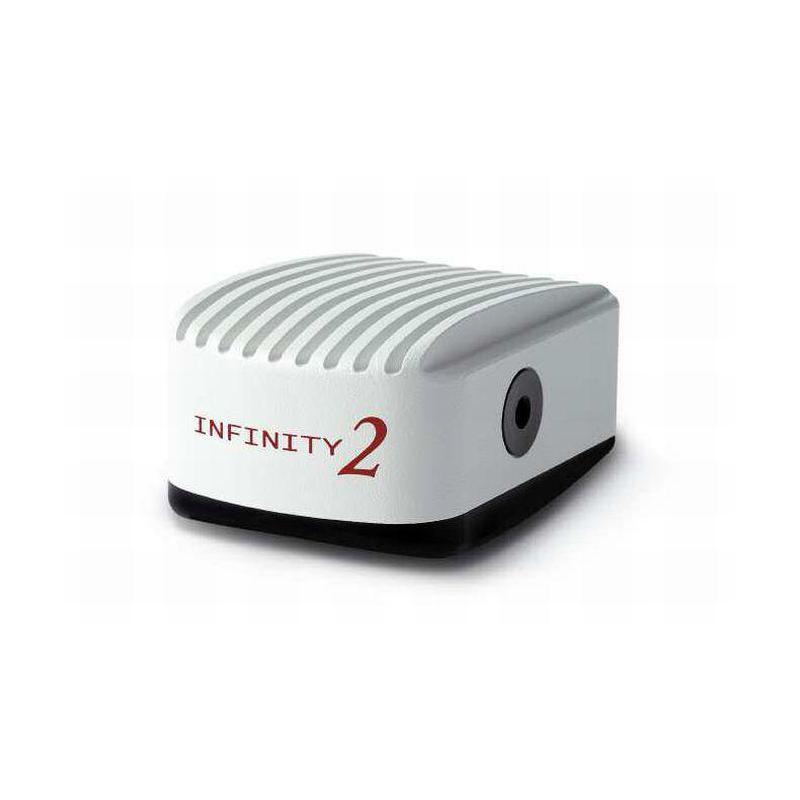

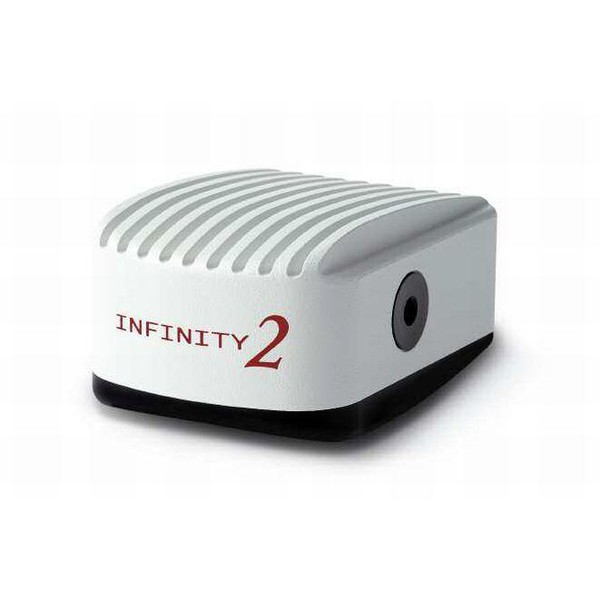

INFINITY2-2C, CCD, color, 2.0 MP
With 1616X1216 resolution and on-board processing, the INFINITY2-2 delivers outstanding image quality for a wide variety of scientific applications. Live video preview provides for real-time focus while auto exposure and auto white balance efficiently capture your optimal image. An intuitive user application provides camera controls while full integration to popular third-party imaging applications is available through our TWAIN drivers. The USB 2.0 digital interface ensures a simple plug and play installation – and one standard cable minimises camera clutter. Every INFINITY camera includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, as well as INFINITY CAPTURE, an intuitive user interface which includes all of the basic features needed to control your INFINITY camera and capture images.
INFINITY 2-2
The INFINITY 2-2 is one of Lumenera's most popular scientific cameras, offering the perfect balance of resolution, colour reproduction, sensitivity and high-speed preview. The multi-purpose INFINITY 2-2
provides laboratories with the ability to perform a variety of applications, replacing the need for multiple camera systems. Whether you are performing brightfield or fluorescence microscopy, this is the perfect solution for your technique.
Superior sensitivity and colour reproduction
Years of experience in the microscopy market have allowed Lumenera to develop specialised algorithms ensuring superior colour reproduction. Additionally, INFINITY software allows the adjustment of all live preview colour facets, enabling
users to apply their own personal preferences to each image. For lower light applications, the Sony CCD sensor has an extremely high dynamic range, resulting in excellent camera sensitivity.
Full image analysis software included
INFINITY CAPTURE, an intuitive image capture program, and INFINITY ANALYZE, a full image analysis package offering camera control, measurement, annotations, tiling and post-capture enhancement, are both included. Camera
and software combined to create a complete microscopy imaging solution for your application.
USB 2.0 plug-and-play interface
Sharing and installing one or more cameras on a single computer is quick and simple through a high-speed USB 2.0 interface. This camera is compatible with the USB 3.0 interface, supporting the existing USB 2.0 frame rates.
Third-party software integration
INFINITY cameras are integrated into a variety of third-party software packages through direct drivers or with TWAIN/DirectX support.
Mac camera software
A Mac camera driver and ImageJ plug-in are available for the INFINITY 2-2.
Superior Technical Assistance Centre (TAC)
As a Lumenera customer, you gain access to the TAC group and knowledge base
which provide full support for cameras, software and microscopy applications.
Features
Low noise progressive scan 1/1.8" 2.0 megapixel Sony ICX274 CCD sensor
•Full colour sub-windowing allows for rapid focus and scanning of samples; up to 30 fps at 640x480 resolution
• 8 or 12-bit pixel data modes
• Software compatible with Windows 10, 8, 7, Vista, Mac OS X 10.7, 32 and 64-bit operating systems
• Includes TWAIN and DirectX/Direct Show support
Recommended applications
• Brightfield
• Darkfield
• Live cell imaging
• Histology
• Pathology
• Cytology
• Defect analysis
• Semiconductor inspection
• Metrology
• Gel documentation
• Moderate light fluorescence
• Quantitative analysis
Warranty
• Four (4) year warranty
Microscope Coupler
• Requires 0.5x c-mount coupler
