For applications with weak fluorescence, the INFINITY3 cooled CCD USB 2.0 cameras offer cooling down to 25ºC below room temperature. The SonyICX285 ExView HAD sensor offers a wide exposure time range, excellent sensitivity and 12-bit digital data output. The following functions are available, among others: image binning, automatic white balance, full exposure time control, programmable gain, partial image and partial area selection.
Low light and long exposure times (cooled CCD) INFINITY3 cameras are cooled to 25ºC below room temperature to reduce dark current noise to an insignificant level. This results in a 50% reduction in dark current noise for every 6 to 8ºC below room temperature.
Special features
- 1 megapixel resolution
- Cooling to 25ºC below room temperature
- High signal-to-noise ratio for low-light applications with long exposure times
- Fast frame rate
- Low-noise electronics
INFINITY Camera Performance Specifications
- Automatic/manual exposure
- Automatic/manual white balance
- Programmable gain, optimisable from 1 to 10X
- INFINITY1, 2 & 3 — C-mount thread
- INFINITY4 — F-mount thread
- USB 2.0 high-speed interface (USB 480 MB/s compared to Firewire 400 MB/s)
- Power supply: INFINITY1 & 2 - USB bus
- Operating temperature 0ºC to +50ºC
- Operating humidity 5% to 95%, non-condensing
INFINITY ANALYZE software
All Lumenera INFINITY cameras include INFINITY ANALYZE software, which provides full camera control and advanced image capture and analysis.
The following features are included:
- Real-time video preview
- Measurements and annotations
- Archiving with search by date, author, description
- Composition of fluorescence images includes RGB look-up tables (LUTs)
- Single image capture and time series
- Image stitching
- Automatic/manual exposure and white balance
- Hue, saturation, gain, contrast, brightness and gamma controls
- Advanced image processing
- User-specific interface for specific applications
- Worksheet with thumbnail views
- Drag & drop measurement data into Excel for analysis
- Save and restore camera settings
- Context-sensitive help function for all functions
- Optional image sharpening
Also included is INFINITY CAPTURE, an intuitive user interface that provides all the basic functions for operating the camera and capturing images. Integrate your INFINITY camera into third-party software applications using TWAIN and DirectX/WDM interfaces (included).
Applications
Bright field, dark field, DIC, live cell image processing, histology, pathology, cytology, failure analysis, semiconductor inspection, metrology
Mac plug-in for INFINITY cameras
- A Mac plug-in is now available for all INFINITY cameras.
- Compatible with Mac OS 10.4 (requires Quick Time V7)
- Visit Lumeneras website and download the latest version

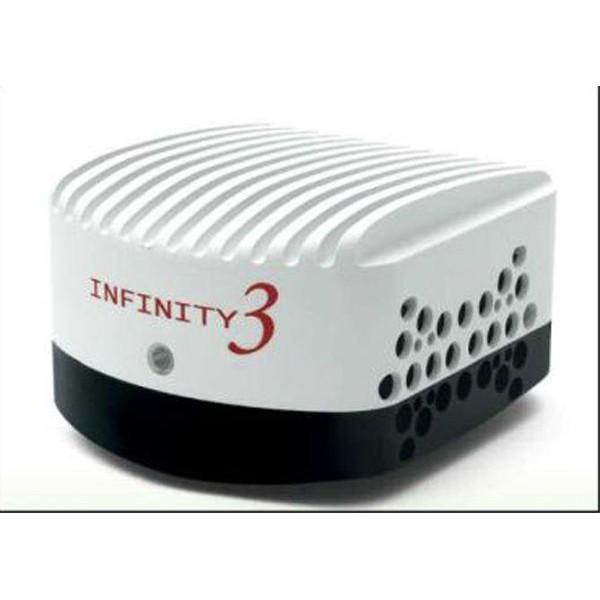

INFINITY3-1M, cooled, CCD, monochrom, 1.4 MP
INFINITY 3-1
Lumenera's INFINITY3-1 camera is designed for use in a wide variety of scientific applications. Cooled models are ideal in low-light conditions and where high dynamic range is required. Both colour and monochrome product models are available. With 1392x1040 resolution and on-board processing, these cameras deliver outstanding image quality and value for industrial and scientific imaging applications. Uncompressed images in live streaming video and still image capture are provided across a USB 2.0 digital interface. No frame grabber is required.
Superior sensitivity and colour reproduction
Equipped with a high quality Sony ICX285 CCD sensor, the INFINITY 3-1 has the unmatched light sensitivity needed for low light applications. Superior performance is achieved through low noise electronics, high grade components and Lumenera’s unique thermal management techniques. With an extremely high dynamic range and large 6.45 µm square pixels, this camera is an excellent choice for light-challenged applications.
Full Image Analysis Software
Included INFINITY CAPTURE, an intuitive image capture program, and INFINITY ANALYZE, a full image analysis package offering camera control, measurement, annotations, tiling and post capture enhancement, are both included. Camera and software combine to create a complete microscopy imaging solution for your application.
USB 2.0 plug-and-play interface
Sharing and installation of one or more cameras on a single computer is quick and simple through a high-speed USB 2.0 interface. This camera is compatible with the USB 3.0 interface, supporting the existing USB 2.0 frame rates. Third-party software integration INFINITY cameras are integrated into a variety of third-party software packages through direct drivers or with TWAIN/DirectX support.
Mac camera software
Lumenera offers support for INFINITY camera users operating on a Mac platform. A Mac camera driver, ImageJ plug-in and the INFINITY ANALYZE for Mac application package are available for the INFINITY3-1. Please refer to the Lumenera web page
Superior Technical Assistance Centre (TAC)
As a Lumenera customer, you gain access to the TAC group and knowledge base, which provide full support for cameras, software and microscopy applications.
