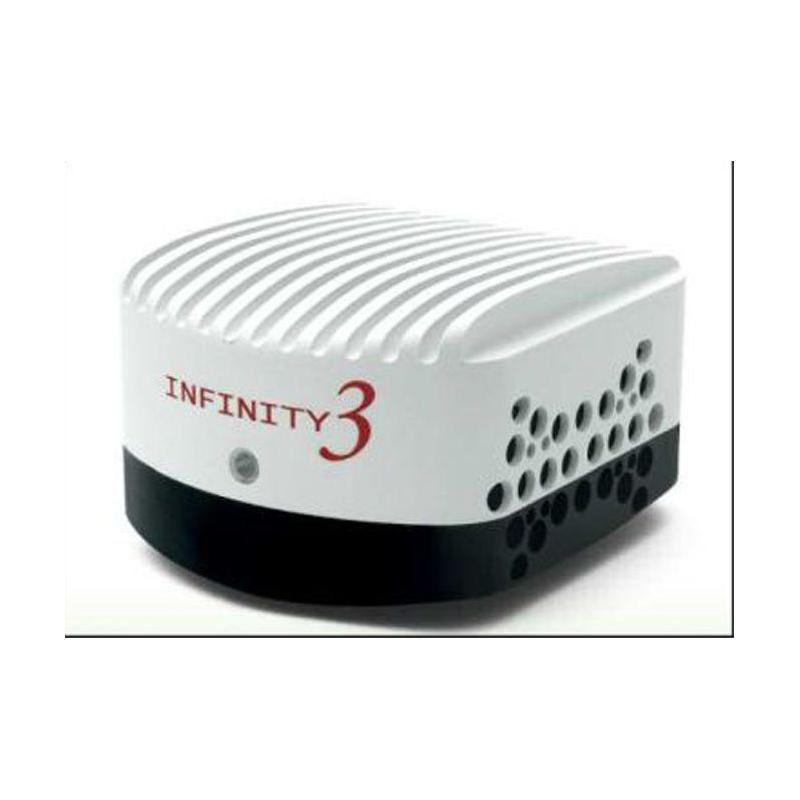

INFINITY3-3UR 2.8 Megapixel USB 3.0 Microscopy Camera CCD
The INFINITY3-3UR scientific digital camera features a Sony ICX674 CCD sensor, offers 53 fps at full 2.8 megapixel resolution via a high-speed USB 3.0 interface. Designed for use in scientific and industrial applications requiring optimal colour reproduction, extreme sensitivity, increased resolution and high speed.
The INFINITY3-3UR provides unmatched light sensitivity needed for low light applications. Relying on Sony's EXview HAD ll technology, this camera offers extremely high dynamic range, 4.54 x 4.54 µm pixels and very low noise. The INFINITY3-3UR delivers outstanding image quality and value for challenging low light applications such as fluorescence and NIR imaging. The INFINITY3-3UR uses the latest USB 3.0 technology at 5 Gbits/sec to deliver the fastest image transfer - even at its highest resolution. Image captures can be synchronised using either a hardware or software trigger. 128 MB of onboard memory for frame buffering ensures dependable and reliable image delivery at full frame rate and highest resolution even in the most demanding systems. INFINITY CAPTURE, an intuitive image capture program, and INFINITY ANALYZE, a full image analysis package offering camera control, measurement, annotation, tiling and post capture enhancement, are included with the camera. Camera and software combine to create a complete microscopy imaging solution for your application.
Product highlights:
- 53 fps at 2.8 megapixels, 66 fps at full HD (1936 x 1456)
- Industry leading Sony EXview HAD ll sensor technology
- Colour or monochrome ICX674 CCD sensor with 2/3" optical format
- High-speed USB 3.0 interface for ease of installation on any computer
- 128 MB of onboard memory for frame buffering results in reliable image delivery for demanding systems
- Select 8 and 14-bit pixel data modes
Included in the box:
- INFINITY3-3URC — 2.8 Megapixel Uncooled Colour CCD USB 3.0 Camera or INFINITY3-3URM — 2.8 Megapixel Uncooled CCD USB 3.0 Camera
- USB 3.0 cable
- La050300 — Power supply, 5 V DC, 12.5 W
- LuINFSW-DVD — DVD with INFINITY user application software (including INFINITY ANALYZE), TWAIN driver and documentation
Technical Specifications
Camera Settings
- Image Sensor CCD, Sony ICX674, available in colour or monochrome
- Optical Format 2/3"
- Frame Rate: 53 fps at full resolution
- Bit Depth 8 and 14-bit
- Read Noise 6.2 e- (4 taps, 16 fps, 25 ºC ambient, 41 ºC internal)
- Dark Current <1 e-/s (at 22 ºC ambient, 41 ºC internal)
- Pixel Size 4.54 x 4.54 µm square pixels
Camera Controls
- Weight 340 g
- Power Requirement External 5 V DC, 1.2 A, power supply (included)
- Power Consumption 6 W maximum in full frame rate mode
- Operating Temperature 0 to 50 °C
- Operating Humidity 5 to 95%, non-condensing
- ROI Any multiple of 16 x 16 pixels (quad tap mode)
- Interface Connector USB 3.0
- Dimensions 57.15 x 97.79 x 39.62 mm 2.75 x 3.85 x 1.56 inch
- Lens Mount Adjustable C-mount standard
- Binning Options 2 x 2, 4 x 4, 8 x 8 (3 x 3 mono only)
