Microscopy > Microscopy accessories > Cameras > Cameras > Motic > Moticam S > Motic Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1
Product no.: 65834

Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1

$ 560.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Delivery not guaranteed until Christmas.
Show alternatives
Right of return up to January 31 2025!


Product description

MOTICAM S SERIES

NEW MOTICAM S SERIES

Motics new sCMOS cameras, designed by German engineers and manufactured by professionals represent an impressive impetus to microscope camera performance. With a member of this product line the door for new application fields opens

wide. The accelerated data readout enables to work on fast phenomena in biology and industry.

MOTIC IMAGES PLUS 3.0 SOFTWARE

Our well-known Motic Images software, always with a cost-free upgrade option is included in all camera packages and enables to view images at maximum quality, capture, edit, measure and report the result... all these features are ready to

work on your PC or laptop.

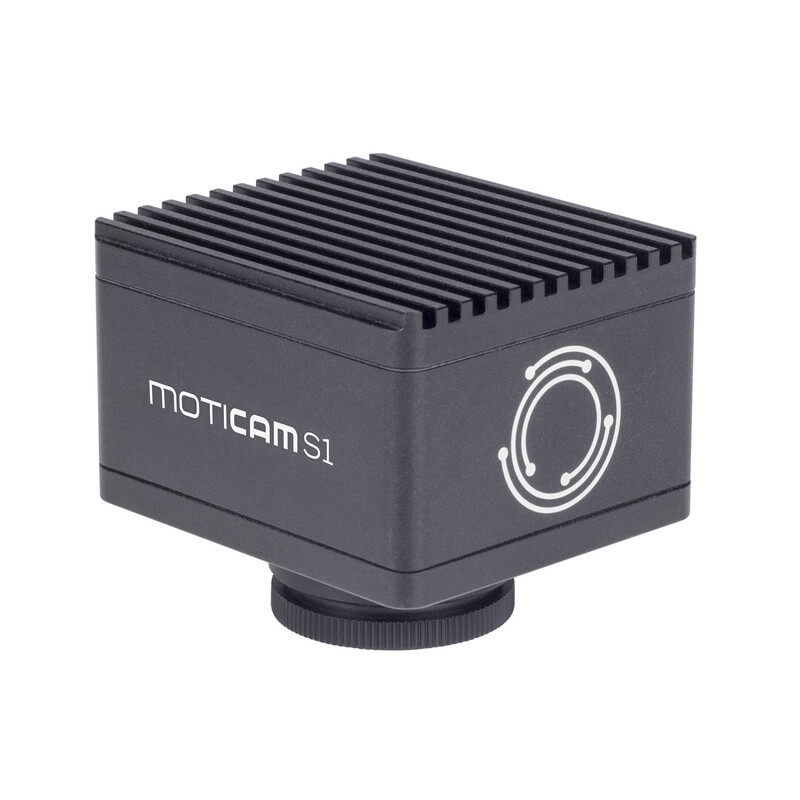

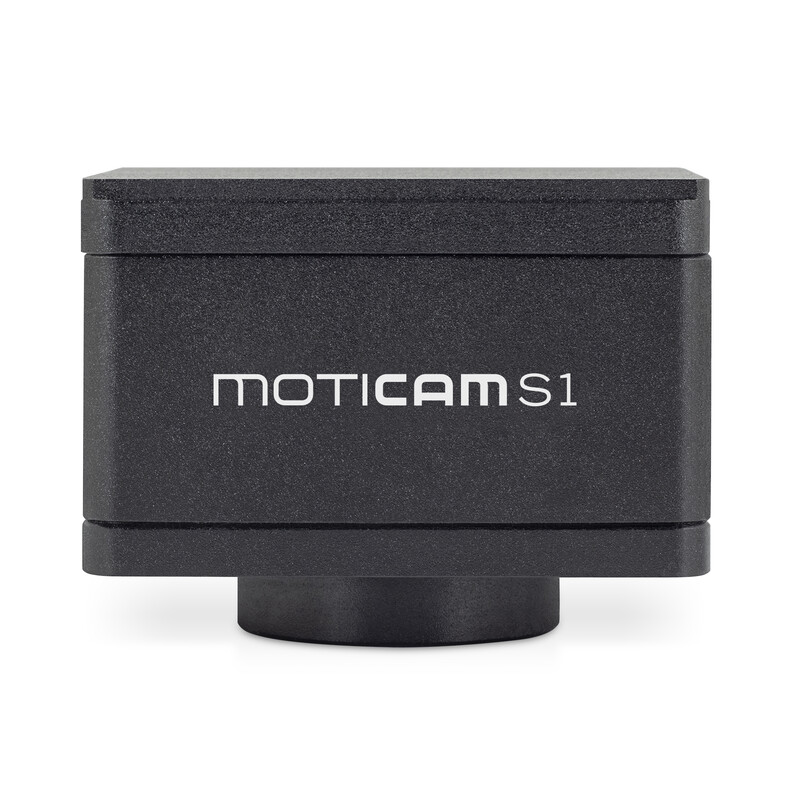

MOTICAM S1

THE STARTING POINT

Moticam S1 is the entry model for back-illuminated sensor technology and speedy data transfer (with frame rates up to 120 fps*), with easy image setting and capturing. Create your perfect images for a professional database.

MOTICAM S1

  • Sensor type sCMOS
  • Sensor size 1/3"
  • Imaging area 6.09mm (Diagonal)
  • Capture resolution 1.2MP
  • Live display mode through USB 1280x960, 640x480 pixels
  • Pixel size 3.75x3.75μm
  • Scan mode Progressive
  • Shutter mode Rolling Shutter
  • Data transfer USB 3.1
  • Max. frames per second (fps*) 1280x960 @ 120fps 640x480 @240fps
  • Exposure time 15 μsec to 2 sec
  • Operating temperature From -10 to +60 Degrees Celsius non condensing
  • Sensitivity 2350mV(G) @ 1/30 sec
  • Support device TWAIN, SDK and DirectShow Driver
  • Supported OS Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
  • Minimum computer requirements 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
  • Lens mount C-Mount
  • Software Motic Images Plus 3.0 for Windows, OSX and Linux
  • Functions Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
  • Power supply 5V (from USB Port)
  • Package includes CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux

Specifications

Capacity


Size of chip (mm)
1/3"
Megapixel
1.2
Resolution Photograph (Pixel)
1280x 960
Extendable storage
-
Zoom (digital)
-
Optical zoom
-
LCD screen
-
Resolution video (Pixel)
640x480 (240fps)
TV output
-
Interface
USB3.1
Power supply
USB3.1
Video function
yes
Sensitivity to light (Lux)
2350mV(G)@1/30sec

Camera


Megapixel
1.2
Peltier cooling
no
Colour camera
yes
Image transmission
USB 3.0
Size of chip (″)
1/3
sensor
CMOS
Pixel size
3,75
Resolution Photograph (Pixel)
1280 x 960
frame rate (fps)
240
Shutter
Rolling Shutter
Min. exposure time (ms)
0.015
Max. exposure time (ms)
2000
Sensitivity (mV/s)
2.35 V @ 1/30 s
adapter required
0.35x
Software
Motic Images Plus 3.0
Supported operating systems
Win 7/8/10 Mac OS Linux

General


Colour
black
Series
Moticam S

Miscellaneous


supplier product number
110600101081
Motic Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1
Motic Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1
Motic Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1
Motic Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1
Motic Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1
