Microscopy > Microscopy accessories > Cameras > Cameras > Optika > P > Optika Camera P1CMGS Pro, Mono, CMOS, 1.7 MP, USB 3.0, cooled, global shutter
Product no.: 67821

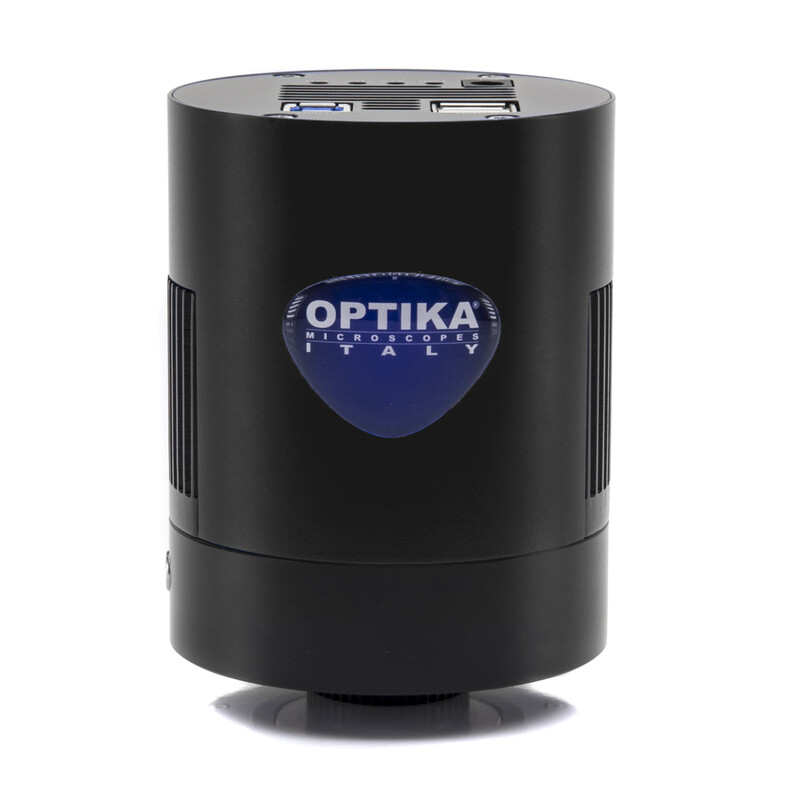

Camera P1CMGS Pro, Mono, CMOS, 1.7 MP, USB 3.0, cooled, global shutter

RRP: $ 3,140.00 Our price:
$ 2,830.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

Superb, stunning global shutter SONY EXMOR CMOS camera with low resolution (1.7 MP), cooled large sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy. Main key-ponits are the global shutter featuring its sensitivity, which makes this series impressive both with fast-moving specimens and in low-light fluorescence, especially thanks to the cooling function. The monochrome sensor makes it perfect for fluorescence imaging.

The compact and elegantly designed housing conceals the very latest in camera technology.

Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.

Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).

Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.

Recommended for special applications, including fluorescence

  • Simple operation, driver-free
  • Top-class, large SONY EXMOR sensor
  • Sensor and cooling system for impressive sensitivity
  • Global shutter for impressive performance on moving samples
  • Universal connection to any microscope brand
  • Crisp 1.7 MP images
  • USB3.0 for impressive high frame rate
  • Incredibly accurate colors
  • USB cable and calibration slide included
  • Downloadable, free of charge software
  • OPTIKA ProView & LiteView for Windows
  • OPTIKA LiteView for Mac OS or Linux

Specifications

Camera


Megapixel
1.7
Peltier cooling
yes
Colour camera
no
Pixel size
9
Image transmission
USB 3.0
Resolution Photograph (Pixel)
1600x1100
sensor
CMOS (Sony Exmor)
Size of chip (″)
1.1
frame rate (fps)
94
Shutter
Global Shutter
Min. exposure time (ms)
0.1
Max. exposure time (ms)
3600
Sensitivity (mV/s)
8.1V @ 1/30 s
adapter required
1x
Software
4.910V @ 1/30 s
Supported operating systems
Win 7/8/10 Mac OS Linux

General


Colour
black
Width (mm)
100
Height (mm)
100
Weight (g)
500
Series
P

Miscellaneous


supplier product number
C-P1CMGS
Optika Camera P1CMGS Pro, Mono, CMOS, 1.7 MP, USB 3.0, cooled, global shutter
