Microscopy > Microscopy accessories > Cameras > Cameras > ToupTek > XCAMLITE4K > ToupTek Camera ToupCam XCAMLITE4K 8MPA, colour, CMOS, 1/1.8", 2 µm, 30/20 fps, 8 MP, HDMI/USB
Product no.: 77262

Camera ToupCam XCAMLITE4K 8MPA, colour, CMOS, 1/1.8", 2 µm, 30/20 fps, 8 MP, HDMI/USB

$ 631.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

More about the series XCAMLITE4K...

In brief:

  • 8 MP colour camera with Sony Exmor CMOS sensor
  • HDMI, USB video outputs (software included)
  • Integrated XCAMView for camera control (HDMI), can be used as a stand-alone system (no PC required)
  • High sensitivity, low noise and no smearing effects due to the use of R, G and B primary colour mosaic filters
  • Sturdy and valuable aluminium alloy housing

XCAMLITE4K cameras

The XCAMLITE4K series cameras are the next-generation live-view imaging-systems with 4K resolution (Video) at 30 FPS. It comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters. The cameras are suitable for medical examinations as well as for teaching (online teaching, demonstration, academic exchange) or industrial purposes.

A standard C-mount interface ensures maximum compatibility with various microscope systems. The cameras can be used as a stand-alone system without a PC in conjunction with an HDMI monitor or TV (stand-alone system) or streamed live to a PC via USB for image and video recording.

The compatibility leaves nothing to be desired. The camera can be used with Windows, Linux, macOS as well as on mobile devices with iOS and Android. Furthermore, it is compatible with C/C++, C#VB.Net, Python, Java, DirectShow, Twain etc. for individualisation and tuning for reproducible measurement results.

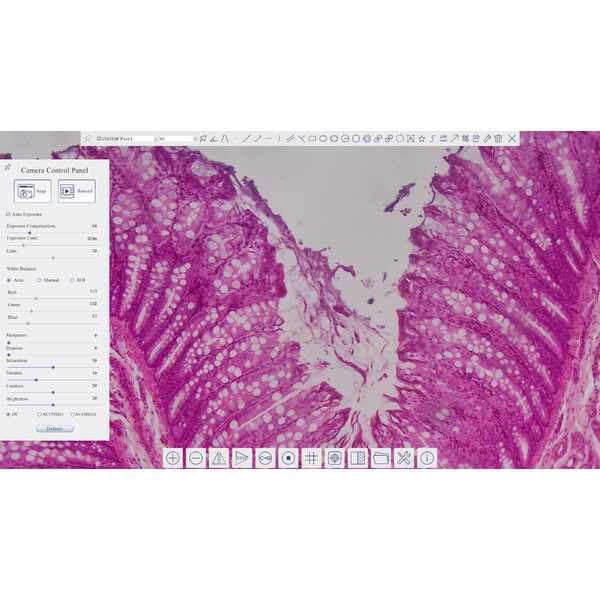

The 8MPA/B can be connected to a screen both via the HDMI connection for use as a stand-alone system. No PC is necessary. The mouse is connected directly to the camera. In sample image 1 you can see what the user interface of the stand-alone software looks like.

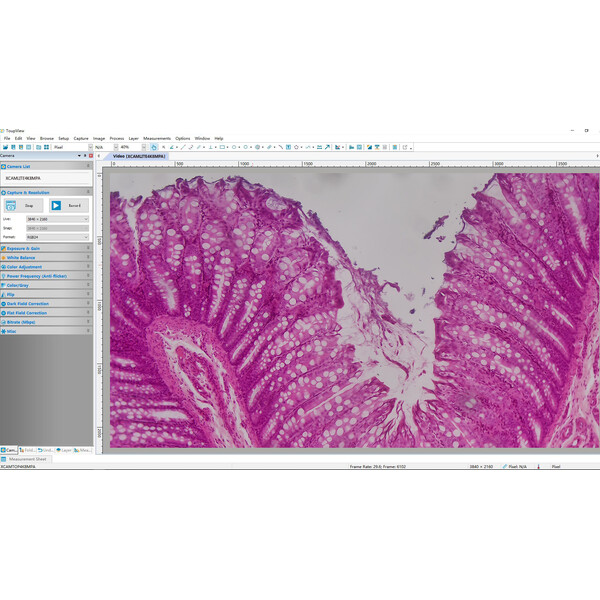

The second connection option is USB. Here the camera is connected to a computer via USB and can be operated via the ToupView software. This user interface can be seen in example image 2.

Scope of delivery:

camera, power adapter, USB mouse, HDMI 2.0 cable, USB 3.0 cable, CD (driver & software)

Specifications

Capacity


Megapixel
8 MP

Camera


Pixel size
2
Resolution Photograph (Pixel)
3840x2160
Resolution video (Pixel)
3840x2160
adapter required
0.5x, 0.55x, 0.6x c-mount
frame rate (fps)
30
Image transmission
HDMI
Size of chip (″)
1/1.8
Extendable storage
yes
Colour camera
yes
Shutter
Rolling Shutter
Megapixel
8
Peltier cooling
no
Interface
HDMI, USB, SD-Karte
sensor
CMOS (Sony Exmor)
Software
ToupView/ToupLite
Supported operating systems
Windows, Linux, macOS, iOS, Android
Video function
yes
Sensitivity (mV/s)
505

General


Width (mm)
88
Height (mm)
78
Length (mm)
65
Series
XCAMLITE4K

Field of application


Medicine
yes
Hobby
yes
Industry
yes
Education
yes

Miscellaneous


supplier product number
XCAMLITE4K8MPA

Downloads

Recommended accessories

Microscopy > Microscopy accessories (3)

ToupTek stage micrometer, lines (X) 1mm/100 Div.x0.01mm

$ 25.00*

*All prices include VAT plus shipping costs.

ToupTek Camera ToupCam XCAMLITE4K 8MPA, colour, CMOS, 1/1.8", 2 µm, 30/20 fps, 8 MP, HDMI/USB

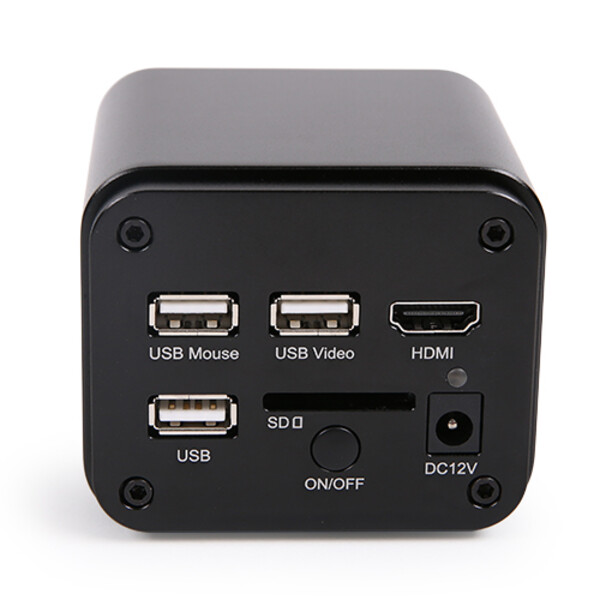

Connections
ToupTek Camera ToupCam XCAMLITE4K 8MPA, colour, CMOS, 1/1.8", 2 µm, 30/20 fps, 8 MP, HDMI/USB
Example image 1

ToupTek Camera ToupCam XCAMLITE4K 8MPA, colour, CMOS, 1/1.8", 2 µm, 30/20 fps, 8 MP, HDMI/USB

Example image 2
