Microscopy > Microscopy accessories > Lighting > Cold light sources > Optika > CL > Optika CLD-01 cold light generator, 14W X-LED extra efficiency system
Product no.: 47483

CLD-01 cold light generator, 14W X-LED extra efficiency system

RRP: $ 590.00 Our price:
$ 530.00 incl. VAT, plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

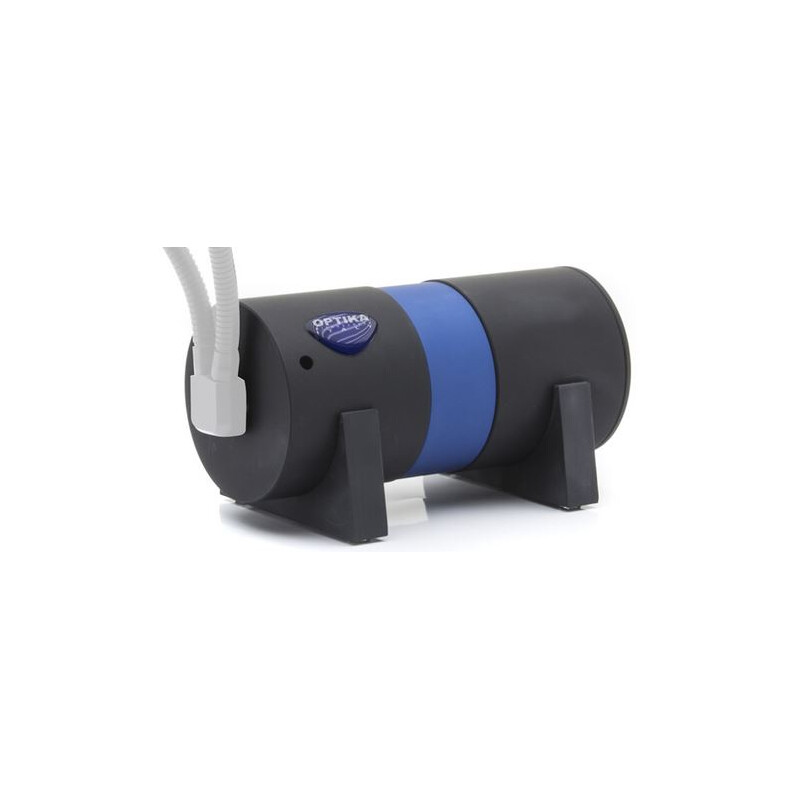

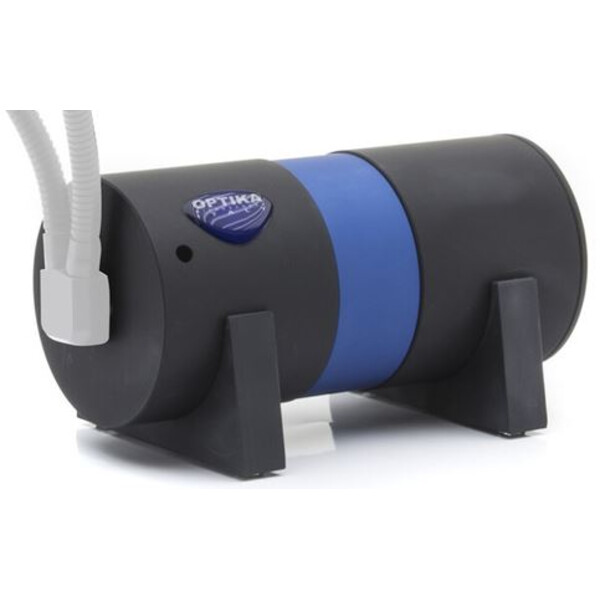

Cold Light Source CLD-01

Specification

Light source: High power 14W LED

Chromaticity coordinates (x,y): 0.320, 0.320 (pure white)

Optical power (with double-arm option): Illuminance (at 10 cm distance): 70000 lux

Power supply: Brightness control potentiometer. External power supply provided. Input: 110/240 Vac 50/60 Hz; output: 6 Vdc 5A

Dimensions: Length: 200 mm Width: 120 mm Weight: 4,1Kg

Accessories: The output can be coupled to the following accessories: CL-11.1: Double-arm optical fiber guide with focusing lenses. Arm length 500 mm.

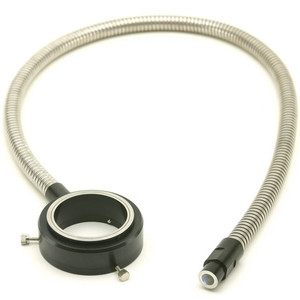

Optional lenses for arms: CL-17: Focusing lens(pair) with built-in polarizer filter. CL-12: Ring optical fiber guide, guide length 700 mm. Guide diameter 16 mm. Diameter of the fixing ring: 55mm. The circular end is suitable for all stereo series.

Specifications

Capacity


Brightness control
adjustable
Lamp type
14W (LED)
Light conductor
no
Temperature of color (K)
6300
Illuminance (lx)
70000
Power supply
EU

Mechanics


Lens diameter (mm)
60
Segmented
-

General


Length (mm)
200
Width (mm)
120
Weight (g)
4100
Series
CL

Recommended accessories

Microscopy (1)

Optika CL-11.1 double-arm guide for CLD-01, with focusing lenses

$ 274.00*

*All prices include VAT plus shipping costs.

Optika CLD-01 cold light generator, 14W X-LED extra efficiency system
