Mountings & accessories > Mountings > Equatorial with GoTo > 10 Micron > QCI > 10 Micron GM 2000 QCI 'Ultraport' GoTo mount (equatorial head only)
Product no.: 25331

GM 2000 QCI 'Ultraport' GoTo mount (equatorial head only)

$ 11,700.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

There's not the slightest doubt! This 'Italian beauty' has it all! An extremely robust, high-precision mechanism combined with highly developed electronics and software leave nothing to be desired for the ambitious astrophotographer! Professional mechanical engineering level drive technology ensures high precision tracking with no free gear play - ensuring a guaranteed average error of <+/-3 arc seconds. Thanks to an iterative process, the mount can be positioned so precisely in just a few minutes that deep sky astrophotography is possible even without guiding using short focal length astrographs. Tripods and Baader counterweights for GM 2000 QCI / GM 4000 QCI can be found on the accessories page.

QCI electronic control

10Micron is the only manufacturer who provides its mounts with 'stand-alone' electronics, meaning no laptop/PC is necessary. The AMD microprocessor control provides LINUX firmware for the hand controller to provide comprehensive functionality. For example, a similar function to 'T-Point' for extreme positioning accuracy in the range of arc seconds. Computing and tracking comets and satellite orbits without a PC is no problem! The extensive internal database is being constantly expanded and can be updated via the Internet. The controller can be upgraded to the new QCI V2.7 firmware.

MONOTLITE OR ULTRAPORT

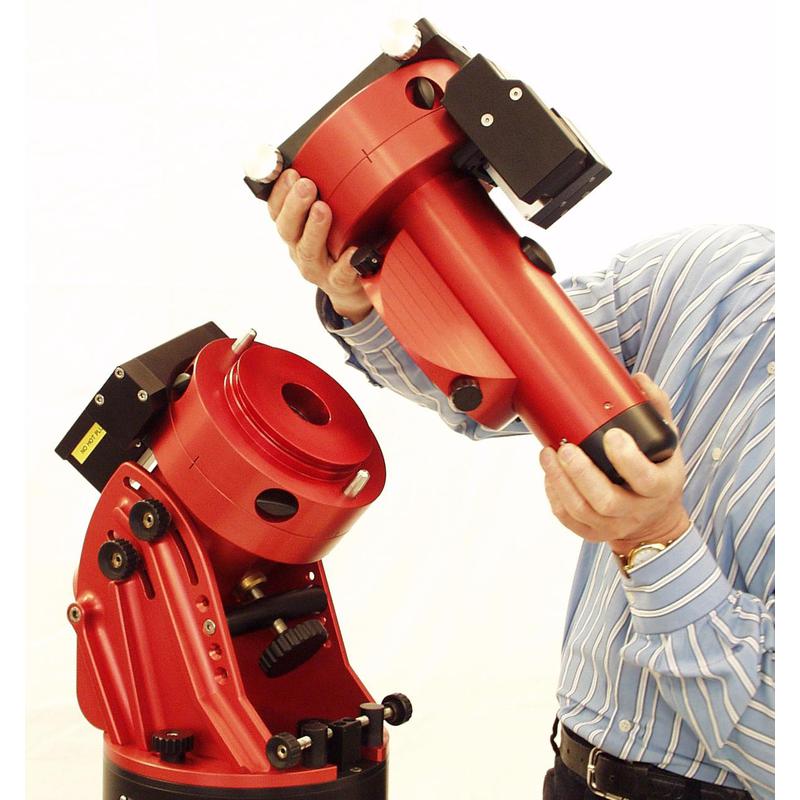

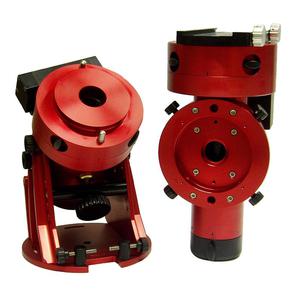

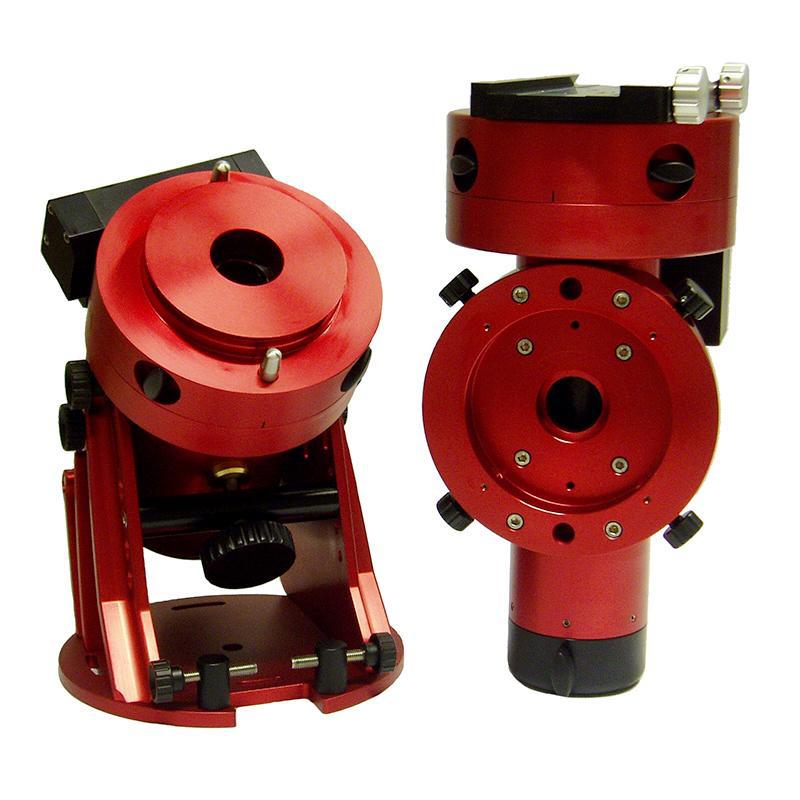

The GM 2000 QCI is produced in two versions - as a stationary ('monolith') mount, or as a portable version with a quick-release coupling between the declination and right ascension axes ('Ultraport'). As a result, no part of the mount weighs more than 15kg - a huge advantage if you still want it to be portable. In addition, there all the necessary accessories are available - e.g. a transport case suitable for air travel, a tripod bag, as well as attachment plates and prism clamps for (almost) all dovetail systems.

IN 3 COLOURS

Choose between an extrovert fire red, an intense deep sky blue or a more reserved stainless steel grey. The quality remains the same regardless of which version you choose.

Delivery time for the GM 2000 QCI is about 2 months. The standard colour is Stainless Steel Grey. Ferrari Red or Deep Sky Blue are available on request but may require a longer delivery time. 100kg steel columns in any desired height and matching flanged heads are available at extra cost if you intend using a fixed installation in an observatory. Just ask us and we will advise you!

Specifications

Capacity


Designation
GM2000 QCI Ultraport
Max. additional load capacity (kg)
50
Polar elevation setting (°)
22-66
Motor speeds
0,5
Position precision
+/- 3
Material of worm gear
Steel
Material of worm wheel
Aluminium hubs with bronze worm wheels
Counterweight(s) (piece)
6 kg and 8 kg available
Diameter of counterweight bar (mm)
40
Language
German
Power supply
24
Material of counterweights
Steel

Special features


GoTo system
yes
Size suitable for hand luggage
-

Equipment


Tripod <p>
without tripod

Tripod


Tripod material
Carbon / Stahl (Optional)
Tripod weight (kg)
25(Edelstahl) oder 16(Carbon)

General


Colour
gray
Total weight (kg)
28,6
Series
QCI
Type
Mount
Type of build
Equatorial
