Product description:

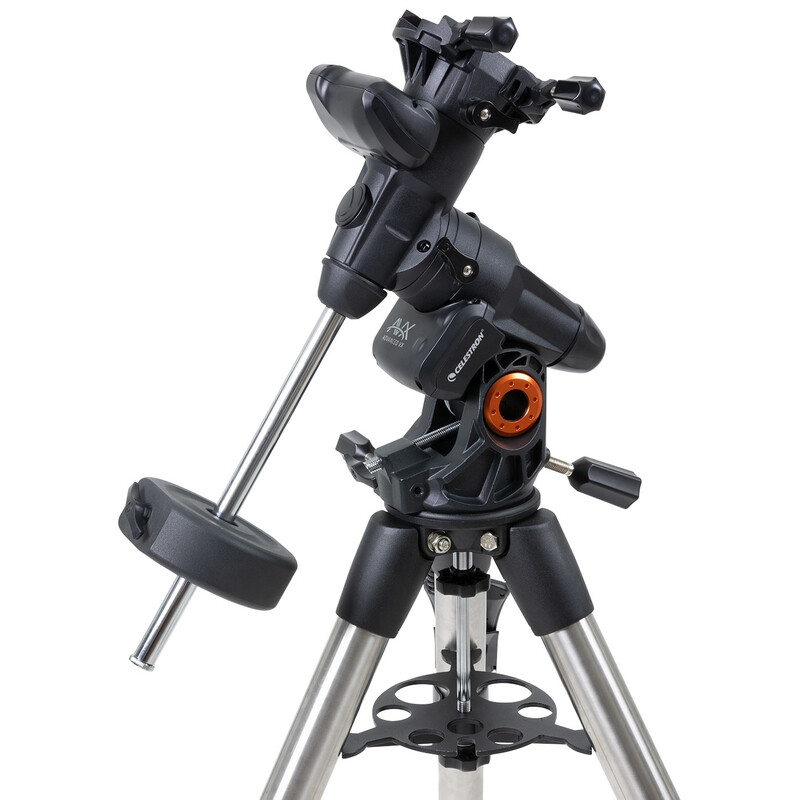

All new Celestron mount AVX

The new Advanced VX mount was specifically designed to provide optimum imaging performance for smaller telescopes. Now your smaller telescope can take advantage of All-Star Polar Alignment and autoguider support. You'll be able to track through long exposures using permanently programmable periodic error correction. Image across the meridian without doing a meridian flip, so you can seamlessly image the best part of night sky. The AVX features significantly larger base castings than our previous design, improving stability under heavier loads. Improved motors offer more torque and can handle slight load imbalances with ease.

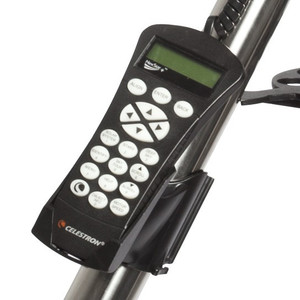

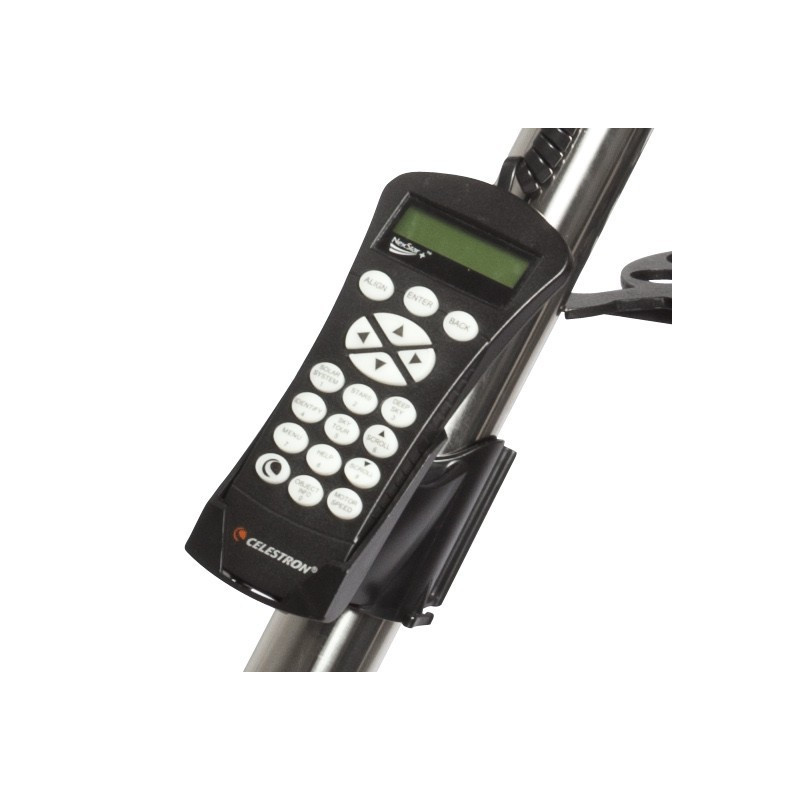

The NexStar hand control for easy GoTo operation

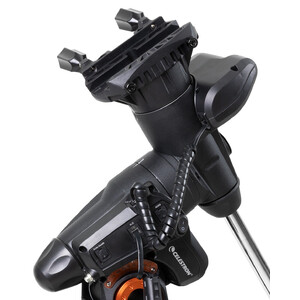

Mounting saddle

Recommended accessories:

Before buying this product, make sure to check our accessory recommendations.

accessory details

Specifications:

Capacity Capacity X Under the heading capacity you can find the technical properties of an accessory. Click to read more...
Power supply	12
Polar elevation setting (°)	7-77
Motor speeds	9
Counterweight(s) (piece) Counterweight(s) X The counterweights are not taken into account when specifying the total weight, as the number of weights required depends on the optics used. Click to read more...	1
Max. additional load capacity (kg) Max. payload X For observing, the tube weight should not exceed the mount’s maximum payload. For a stable photographic combination of tube and mount, it is wise to also pay attention to the tube length and dimension, where appropriate, to stay below the maximum load, as the leverage effect on the mount must be taken into account. Click to read more...	14
Mounting saddle	Vixen & Celestron CGE
Special features
Handcontroller	yes
PEC correction PEC correction X An electronic improvement to a mount’s periodic drive gear error. Click to read more...	yes
Controllable via PC Controllable via PC X As an alternative to the hand-control box, celestial objects can be controlled via a PC with appropriate software. Click to read more...	Celestron PWI Celestron PWI X With the software PWI the mount can be controlled from the PC. Click to read more...
PC interface	yes (USB)
GoTo system GoTo system X An object can be selected using a hand-control box, the telescope will be automatically directed to it, and the object is positioned in the field of view. Click to read more...	yes
Equipment
Motor-powered	yes
Accessory plate	yes
Tripod <p>	Tripod
cigarette lighter socket DC power plug X This means a plug for the cigarette lighter socket in a car. Click to read more...	yes
Power pack	no
Tripod
Tripod material	Steel
Tripod weight (kg)	8,2
Tripod leg diameter (mm)	51
Max. tripod height (cm)	163
Min. tripod height (cm)	112
General
Total weight (kg)	25
Series	Advanced VX
Type	Mount
Type of build	Equatorial
Area of application Areas of application X Information about areas of application serves as a rough orientation. Click to read more...
Useful for photographs	yes
GoTo control
Alignment method	2-Star Align, 1-Star Align, Solar System Align, Last Alignment
Database	40.000
GPS	optional
PEC correction	yes
Polar Alignment	All-Star Polar Alignment
Software	Nexstar+
GoTo Language	German, English, French, Spanish, Italian
WIFI	optional
Autoguiding	yes
