Mounts & accessories > Mounts > Equatorial with GoTo > iOptron > CEM > iOptron Mount CEM120EC2 GoTo Dual High Precision Encoder
Product no.: 56966

Mount CEM120EC2 GoTo Dual High Precision Encoder

RRP: $ 10,600.00 Our price:
$ 9,300.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

More about the series CEM...

An extraordinary innovation in mount design

Recognizing the growing demand for an accurate and stable, equatorial mount with the versatility to carry larger instruments and more complex imaging arrays, iOptron created the CEM120. It offers the benefits of their revolutionary center balance design: stability, accuracy, and smooth mechanical operation, while capable of carrying a payload up to 52kg.

The center balance design’s natural stability is due to its focusing the mount along with payloads weight directly over the center of the pier or tripod.

The CEM120's performance is demonstrated by its low periodic tracking error. Along with the stability aspect, the CEM120 features an advanced cable management system consisting of more ports in more locations preventing tangle ups and reducing the chance of fractured cables. It also adds some new features to the CEM family like Wi-Fi and LAN for remote operation and easy to use, reliable clutches on both axes.

Features:

  • Center-balanced equatorial mount (CEM) for maximum payload with natural stability
  • Payload of 52 kg with the mount weight of only 26 kg
  • Easy to use and reliable gear clutches
  • Precision altitude and azimuth adjustment.
  • Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
  • Polar alignment routine for those who can't see the Pole Star
  • Go2Nova® 8407 V2 controller with Advanced GOTONOVA® GOTO Technology with built in heater
  • Permanent periodic error correction (PPEC) or real time PEC for the CEM120EC and CEM120EC2
  • 32-channel Global Positioning System (GPS)
  • Built-in WiFi and LAN for remote operation
  • Integrated ST-4 autoguiding port
  • Advanced cable management system with more choices
  • Spring loaded, individual adjustable Losmandy saddle

The CEM 120 is availible in three versions, the CEM120, CEM120EC and CEM120EC2. The EC versions has high resolution encoders for real time nearly error free tracking, the EC2 has the encoders on both axes.

The CEM120EC2 utilizes two high resolution encoders, one on each axis. The two encoders enable the mount to perform dual axes tracking. With advanced sky modeling the CEM120EC2 will be able to account and adjust for polar alignment error as well as changes in atmospheric (refractive) distortion. Fixed home sensors on each axis, allow the mount to save alignment models after power off too to be used on future nights.

Specifications

Capacity


Designation
CEM120
Max. additional load capacity (kg)
52
Counterweight(s) (piece)
2x10kg
Interfaces
RS232, USB, LAN, WIFI
Power supply
12
Language
English
Polar elevation setting (°)
0 - 68
Mounting saddle
Losmandy-Style
DEC ball bearings diameter (mm)
125
DEC worm gear diameter (mm)
216
RA worm gear diameter (mm)
216
Worm gear teeth (DEC) (piece)
360
Worm gear teeth (RA) (piece)
360
Material of worm wheel
Aluminium
Weight mount head only (kg)
26
Slow-motion azimuth adjustment (°)
+/- 5
Precision of tracking
< +/- 0,15
DEC worm shaft diameter (mm)
26
RA worm shaft diameter (mm)
26
DEC axis diameter (mm)
80
RA axis diameter (mm)
80
RA ball bearings diameter (mm)
125
Diameter of counterweight bar (mm)
38,1
Motor type
Stepper motors (128 micro-steps)
Software
Go2Nova8407 V2
Amperage (A)
5
Input voltage
12
Power consumption in open circuit (mA)
700
Power consumption (mA)
1800
Encoder
yes
Drive type
Worm wheel

Special features


GoTo system
yes
GPS
yes
Controllable via PC
yes (ASCOM)
Handcontroller
yes
Level
yes
Autoguider interface
yes (ST-4 interface)
PEC correction
yes (real time)

Equipment


Tripod
without tripod
Pole finder
no

General


Total weight (kg)
46
Series
CEM
Type
Mount
Type of build
Equatorial

Area of application


Useful for photographs
yes

Recommended accessories

Telescope accessories > Cables & power supplies (5)

iOptron 12V car battery cable

$ 32.90*
Astrophotography (2)

Ikarus Technologies StellarMate Astrofotografie Computer

$ 194.70*
Mounts & accessories > Column Stands & Extensions (3)
Column

iOptron Column Tri-pier portable pier with case on wheels

$ 1,100.00*
Mounts & accessories > Other (5)
Tripod

iOptron Tripod LiteRoc CEM60/70

$ 550.00*

*All prices include VAT plus shipping costs.

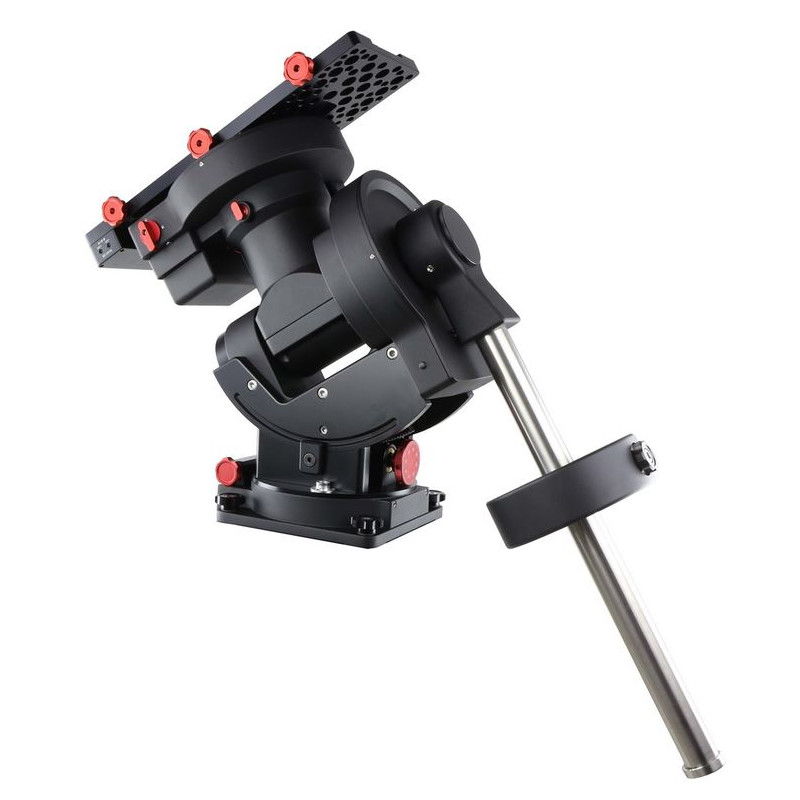

iOptron Mount CEM120EC2 GoTo Dual High Precision Encoder

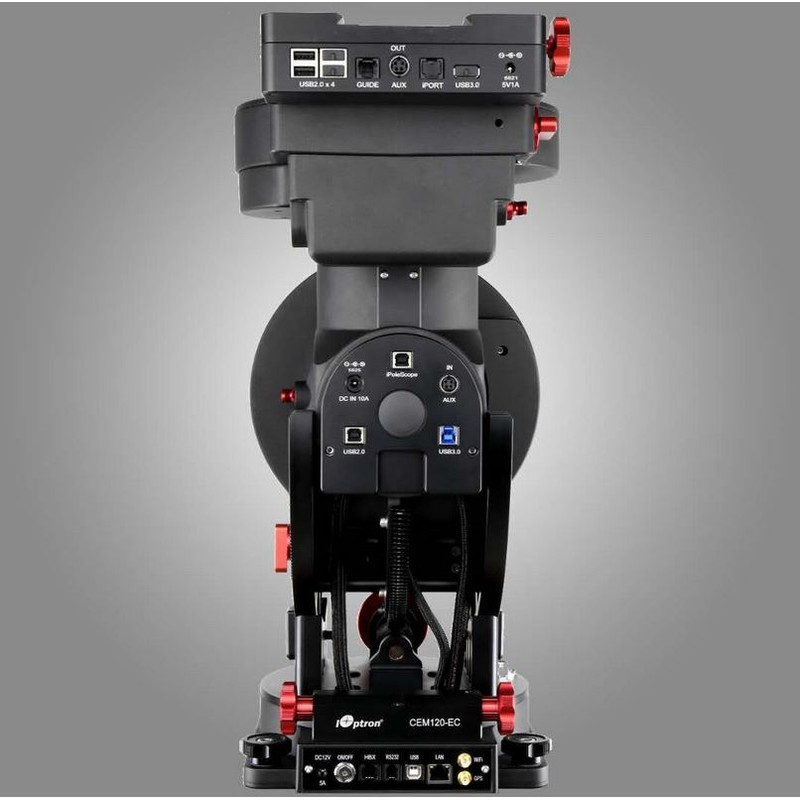

This mount offers power connections for cameras and other accessories directly on the telescope mount (sattel plate).

iOptron Mount CEM120EC2 GoTo Dual High Precision Encoder

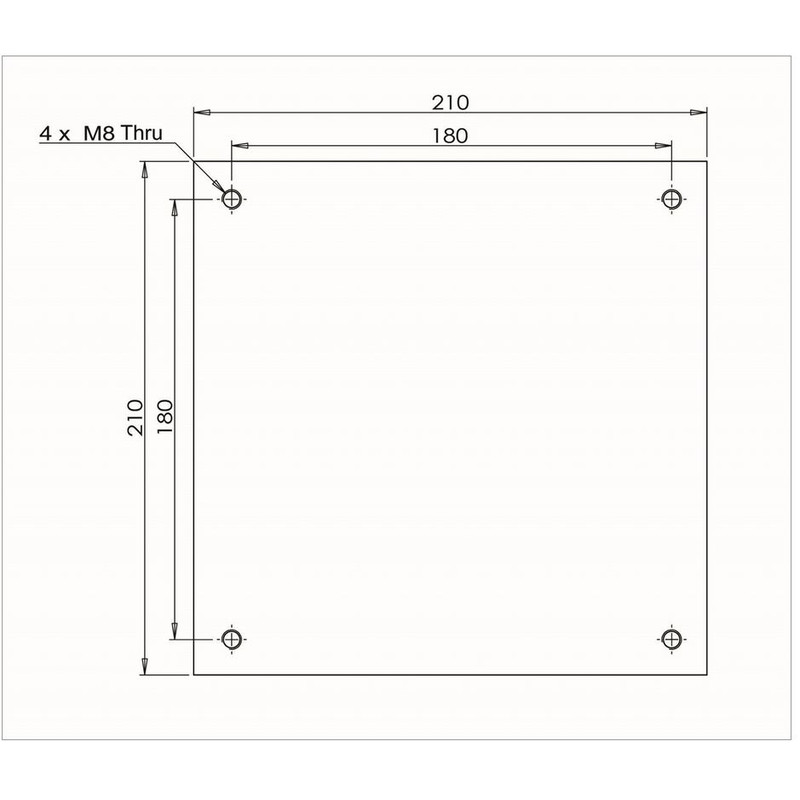

Dimensions
