Mounts & accessories > Mounts > Equatorial with GoTo > iOptron > CEM > iOptron Mount CEM26 GoTo LiteRoc
Product no.: 69699

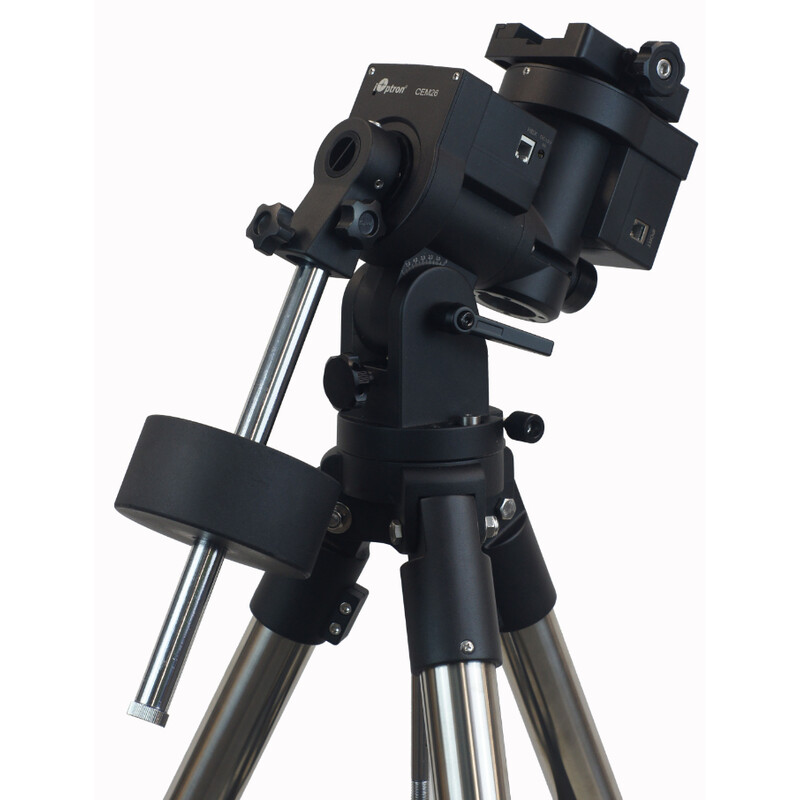

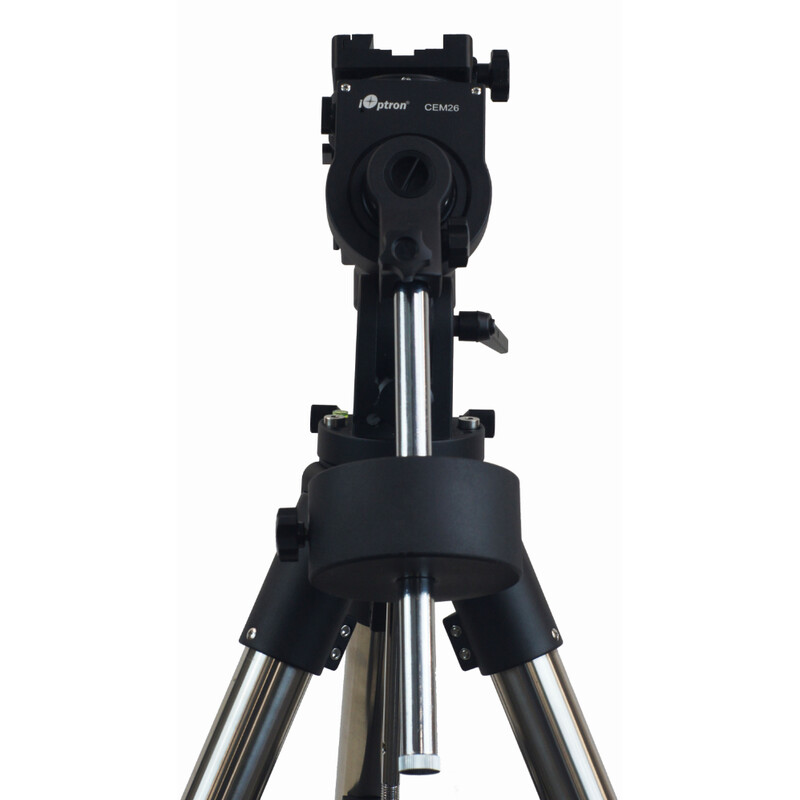

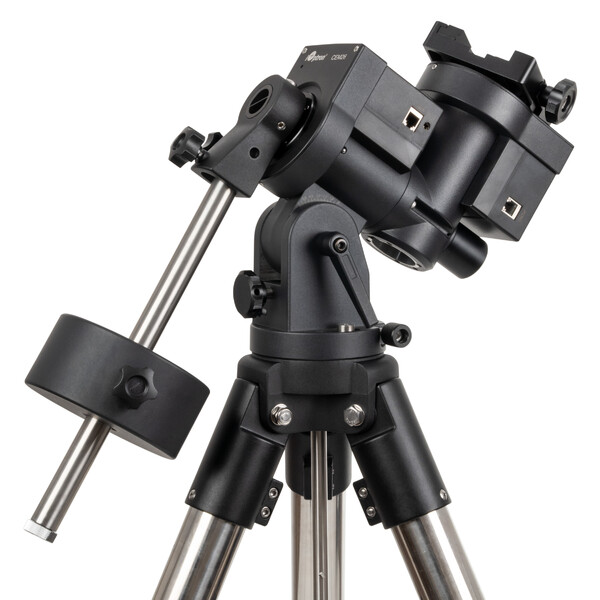

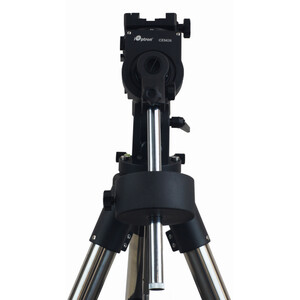

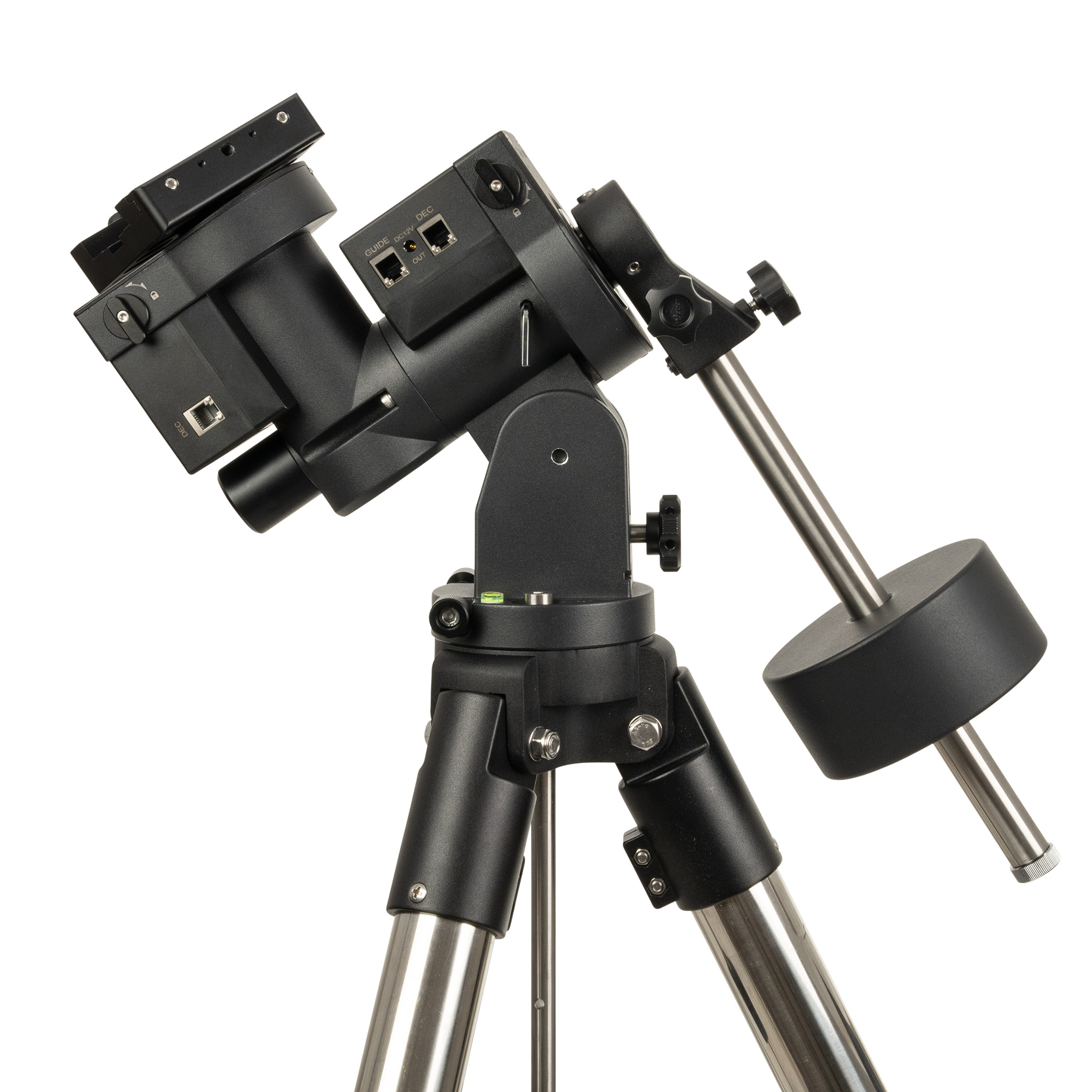

Mount CEM26 GoTo LiteRoc

$ 2,040.00 Sale price:
$ 1,530.23 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

Product description

More about the series CEM...

Like its predecessor model CEM25P, the new CEM26 is designed for ease of use and portability.

iOptron's latest mount can carry up to 12kg of payload with a remarkably high weight to payload ratio of 2:6.

The key to this optimised ratio is the centre-balance equatorial mounts (CEM) design developed by iOptron, which directs the mount and payload weight directly to the centre of the tripod, resulting in a natural centre of gravity.

Building on the legacy of earlier CEM models, additional features have been added to the new CEM26 to maximise convenience and functionality.

It now has an integrated WiFi system and recordable periodic error correction (PEC).

In terms of functionality, the CEM26 delivers precise pointing and highly accurate tracking of objects.

The CEM26 sets the new standard for compact, medium-sized GoTo equatorial mounts.

The centre-balanced design mount puts the weight of the payload at the centre of gravity allowing for greater natural stability.

This is another major advantage in astrophotography!

Other features include an adjustable counterweight bar to prevent obstruction with the tripod when used very close to the horizon.

Polar aligning is quick and accessible all the time now since the integrated polarscope is not obstructed by the declination shaft any longer (this was the case with the CEM25, for example).

The CEM26 has again been equipped with the latest Go2Nova� technology, making it one of the most powerful and accurate GoTo mounts currently available on the market!

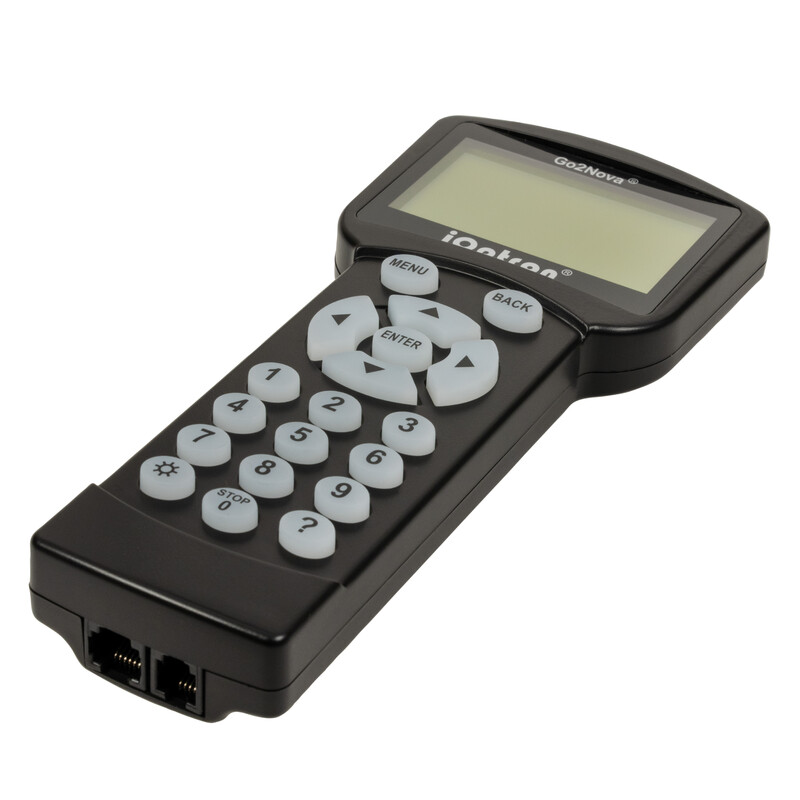

The GoTo software database includes over 212,000 objects. The Go2Nova� hand controller is intuitive to use and its large four-line LCD display makes it incredibly easy to find objects, even in complete darkness.

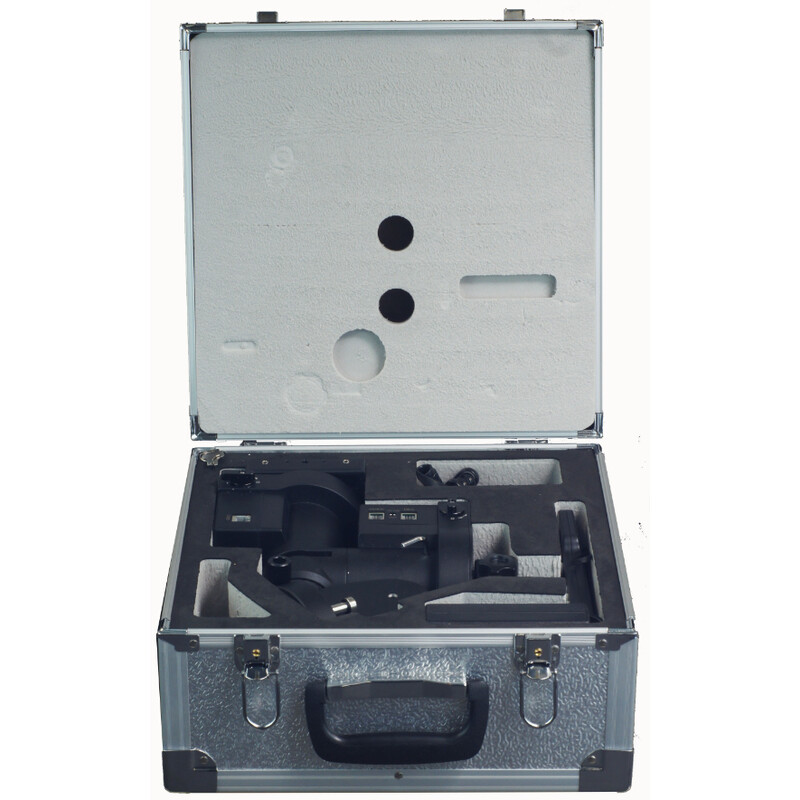

The CEM26 comes with the tried and tested stainless steel LiteRoc tripod and a sturdy aluminium carrying case.

An optical polarscope (iOptron AccuAlign) is also included in the scope of delivery.

All highlights at a glance:

  • Unique design, centre-balanced equatorial mount for maximum payload and minimum mount weight
  • Ideal for both visual observation and astrophotography
  • Low periodic error (< �10 arc seconds)
  • Payload capacity of up to 12kg with a mount-only weight of 4.5kg
  • CNC-milled and cast metal mount
  • Large, easy-to-operate gear knobs
  • Adjustable counterweight shaft for 0� latitude operation
  • Stepper motors with low power consumption
  • iOptron AccuAlign optical polarscope
  • Unique design, centre-balanced equatorial mount for maximum payload and minimum transport weight
  • 'Easy Polar Alignment' procedure for those who cannot see the Polar Star
  • Go2Nova� hand controller with the latest GoTo technology
  • Integrated ST-4 autoguiding port
  • Integrated WiFi
  • USB port for firmware updates and control via PC/laptop/tablet
  • LiteRoc stainless steel tripod with vibration pads (7.5kg tripod weight)
  • Die-cast metal tripod spreader with practical accessory tray
  • Carrying case with moulded foam lining
  • Optional upgradable 32-channel GPS
  • Optional iGuider autoguiding system

Specifications

Capacity


Designation
Center Balanced Equatorial Mount (CEM)
Max. additional load capacity (kg)
12
Polar elevation setting (°)
0-60
Motor speeds
1, 2, 8, 16, 64, 128, 256, 512 (Stepper motor)
Position precision
0.17
Precision of tracking
+/-6
Material of worm gear
Brass
Material of worm wheel
Aluminium
Worm gear teeth (RA) (piece)
144 (Aluminium)
Counterweight(s) (piece)
1 (4,5kg)
Material of counterweights
Steel
Diameter of counterweight bar (mm)
20
Software
Go2Nova
Display screen
2,17 x 0,8 (LCD display with backlight)
Database
212.000
Connection manual controller
USB & ST4 cable
Interfaces
ST-4, USB, HBX
Cable-guide
internal
Operating temperature
-10°C bis 40°C
Power supply
12 (DC)
Power consumption in open circuit (mA)
0.8
Drive type
Worm wheel

Special features


Polar axis scale
yes
Fitting for prism rail
yes (Vixen)
PEC correction
yes (permanent)
GoTo system
yes
GPS
- (Optional)
Controllable via PC
yes (ASCOM)
Updateable via web
yes
Accessory tray
yes

Equipment


Transport cases
yes
Pole finder
yes
Power pack
yes
Cable
USB

Tripod


Tripod material
Stainless steel
Tripod weight (kg)
7,5

General


Colour
black-red
Total weight (kg)
18,5
Series
CEM

GoTo control


WIFI
yes
Alignment method
3-Star Alignment, 2-Star Alignment, 1-Star Alignment
Autoguiding
yes
PEC correction
yes
Tracking speeds
sideral, solar and lunar
Polar Alignment
Easy Polar Alignment
