Mounts & accessories > Mounts > Equatorial with GoTo > Losmandy > G11 > Losmandy Gemini G11 G GoTo mount with HD tripod
Product no.: 33110

Gemini G11 G GoTo mount with HD tripod

$ 5,200.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Losmandy mounts have long enjoyed an outstanding reputation. They are characterised by precise controls and great attention to detail.

This Losmandy mount not only has a classy finish, but its inner workings are also made of precision-machined aluminium and stainless steel components. Adjustable slip clutches on both axes make it easy to handle and navigate the sky. You don't have to search blindly for clamping levers at night – the mount stays where you want it.

The G-11 mount is a real long-seller from the Hollywood company. The consistently high build quality, high load capacity and high-performance gears for precise running are the hallmarks of this great mount. For such a heavy-duty mount, the GM-11 is still compact and extremely portable. At around 16 kg, the cross-axis weighs significantly less than many comparable models in this class.

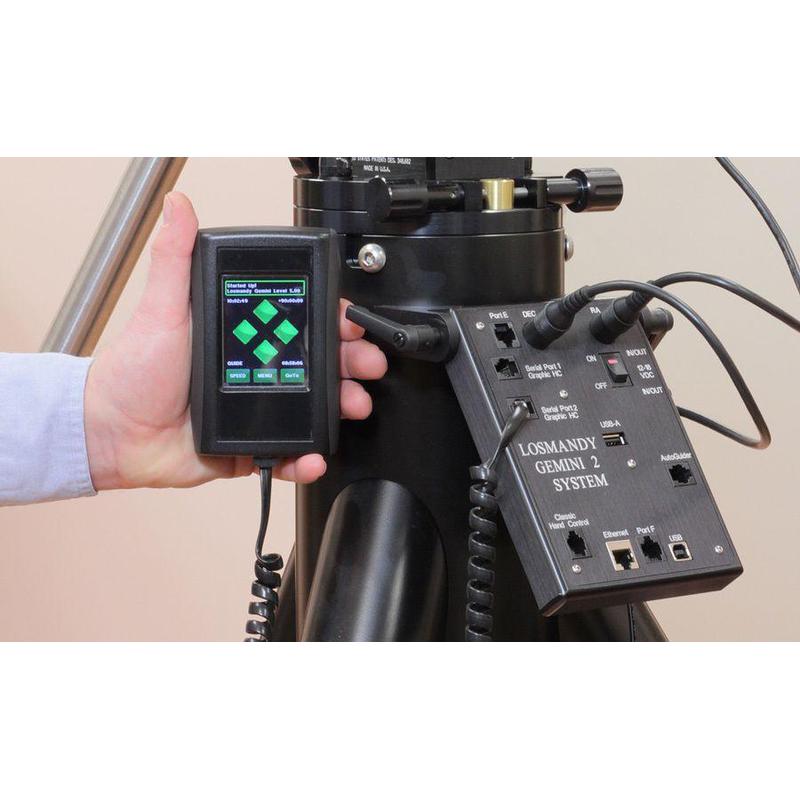

The mount is equipped with the GoTo system Gemini 2:

  • Full Color Graphic Touch Screen clearly displays all functions, with auto color change from dawn to dusk
  • Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and a tactile membrane on the rear
  • Selectable GOTO, Slewing, Centering and Guiding Rate
  • Stand-alone system. No PC required!
  • Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or APP over the web or serial port
  • Non-Volatile Memory and Real-Time Clock, internal Battery keeps settings and preferences stored between uses, user define Park function
  • English, French, Spanish & German displays
  • Two USB ports; Virtual COM to PC, ASCOM or planetarium program
  • Port F - multi-function serial; A/D I/O
  • Auto switch tracking rates
  • Search function
  • Identify function
  • Polar Align Assist, Polar Axis Correction
  • User define limit stops
  • Permanent Dec Backlash compensation
  • Electronic Balance Graph
  • Sidereal, King, Lunar, Solar, Terrestrial, Closed loop and Comet/user defined tracking rates
  • Synchronize function
  • Coordinate input
  • Bookmark set for your favorite objects

The advantages at a glance:

  • Compact and portable
  • Mount with high load capacity
  • High quality: precision aluminium and stainless steel components
  • Typically stable 3-inch saddle plate for 3-inch prism rails
  • Ultra-fast assembly
  • Smooth running thanks to needle bearings!
  • Mount for optional polar finder scope, but polar alignment is electronic as standard.
  • Includes counterweight

The Losmandy G11 G mount consists of:

  • mount
  • Gemini 2 GoTo control
  • HD tripod (weight 15.8 kg)
  • Counterweight (approx. 9.5 kg)
  • Various connection cables, in particular cables with plugs for cigarette lighters (on-board power socket).

Specifications

Capacity


Max. additional load capacity (kg)
30
Power supply
12
Power consumption in open circuit (mA)
500
Worm gear teeth (RA) (piece)
360
Material of worm wheel
Aluminium
Material of worm gear
Brass
Worm gear teeth (DEC) (piece)
360
Axle bearings
Needle
DEC worm gear diameter (mm)
143
RA worm gear diameter (mm)
143

Special features


Graduated circles
yes
Fitting for prism rail
yes
GoTo system
yes
Controllable via PC
yes
Updateable via web
yes
Accessory tray
-
Traveling mount
-
Size suitable for hand luggage
-
Polar axis scale
yes

General


Series
G11

Product safety

Manufacturer: Hollywood General Machining, Inc., 416 N. Varney St., CA 91502 Burbank, US, www.losmandy.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Telescope accessories > Cables & power supplies (3)
Power pack

Losmandy Gemini System Power Supply

$ 198.00*
Telescope accessories > Other (1)
Carry case

Geoptik Transport case for large mounts

$ 116.00*
Mounts & accessories > Tripods & Mounts (4)
Tripod

Losmandy HD 3-piece tripod feet

$ 220.00*
Mounts & accessories > Mounting plates and rails (3)

TS Optics Adaptor Dovetail Clamp from Losmandy to Vixen Level

$ 163.00*
Mounts & accessories > Counterweights (5)
Counterweight

Losmandy Counterweight 3.5 kg weight for GM-8, G-9 and G-11 mounts

$ 128.00*
Mounts & accessories > Miscellaneous (4)

Losmandy Clutch knob set

$ 274.00*
Mounts & accessories > Other (3)

Losmandy Garmin GPS module for Gemini 2 Goto mount

$ 326.00*

*All prices include VAT plus shipping costs.

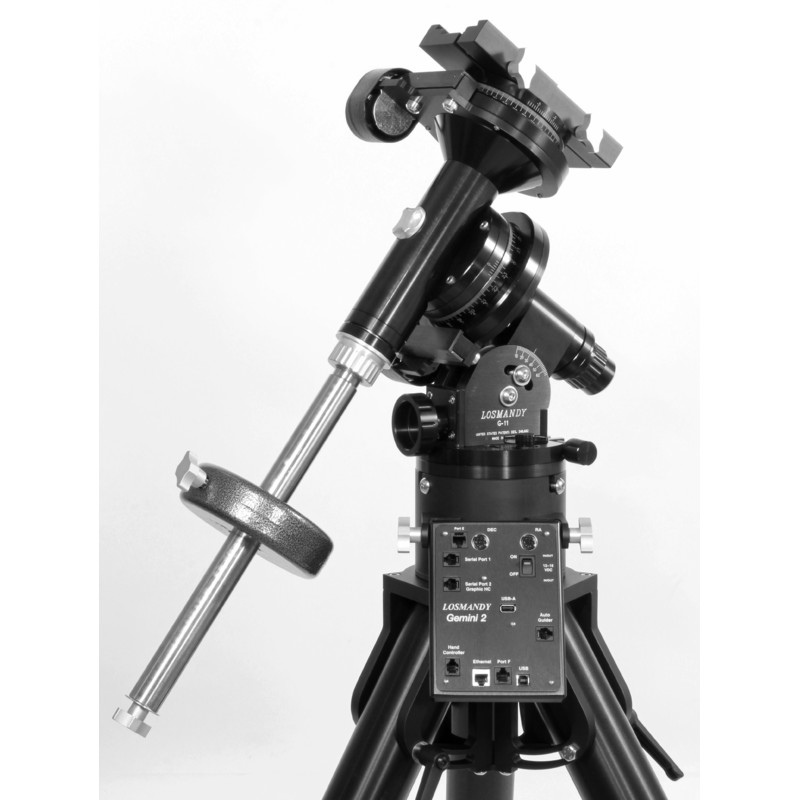

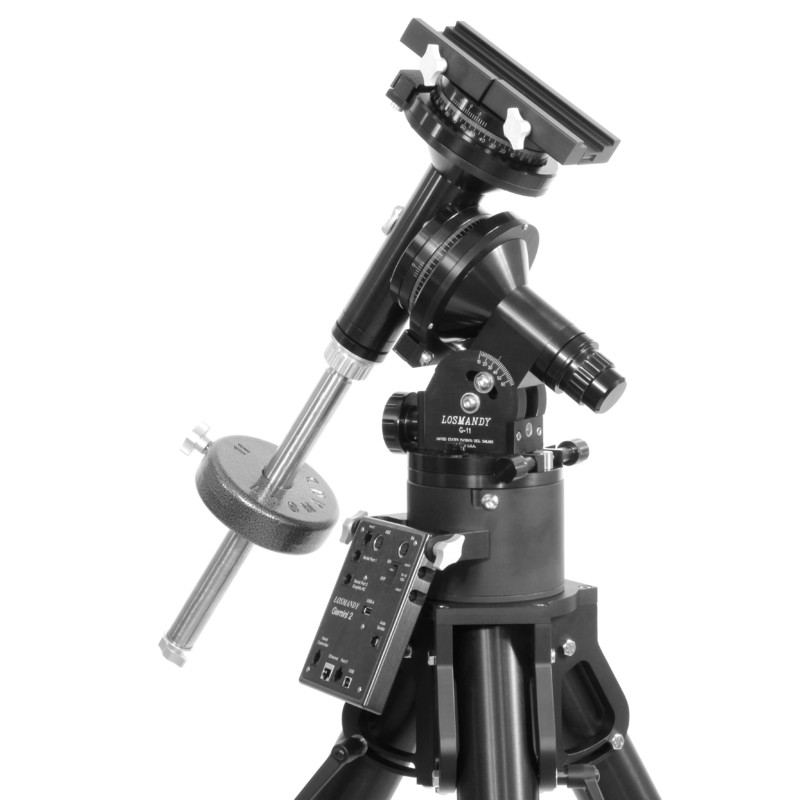

Losmandy Gemini G11 G GoTo mount with HD tripod

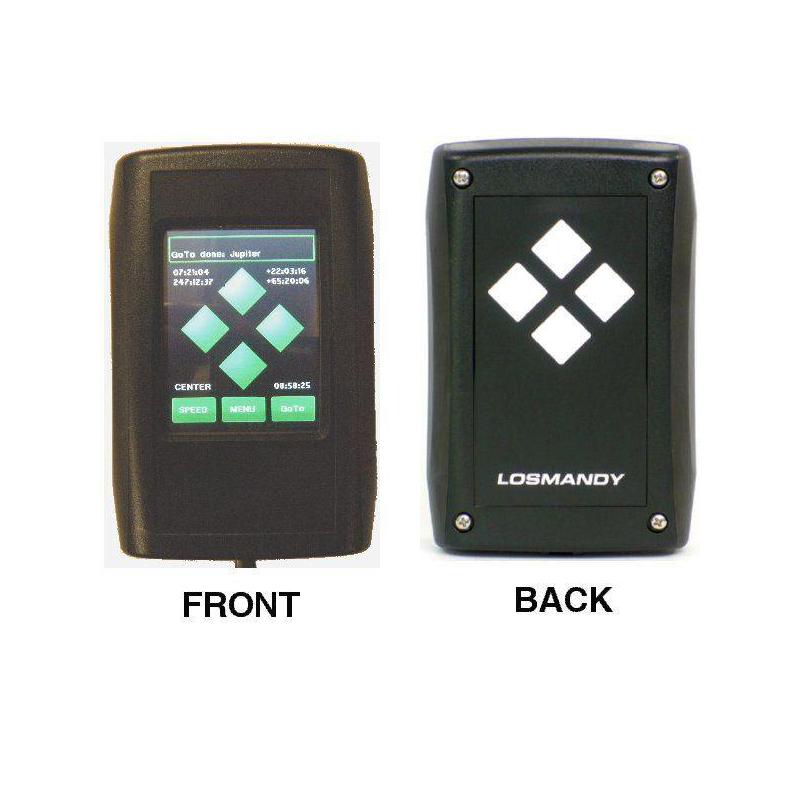

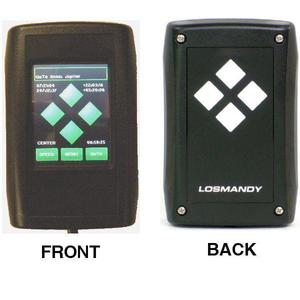

Controller

Losmandy Gemini G11 G GoTo mount with HD tripod
Controller

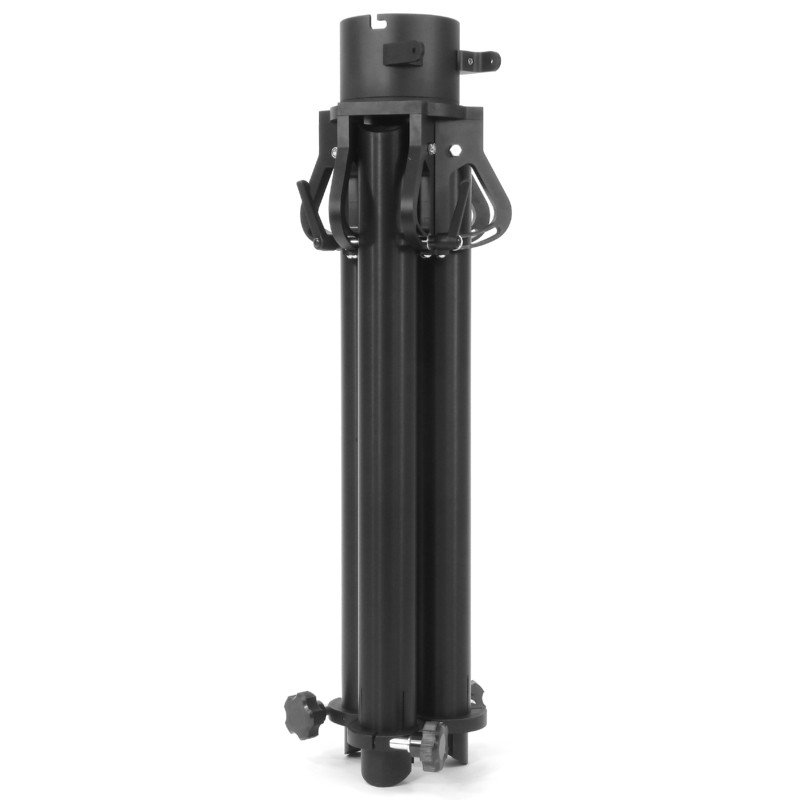

Losmandy Gemini G11 G GoTo mount with HD tripod

Tripod, foldable

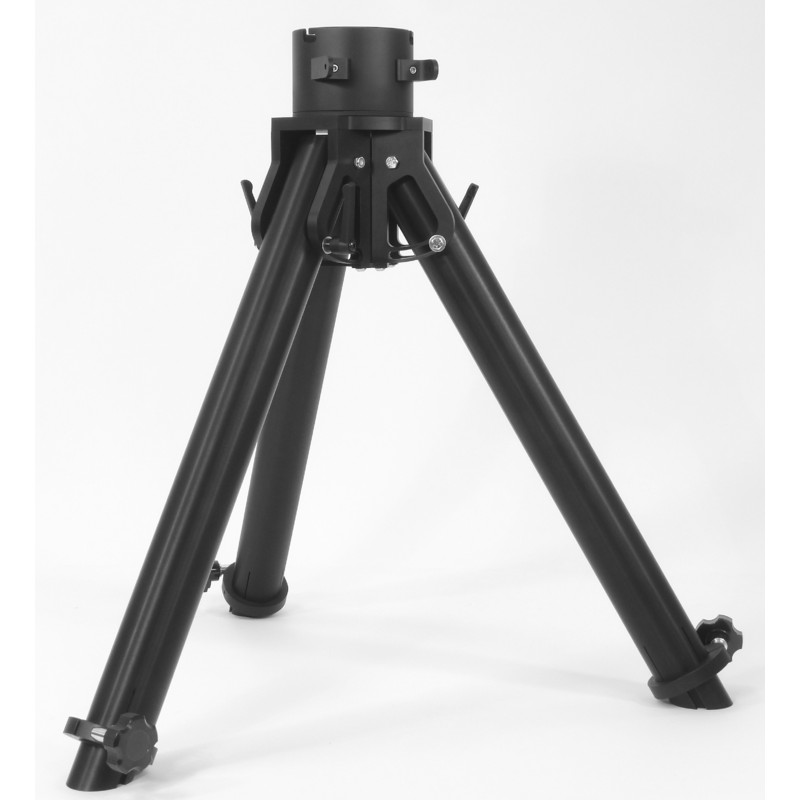

Losmandy Gemini G11 G GoTo mount with HD tripod
