Mounts & accessories > Mounts > Equatorial with GoTo > Losmandy > G11 > Losmandy Mount G11G-LT Gemini 2 GoTo
Product no.: 76575

Mount G11G-LT Gemini 2 GoTo

$ 4,790.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

In brief:

  • Compact and high-quality workmanship
  • Mount with high load capacity
  • Precise aluminium and stainless steel components
  • Stable saddle plate for Vixen & Losmandy prism rails
  • Ultra-fast assembly
  • Smooth running thanks to needle bearings
  • Mount for optional polar finder scope, but polar alignment is electronic as standard
  • Includes counterweight

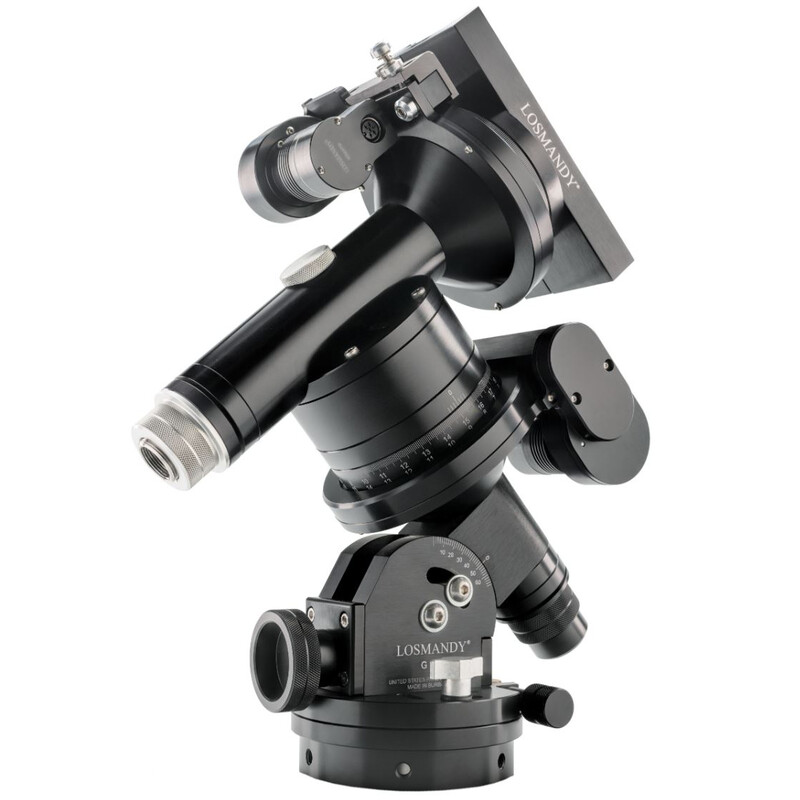

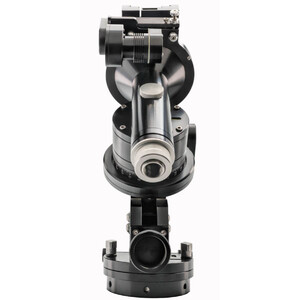

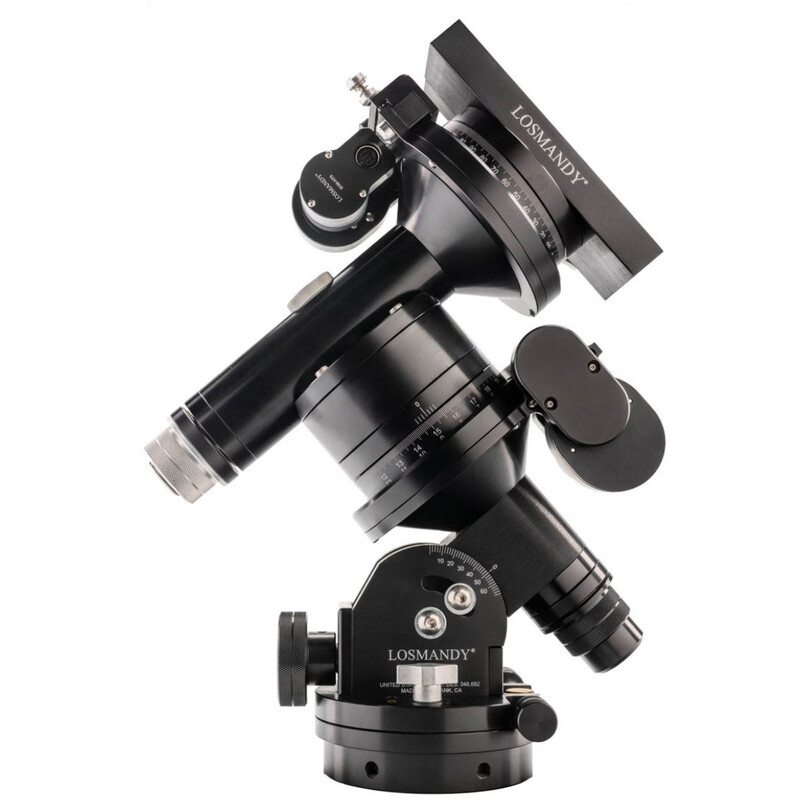

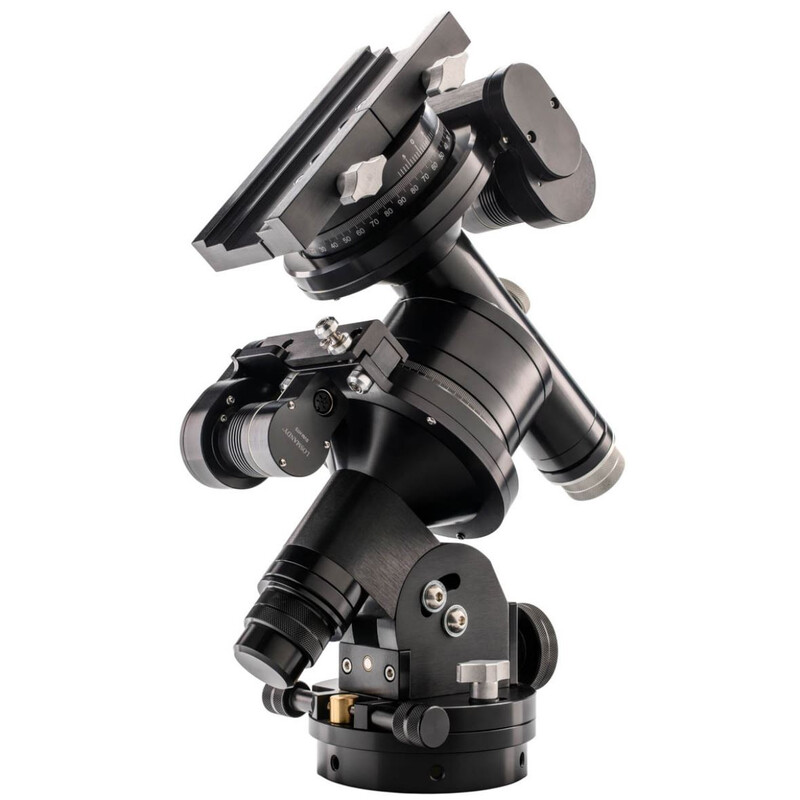

Losmandy mounts have long enjoyed an outstanding reputation. They are characterised by precise controls and great attention to detail.

This Losmandy mount not only has an elegant exterior finish, but its interior is also made of precision-machined aluminium and stainless steel components. Adjustable slip clutches in both axes make handling and navigation in the sky easier. You don't have to search blindly for clamping levers at night – the mount stays where you want it.

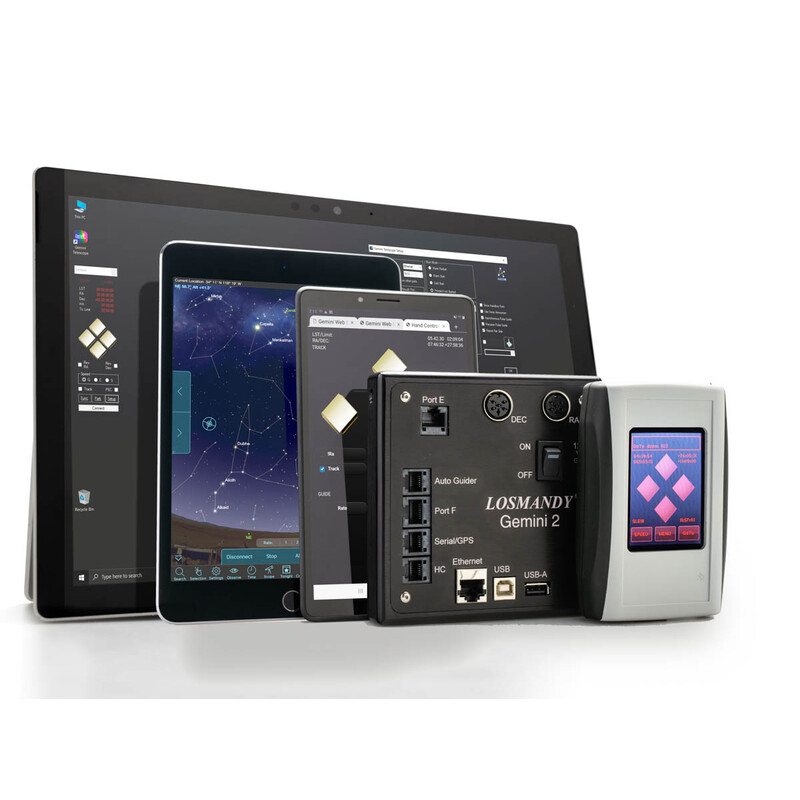

The mount is equipped with the Gemini 2 GoTo system:

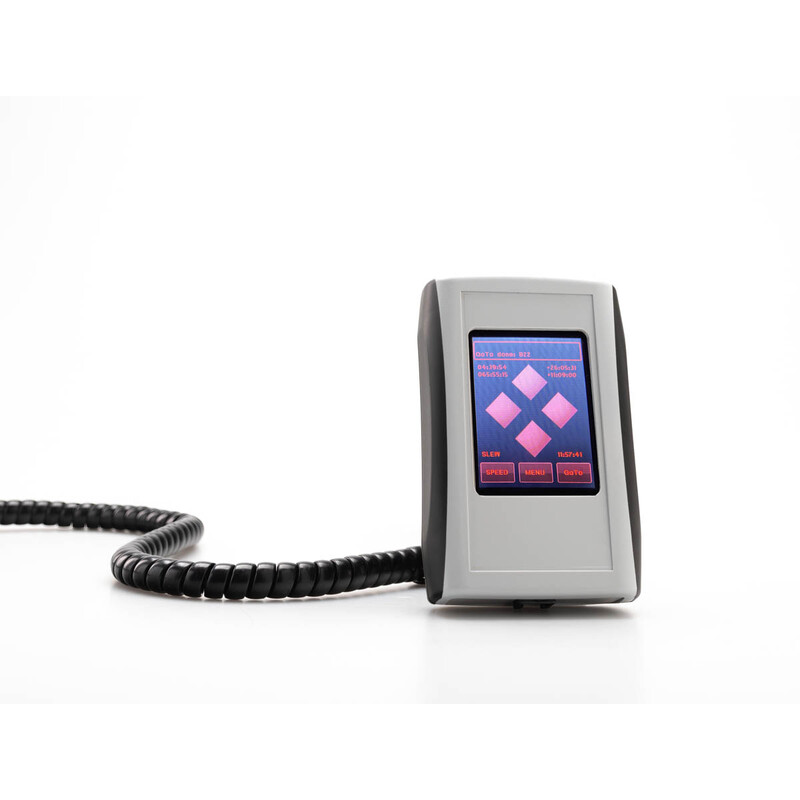

  • the colour touchscreen guides you clearly through the menu in four pre-selectable languages: English, German, French and Spanish
  • Four raised buttons are located on the back of the hand controller for manual movement of the axes. This allows you to move the telescope with precision while looking through the eyepiece or at the computer screen, without using the touchscreen.
  • Database with over 40,000 objects
  • DC servo motors instead of less accurate stepper motors
  • GPS-compatible with optional receiver
  • Saves the last settings even after switching off

The positioning accuracy of 0.5 arc seconds is a welcome relief for astrophotographers. Periodic Error Correction (PEC) compensates for inaccuracies and gives you the precision you need for modern astrophotography. Are you planning astrophotography with an autoguiding camera? That's possible too. You can connect your camera via an autoguiding port (TTL). The control also has two USB ports. Connect the mount to your PC without any driver problems and control it using a planetarium programme. Thanks to firmware updates via the Internet, you will always have the latest version.

Specifications

Capacity


Max. additional load capacity (kg)
35
Power supply
12-18
Amperage (A)
3
Worm gear teeth (DEC) (piece)
270
Worm gear teeth (RA) (piece)
270
Axle bearings
Needle
Material of worm wheel
Aluminium
Material of worm gear
Brass
DEC worm gear diameter (mm)
143
RA worm gear diameter (mm)
171
Weight mount head only (kg)
18
Counterweight(s) (piece)
1 (9,5kg)
Diameter of counterweight bar (mm)
32
Mounting saddle
Losmandy & Vixen
Polar elevation setting (°)
0-68
Slow-motion azimuth adjustment (°)
+/-10
Built-in clock
yes
Motor type
Servomotors
Precision of tracking
+/-5
DEC axis diameter (mm)
32
RA axis diameter (mm)
50

Special features


PEC correction
yes
GoTo system
yes
Controllable via PC
yes
Updateable via web
yes
Polar axis scale
yes
Level
yes

Equipment


Tripod
without tripod
Pole finder
no

General


Total weight (kg)
27
Series
G11
Type
Mount
Type of build
Equatorial

GoTo control


Database
42.000
GoTo Language
English, German, French, Spanish
Interfaces
Autoguider, USB
Software
Gemini 2
Autoguiding
yes
PEC correction
yes

Product safety

Manufacturer: Hollywood General Machining, Inc., 416 N. Varney St., CA 91502 Burbank, US, www.losmandy.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
