Mounts & accessories > Mounts > Equatorial with GoTo > Skywatcher > EQ5 > Skywatcher Mount EQ5-R Pro SynScan GoTo
Product no.: 88254

Mount EQ5-R Pro SynScan GoTo

$ 1,970.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Delivery not guaranteed until Christmas.
Show alternatives
Right of return up to January 31 2026!


  • Load capacity: 15 kilograms
  • Toothed belt drive for smooth operation
  • Sturdy stainless steel tripod
  • Computerised controls with handbox controller
  • With SynScan V.6 hand controller

Product description

The new HEQ5-R Pro is the further development of the very popular HEQ5 Pro mount.

The new version offers

  • greater stability and load capacity for astrophotography thanks to larger diameter worm gears.
  • improved precision for tracking and guiding with more teeth on the RA and DEC worm gears.
  • Toothed belt drive with minimal backlash, quieter running and smoother drive with higher torque
  • easier connection options with external power supply and USB ports
  • Improved pole height adjustment with a larger adjustment range
  • Built-in SNAP connection for camera control
  • PPEC worm error correction function (avoids constant repeated training)
  • Built-in carrying handle for more convenient transport

The included computer-controlled Synscanℱ hand controller allows you to position the telescope on a desired object or select pre-programmed tours of the night sky. The user-friendly menu system allows automatic tracking of over 42,000 objects in the night sky.

With the HEQ5-R Pro, you get a complete system for tracking a telescope for almost any application: a real workhorse, now improved and modernised once again!

Specifications

Capacity


Max. additional load capacity (kg)
15
Counterweight(s) (piece)
2 x 5kg
Mounting saddle
Losmandy & Vixen
Polar elevation setting (°)
5 - 72
Slow-motion azimuth adjustment (°)
+/- 5
Toothed belt drive<p>
yes
Pre-drive
Toothed belt
Drive type
Worm wheel
Weight mount head only (kg)
12
Diameter of counterweight bar (mm)
20
Input voltage
12
Amperage (A)
3
Motor type
Stepper motors
Worm gear teeth (RA) (piece)
160
Worm gear teeth (DEC) (piece)
144

Special features


Handcontroller
yes
GPS
- (optional)
Updateable via web
yes
PEC correction
yes
Polar axis scale
yes
Autoguider interface
yes
GoTo system
yes

Equipment


Accessory plate
yes
Pole finder
no
Counterweights (piece)
2

Tripod


Tripod material
Steel
Tripod leg diameter (mm)
44

General


Total weight (kg)
27,8
Type
Mount
Type of build
Equatorial
Series
EQ5

GoTo control


Database
42.000
Software
SynScan
GoTo Language
multilingual
Autoguiding
yes
PEC correction
yes
GPS
optional
WIFI
optional
with hand paddle
yes
Tracking speeds
sideral, solar and lunar
Precision
5

Product safety

Manufacturer: Pacific Telescope Corp, 160-11880 Hammersmith Way, V7A 5C8 Richmond BC, CA, www.skywatcher.com
Responsible person: Optical Vision Limited, Duracher Straße 11, 87437 Kempten, DE, [email protected]

Recommended accessories

Telescope accessories (2)

Celestron Powertank Lithium LiFePO4 84Wh

$ 269.00*
Mounts & accessories (3)

Skywatcher SynScan Wi-Fi

$ 128.00*

*All prices include VAT plus shipping costs.

Skywatcher Mount EQ5-R Pro SynScan GoTo

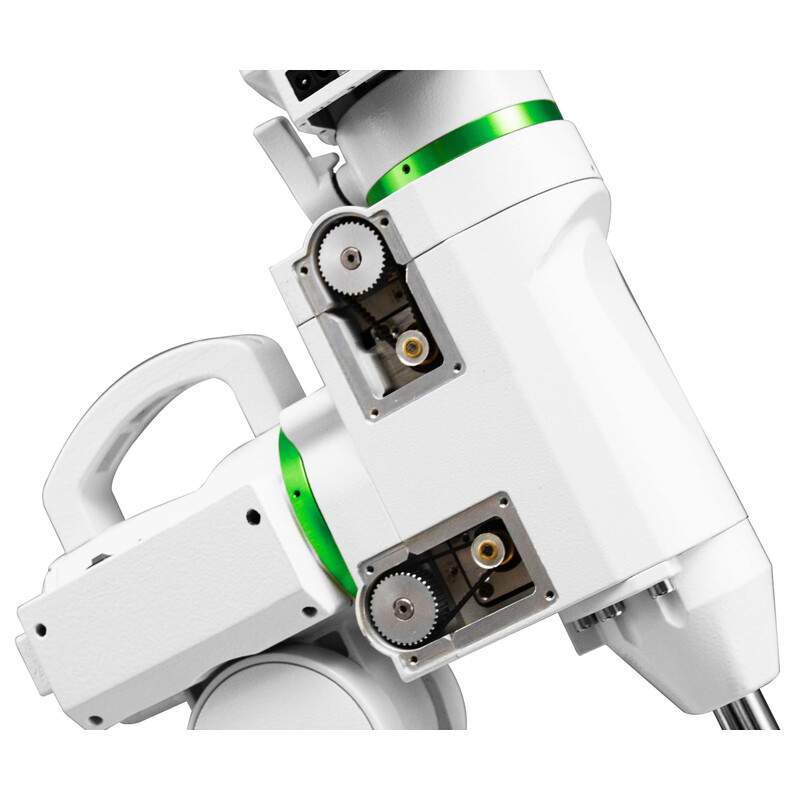

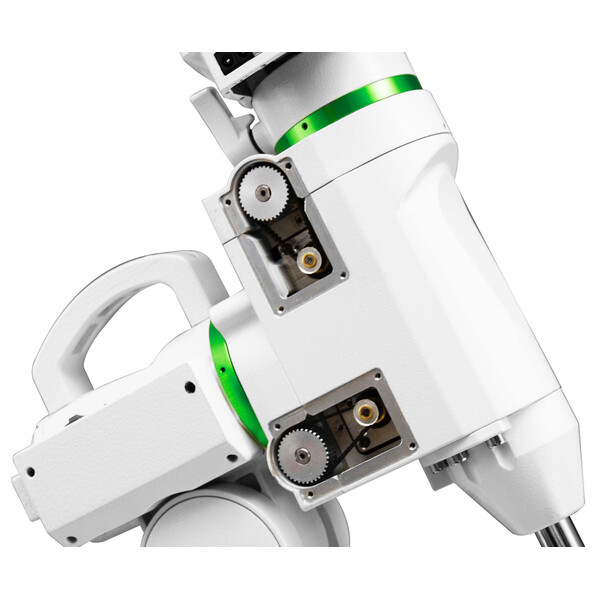

Toothed belt drive

Skywatcher Mount EQ5-R Pro SynScan GoTo

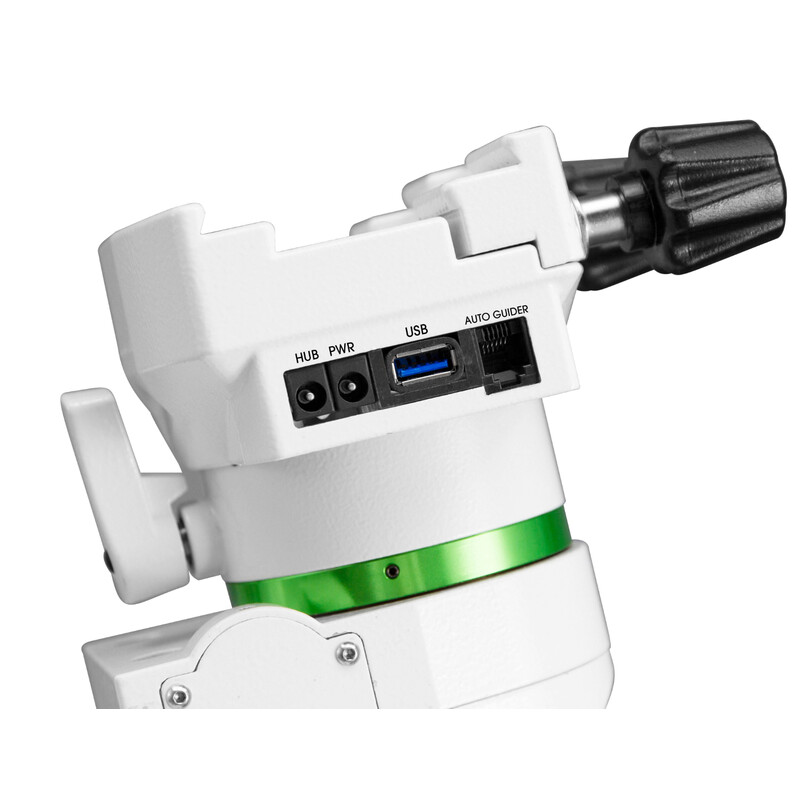

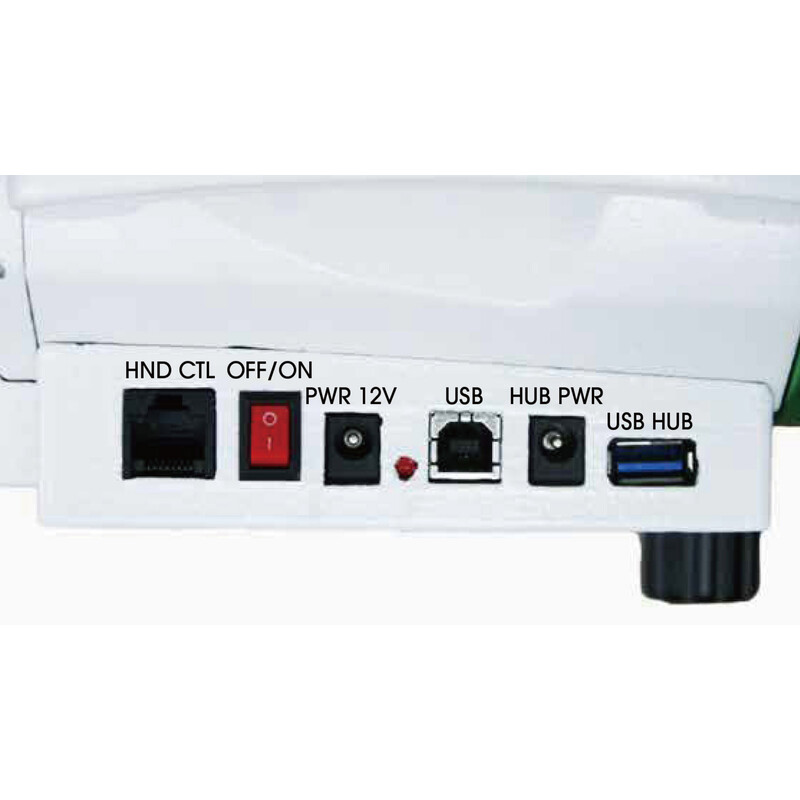

Connections
