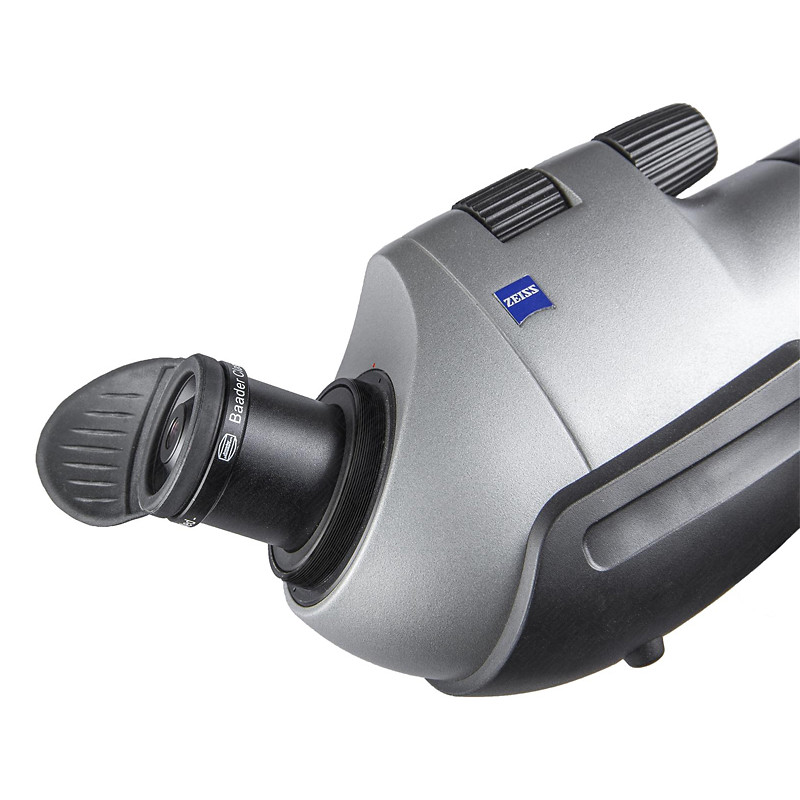

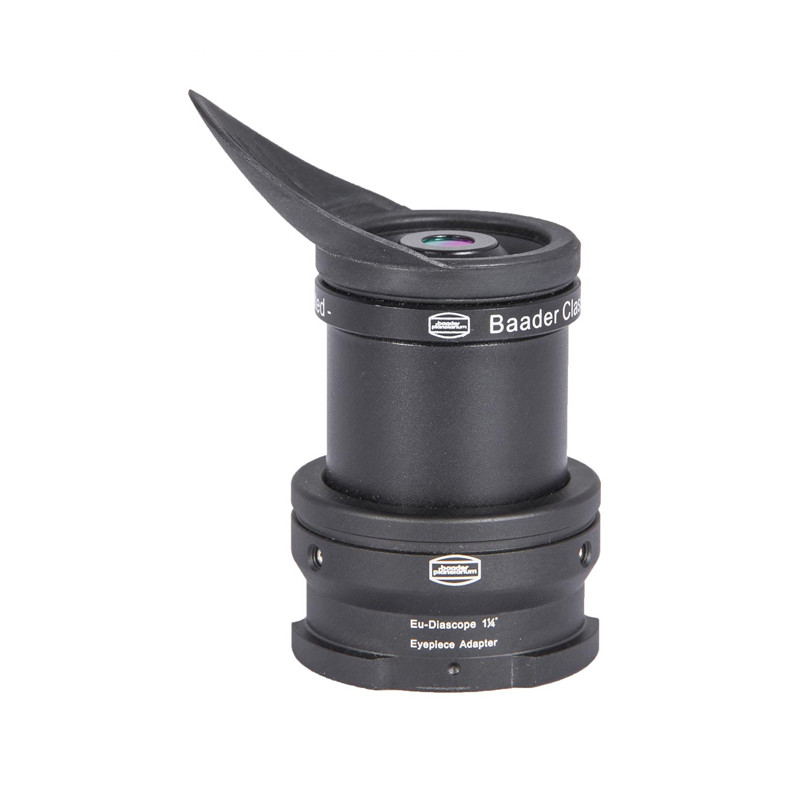

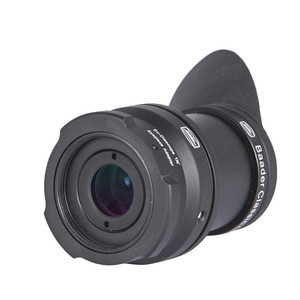

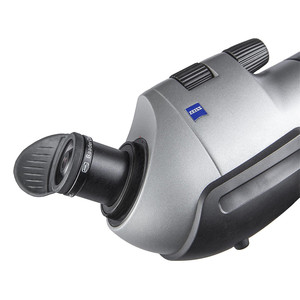

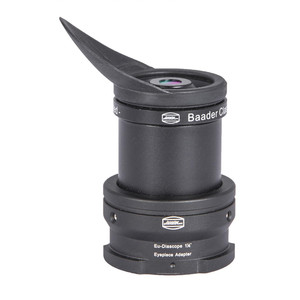

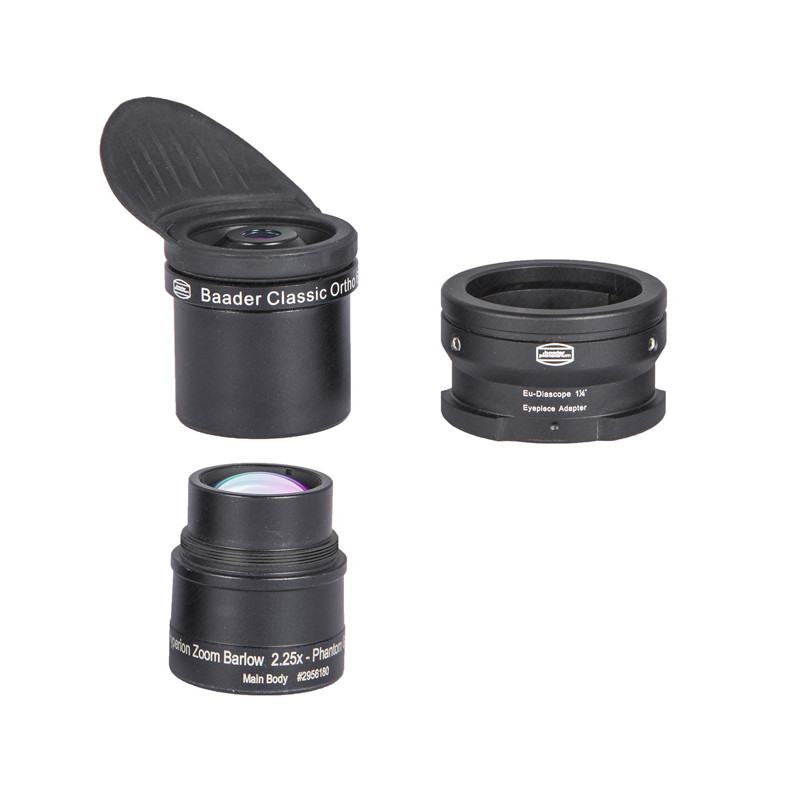

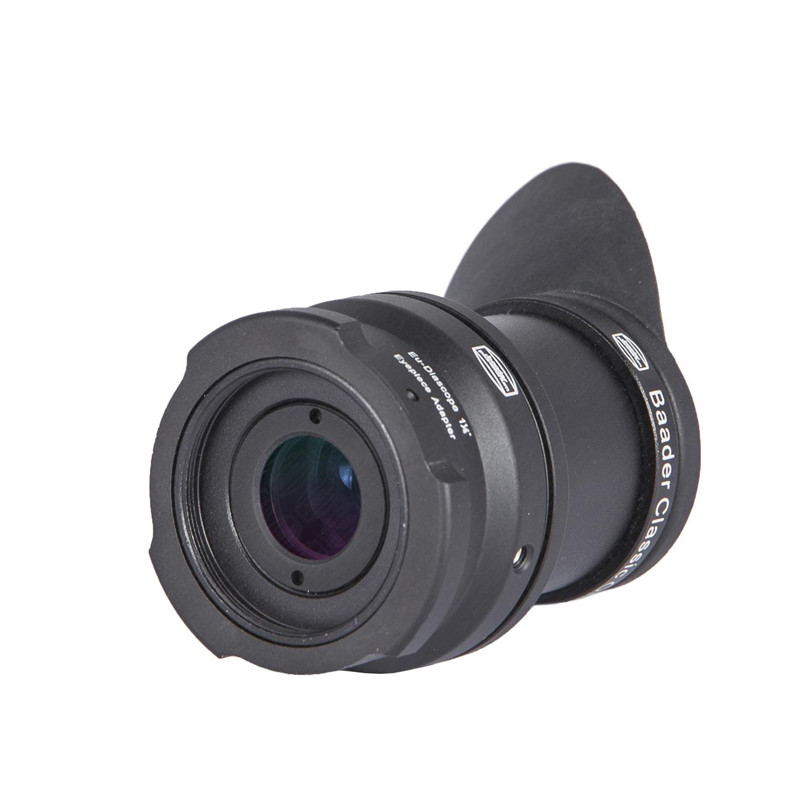

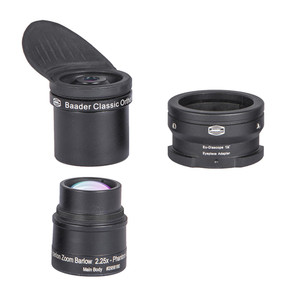

Dedicated high magnification 3 mm spotting-scope eyepiece, incl. bayonet-adapter for ZEISS-Diascope, consisting of: 6 mm Classic-Ortho-Eyepiece, directly coupled onto the lens holder of the field flattening Hyperion-Zoom-Barlow, incl. Baader-Diascope-bayonet-adapter.
The triplet-lens Hyperion-Barlow is designed to compensate for the short focal length of spotting scopes. The lens set works as field flattener and provides perfect sharpness to the edge of field. The 6 mm eyepiece can be detached from the barlow lens set and mounted onto the spotting scope with the supplied Baader-Diascope-Bayonet.
Two magnifications are provided with this product:
ZEISS Diascope 65 T*FL w. 384mm fl:
- 3mm (w. Barlow mounted): 128x
- 6mm (w/o Hyperion-Zoom-Barlow-lensset): 64x
ZEISS Diascope 85 T*FL w. 502mm fl:
- 3mm (w. Barlow mounted): 167x
- 6mm (w/o Hyperion-Zoom-Barlow-lensset): 84x
