Microscopy > Microscopy accessories > Lenses > For microscopes > Optika > IOS W-Plan PH > Optika M-1120.N, IOS W-PLAN PH microscope objective, 10X/0.25
Product no.: 56392

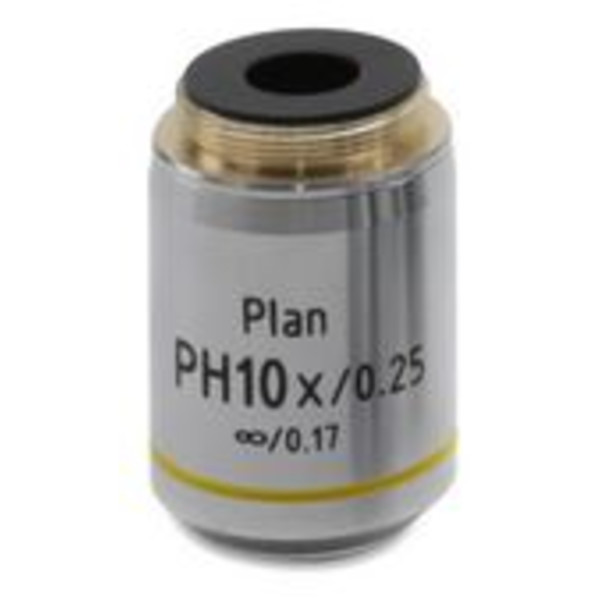

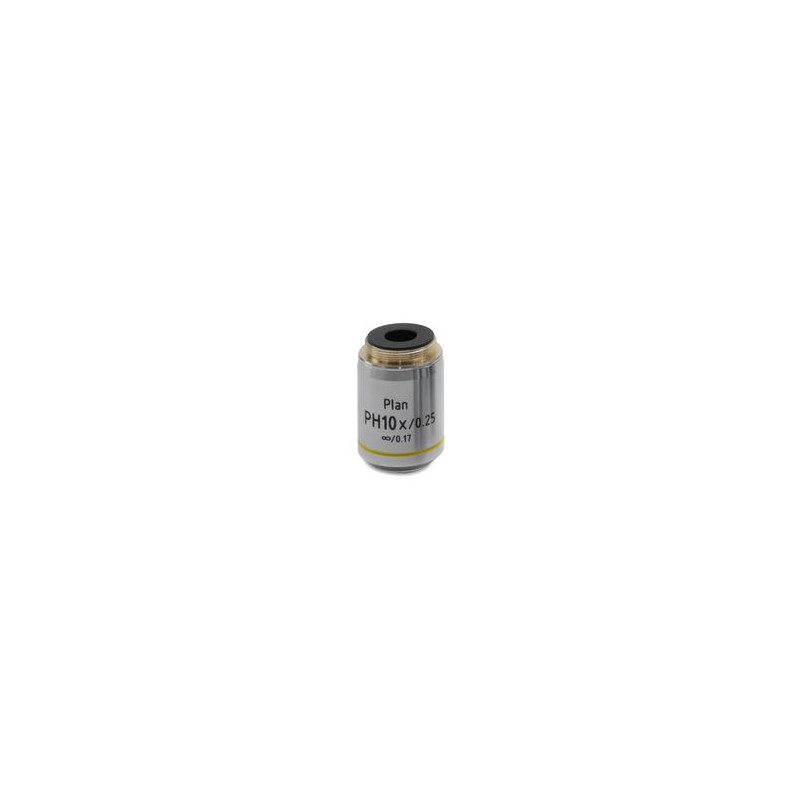

M-1120.N, IOS W-PLAN PH microscope objective, 10X/0.25

$ 243.00 incl. VAT, plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

Model: IOS Phase Contrast Planachromatic

Description: Objectives for brightfield, darkfield and phase contrast observation

  • Magnification / Numerical Aperture

• 10X / 0,25 (M-1120.N)

• 20X / 0,40 (M-1121.N)

• 40X / 0,65 (M-1122.N)

• 100X / 1,25 (oil immersion) (M-1123.N)

  • Optical Correction Negative Phase Contrast.
  • Flat field correction for 22mm F.N., planachromatic spherical and chromatic corrections.
  • Mechanical tube length IOS (infinity-corrected tube length)
  • Cover Glass Thickness 0.17 mm
  • Working Distance • 10X W.D. 10mm

• 20X W.D. 5.1mm

• 40X W.D. 0.54mm (spring-loaded)

• 100X W.D. 0.13mm (spring-loaded)

  • Screw Thread RMS Standard
  • Parfocal Distance 45 mm

IOS W-PLAN PH (Plan Achromatic) objectives deliver outstanding performance in phase contrast technique, providing a great contrast generally equired in high-level education and routine laboratory needs. These phase contrast objectives are designed to ensure field flatness up to F.N. 22, based on infinity-corrected optical system.

IOS W-PLAN PH objectives are designed for B-380, B-510 and upright modular systems with phase contrast, and infinity-corrected optical

system.

Specifications

Optics


Magnification
10
Optical system
infinity
infinity corrected
yes
Colour correction
achromatic
Cover glass correction
yes

Capacity


Numerical aperture
0.25
Magnification
10x

Mechanics


Working distance (mm)
3.71

General


Series
IOS W-Plan PH

Matches the series


B-1000
yes
B-380
yes
B-510
yes
Optika M-1120.N, IOS W-PLAN PH microscope objective, 10X/0.25
