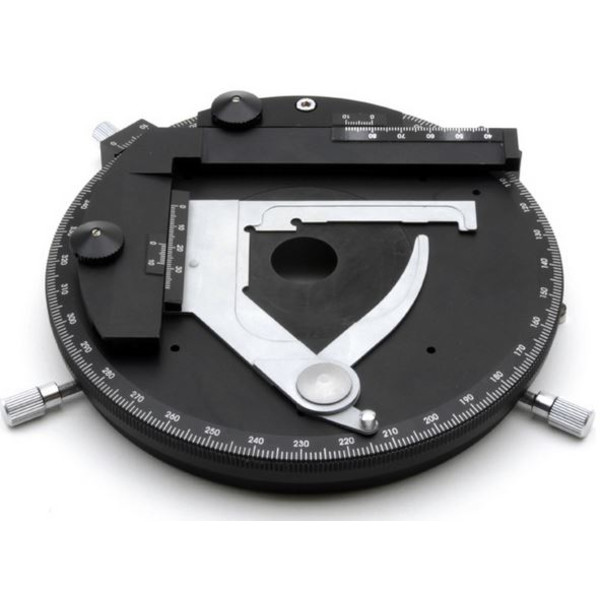

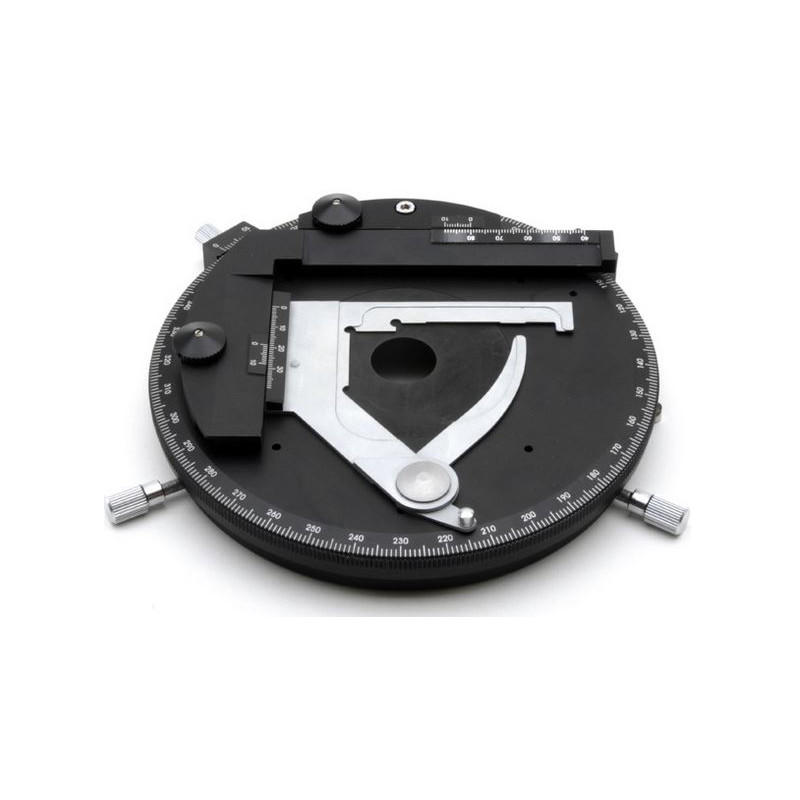

M-1145 polarisation unit for polarisation microscopy stage

M-1146

Model: Rotating mechanical stage + Attachable translation stage

Description: Rotating stage for polarizing microscopes, with X-Y translation mechanism

• Dimensions: Diameter 165 mm
• Translation: Attachable Mechanical Stage M-1146:

X: 41 mm

Y: 32 mm

• Low-profile translation knobs (stage can be rotated without interference with the objectives)
• Slide holder: For 1 standard slide
• Graduated axis: On both X and Y; 0.1 mm vernier scale. 360° graduation with 0,1° vernier scale.
• Notes: Click-stop every 45° during rotation. Fixing screw to lock the position.
