Mountings & accessories > Controls > Handcontroller > Hubble Optics > Hubble Optics SkyHub2 Wireless & USB Digital Setting Circle System
Product no.: 74410

SkyHub2 Wireless & USB Digital Setting Circle System

$ 560.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 30.03.2024!

Product description

The Hubble SkyHub is a Bluetooth/USB based controller which constantly monitors the position of the telescope via two encoders attached to two telescope axes. This position information is sent to an Android, Windows, iOS or Mac OS based device, and the scope’s pointing direction is then updated on the screen in real time via your favorite planetarium software.

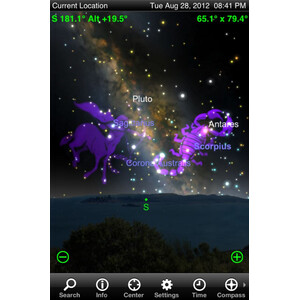

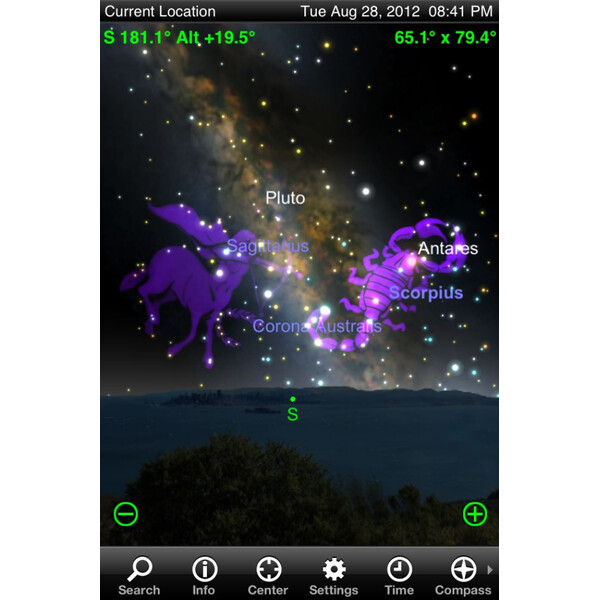

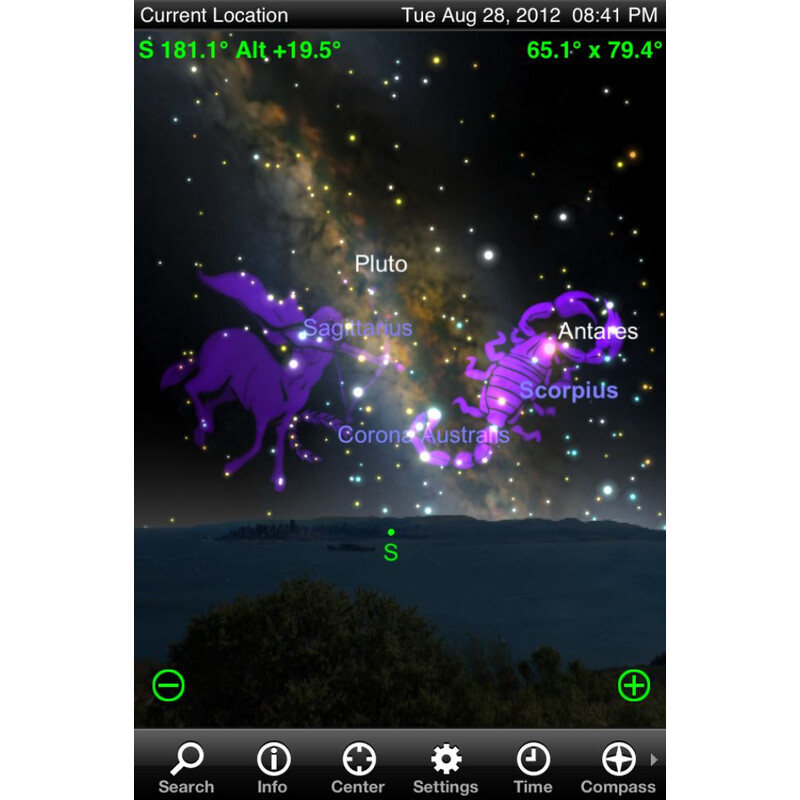

Just point your scope to any star, and touch the same star on the Sky Safari, which will complete the one star alignment. Then you simply touch any star on the screen, and move you scope until your Scope’s position mark exactly meets the target star on the screen …“Ding”, done!

Optionally, you can perform a two star alignment at any time for better pointing accuracy.

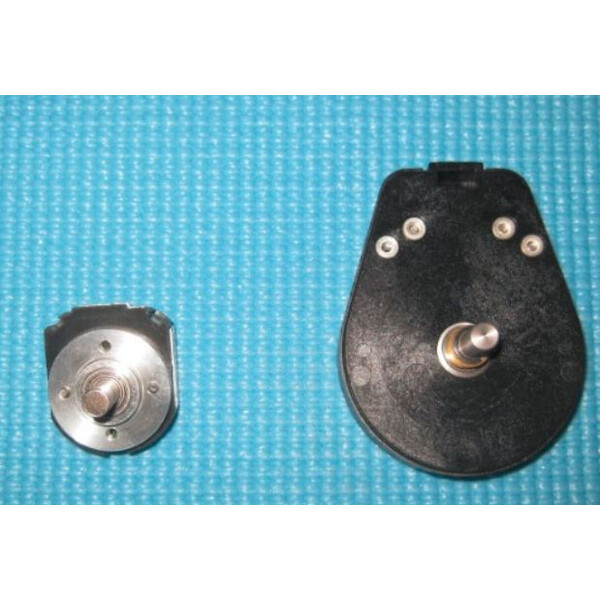

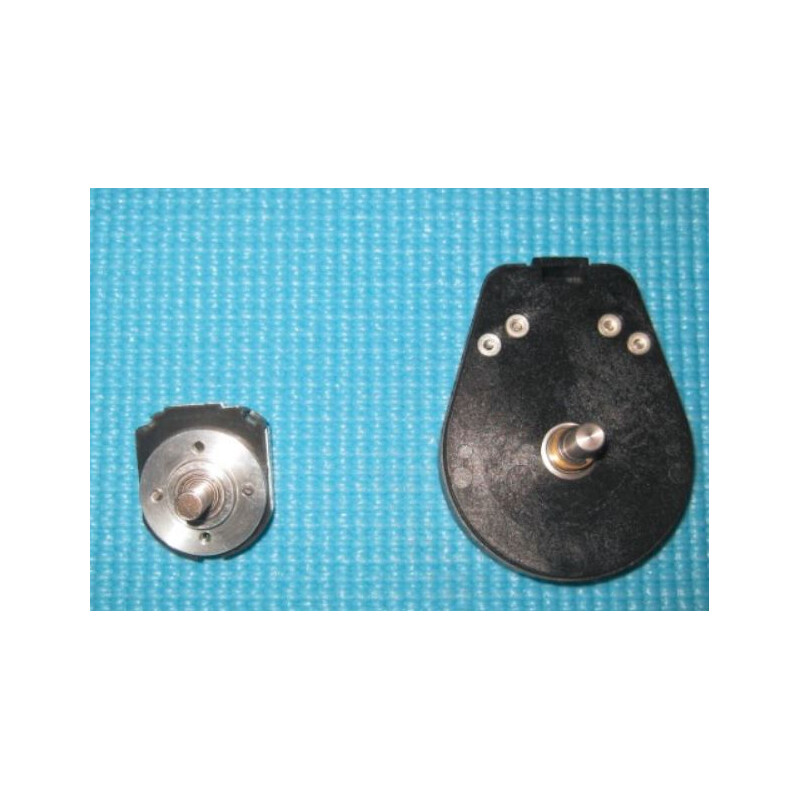

Hubble SkyHub Digital Setting Circle comes with revolutionary high resolution (8192 PPR), extremely compact, and highly energy efficient ball bearing encoders. It is 80% more power efficient, and is only about 15% size of a traditional encoder.

Specifications:

  • Bluetooth V2.0 compatible.
  • It supports USB connection with MS Windows XP/Vista/7/8 and Mac OS (Mac Book)
  • It works with Sky Safari on ipad/ipod/iTouch/iphone when an optional Skyfi WiFi receiver is connected to SkyHub via the USB port!
  • It works with Sky Safari on a Mac Book directly connected to SkyHub via a USB cable.
  • It works with many Windows based planetarium softwares.
  • Three LEDs: power LED, Bluetooth Status LED, and Communication LED.
  • 5VDC (2A) external battery box. It also works with an internal 5V battery. Battery is not included.
  • Two revolutionary, 8192 PPR, low liower consumlition, ball bearing encoders.
  • Come with encoder cables, encoders adapters brackets for Hubble UL14, 16, 18 and 20.
  • Comes with Sky Fox LT, a simlile but powerful Android based Digital Setting Circle software. It includes all Solar planets, 250 named stars, complete Messier (110), NGC/IC (7840/5382), Washington Catalog of Double Stars (WDS), Yale Bright Star catalog and the entire SAO catalogs (258,996 stars), free of charge.
  • It works with Sky Safari on Android devices (with Bluetooth). Sky Safari (pro) features 15.3 million stars, 740,000 galaxies, and 550,000 solar system objects, including all the comets and asteroids ever discovered. Not included.

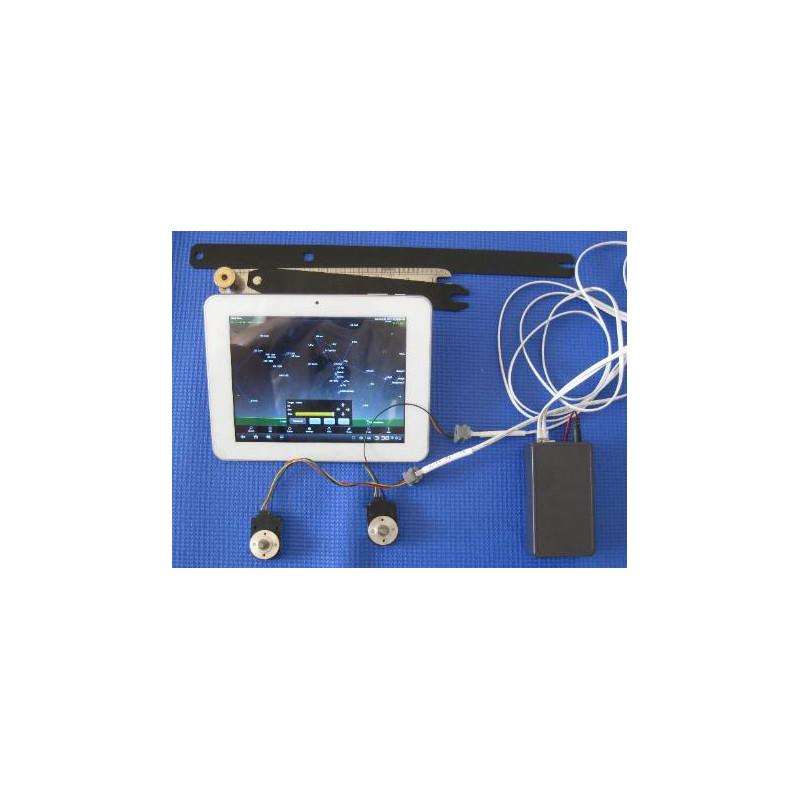

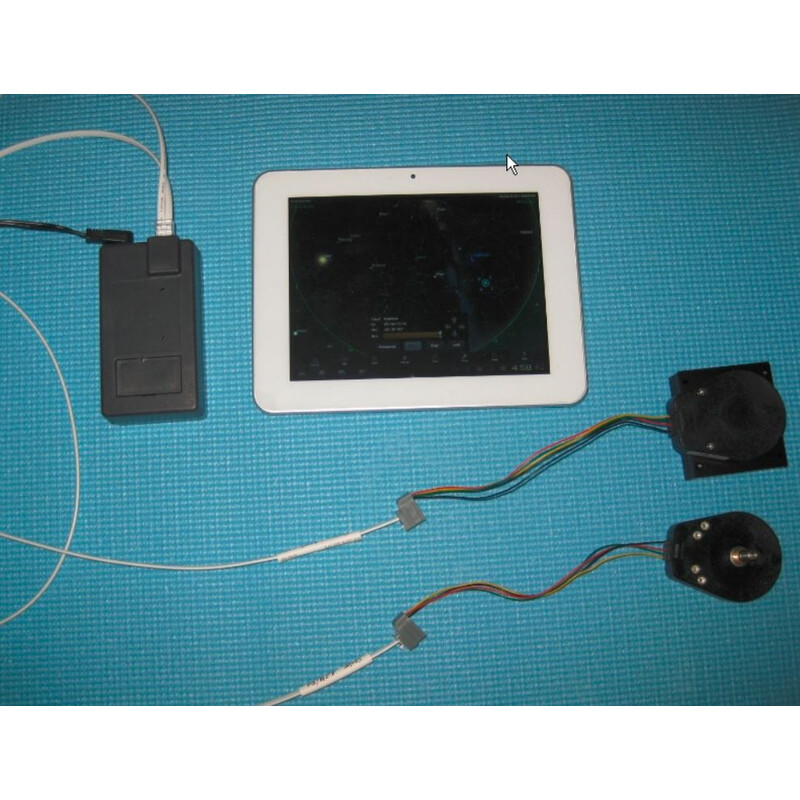

  • Two 8192 high resolution encoders, encoder cables, all necessary encoder mounting brackets for UL14/16 (or UL18/20), power cables, and a 5V external battery box are included.

Our expert comment:

The SkyHub 2 is used for the Hubble telescopes UL14/16, UL18/20, UP12 and UL24.

Depending on the size/model of the Hubble telescope (Dobsonian), one out of 4 different brackets need to be furnished.

Please inform us at the point of ordering, for which size of telescope the SkyHub 2 is to be used.

(Jan Stroeher)

You will also need to use an USB-A male to USB-B male cable to connect the battery unit to the SkyHub2.

Specifications

Capacity


Appropriate for telescopes
Hubble UL Dobson
