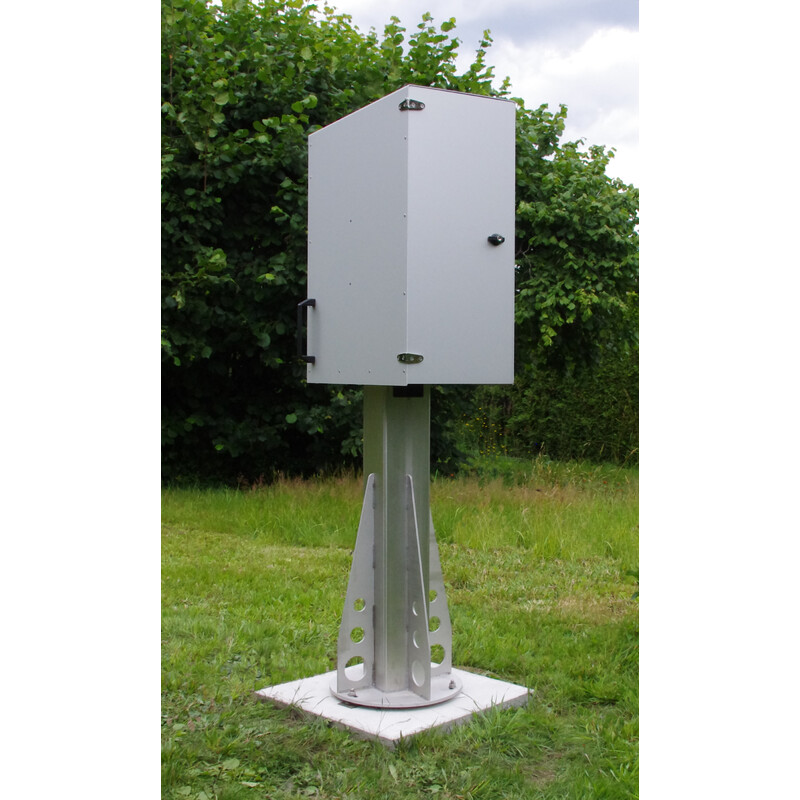

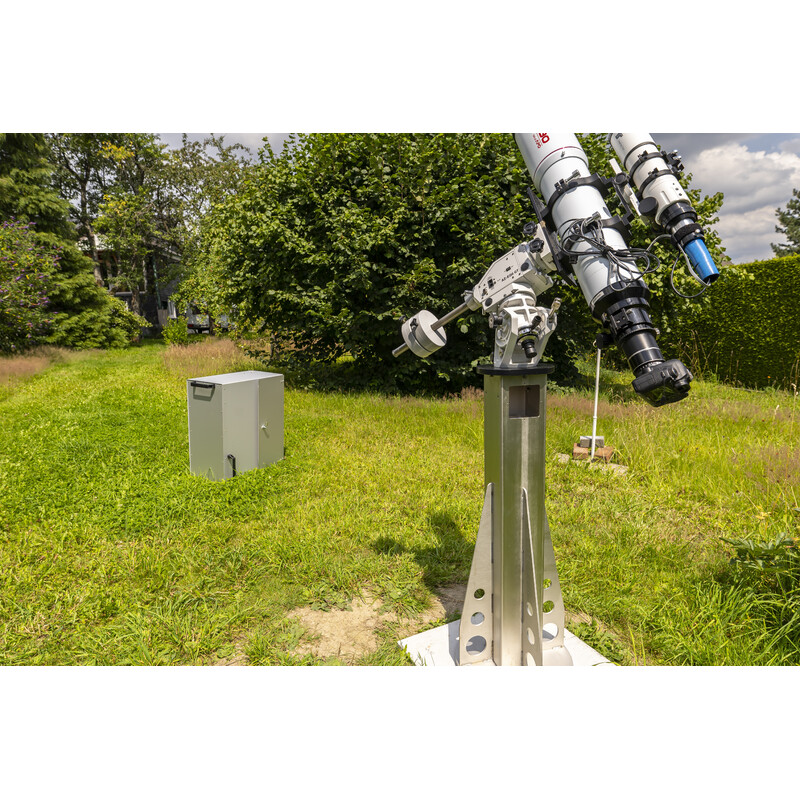

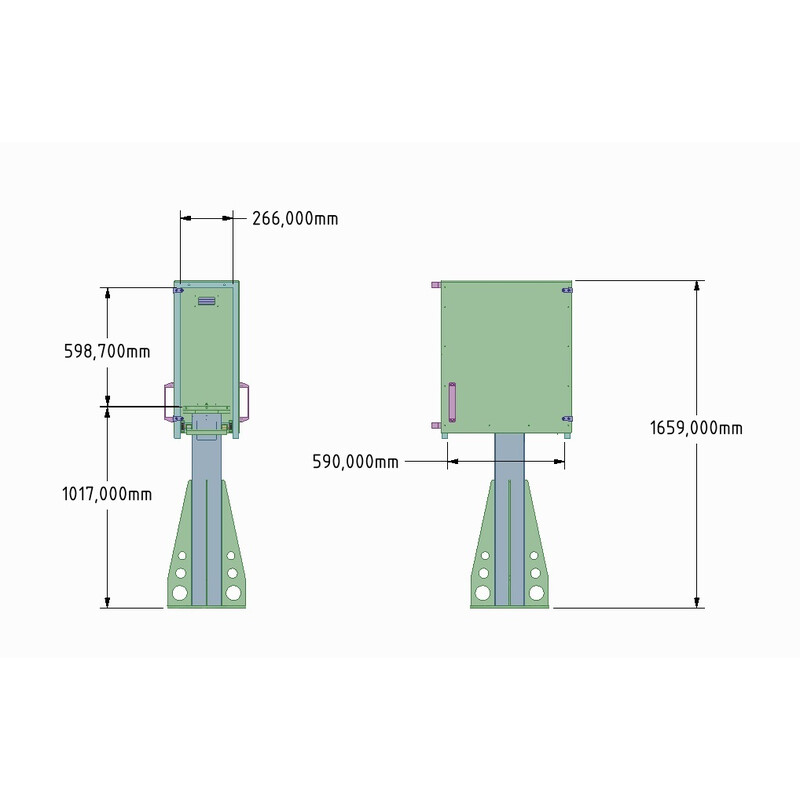

Column with EcoFlex Base 100 mounting protection structure

The all-inclusive package for permanently aligning a mount. Ideal for schools, universities, institutes, clubs and for home use. No adjustments are necessary, as the column and multi-adaptors are included.

• Easy self-assembly or with installation service on request

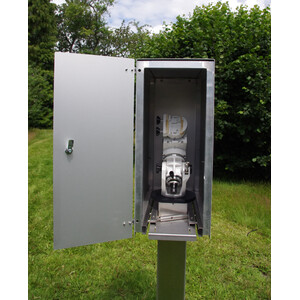

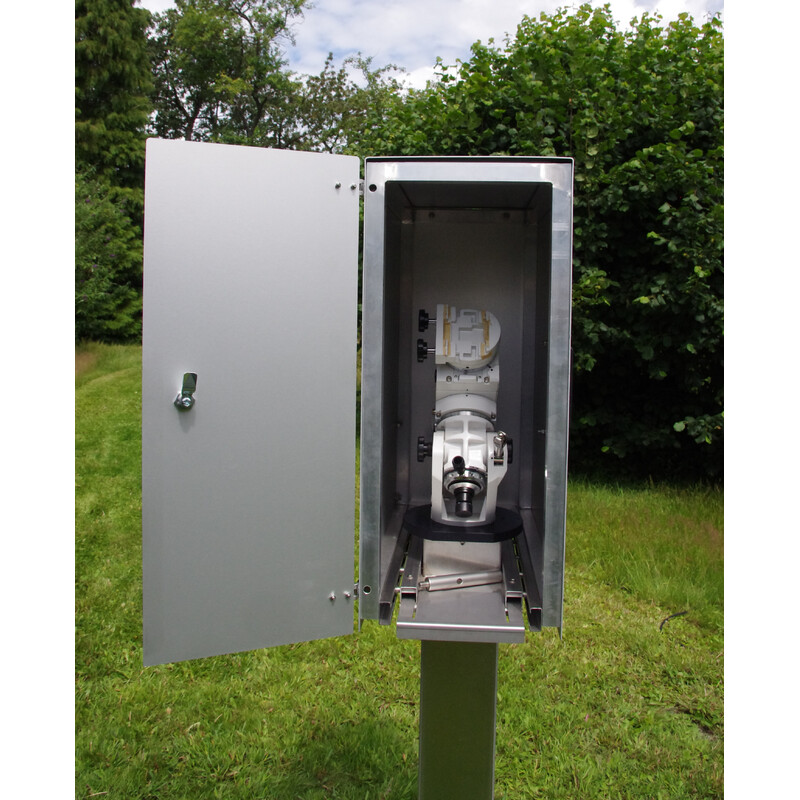

• Stainless steel column with opening for attaching an EQ6 from below, for example
• Column can be filled with sand or concrete
• Removable cover over roller guides with fibre-reinforced plastic handles
• Roller guides removable for long refractors

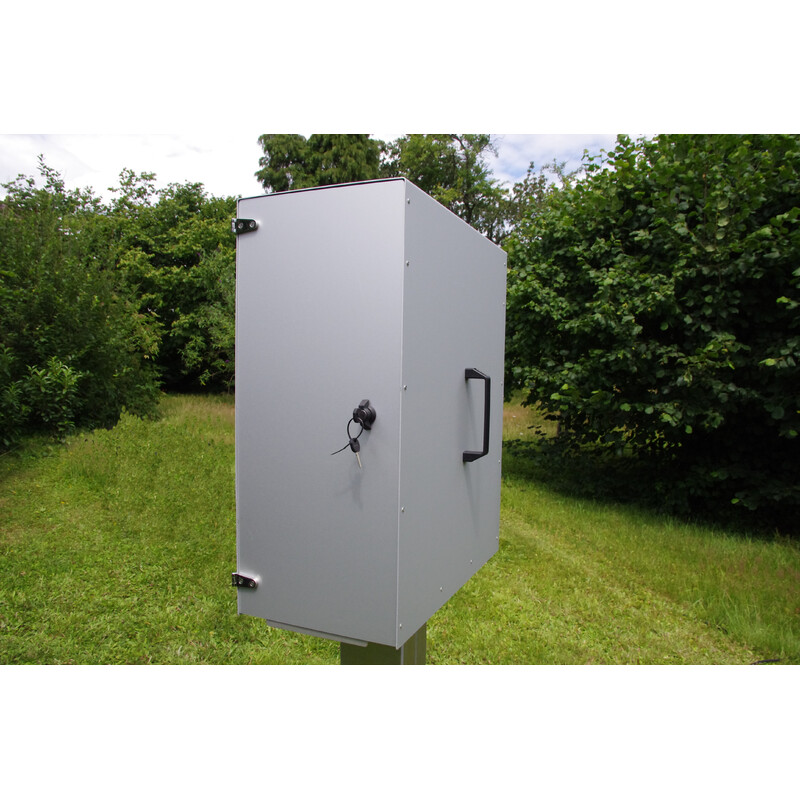

• Cover made of anodised aluminium
• Inner support frame made of welded aluminium profiles
• Cover can be easily removed via feet
• Rear ventilation slots made of stainless steel
• Internal insulation to prevent condensation forming on the inside of the roof
• Stainless steel hinges and lockable lock (2 keys included!)
• Multi-column adapter, suitable for various mounts (EQ6, EQ8, AP 900, AP 1100) ...will be expanded continuously!
• Storm protection and adjustable stop plates as well as reach-through protection in one, made of stainless steel

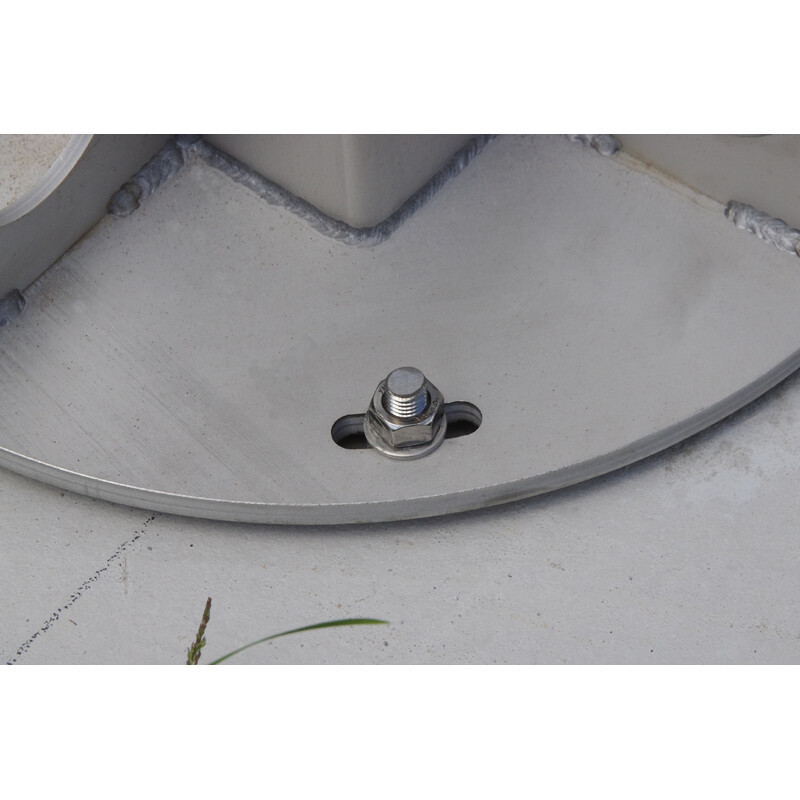

Delivery on pallet, including mounting material for concrete foundation and suitable tools for unscrewing and screwing on the roller rail, via a shipping company. Costs on request!

Necessary preparatory work before installing the column: Concrete foundation with at least 60x60cm or a diameter of 60cm, with sufficient frost depth (Deutschland 60-80cm). For mounting (floor anchoring) on a balcony or roof, a structural engineer must be consulted!
