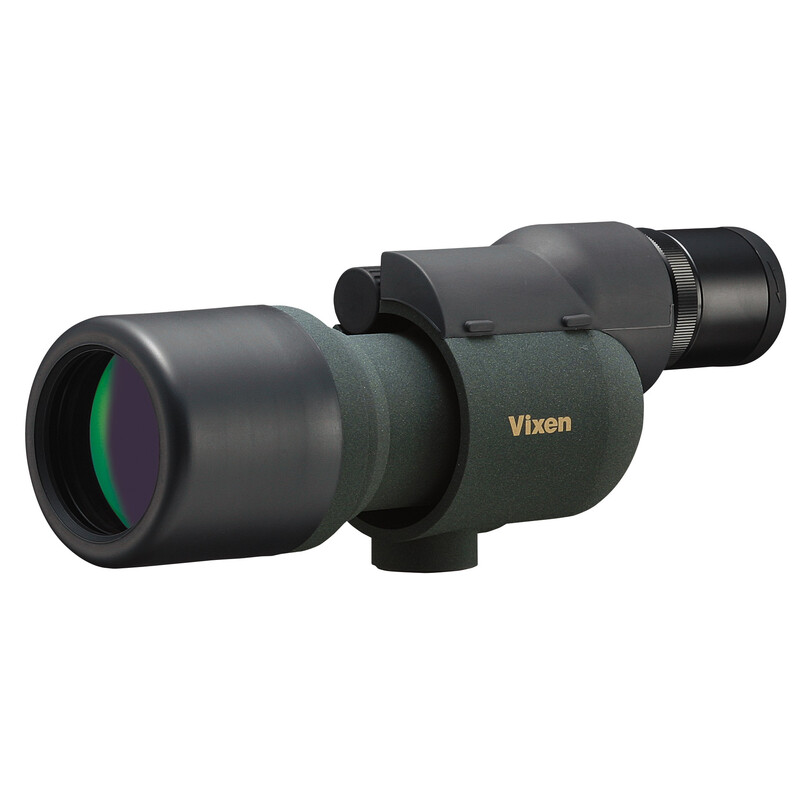

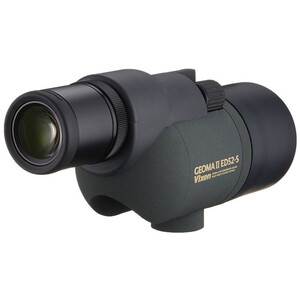

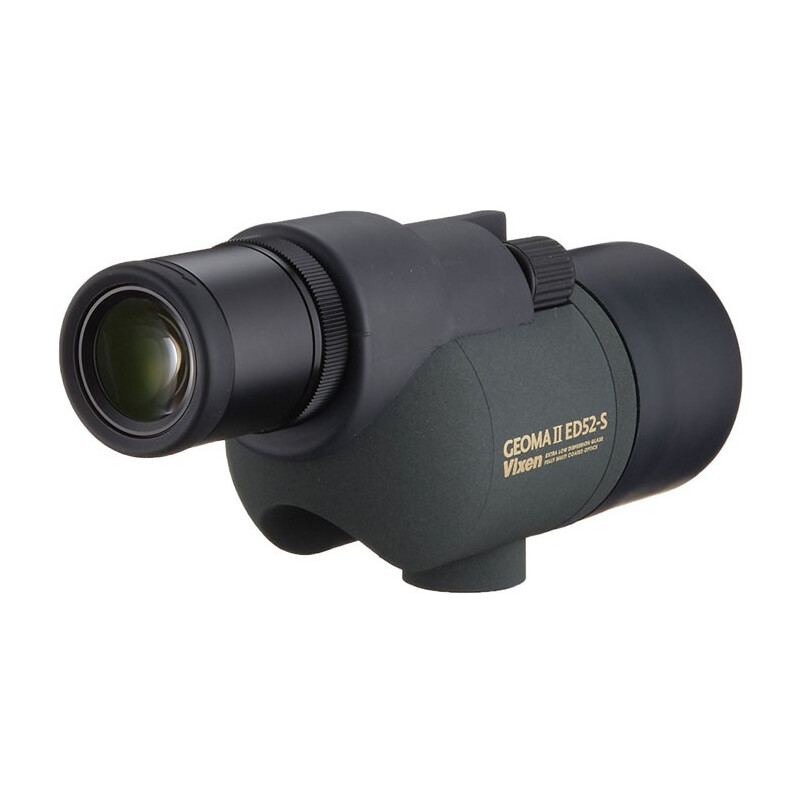

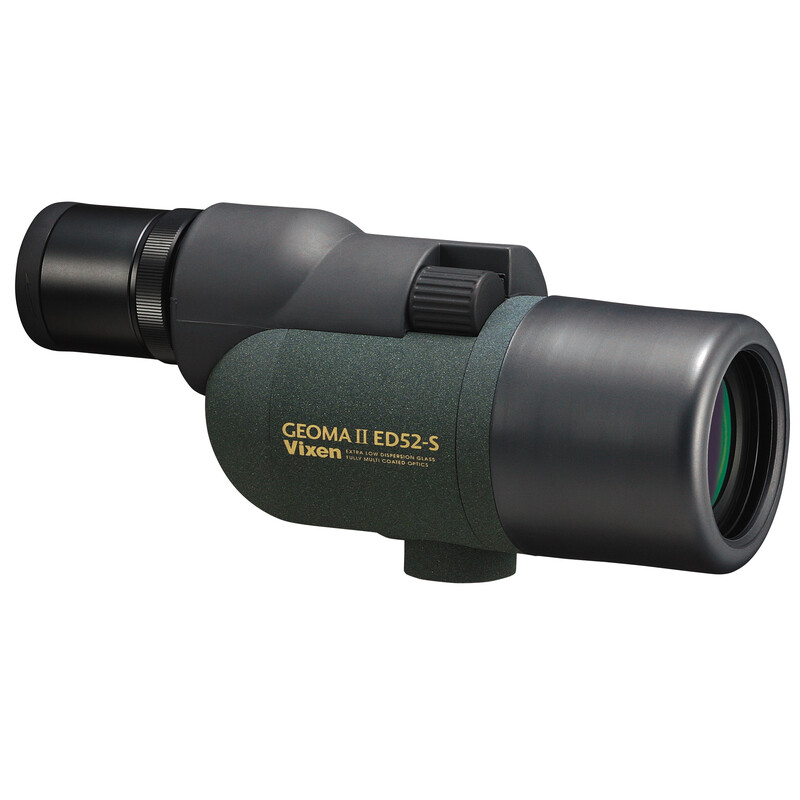

Vixen GEOMA Ⅱ ED 52-S
Mobile scope which can be used even on hand
Adopting an ED lens realizes a high contrast view with less aberration. By adopting an ED (ultra low dispersion glass) lens, we realized a high-contrast field of view with reduced aberration. We recommend observation by visual observation as a lens for super telephoto shot with a camera attached.
- Adopt ED lens
ED (ultra low dispersion glass) lens is adopted as an objective lens. The aberration is suppressed at a very high level, and the view with excellent contrast spreads.

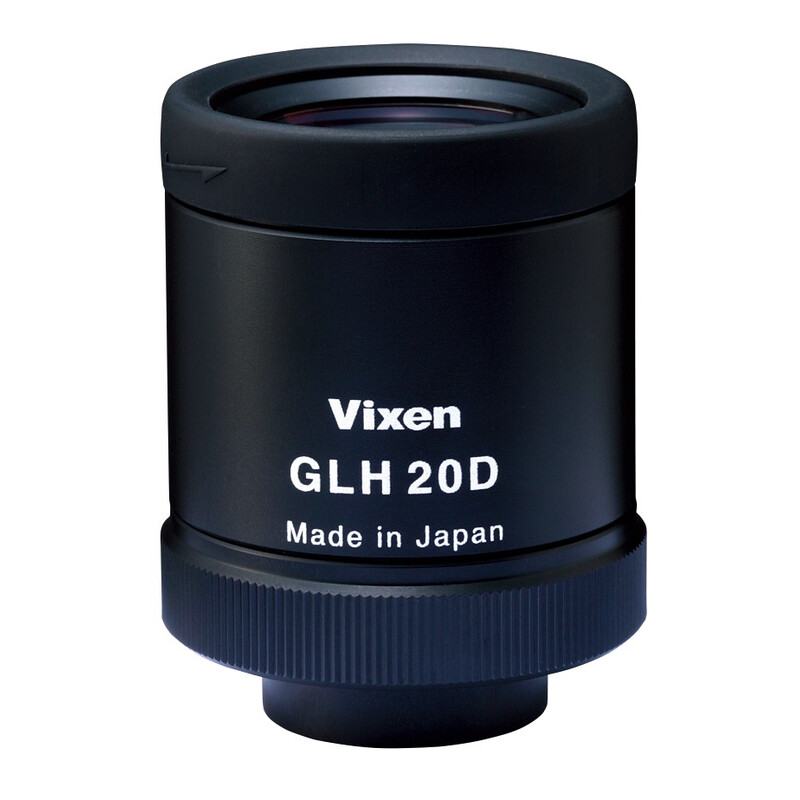

Set with GLH20D eyepiece
GLH 20D eyepiece with clear view extended as standard. By attaching an optional eyepiece, you can also change the magnification.
Technical Data in combination with Geoma II ED 52-S
- Magnification: 14x
- True field of view: 3,3°
- Apparent field of view: 46°
- Field of view at 1,000 m: 58m
- Close focus limit: 4m
- Twilight factor: 26,9
- Telescopic body
It is a telescopic body excellent in portability, becoming compact at the time of storage. - With sighting
Aiming projections are equipped on the body side, It helps put the target in view. - Sliding hood
Equipped with a sliding hood useful for backlighting. - Eyepiece storage
You can store the eyepiece on the underside of the body.
(Some lenses such as GLH 20 can not be stored) - Multi coating
A multilayer coating of three or more layers is applied to a lens or a prism to realize high contrast. - Straight viewing
Designed with a barrel portion and eyepiece on a straight line. Easy to find targets, operability when attaching cameras and so on is also excellent.
