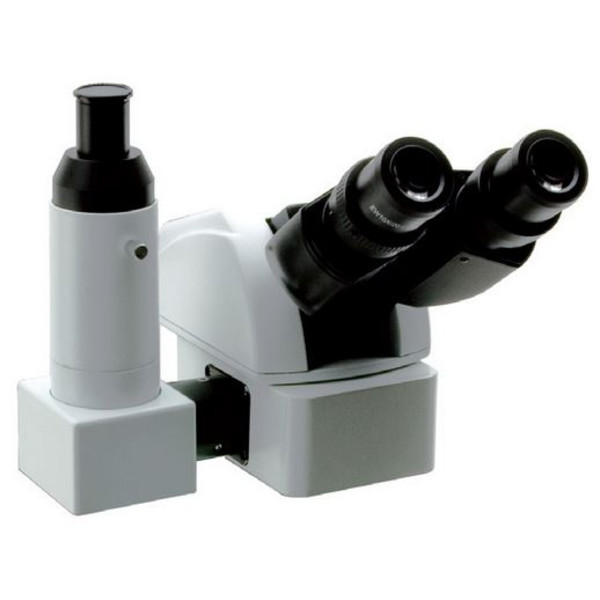

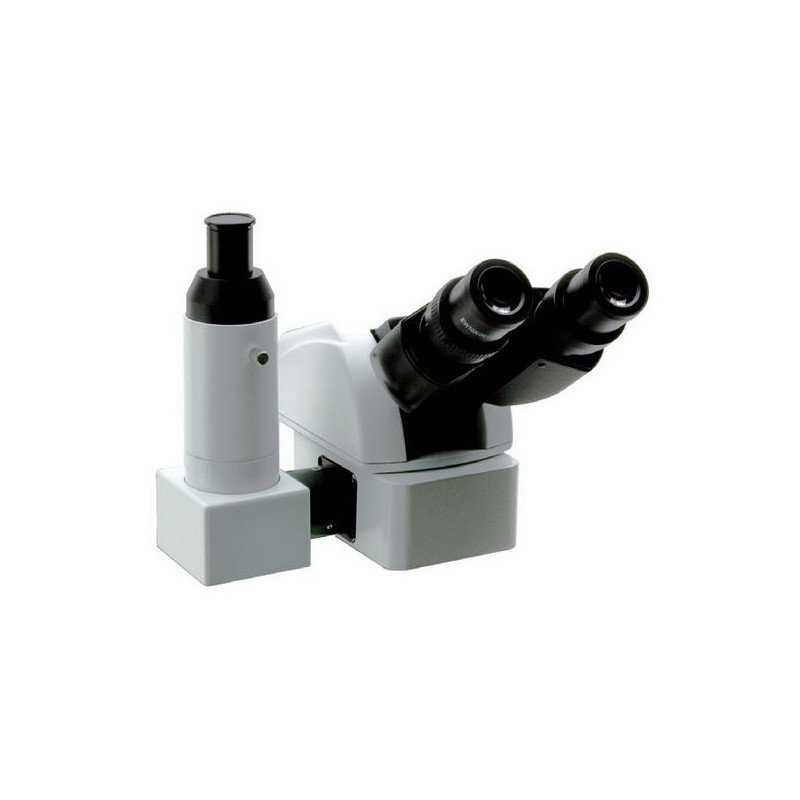

Trinocular ERGO head M-1013
M-1010 - M-1011 - M-1012 - M-1013
Model: Observation heads
Description: Optical observation heads for B-800 and B-1000
Output ports Models available:
- Trinocular head with 2 positions (ratios 100/0, 50/50) (M-1010)
- Trinocular head with 3 positions (ratios 100/0, 50/50, 0/100) (M-1011)
- Binocular ergonomic head (M-1012)
- Trinocular ergonomic head (ratios 100/0, 50/50) (M-1013)
Inclination:
Trinocular head: 30°
Binocular ERGO head: 30°- 60°
Trinocular ERGO head: 5° - 35°
Rotation Heads: can be rotated by 360°
Interpupillary adjustment: 50 mm - 75 mm
Diopter adjustment +- 5 diopter adjustment
Notes Photo tube (internal diameter 23mm) included in Trinocular ERGO head.
Eyepieces NOT included with heads.
