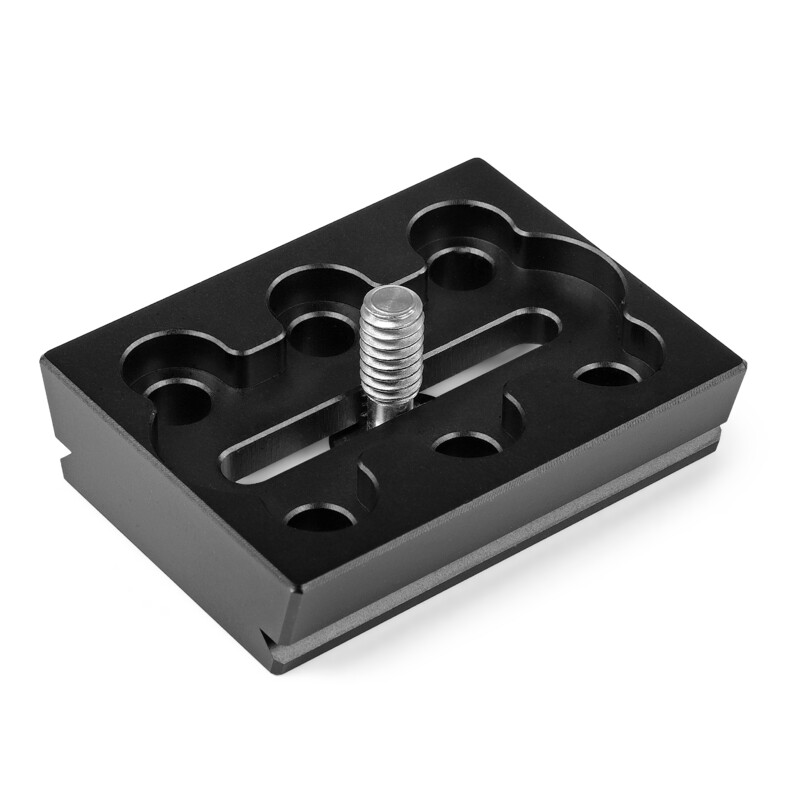

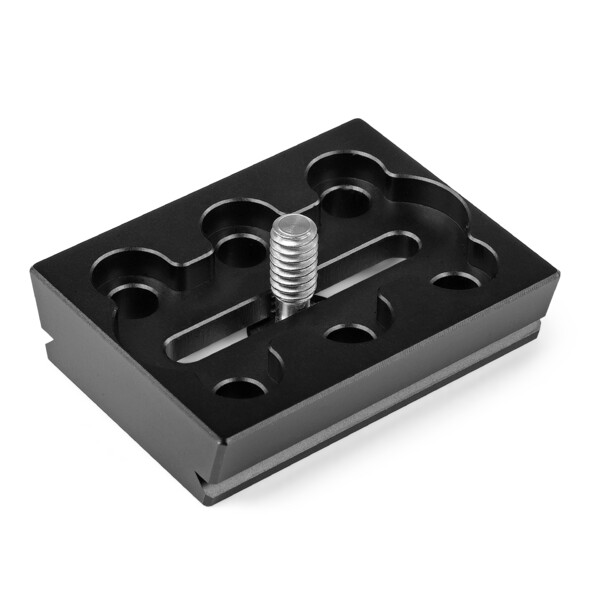

Omegon 55mm dovetail bar for the Omegon polar wedge and photo tripods

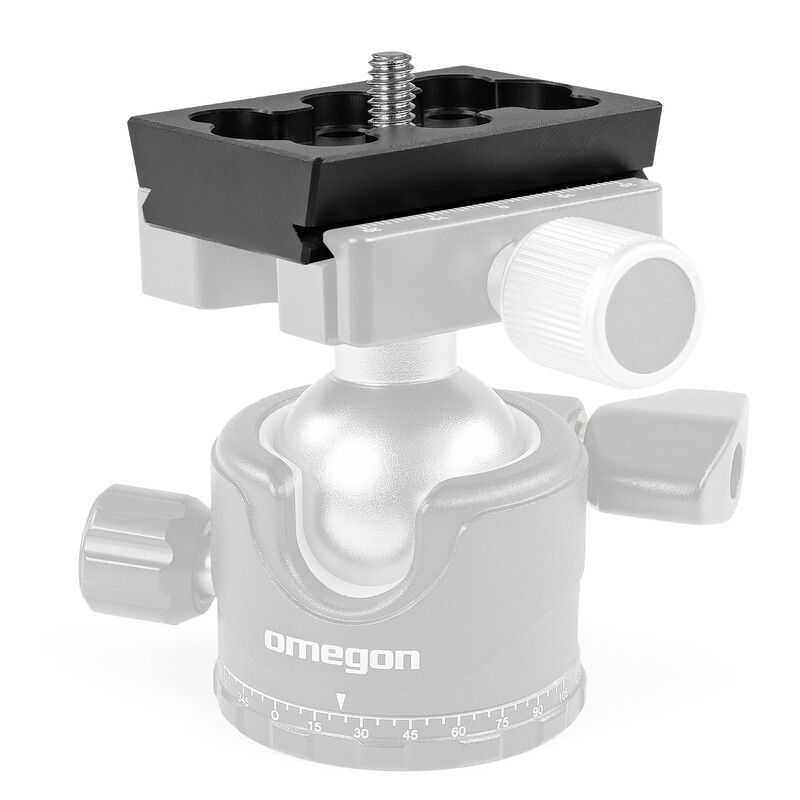

With this sturdy dovetail bar made of solid aluminium, you can attach optical instruments such as a mini mount super quickly and easily to the Omegon polar wedge. Flexible: You can also use this dovetail bar with other mounts. The custom-fit Vixen style makes it versatile. After turning by 180 degrees, the dovetail bar with its Arca-Swiss-Rail is also ideal for clamping on photo tripods, ideally using cylinder screws with a flat head according to DIN ISO 7984 for a flush finish of the screw. Please use an adapter such as the Berlebach Threaded sleeve A (Vergrïoesserung) to enlarge the external thread from 1/4" to 3/8" when mounting a startracker or the ZWO Smart Telescope Seestar.
The advantages at a glance:
- Hard-wearing and durable: interchangeable plate made of aluminium

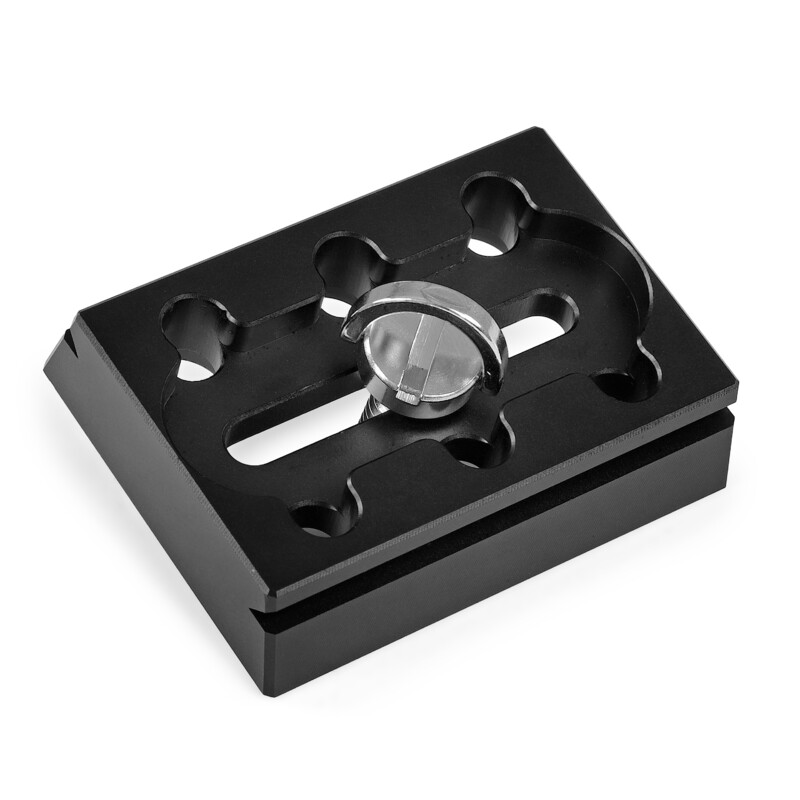

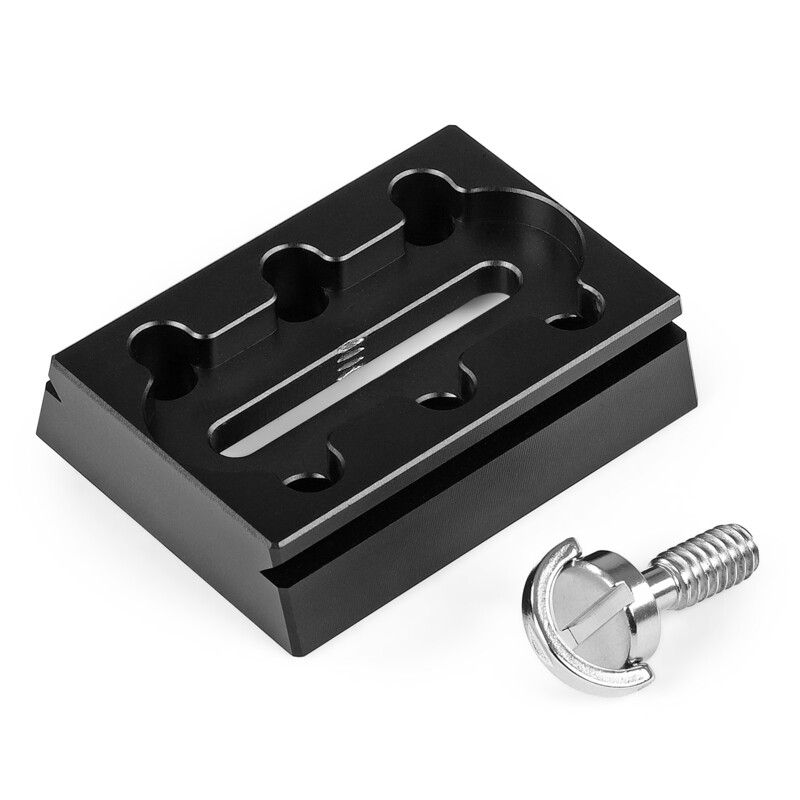

- 1/4" stainless steel screw with C-ring for photo thread
- C-ring diameter: 16 mm
- Oblong hole e.g. for the photo thread screw
- 6 countersunk holes for 1/4" screws and M6 screws for customisation
- 55 mm length
- Saves time when changing instruments

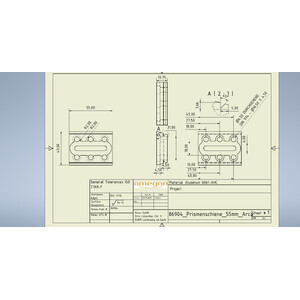

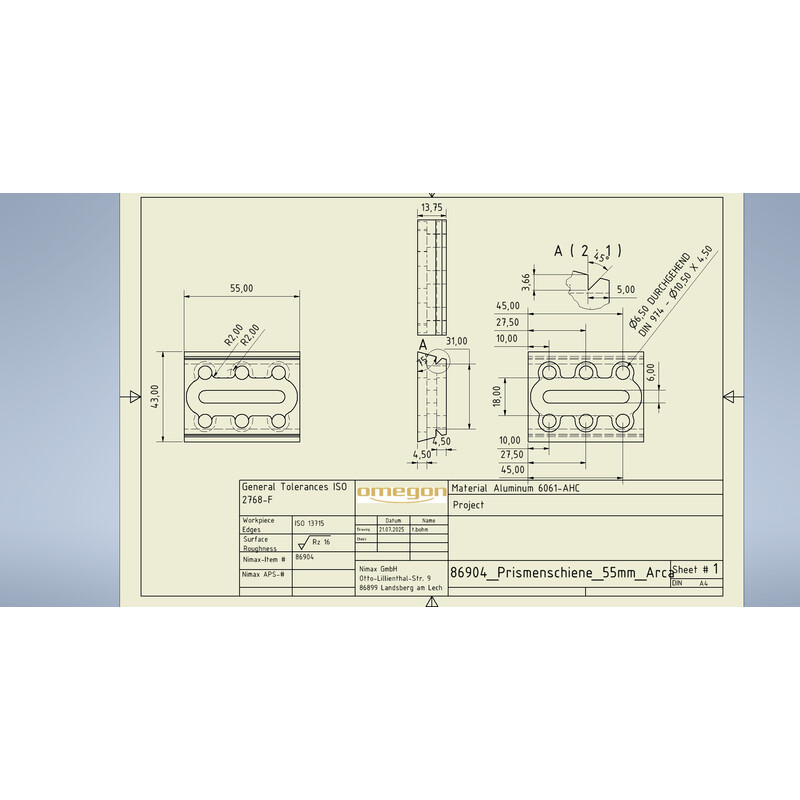

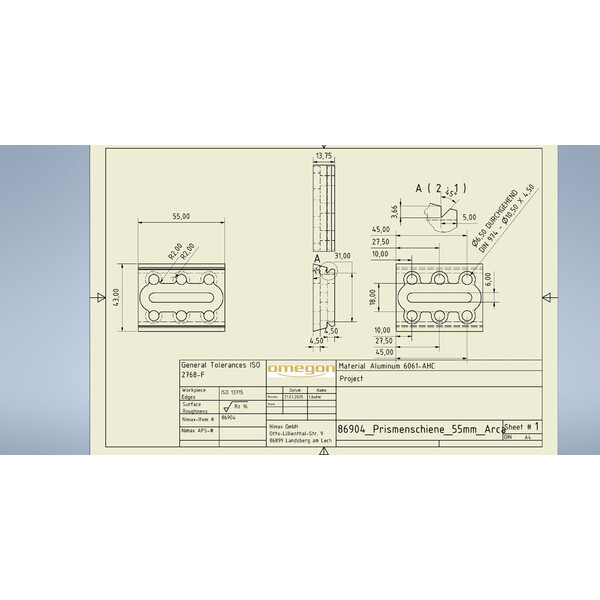

Support surface: 55x42x13 mm
