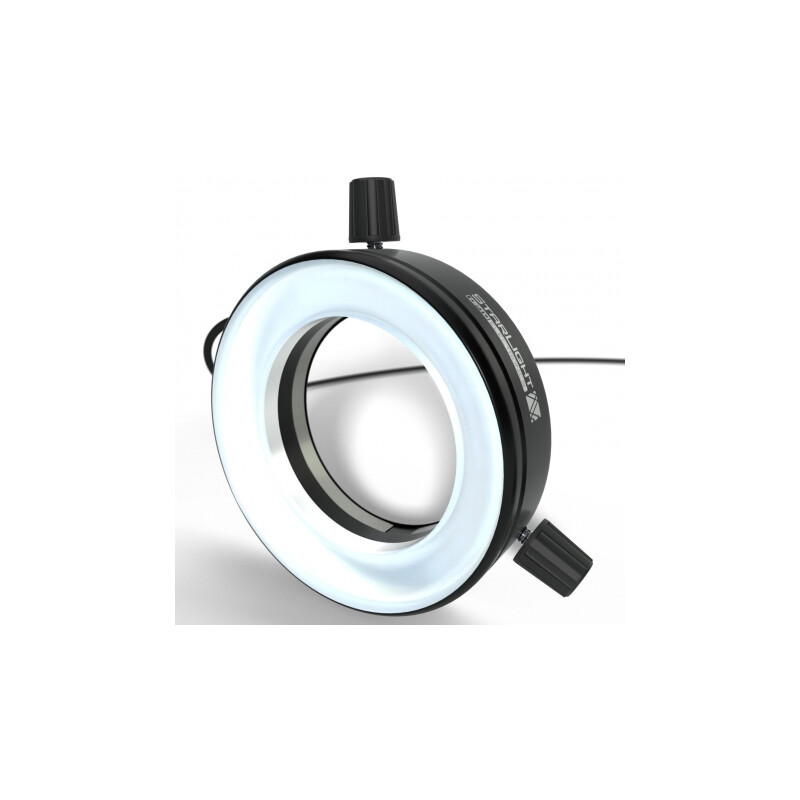

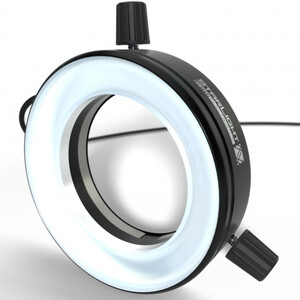

LED ring light RL66d diffuse – pure white 5,700 K, CRI ≥ 90, 0–100% dimmable
Diffuse LED ring light RL66d in daylight white (5,700 K) for completely shadow-free, reflection-free and extremely homogeneous illumination. Approx. 550 lm, CRI ≥ 90, 0–100% dimming with memory, 24 V.
The RL66d LED ring light (diffuse) stands for perfect glare-free illumination: no LED reflections, completely shadow-free and extremely homogeneous – ideal for applications where uniform, low-interference illumination is crucial. The light colour is daylight white (pure white, 5,700 K) and the colour rendering index (CRI) is very good. For maximum control in the setup, the brightness can be finely adjusted from 0–100% – including a memory function so that your preferred setting is immediately available again.
Highlights at a glance
- Diffuse: extremely homogeneous illumination
- Glare-free: no LED reflections
- Completely shadow-free
- Daylight white / pure white: 5,700 K
- CRI ≥ 90
- Dimming 0–100% (fine-step) with memory function
Technical data (excerpt)
- Luminous flux: approx. 550 lm
- Colour temperature: 5,700 K (pure white)
- Colour rendering index: ≥ 90
- LED service life: 54,000 hours (L70, manufacturer's specification)
- Power consumption: approx. 9 W
- Brightness control: 0–100%, finely adjustable, memory
- Power pack: Input 100–240 V AC (50/60 Hz) | Output 24 V DC, 1 A
- Dimensions of ring lights: Height 30 mm | Outer diameter 99 mm | Inner diameter 66 mm
- Clamping diameter: max. 66 mm | Internal thread: M62 × 0.75
- Cable lengths: supply cable 0.85 m | power supply cable 1.40 m
- Material/colour: anodised aluminium, black | Weight: approx. 250 g
Scope of delivery:
- LED ring light RL66d

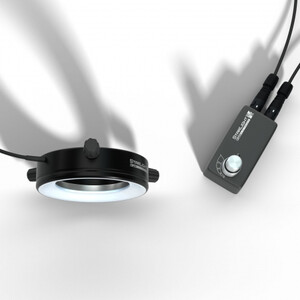

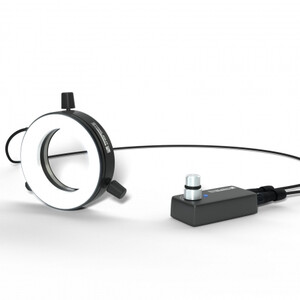

- LED control unit (TC)
- Multi-adaptor Plug-in power supply (EU, UK, US)
- Operating instructions
