Telescopes > Skywatcher > Skywatcher Telescope AC 80/400 StarTravel AZ-3
Product no.: 33506

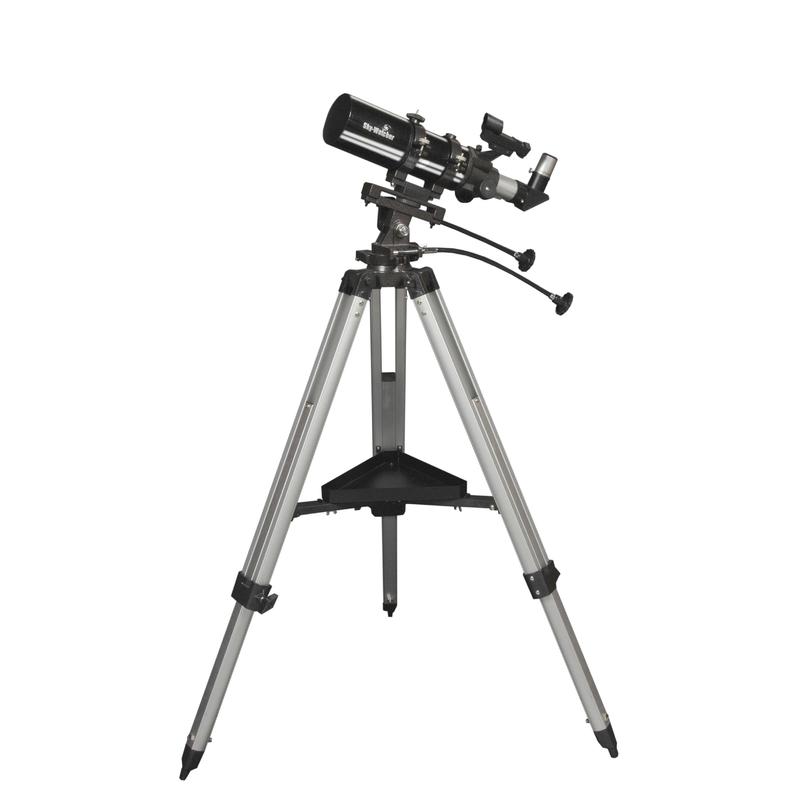

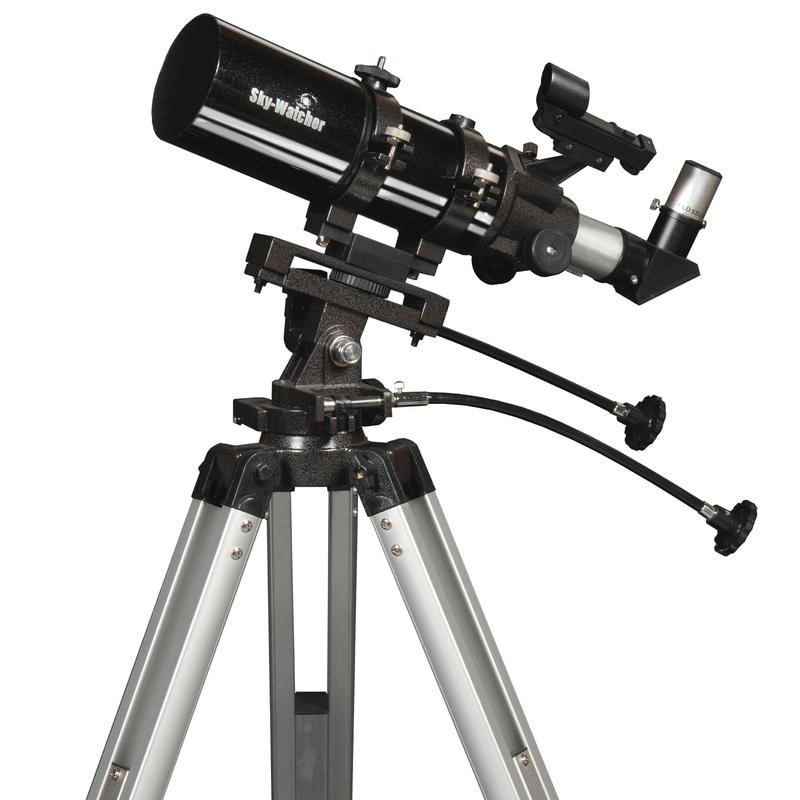

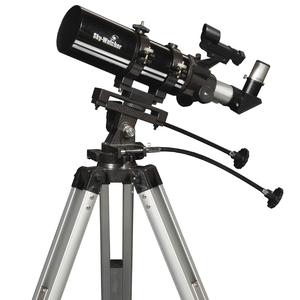

Telescope AC 80/400 StarTravel AZ-3

$ 225.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Limited special edition: Skywatcher is offering a special edition set on the occasion of ISON - the 'comet of the century': Startravel 80/400 OTA on the stable AZ-3 mount plus high quality accessories: 26mm and 12.5mm focal length 1.25" metal Ploessl eyepieces with multi-coated lenses, a 90° star diagonal, a 2X Barlow lens and a red dot finder.

This limited edition set provides you with a good set of basic equipment for getting started in astronomy at a very reasonable price. Grab a set quickly - only while stocks last!

Skywatcher AC 80/400 telescope:

A short tube, uncomplicated instrument for astronomical or terrestrial observing. The 80mm diameter lens is enough for this telescope to view the farthest reaches of the universe at an affordable price. Its short focal length makes this a so-called 'rich field' telescope, making stunning wide angle observing possible. Of course, the resolving power of the refractor is even higher than that of the 70mm version. The higher, 1.14 arc seconds, resolution provides you with a more detailed view when planetary observing. Enjoy seemingly three-dimensional views of the Andromeda Galaxy or the Orion Nebula, with the huge field of view making your observing seem almost like a space walk.

The Skywatcher AZ-3 is a practical altazimuth mount, easy-to-use and providing good stability.

It can serve as a base for terrestrial or astronomical observing and support telescopes or spotting scopes up to a maximum weight of 5kg (refractors of up to 120mm aperture and reflectors of up to 150mm diameter).

The AZ-3 has horizontal quick adjustment plus a locking screw, and vertical quick adjustment with a slipper clutch. There is fine adjustment with flexible slow motions available on both axes. The tracking is absolutely smooth and sensitive adjustment and allows fine adjustment even at high magnification.

The vertical angle can be adjusted between 50 and 90 degrees, allowing viewing from the horizon up to nearly the zenith and panning 360°. The AZ-3 mount is hence equally suited for terrestrial and astronomical observing. The telescope/spotting scope is mounted via tube ring clamps.

Technical data:


  • altazimuth mount allowing 360° panning and adjustable from the horizon to almost the zenith
  • vertical rapid adjustment with slipper clutch
  • fine adjustment via flexible slow motions
  • aluminium tripod - infinitely adjustable from 70cm to 123cm
  • entire weight only approx. 3.9kg, including tripod

  1. Included in delivery:

  • AZ-3 altazimuth mount
  • height-adjustable tripod

Specifications

Optics


Type
Refractor
Type of build
Achromat
Aperture (mm)
80
Focal length (mm)
400
Aperture ratio
5
Resolving capacity
1,44
Limit value (mag)
11,3

Eyepiece holder


Type of build
Gear rack
Connection ( to eyepiece)
1,25"

Mount


GoTo control
no
Mounting type
Azimuthal
Load capacity (kg)
5

Tripod


Type
Tripod

Area of application


Astrophotography
no
Moon & Planets
yes
Nature observation
yes
Nebulae & galaxies
no
Sun
not recommended (Only with appropriate Sun filter)

recommended for


Beginners
yes
Advanced
yes
Experienced amateurs
no

Product safety

Manufacturer: Pacific Telescope Corp, 160-11880 Hammersmith Way, V7A 5C8 Richmond BC, CA, www.skywatcher.com
Responsible person: Optical Vision Limited, Duracher Straße 11, 87437 Kempten, DE, [email protected]
