Astrophotography > Cameras > Astronomical Cameras > Celestron > NexImage > Celestron Camera NexImage 5 Color
Product no.: 24896

Camera NexImage 5 Color

$ 348.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 20.03.2024!

Product description

More about the series NexImage...

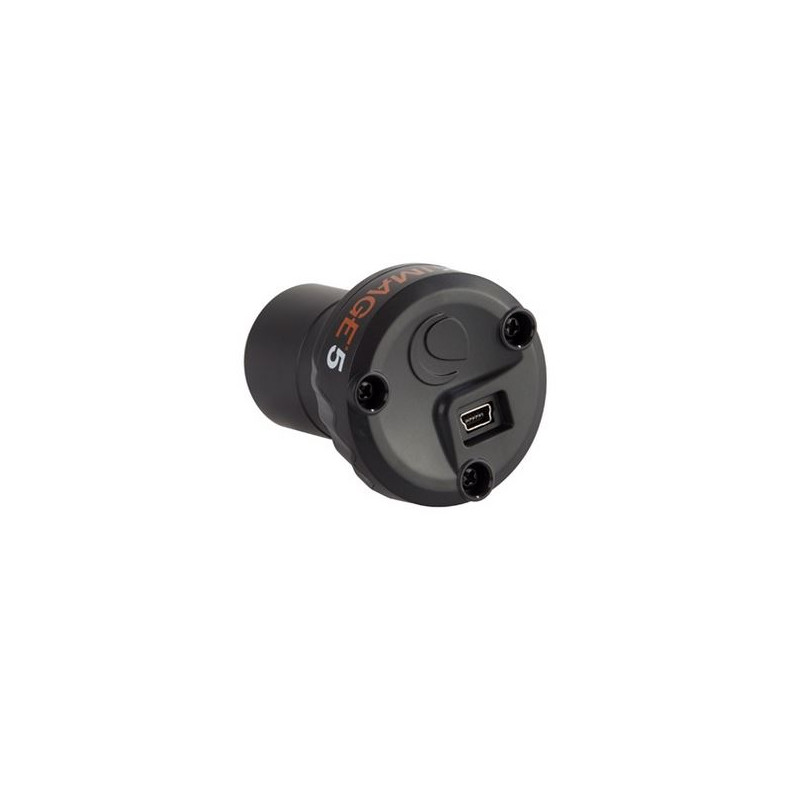

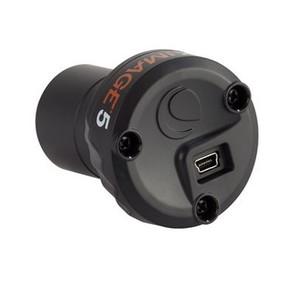

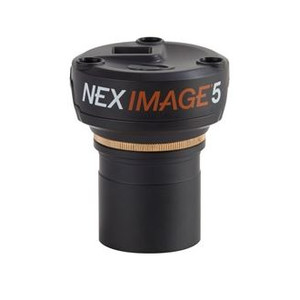

Celestron CCD NexImage 5 camera

Celestron’s new 5 megapixel camera has multiple new features. It is equipped with Micron Digital Clarity technology to reduce noise. Images with a resolution in the sub-arc-second range can be produced with most telescopes and even live broadcast to PCs. The software automatically filters out very grainy images so that only the sharpest photos are processed to create high-quality final results. Additionally, it enables gain, contrast, exposure time, frame rate and colour intensity to be set manually on your PC. 2x2 and 4x4 binning are available.

The camera is equipped with a standard 1.25" metal filter thread which is compatible with most telescopes. The camera housing has a C-thread.
Exposure times:0.0001 seconds to 30 seconds

System requirements:

  • Pentium 4 with min. 2 Ghz, 1 GB RAM
  • Win XP/Win Vista, Win7 (32 & 64 bit), /Win 10
  • DirectX 9.0c or higher

Includes:

  • NexImage 5 camera
  • 1.25" adapter
  • USB cable
  • NexImage iCap and Registax Software

Intended use of the camera

  • Mercury, Venus, Uranus and Neptune - not very good
  • Mars, Jupiter and Saturn - good
  • entire lunar disk - very good
  • detailed of lunar disk - good
  • entire solar disk- very good
  • detail of solar disk - good

Note: Only photograph the Sun using a special solar filter.

Our expert comment:

We recommend that you always install the latest camera driver.

You can find the driver below the word Support at the bottom of the product page for each camera:

http://www.celestron.com/browse-shop/astronomy/astroimaging-cameras

We recommend the Sharpcap freeware as image acquisition software:

http://www.sharpcap.co.uk/sharpcap/downloads

There is a good video tutorial for this software on Youtube:

https://www.youtube.com/watch?v=4UC0KmPkuy4

(Bernd Gährken)

Specifications

Capacity


Type of camera
Colour image sensor
Sensor type
CMOS Chip
Size of chip (mm)
5,7 x 4,28
Megapixel
5
Pixel size
2,2
Resolution Photograph (Pixel)
2592 x 1944
Bit depth (Bit)
12
Min. exposure time
0,0001
Max. exposure time (min)
0,5
Power supply
USB
Interfaces
USB 2.0
Autoguider
-
Connection (to the telescope)
1,25"
Colour camera
yes
Software
iCap
Resolution video (Pixel)
640x480
Active cooling
no
Aperture ratio (f/)
9
Images per second
50
Chip - Diagonal (mm)
7,12

Special features


Filter thread
yes

Equipment


Filter wheel
no

General


Series
NexImage

Area of application


Autoguider
no
Moon & Planets
yes
Nebulae & galaxies
no

Downloads

Recommended accessories

Filters (2)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 204.00*

*All prices include VAT plus shipping costs.

Celestron Camera NexImage 5 Color

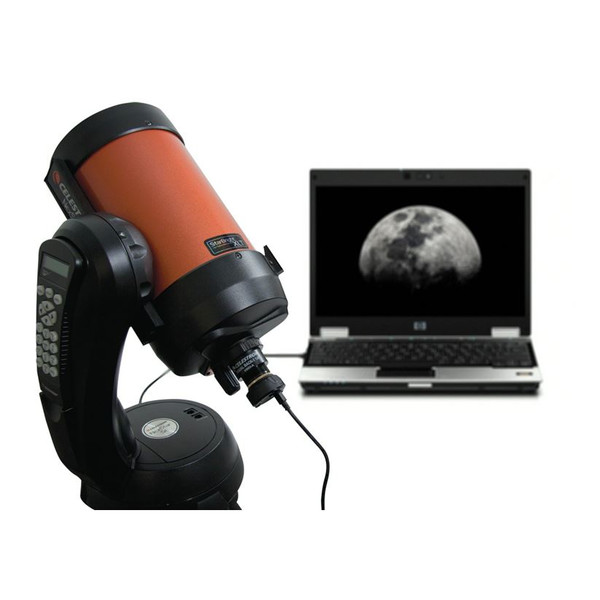

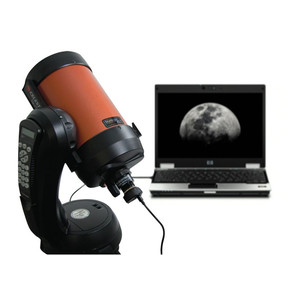

Example of use
