Astrophotography > Cameras > Astronomical Cameras > Meade > LPI-G > Meade Camera LPI-G Advanced Mono
Product no.: 59696

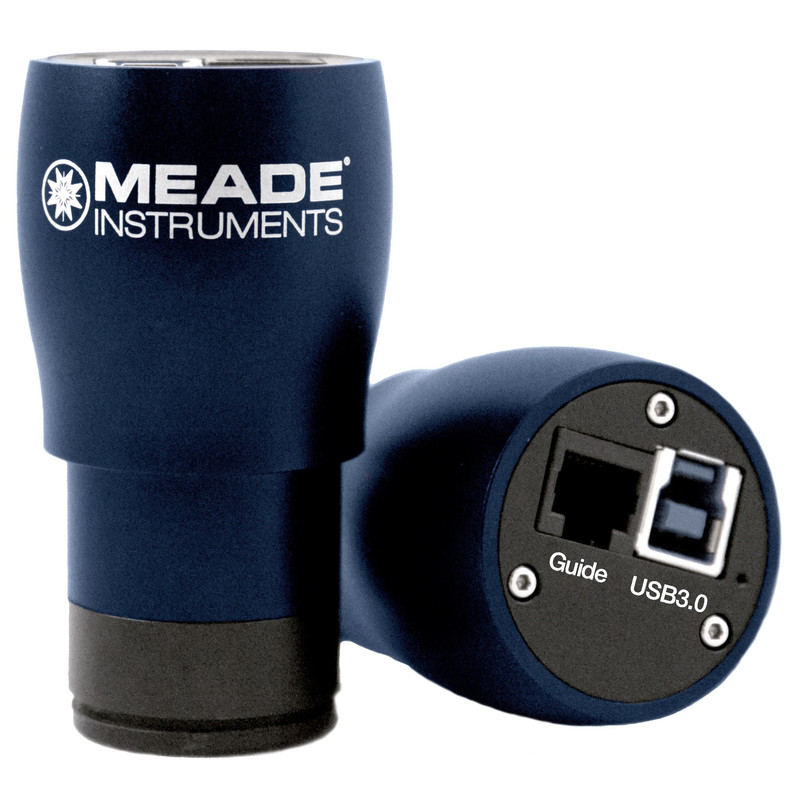

Camera LPI-G Advanced Mono

$ 308.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series LPI-G...

As the name implies, the Lunar, Planetary Imager & Guider (LPI-G) is an ideal camera for photographing the Moon, planets and - with suitable filters - the Sun. The camera can also be used as an auto-guider - it works via an ST-4 connector and the required ASCOM interface.

Speed ​​is important in a planetary camera - the LPI-G Advanced delivers 59fps at full resolution (3072 x 2048) - allowing you to record a video in which the air turbulence in the individual images is effectively 'frozen'. This video can then be used to superimpose the best images to give a summed exposure (known as 'stacking').

The included software has the image acquisition and editing software required: Meade SkyCapture.

In addition to the software, the camera also comes with a USB cable, an ST-4 cable and a 1.25" nosepiece to allow you to connect the camera to the telescope via the C-thread or into the focuser like a 1.25" eyepiece.

Colour or mono? Black and white cameras have the advantage of higher sensitivity and resolution than colour cameras. However, more effort is required to obtain a colour image. You also need colour filters and a filter wheel

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX178)
Size of chip (mm)
7,4 x 4,9
Megapixel
6,3
Pixel size
2,4
Resolution Photograph (Pixel)
3072 x 2048
Bit depth (Bit)
14
Active cooling
no
Interfaces
USB 3.0 & ST-4
Connection (to the telescope)
1,25"
Colour camera
no
Operating temperature
-10 / +50
Images per second
59 (at full resolution)
Power supply
5 (via USB)
Supported operating systems
Microsoft Windows, Mac OS, Linux
Autoguider
yes
Software
Meade SkyCapture
Image format
JPEG, BMP, FITS
Video format
SER, AVI
Cable length (m)
1,5

Equipment


Filter wheel
no
Other contents
USB cable
Connection (to the telescope)
1.25″ nosepiece-to-C /CS mount male adapter

General


Weight (g)
100
Series
LPI-G

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
no

Recommended accessories

Filters (3)
Filters

Meade Filters RGB Color Filter Set 1,25"

$ 127.00*
Astrophotography (1)
Camera bracket

Omegon CMOS camera mount

$ 49.90*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 199.00*

*All prices include VAT plus shipping costs.

Meade Camera LPI-G Advanced Mono

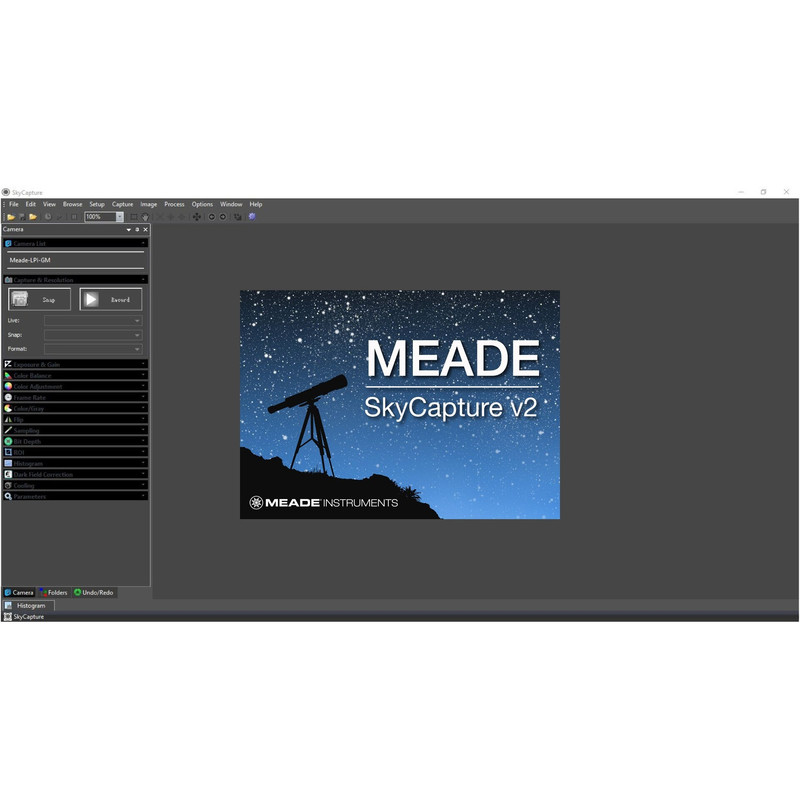

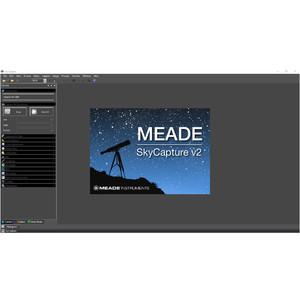

Meade SkyCapture
Meade Camera LPI-G Advanced Mono

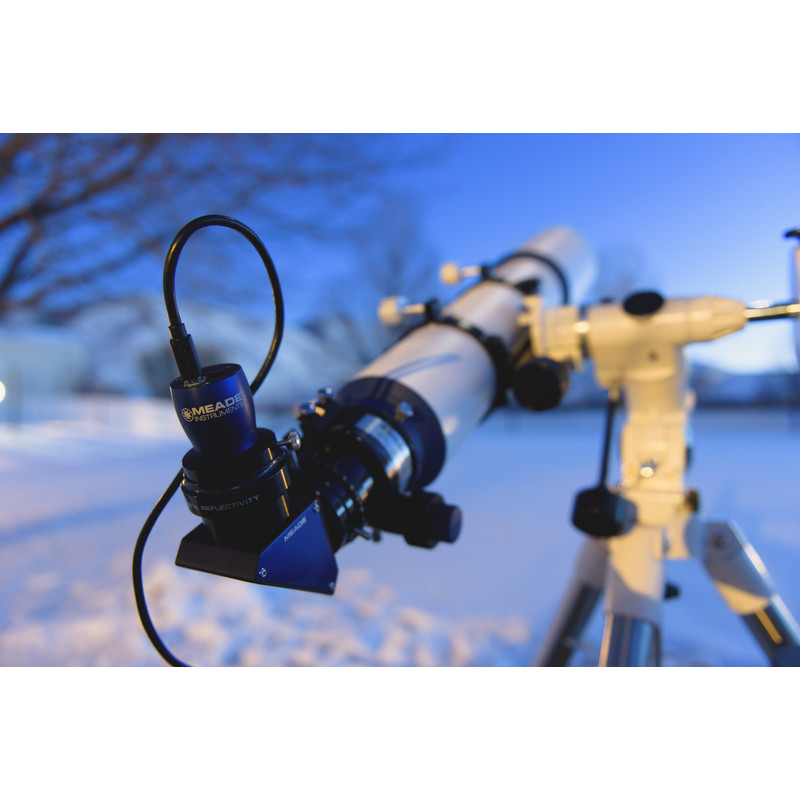

Example of use
Meade Camera LPI-G Advanced Mono
Example image 1

Meade Camera LPI-G Advanced Mono

Example image 2
