Astrophotography > Cameras > Astronomical Cameras > Omegon > GUIDE > Omegon Camera GUIDE 2000 M Mono
Product no.: 61033

Camera GUIDE 2000 M Mono

$ 299.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery the day after tomorrow, 30.03.2024!
This product is available in the following variants:
Colour camera Price
no $ 299.00
yes $ 199.00

Product description

The Omegon Pro GUIDE 2000 Camera is an advanced autoguiding solution. Additionally, it is suited for first steps in planetary, lunar and even deep-sky astrophotography, in Full HD!

Planetary- and Lunar-Astrophotography for Beginners: This is the right camera to start into the fascinating field of solar system astrophotography. Capturing images of Jupiter, Saturn or craters on the Moon just like you can see them through your eyepiece allows you to share your nightly astronomy experiences with your friends and family. Or you can gather around the screen and observe the Moon and planets live together.

Deep-Sky Astrophotography: The high sensitivity of this modern CMOS chip makes the imaging of Nebulas and Galaxies much easier than it was just a few years ago. These faint objects are hard to capture, but thanks to the high quantum efficiency and low read noise of the sensor you can create images showing details imperceivable through visual astronomy.

Autoguiding: You will find a suitable guide star anywhere in the sky! Even fainter stars are no problem, thanks to the high sensitivity of this modern CMOS sensor. Guide with short exposure times and a high guiding frequencies to correct even small tracking errors of your mount. Native compatibility with PHD2 and an inbuilt ST4 Guide-Port make this the ideal camera for your autoguiding needs.

Functional shape: The sturdy body made from anodized aluminium is shaped like an 1.25" eyepiece and fits every telescope. With a light weight, this camera doesn't put any additional strain on your equipment. The camera's front is equipped with a C- & CS-Mount thread or (through and adapter) a regular 1.25" filter thread. This allows you to directly attach small CCTV lenses or a vast selection of astronomical filters.

Transmission: A filter window protects the sensor chamber from dust and humidity. The Omegon Pro colour cameras are equipped with and infrared-blocking filter. Modern CMOS sensors are sensitive to infrared light, so a correct color representation in the final image is only possible by removing these wavelengths before capture. On the other hand, the Omegon Pro mono cameras feature an anti-reflection window, that is transparent to a wide range of wavelengths from the ultraviolet to the infrared. You can add your own filters for unrestricted control over your transmission curve - invaluable for advanced imaging and photometric applications.

Compatibility: The Omegon Pro cameras are compatible with a wide range of available astrophotography programs through the common interfaces ASCOM and INDI. Native compatibility is also being added to a growing number of programs, like PHD2 and N.I.N.A.

Scope of delivery:

  • Camera
  • Nosepiece adapter
  • USB-Cable
  • ST4-Cable

Our expert comment:

Which camera best suits your telescope? All the important facts at a glance in our [CMS://shop/i_id=1593 "Infographic: how to find the right Omegon astronomy camera"]

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX290)
Size of chip (mm)
5.6 x 3.1
Chip - Diagonal (mm)
6.4
Pixel size
2.9
Resolution Photograph (Pixel)
1936 x 1096
Megapixel
2.1
Bit depth (Bit)
12
Images per second
15 (at full resolution)
Colour camera
no
Active cooling
no
Power supply
5 (USB)
Interfaces
USB 2.0, ST4
Autoguider
yes
Supported operating systems
Windows 7/8/10 (Linux (INDI))
Connection (to the telescope)
1,25"
Filter thread
yes (1,25")
Flange focal distance (mm)
12.5
Software
download
Operating temperature
-10°C - +50°C
Binning
2x2, 3x3, 4x4 (Digital)
Internal memory
-
Shutter
Rolling Shutter

Equipment


Filter wheel
no
Transport cases
no
Other contents
USB & ST4 cable
Connection (to the telescope)
C-Mount

General


Series
GUIDE
Length (mm)
71
Diameter (mm)
39
Weight (g)
90
Outer material
Aluminium
Colour
Bronze
Type
Camera
Type of build
Astronomical Cameras

Area of application


Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes
AllSky, Meteore
no

Recommended accessories

Telescope accessories (2)

Baader Focusing T-2 eyepiece clamp 1 1/4 "

$ 49.90*
Filters (2)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Astrophotography (3)

Omegon CS-Mount lense 2.8-12mm f/1.4

$ 39.90*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 203.00*

*All prices include VAT plus shipping costs.

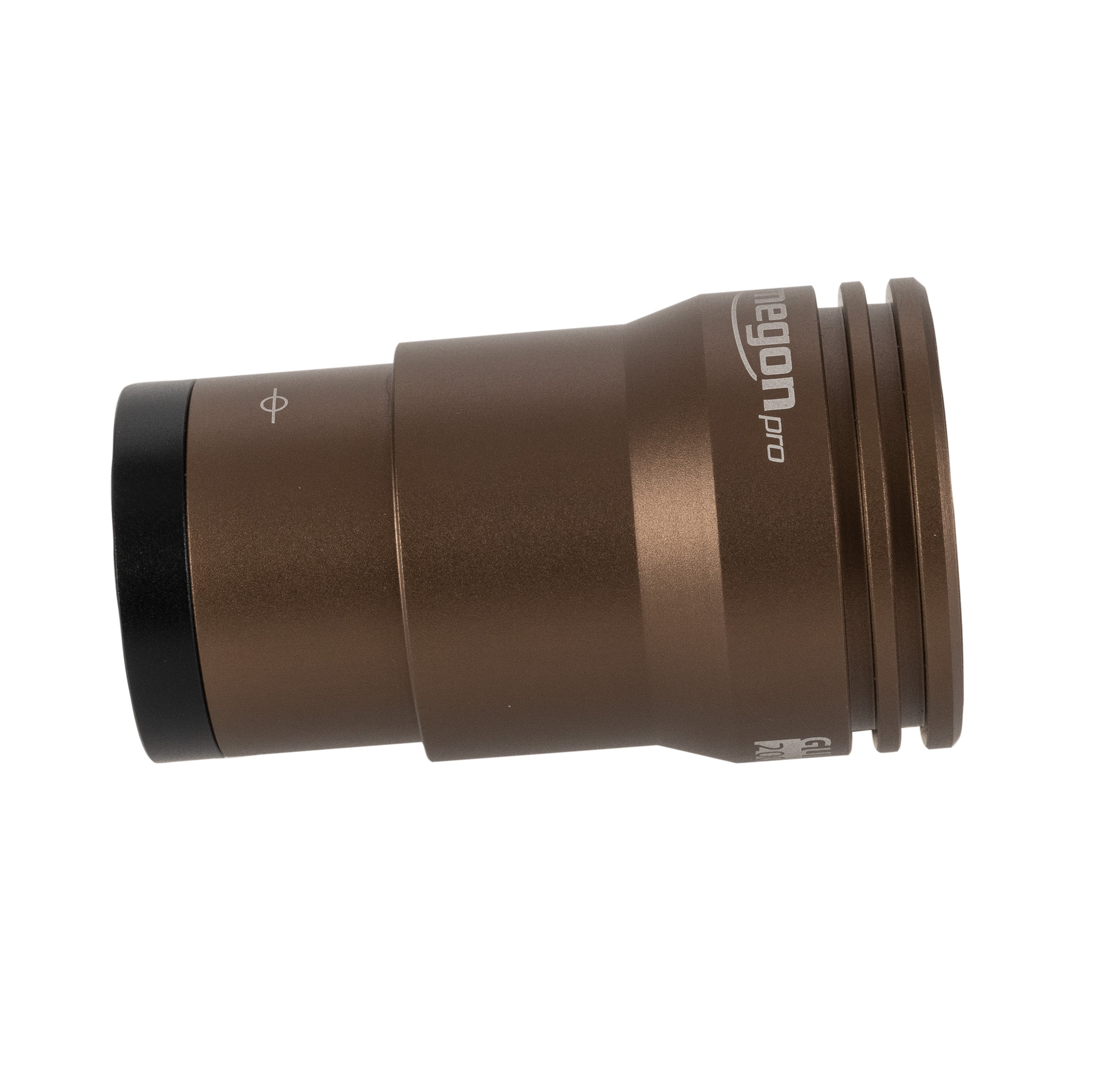

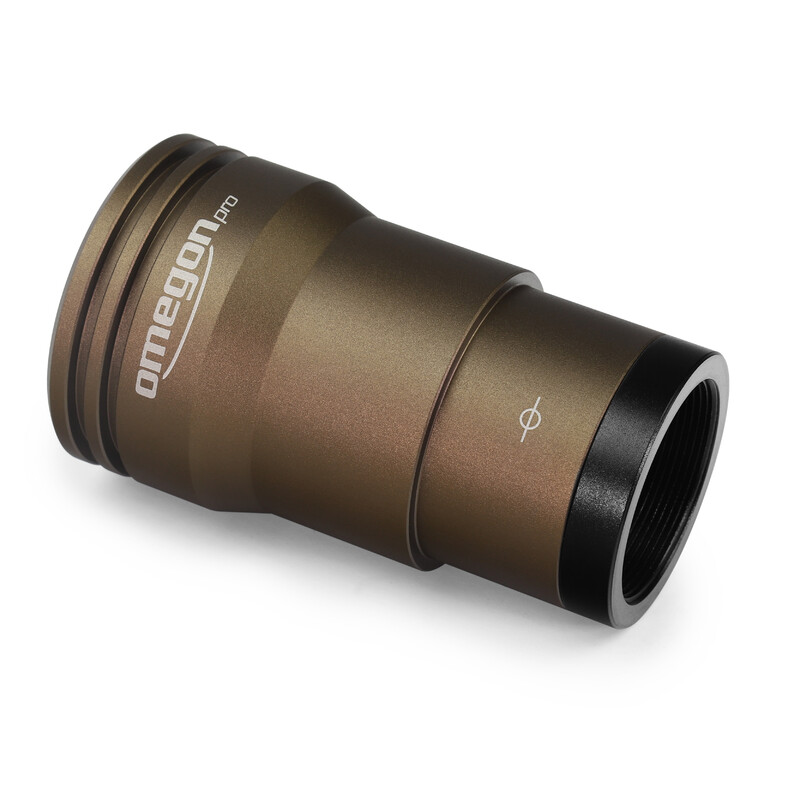

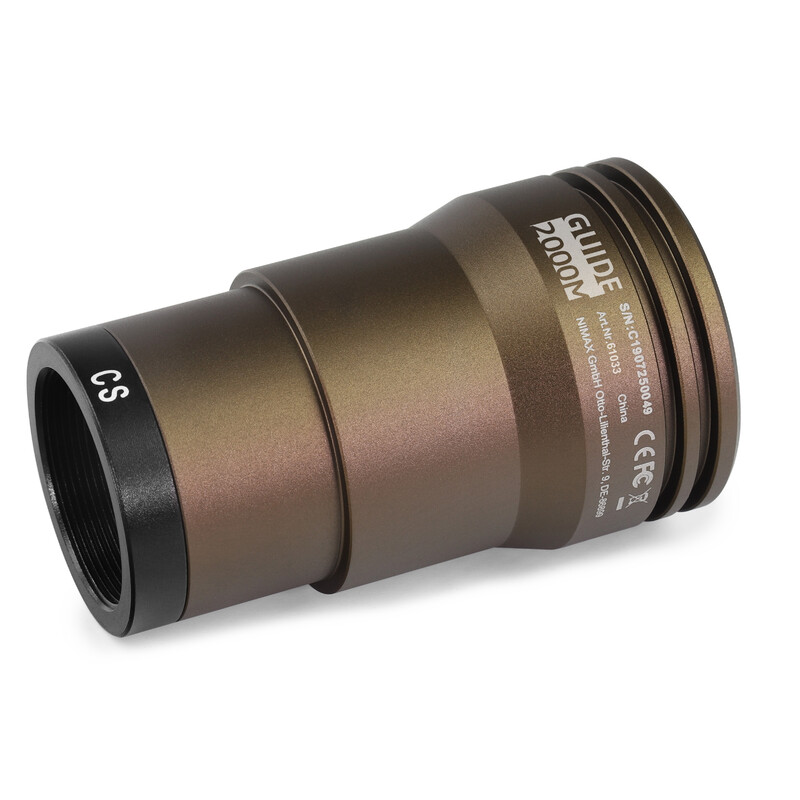

Omegon Camera GUIDE 2000 M Mono

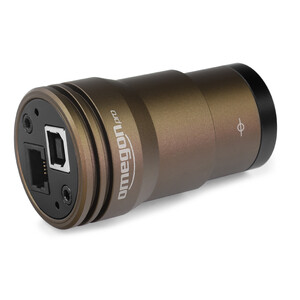

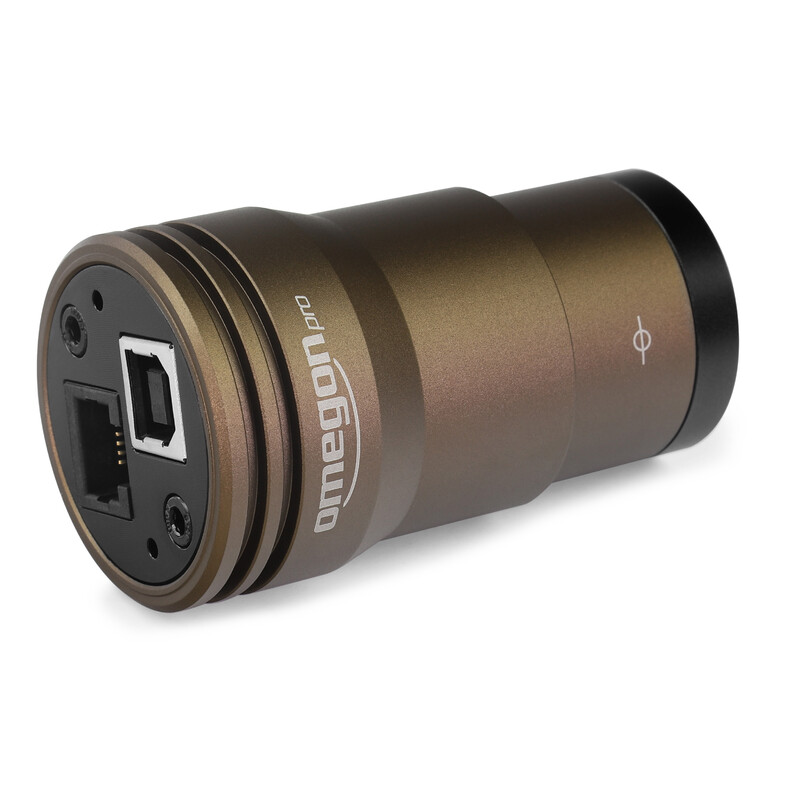

Rear view

Omegon Camera GUIDE 2000 M Mono

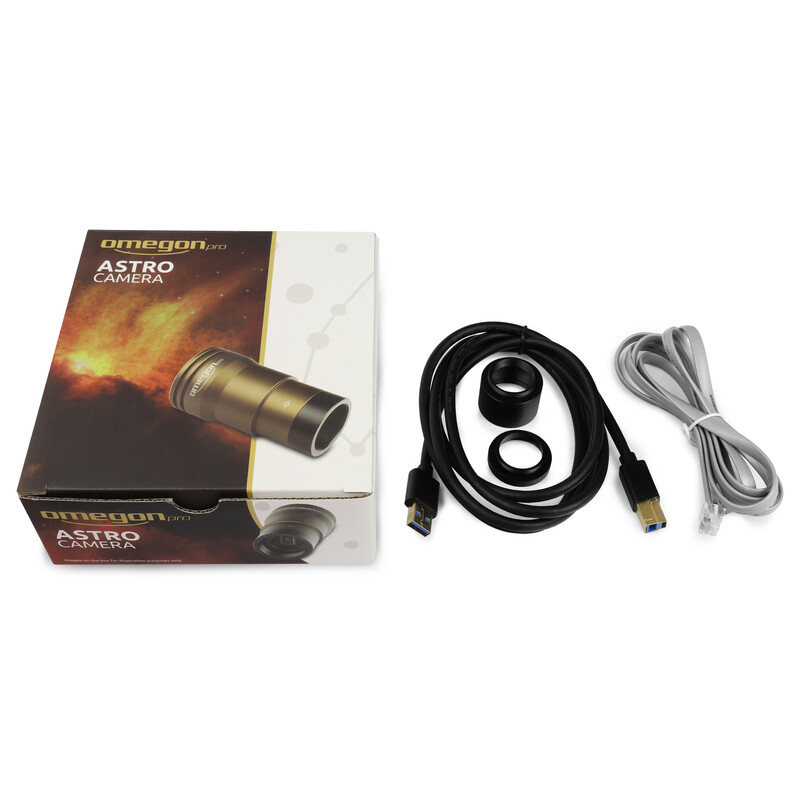

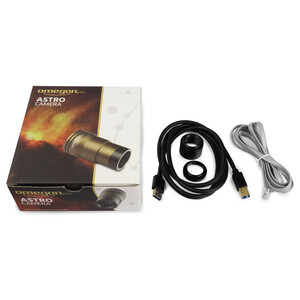

Includes
Omegon Camera GUIDE 2000 M Mono

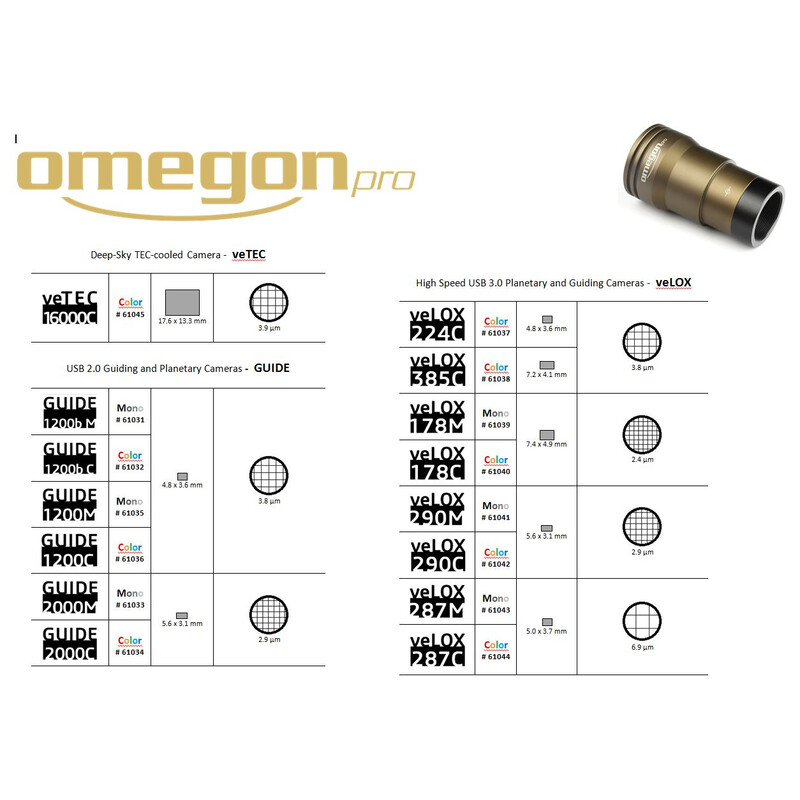

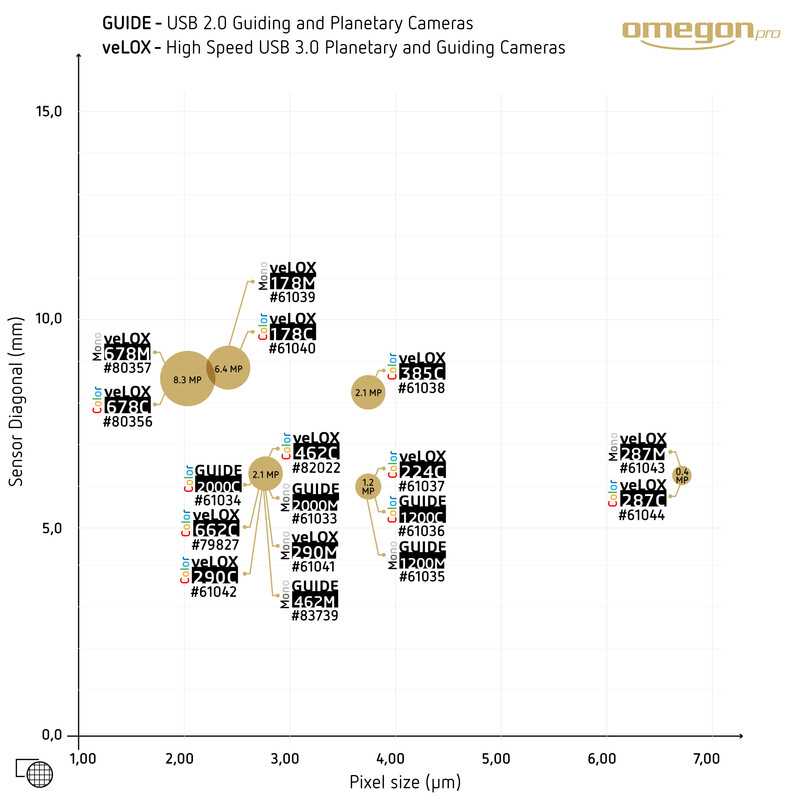

Comparison of the available sensors
