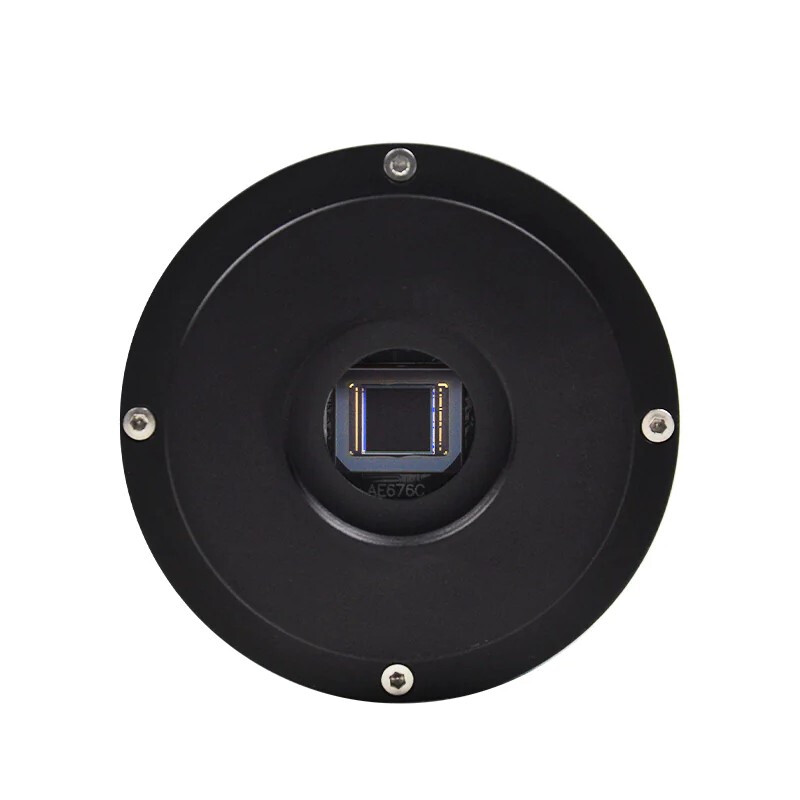

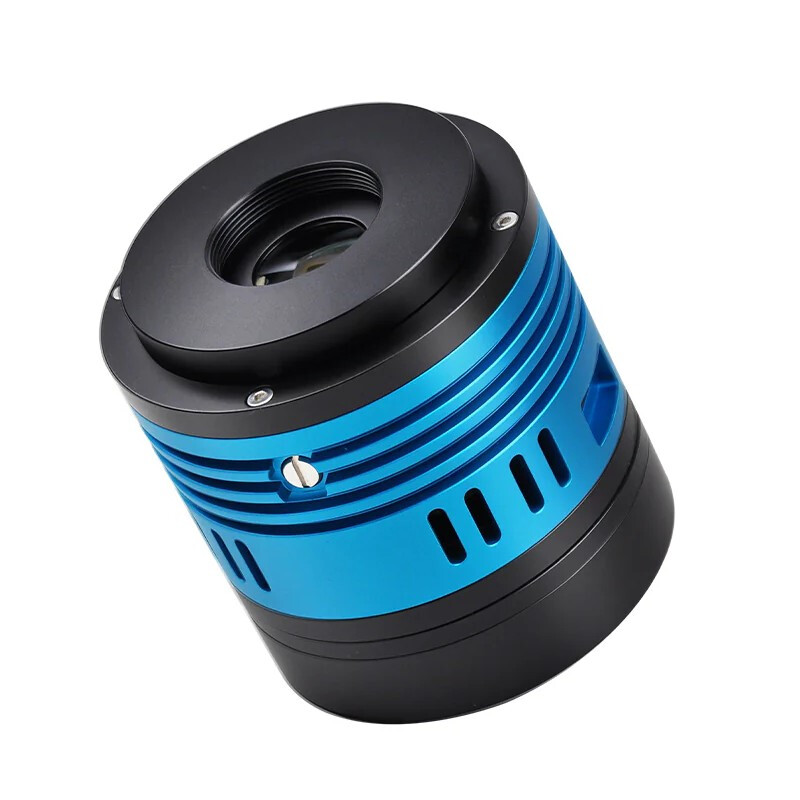

AE676C Multi-purpose Astronomy Camera
A lightweight multi-purpose astronomy camera for planets, Moon, Sun, deep sky, meteors, Milky Way imaging and all-sky monitoring.
Key Advantages

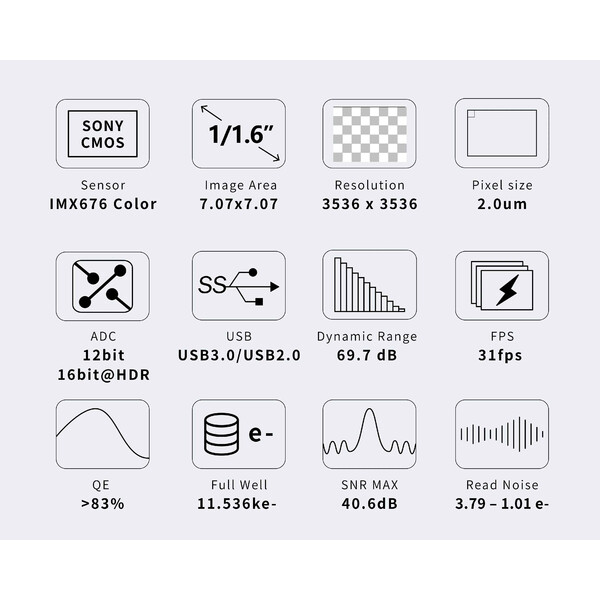

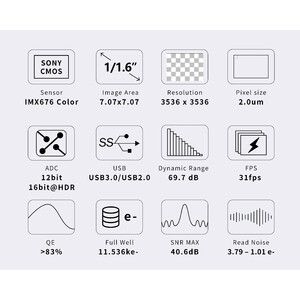

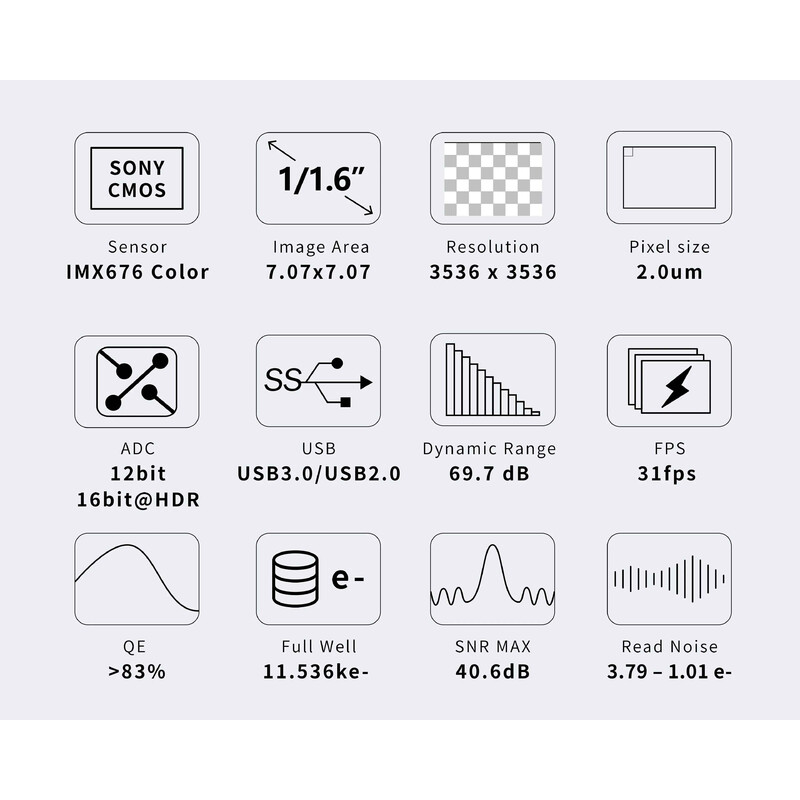

- Sony IMX676 Color CMOS: 1/1.6” square sensor with 12.5MP resolution for flexible framing and versatile astrophotography applications.
- High Infrared Sensitivity: Near-monochrome infrared performance enables better Milky Way, meteor and low-light imaging.
- Magnetic Cooling Module: Switch freely between compact vibration-free mode and enhanced cooling mode with detachable magnetic cooling.
- Wide Compatibility: Compatible with telescopes, guide scopes, lenses, tripods and multiple astronomy software platforms.
Multi-Purpose Astronomy Imaging
From planetary imaging and lunar details to deep-sky objects, meteors, Milky Way and all-sky monitoring, AE676C is designed as an easy entry point for exploring more astrophotography possibilities.
- Easier Mosaic Stitching: Square framing helps reduce cropping and improves the stitching workflow.
- Faster Post-processing: A more balanced frame makes alignment and composition easier.
- Wide-angle Friendly: Pairs well with fisheye and wide-angle lenses for broader sky coverage.

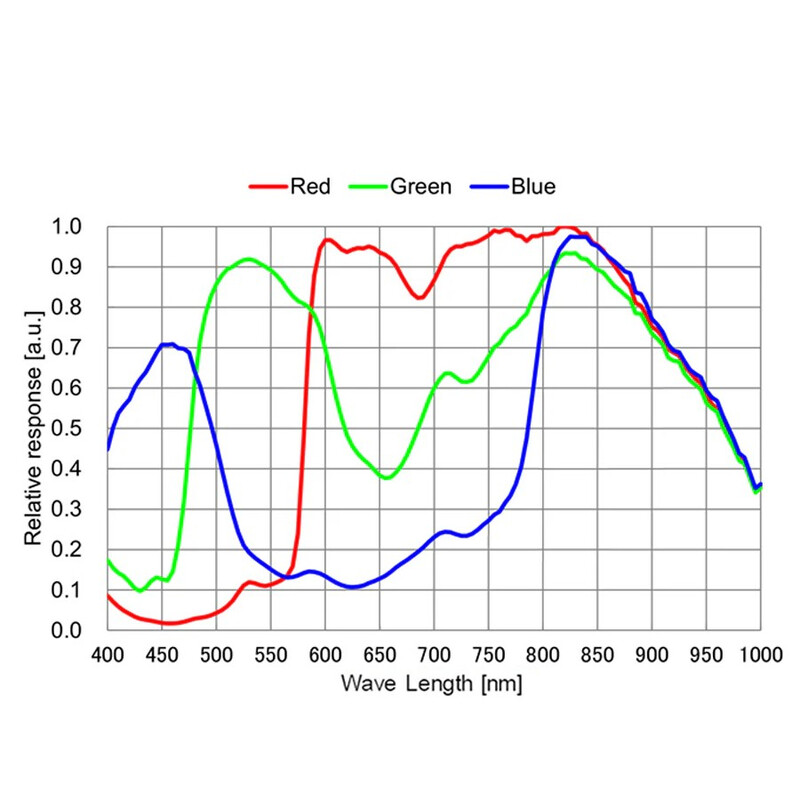

Superior Infrared Sensitivity for Low-Light Imaging
Built on Sony Starvis 2 technology, AE676C delivers strong sensitivity in both visible and infrared light. With high QE at 825nm and beyond, it enables excellent low-light performance and near full-pixel IR response comparable to monochrome sensors.
AR-Coated Protective Window
AE676C features a dual-sided AR-coated optical window to reduce reflections and light loss, protect against dust and physical damage, and enhance transmission across 400–1100nm wavelengths. When paired with an IR-Pass filter, AE676C enables stunning infrared Milky Way imaging.

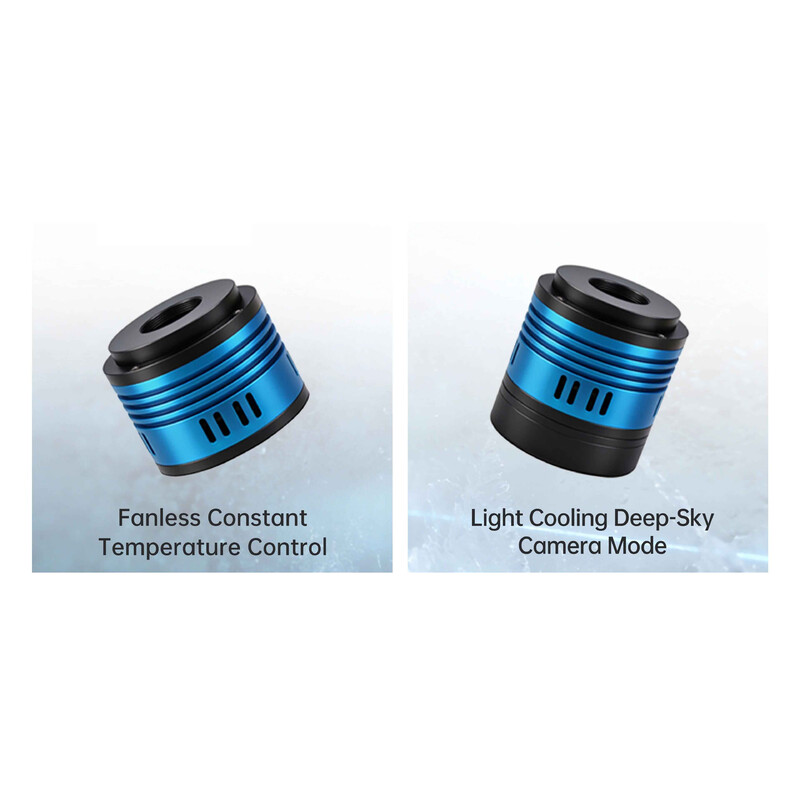

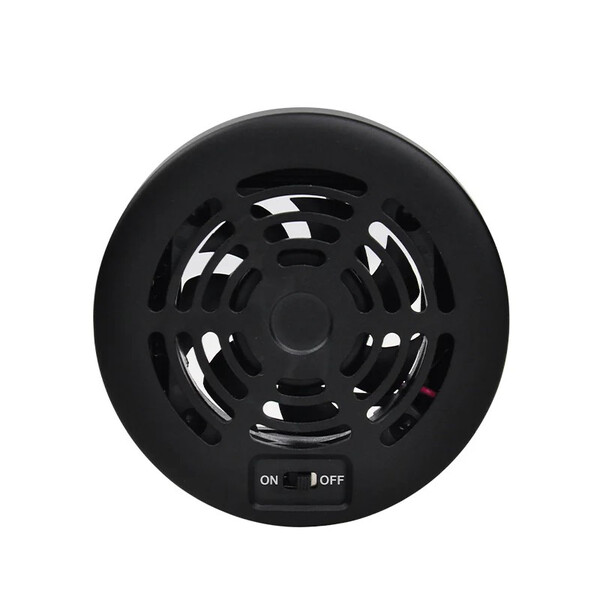

Modular Magnetic Cooling System

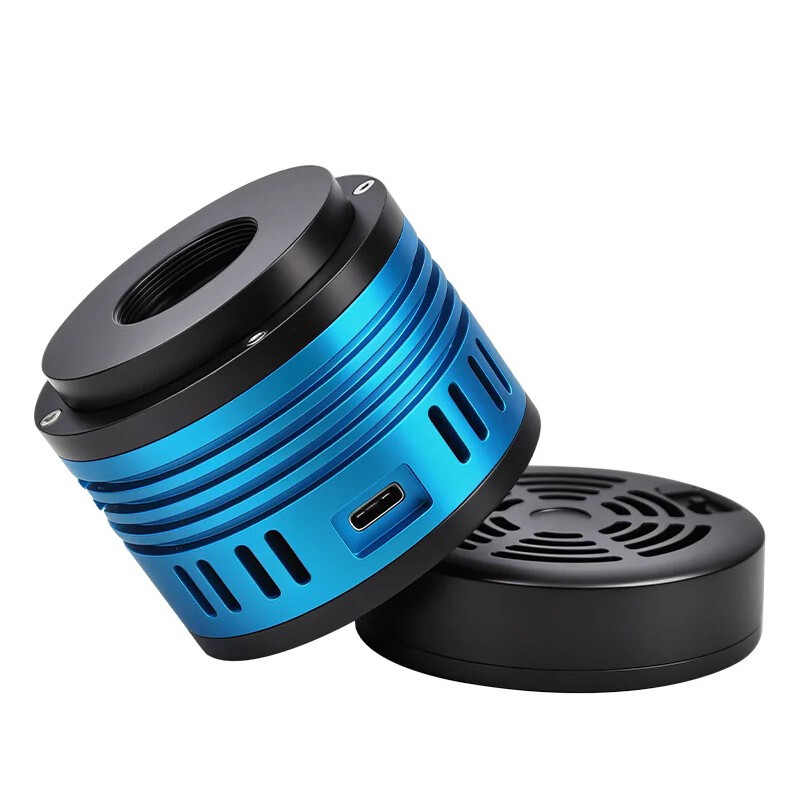

AE676C features a magnetic detachable rear cooling fan module for quick installation and removal. The camera body integrates single-stage TEC cooling, a precision multi-channel heat dissipation structure, and active air cooling to reduce thermal noise during long exposures.
- Zero-vibration Constant Temperature Mode: With the integrated TEC module and PID temperature control algorithm, AE676C enables precise cooling within 5°C below ambient, with ±0.1°C stability for sharp long-focal-length imaging.
- Enhanced Cooling Mode: With the magnetic cooling fan attached, AE676C can reduce the sensor temperature by up to 20°C below ambient, minimizing thermal noise during longer exposures.
Native 12-bit ADC & Hardware ROI
Capture 12-bit images natively, with software pixel binning from 1×1 to 8×8 and hardware binning from 1×1 to 2×2. Hardware ROI allows higher frame rates by reducing the readout area, reaching up to 993 FPS at reduced resolution in 8-bit mode.
Stable Performance with 512MB DDR3 Cache
Equipped with a 512MB DDR3 buffer, AE676C ensures stable data transfer and helps prevent frame drops even under bandwidth limitations. Read noise is as low as 1.01e⁻ for clean backgrounds, while the 69.7dB dynamic range preserves details in both bright and dark areas.
Gain Modes for Different Scenarios

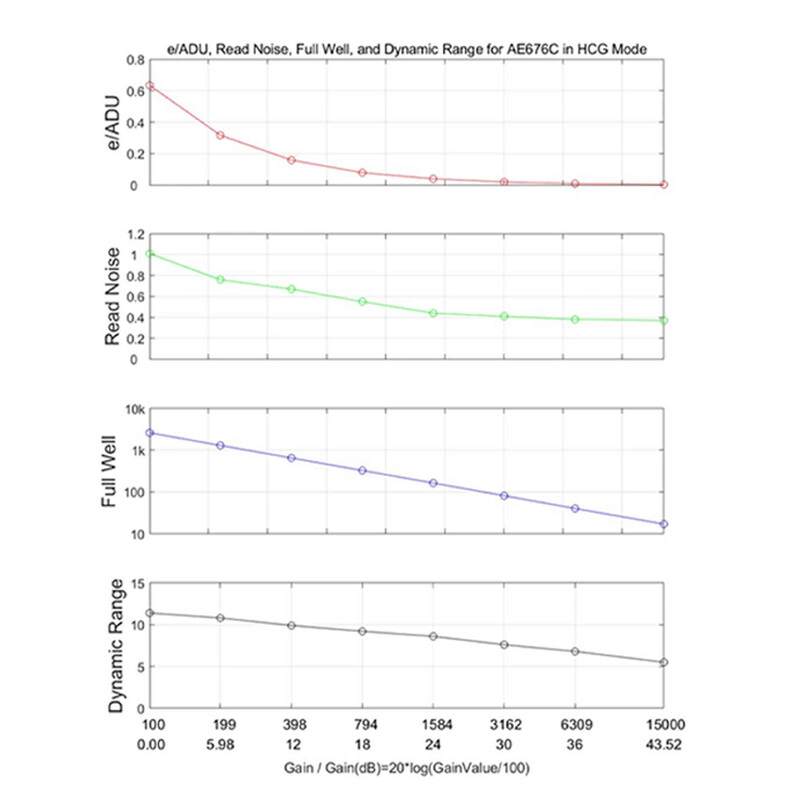

- HCG Mode: Reduces readout noise while maintaining high dynamic range for faint deep-sky objects and guiding.
- LCG Mode: Prevents overexposure in bright targets while preserving highlight details.
- HDR Mode: Combines HCG low noise and LCG high full-well capacity for superior image quality.
Software Compatibility
Connect via StellaVita App, ToupSky software, or use ASCOM, INDI and DirectShow SDK. Third-party software compatible with these SDKs can also integrate via drivers available on the ToupTek Astro official website.

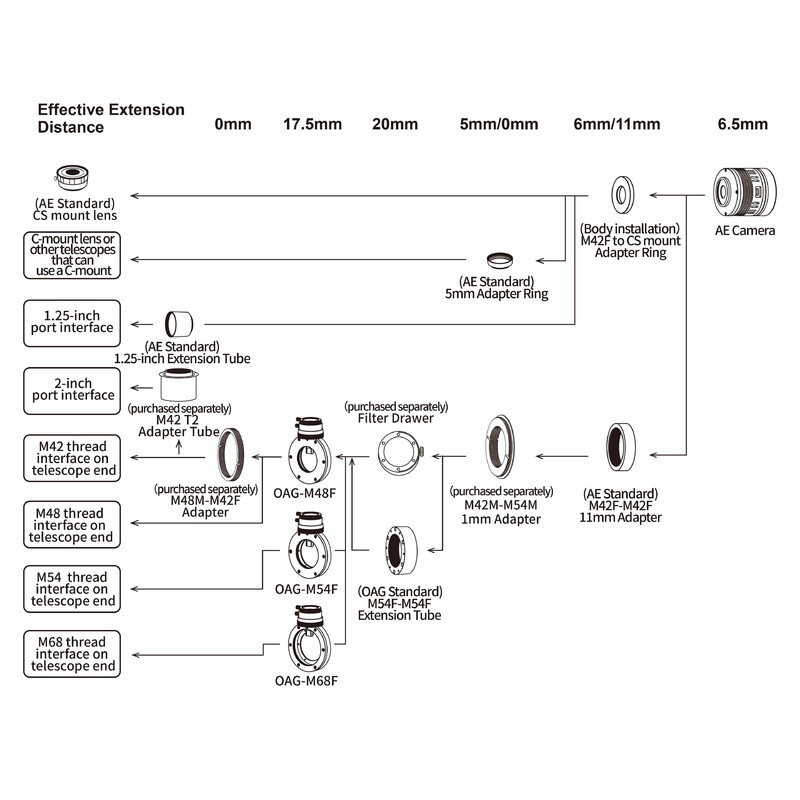

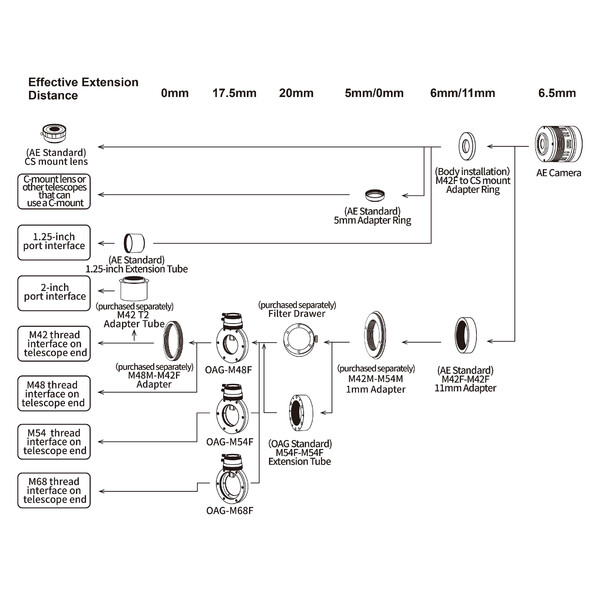

Flexible Mounting Options

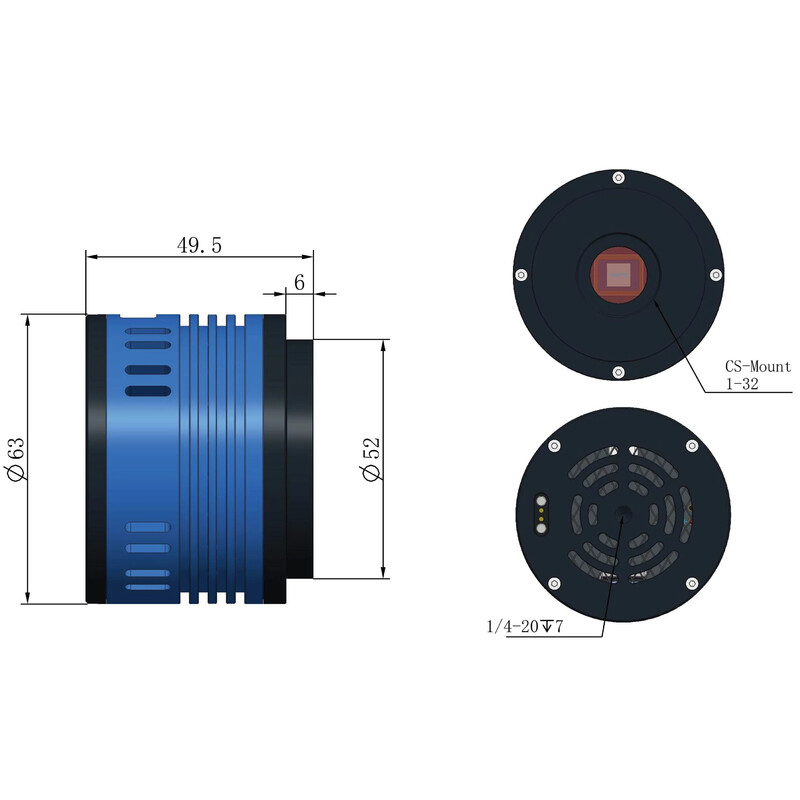

Supports CS mount, C mount, M42M and M42F interfaces for different optical systems and imaging accessories. Includes 1.25” extension tube for filters or eyepiece insertion.
High-speed Connectivity
USB-C port supports high-speed data transfer and power supply for stable imaging sessions.
Start Lite Astrophotography with AE676C! One compact astronomy camera for planets, Moon, Sun, deep sky, meteors, Milky Way and all-sky monitoring — an easy way to explore more astrophotography possibilities.

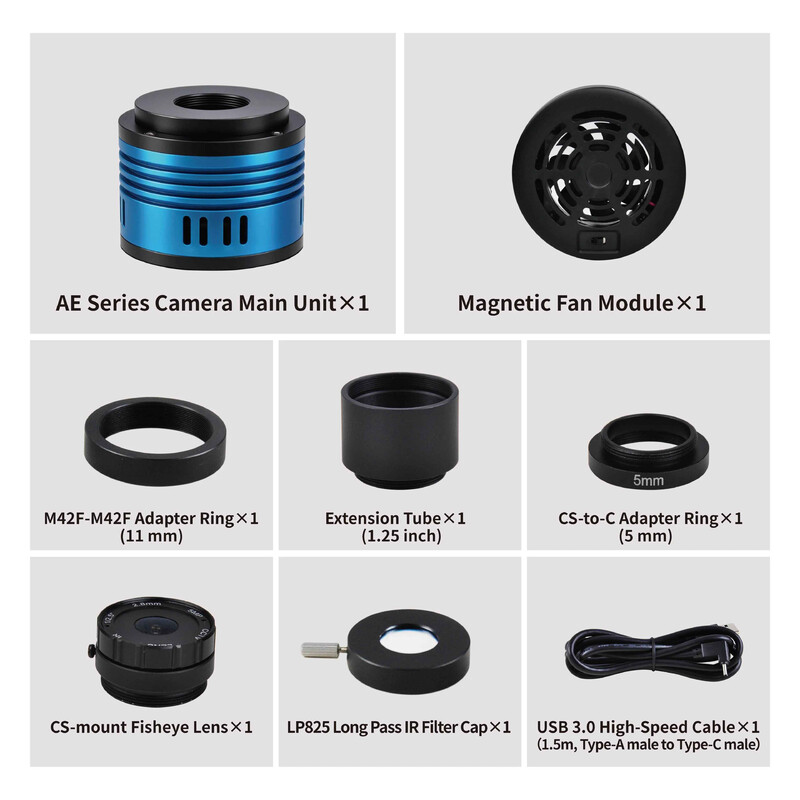

Contents of the package:
- camera

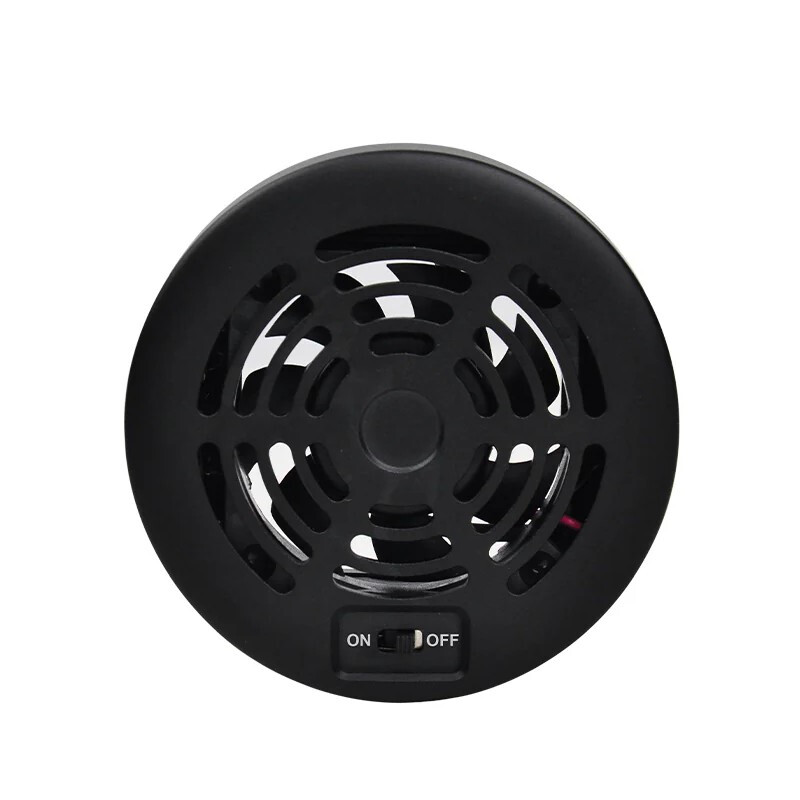

- Magnetic fan module
- M42f reverse ring (11mm optical length)
- c-mount – 1.25" barrel
- CS-mount to c-mount adaptor (5 mm)
- c-mount fisheye lens 2.8 mm f/2.5
- LP825 IR pass filter for attaching to the objective, transmits light from 825 nm
- USB 3.0 high-speed cable (Type A to Type C, 1.5m long)
