Astrophotography > Cameras > Astronomical Cameras > ToupTek > G > ToupTek Camera G-1200-KPB Color Guider
Product no.: 48278

Camera G-1200-KPB Color Guider

$ 149.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

Touptek colour camera

Planetary imaging and guiding camera from Touptek - the key to successful planetary photos

The Touptek 1200 is a highly sensitive planetary camera which can turn you into a successful planetary photographer. The heart of this camera is a sensitive and low-noise CMOS chip. An optimal launching pad for sharp and high-resolution planetary imaging. But this camera can also be used to guide via a guide star.

The advantages in a nutshell:

  • highly sensitive Aptina Chip
  • large field of view and high 1.2 MP resolution
  • perfect tracking for astronomy photos - ST 4 autoguider port
  • software and drivers on CD-Rom
  • C-mount connection
  • up to 30 frames per second

Large field of view and high resolution

With a resolution of 1280x960 pixels, you can plot a course directly to the planets in our solar system. The wide field of view is ideal for sharp and wide-scale images of the lunar surface. Unlike normal entry-level cameras, this camera offers a much larger chip area.

A master among autoguiders

The sensitivity of the chip means this camera is perfect for autoguiding. Even if you can only find fainter stars in the immediate vicinity, it is simply no problem for the Touptek 1200. Just connect the camera to your mount via the built-in ST-4 port and you immediately have perfectly tracked exposures of galaxies and nebulae.

Included in the package - image acquisition and image editing software

Extensive software is included - with virtually everything an astrophotographer could wish for:

  • Live Image function
  • exposure settings
  • histogram
  • image acquisition and video functions
  • automatic Dark Subtraction
  • time-lapse image acquisition
  • image processing - stacking

Virtually everything you need is included in just one program, allowing you control of most of the image processing.

System requirements:

  • Windows 7, 8 or 10
  • Intel Core 2, 2.8GHz, 2GB memory, USB 2.0

Along with the camera, the drivers and cables required are included - to complete this convenient package.

Included in delivery:

  • camera
  • C-mount and 1.25" adapter with filter thread
  • CD-ROM with software and drivers
  • USB cable
  • ST-4 autoguider cable

Our expert comment:

Software download: TOUPTEK Software

For Autoguiding, we recommend the free and open source guiding software PHD2. ToupTek cameras now work natively with PHD2 without the need for ASCOM drivers. (when using Windows and since PHD2 version v2.6.6 or v2.6.5dev6)

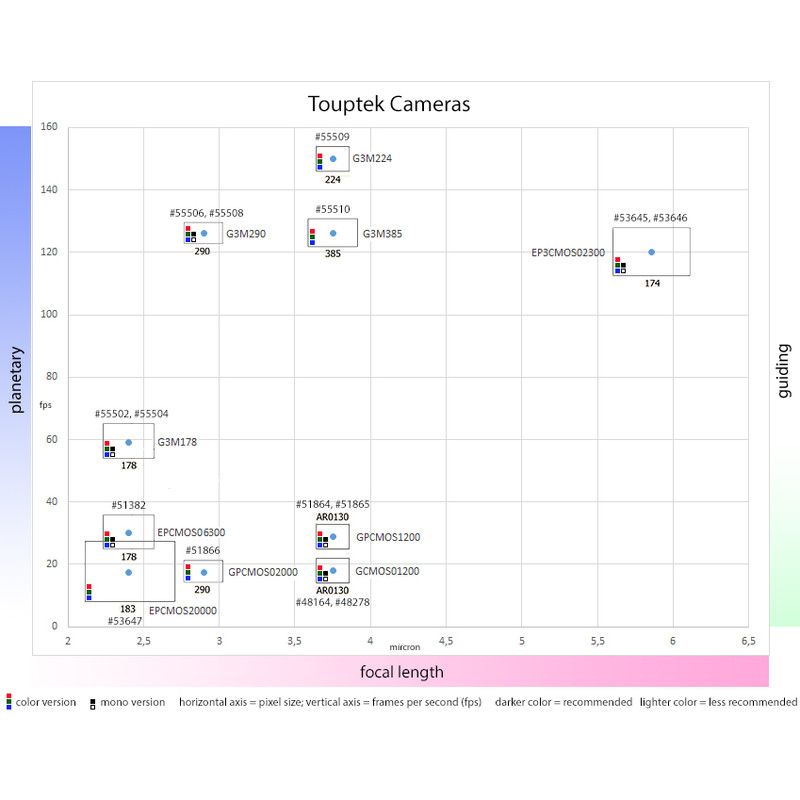

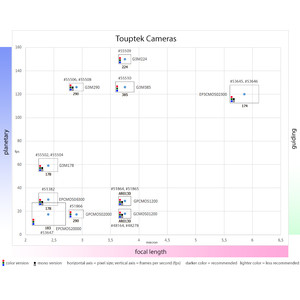

Are you still looking for the right ToupTek camera?

- but don't really know which one you need? - selecting the right ToupTek camera is discussed in the blog article ToupTek - which camera is right for me? How to find out at a glance

(Marcus Schenk)

Specifications

Capacity


Sensor type
CMOS Chip
Size of chip (mm)
4,8 x 3,6
Megapixel
1,2
Pixel size
3,75
Colour camera
yes
Resolution Photograph (Pixel)
1280x960
Bit depth (Bit)
8
Min. exposure time
400µ
Max. exposure time (min)
13
Active cooling
no
Power supply
- (USB)
Interfaces
USB 2.0, ST-4
Autoguider
yes
Supported operating systems
Windows 7/8/10
Connection (to the telescope)
C-Mount
Images per second
28 (at full resolution)
Reading noise
3.3 e-
Software
included in product contents
Operating temperature
-10°C - +50°C/30-80%RH
Chip - Diagonal (mm)
6

Equipment


Filter wheel
no

General


Length (mm)
66
Diameter (mm)
35
Weight (g)
70
Series
G

Area of application


Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
no
AllSky, Meteore
no

Recommended accessories

Filters > Nebulae filters (3)
Filters

Astronomik Filters 1.25" CLS CCD filter

$ 104.00*
Filters > Other (1)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Astrophotography (2)
Off-Axis-Guider

Omegon Off-Axis-Guider Advanced T2

$ 139.00*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 197.00*

*All prices include VAT plus shipping costs.

ToupTek Camera G-1200-KPB Color Guider
Jupiter close to the horizon. Taken with a GCMOS01200KPB and an ADC.
