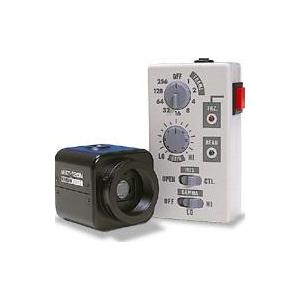

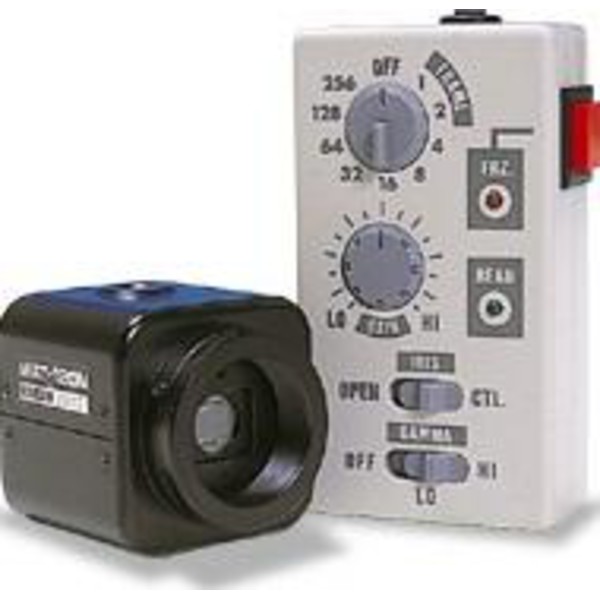

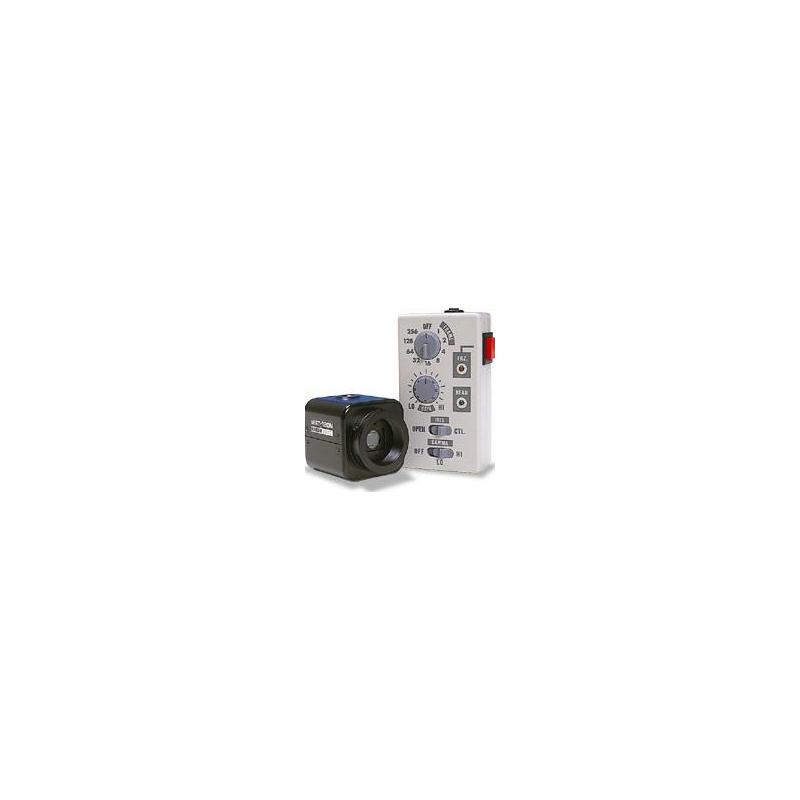

This set contains:
Characteristics & functions
- Frame integration system (Slow shutter speed)
- Ultra low light sensitivity
- Wide ranging shutter speed
- Controlable with hand-held remote controller
- High vertical resolution
- Still picture
- Shutter speed control
- Manual gain control
- Gamma correction (3 steps)
- Iris lens control (open/auto)
- Video/DC iris auto-select
- Iris level control
Specifications:
- Effective pixels: 380k(N), 440k(P)
- Resolution: 570TVL(H), 480TVL(V)
- Minimum illumination: 0.00002 lx. F1.4
- Gain control: MGC(8-38dB)
- S/N ratio: 52dB
- Shutter speeds: HI(OFF, 1/25, 1/250, 1/500, 1/1000, 1/2000[Sec.]), LO(1, 2, 4, 8, 16, 32, 64, 128, 256[Frame])
- Gamma: 0.35/0.45/1.0
- Weight: 150g(Controller 210g)
(CCIR Version)

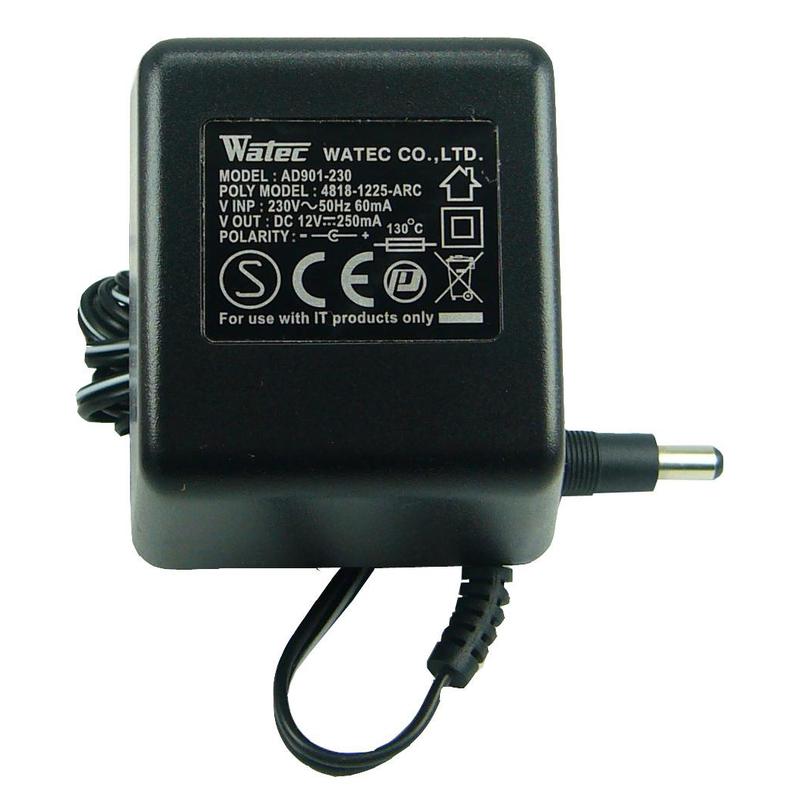

230V power supply for WAT 120N+Deep Sky video camera.
Specifications:
- DC 12V
- max 250mA
- Weight: 370g
