Astrophotography > Cameras > Astronomical Cameras > ZWO > ASI 120 > ZWO Camera ASI 120 MM-S Mono
Product no.: 45257

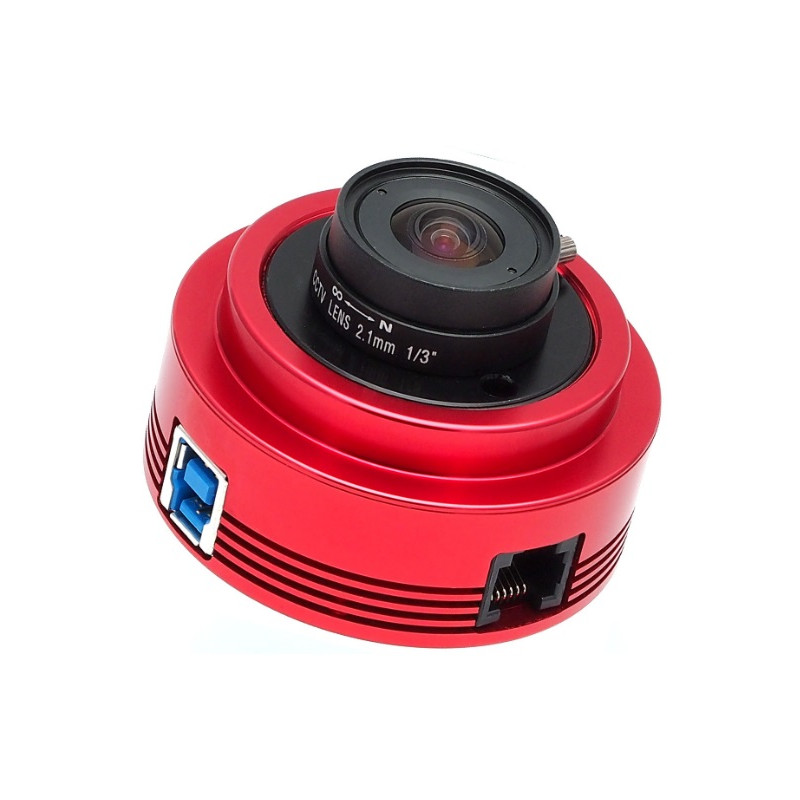

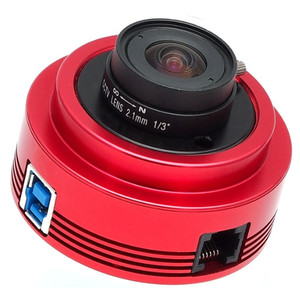

Camera ASI 120 MM-S Mono

RRP: $ 318.00 Our price:
$ 285.00 incl. VAT, plus shipping costs
too expensive?
on stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 04.02.2023!

Product description

The ASI 120 is a very fast and sensitive camera at a low price!

The camera delivers thirty frames per second (fps) at maximum resolution of 1280x960 pixels. They can be sent smoothly and rapidly to a laptop thanks to the high-speed USB.

Long exposure times of up to one thousand seconds are possible and at high sensitivity! The quantum efficiency of the black and white version is 75% in the green spectral range, i.e. 3/4 of absorbed photons in this wavelength are registered by the sensor!

You can connect the camera to your telescope using the T-2 thread cut into the camera housing, or with the included adapters - just the way you are used to with your eyepieces.

In addition to the software, delivery includes connecting cables and the 1.25" nosepiece, and even contains a 2.1mm lens that can be screwed directly into the camera body.

Supported resolutions:

  • 1280x960 @ 60fps
  • 1280x720 @ 98 fps
  • 1280x600 @ 116 fps
  • 1280x400 @ 168 fps
  • 480x320 @ 196 fps
  • 320x240 @ 254 fps
  • 2x2 binning: 640X480 @ 45fps

Software and drivers are available for free download on the manufacturer's website: software drivers

Specifications

Capacity


Sensor type
CMOS Chip (Micron MT9M034)
Megapixel
1,2
Resolution Photograph (Pixel)
1280x960
Pixel size
3,75
Interfaces
USB 3.0
Bit depth (Bit)
12
Active cooling
no
Connection (to the telescope)
1,25" & 2" & T2
Colour camera
no
Operating temperature
-5 - 45
Max. exposure time (min)
16
Min. exposure time
64 µs
Images per second
60 (at full resolution)
Quantal efficiency
75% @500nm
Size of chip (mm)
4,83 x 3,63
Chip - Diagonal (mm)
6

Special features


Infrared filters
no

Equipment


Filter wheel
no

General


Weight (g)
100
Series
ASI 120

Area of application


AllSky, Meteore
yes
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
no

Recommended accessories

Filters (5)
Filters

ZWO Filters ASI AR Protect Window D21

$ 27.90*
Astrophotography > Controls & Shutter Release (3)

Ikarus Technologies StellarMate PLUS Astrophotography Controller

$ 362.00*
Astrophotography > Other (3)

ZWO ADC Atmospheric Dispersion Corrector Mark II

$ 175.00*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 197.00*

*All prices include VAT plus shipping costs.

ZWO Camera ASI 120 MM-S Mono

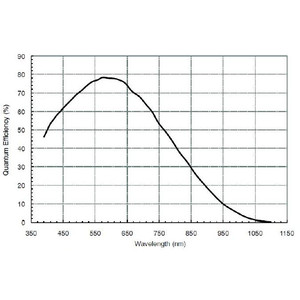

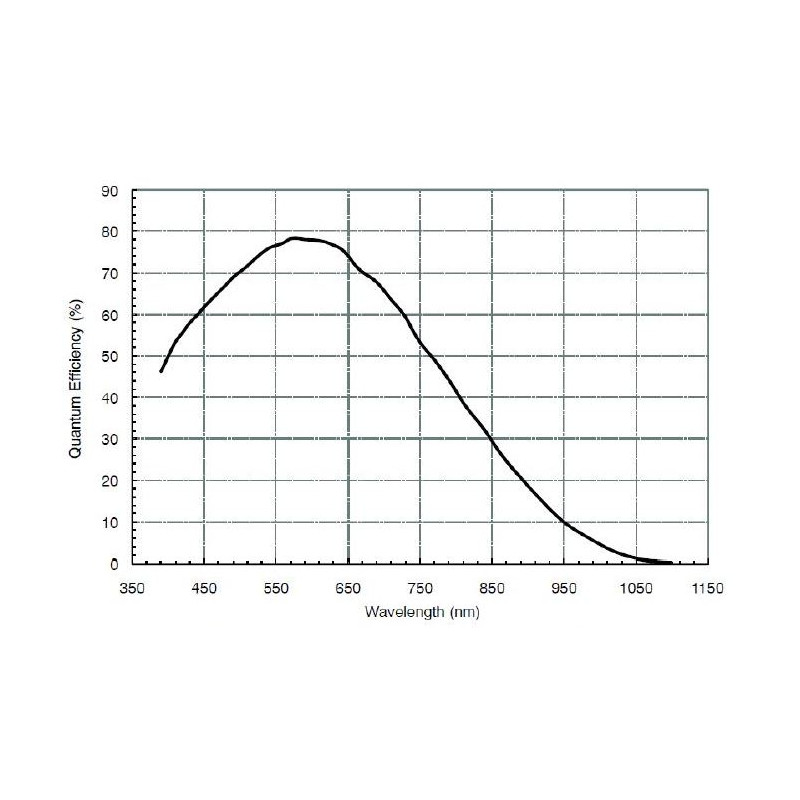

Quantum efficiency

ZWO Camera ASI 120 MM-S Mono

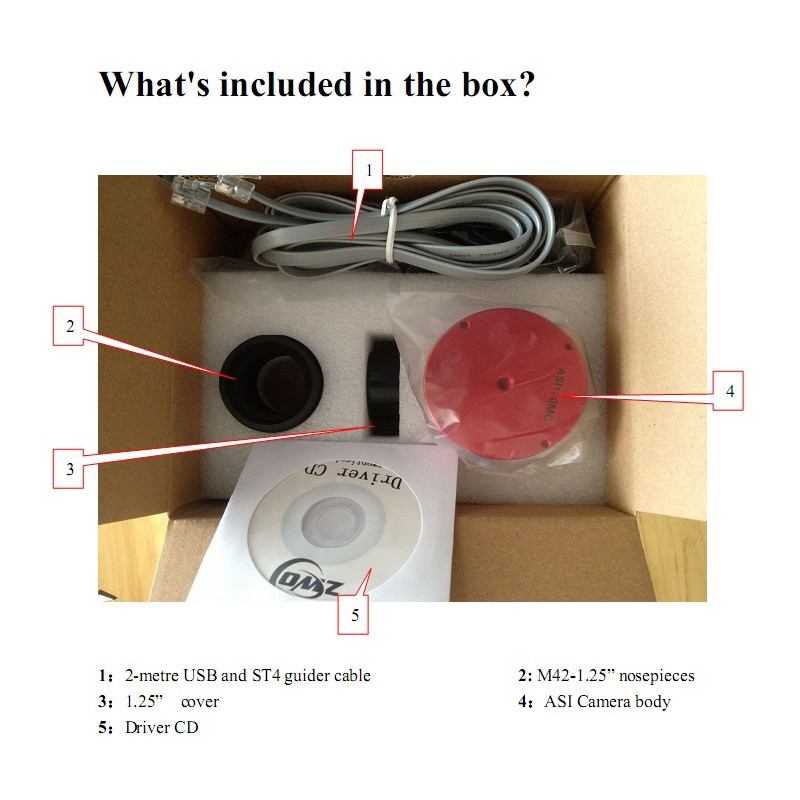

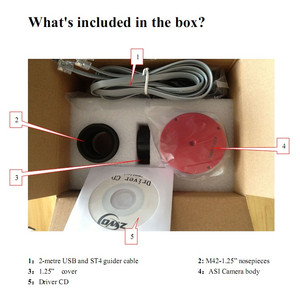

Included in delivery
