Astrophotography > Cameras > Astronomical Cameras > ZWO > ASI 174 > ZWO Camera ASI 174 MM Mini Mono
Product no.: 55842

Camera ASI 174 MM Mini Mono

RRP: $ 690.00 Our price:
$ 625.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

Delivery possible before Christmas (European destinations) - when you order by 18.12.!
Right of return up to January 31 2025!


Product description

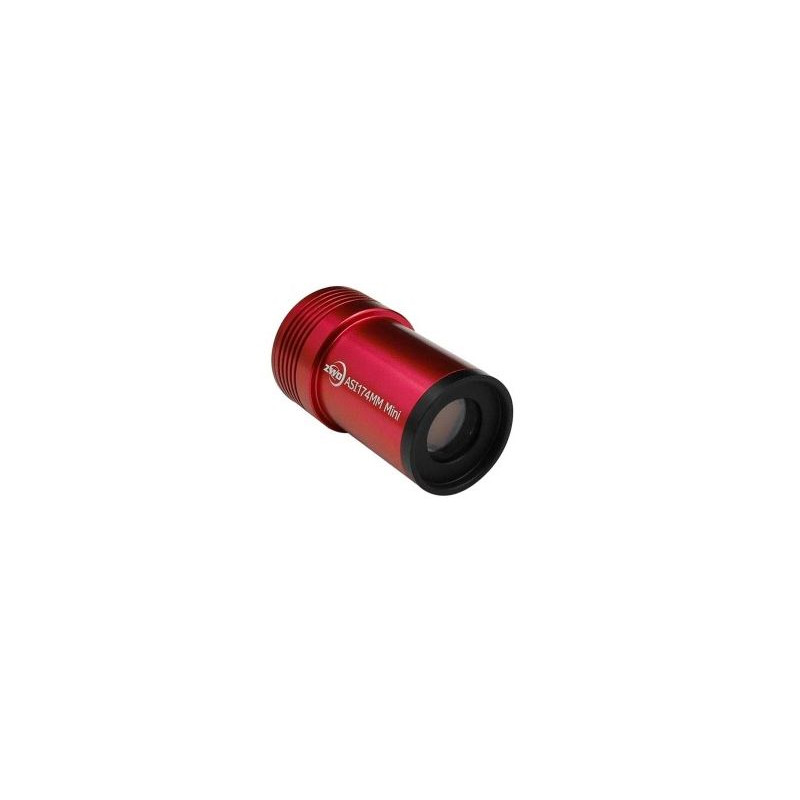

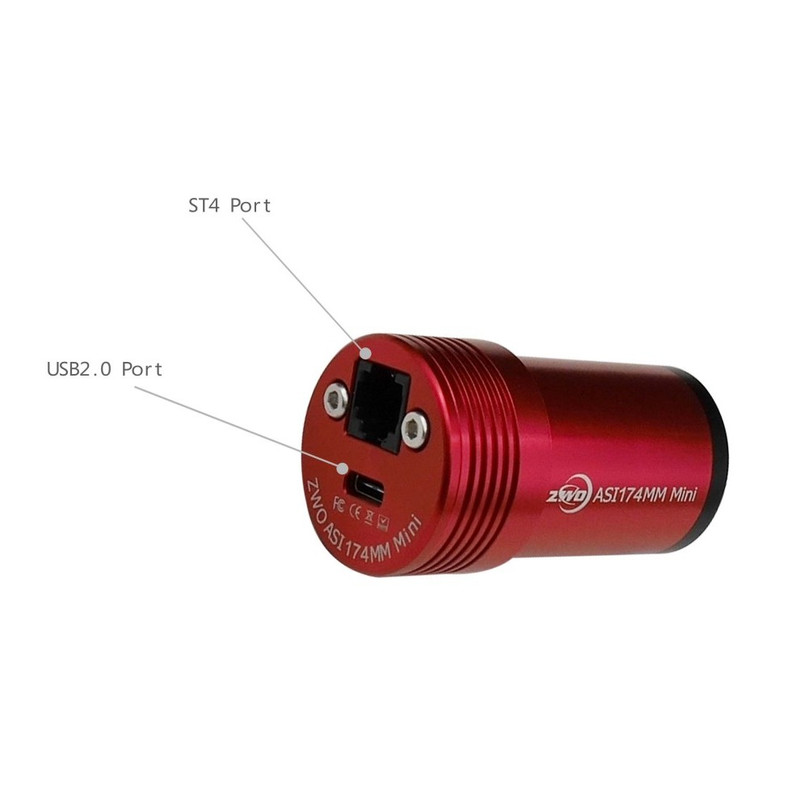

ZWOptical now also offers a special autoguider camera in its popular ASI 174 series. The compact housing and low weight of this camera goes perfectly with any off-axis guider or guide scope. The high quantum efficiency (sensitivity) of the Sony IMX174 sensor, its relatively large size and infrared sensitivity make sure you can always find a guide star. Of course, the camera also has an ST-4 port.
The very sensitive monochrome camera is also very well suited to astrophotography - it is fast enough to enable planetary and lunar photography via Lucky Imaging (Stacking). The pixel size is small enough to mean that the resolution is sufficient for planets, but also large enough to make the camera interesting for deep sky photography of faint nebulae - a genuine all-rounder!

The CMOS sensor is so low noise that even in its small housing with no active cooling very good exposures are possible. Thanks to the short working distance (back focus), the camera can also be used in difficult focal positions - for example on Newtonian telescopes, which are not optimized for photography.

The advantages in a nutshell

  • autoguider and astronomy camera - very versatile!
  • large sensor with high sensitivity
  • very light and compact
  • many accessories included
  • infrared sensitive


The camera comes equipped with a clear glass filter which is also transparent to infrared. This opens up exciting possibilities for planetary photography when combined with an infrared cutting filter. When used with a refracting telescope, however, the use of an infrared cutting filter makes sense, as the lens of the telescope has been optimized for imaging visible light and not the infra-red region.

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX174LLJ/IMX174LQJ)
Megapixel
2,3
Resolution Photograph (Pixel)
1936 x 1216
Pixel size
5,86
Interfaces
USB 2.0
Bit depth (Bit)
12
Connection (to the telescope)
1,25"
Active cooling
no
Colour camera
no
Size of chip (mm)
11,34 x 7,13
Quantal efficiency
77%
Reading noise
3,5
Max. exposure time (min)
5
Min. exposure time
32 µs
Connector (at camera end)
M28,5x0,6
Backfocus (mm)
8,5
Autoguider
yes
Chip - Diagonal (mm)
13,4

Special features


Infrared filters
no (Clear glass filter)

General


Diameter (mm)
36
Height (mm)
61
Colour
red
Series
ASI 174
Weight (g)
60
Material
Aluminium

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

Filters (2)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Astrophotography (3)
Camera bracket

Omegon CMOS camera mount

$ 49.90*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 198.00*

*All prices include VAT plus shipping costs.

ZWO Camera ASI 174 MM Mini Mono

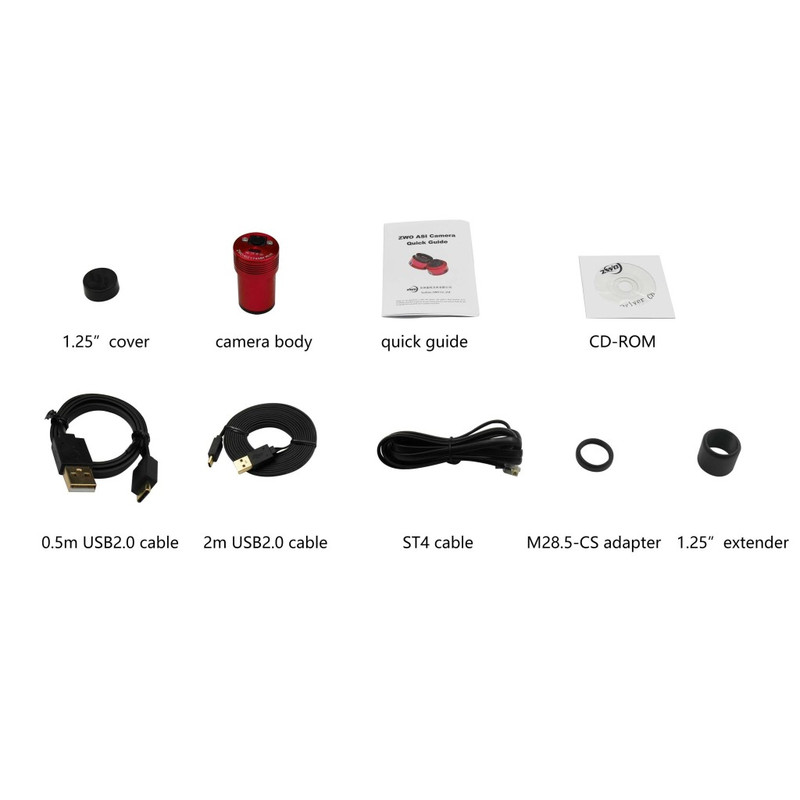

Includes
ZWO Camera ASI 174 MM Mini Mono

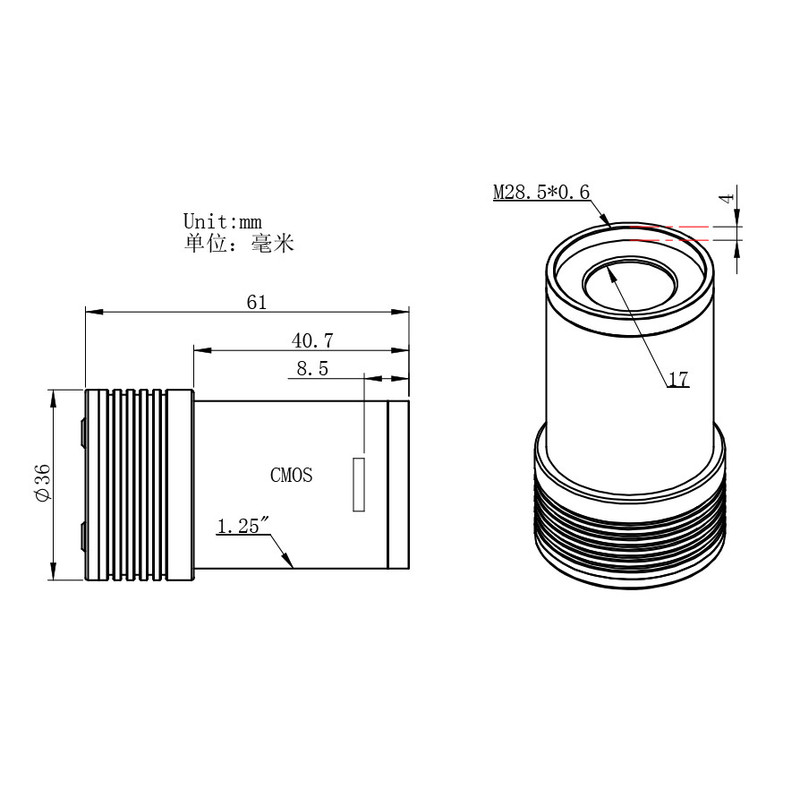

Dimensions
