Astrophotography > Cameras > Astronomical Cameras > ZWO > ASI 220 > ZWO Camera ASI 220 MM Mini Mono
( 5 / 5 )
Product no.: 77206

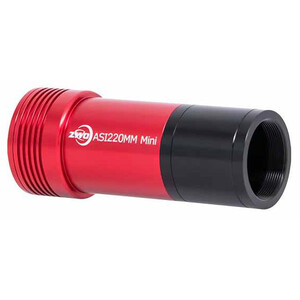

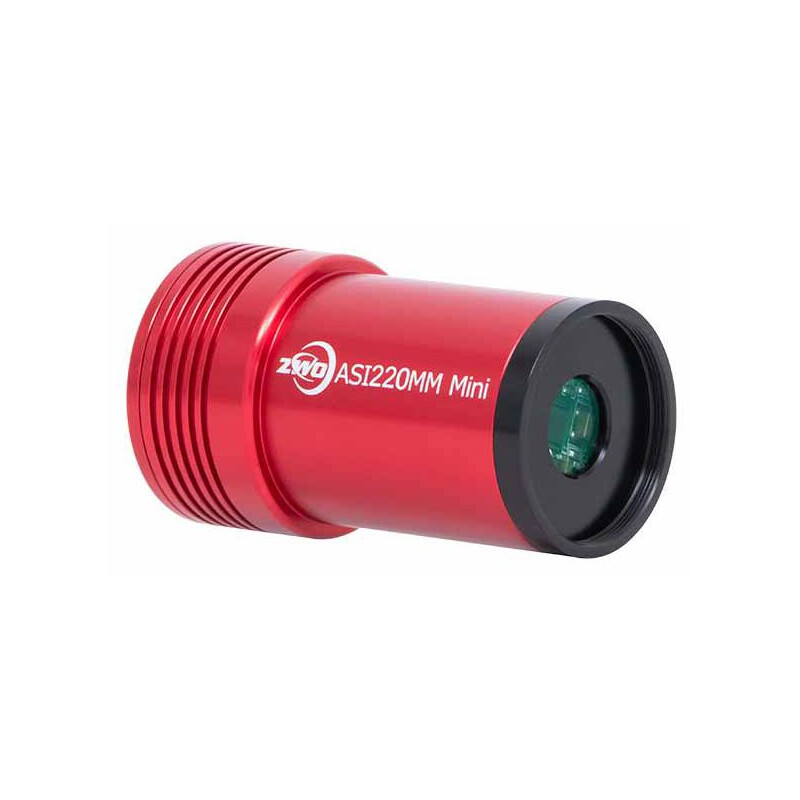

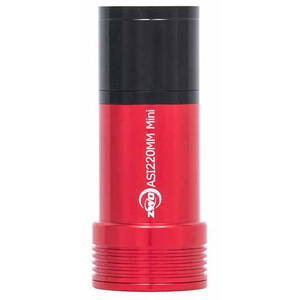

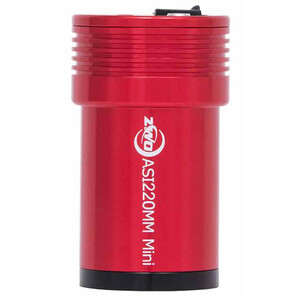

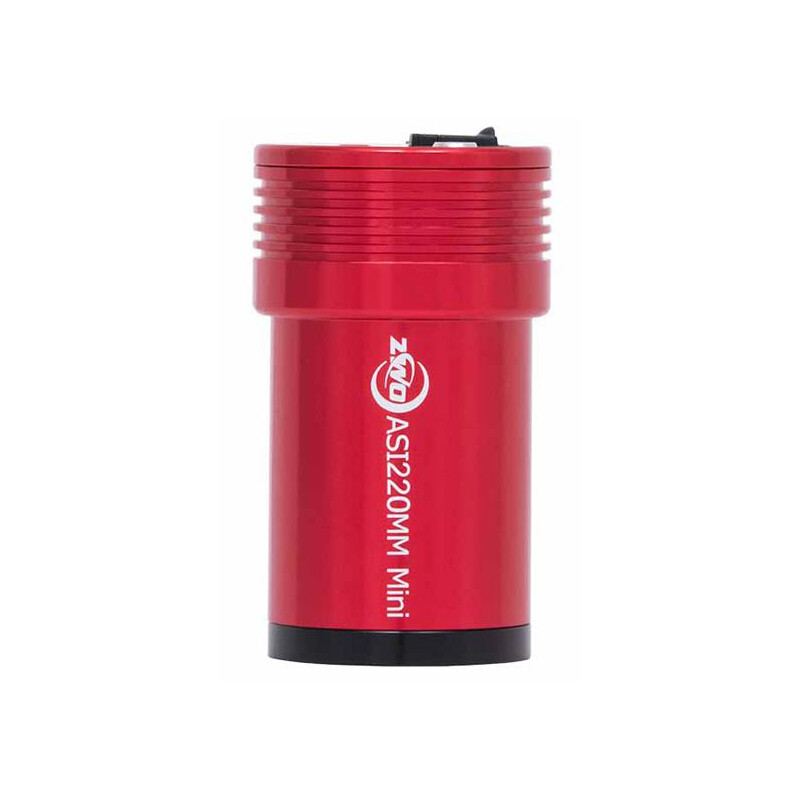

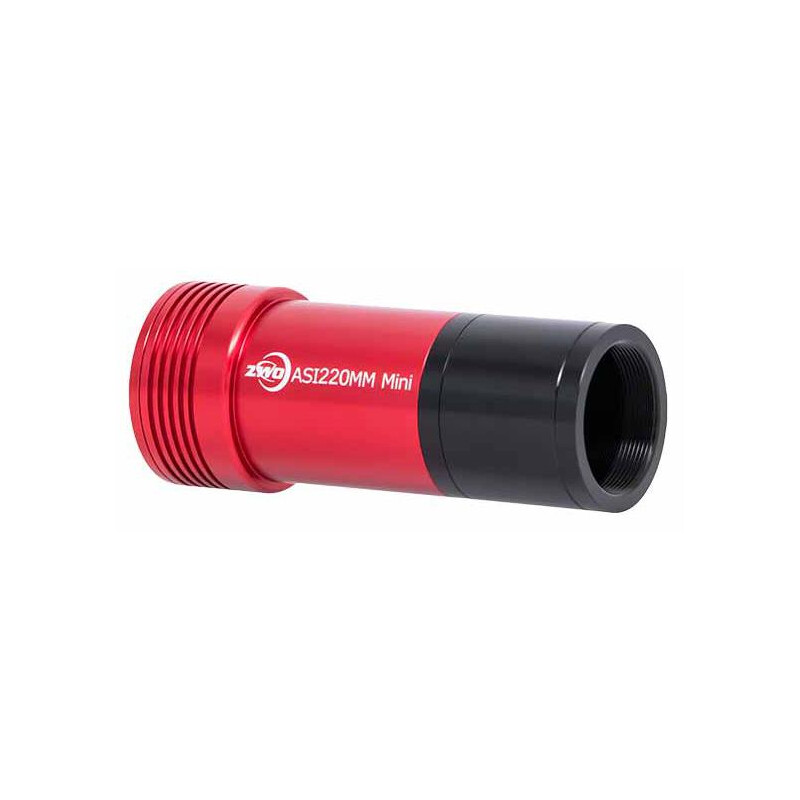

Camera ASI 220 MM Mini Mono

RRP: $ 421.00 Our price:
$ 384.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

Software and drivers are available for free download on the manufacturer's website: software drivers

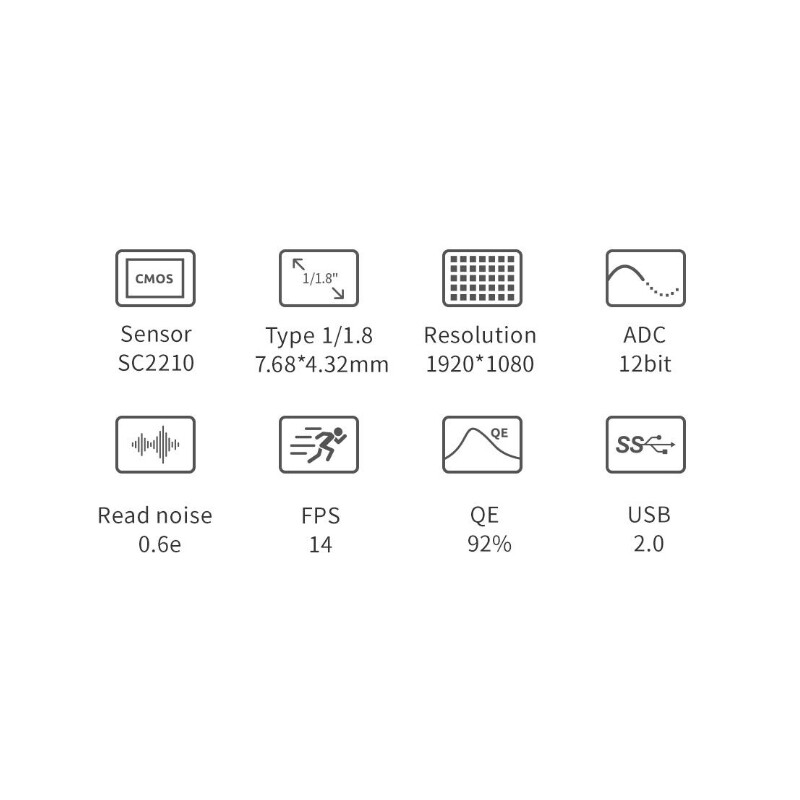

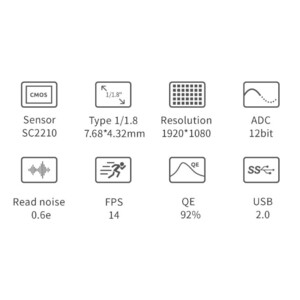

Specifications

Capacity


Sensor type
CMOS Chip (SC2210)
Megapixel
2,07
Resolution Photograph (Pixel)
1920x1080
Pixel size
4,0
Interfaces
USB 2.0
Bit depth (Bit)
12
Active cooling
no
Connection (to the telescope)
1,25"
Colour camera
no
Operating temperature
-5 - 45
Max. exposure time (min)
1/6
Min. exposure time
32 µs
Images per second
14 (at full resolution)
Quantal efficiency
92%
Size of chip (mm)
7,68 x 4,32
Chip - Diagonal (mm)
8,8
Full Well Capacity
8780
Reading noise
0,6-3,2
ROI support
yes
Flange focal distance (mm)
8,5

Special features


Autoguider interface
yes

Equipment


Filter wheel
no

General


Series
ASI 220
Weight (g)
60
Diameter (mm)
36
Length (mm)
61

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
no

Recommended accessories

Telescope accessories (1)

TS Optics Hardcase Protect Case 271mm

$ 42.90*
Filters (2)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Astrophotography (2)

TS Optics Adaptor T2 female on C-Mount male

$ 31.90*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 198.00*

*All prices include VAT plus shipping costs.

ZWO Camera ASI 220 MM Mini Mono

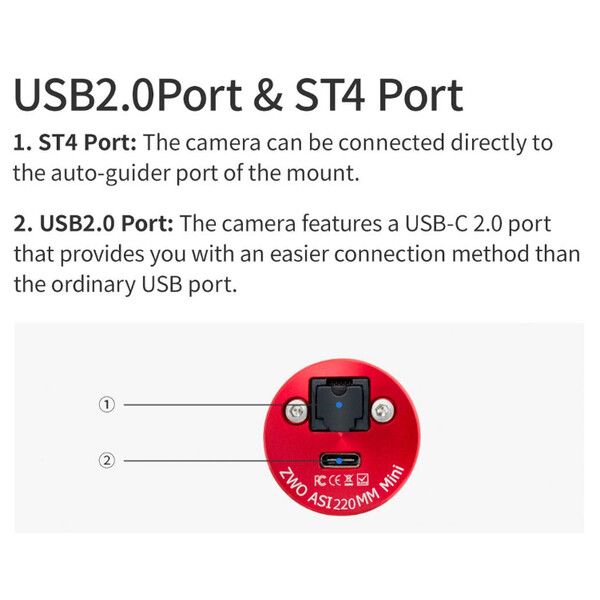

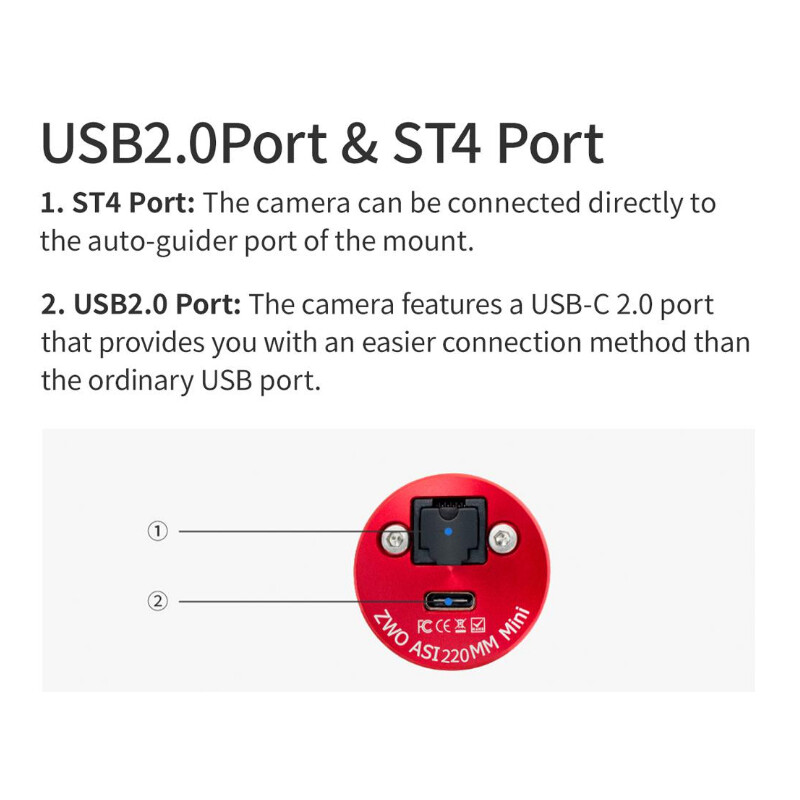

Connections
ZWO Camera ASI 220 MM Mini Mono

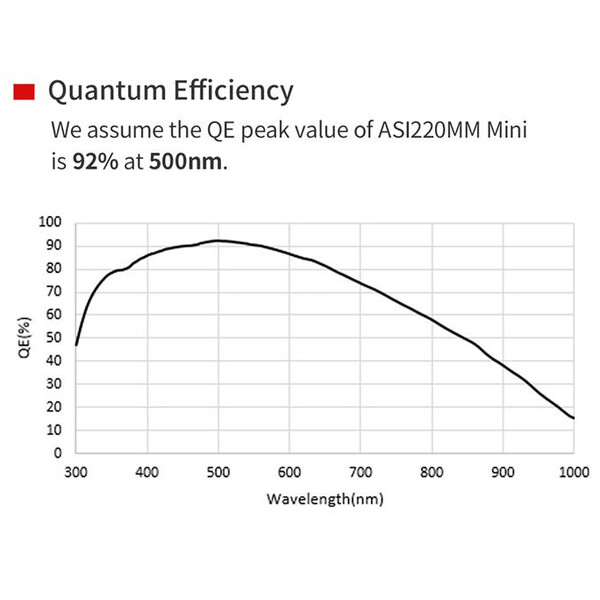

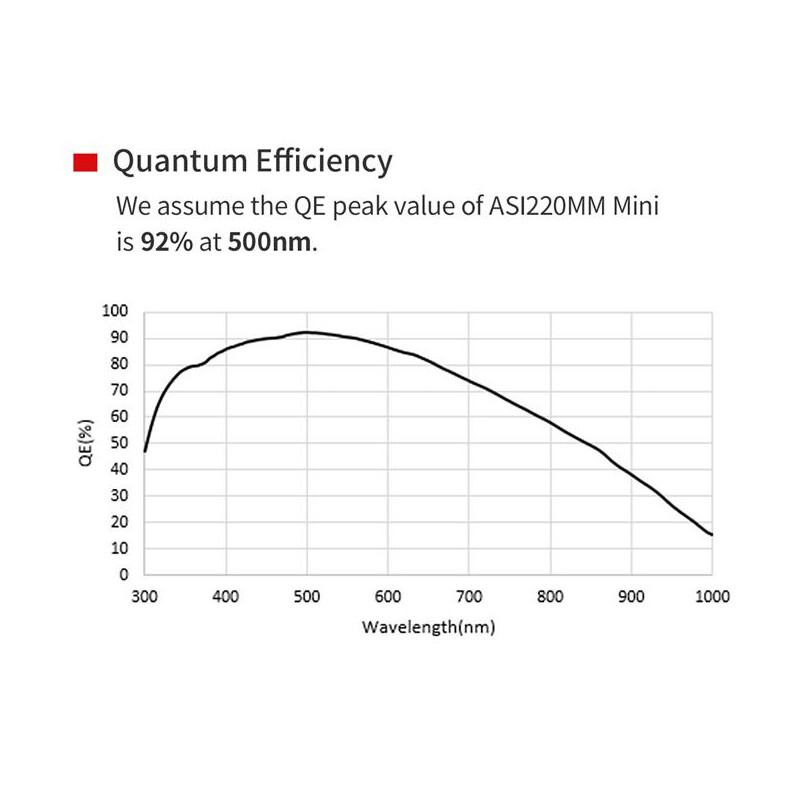

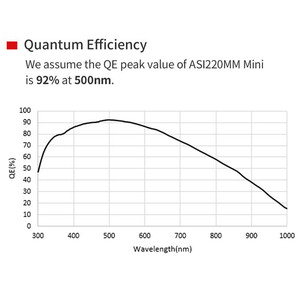

Quantum efficiency

ZWO Camera ASI 220 MM Mini Mono

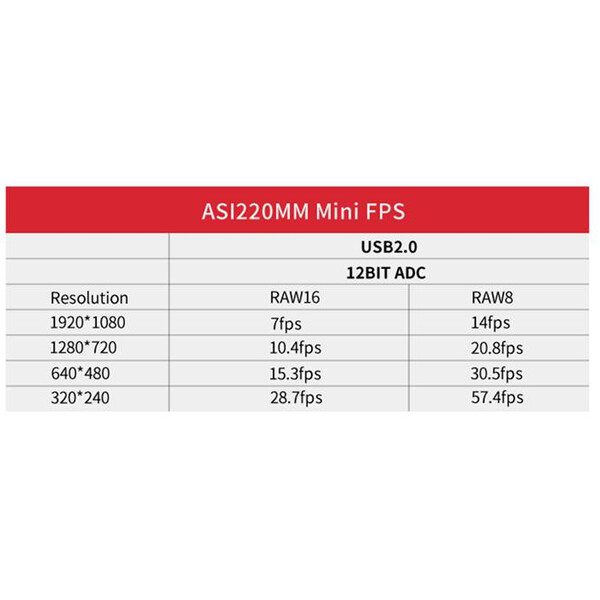

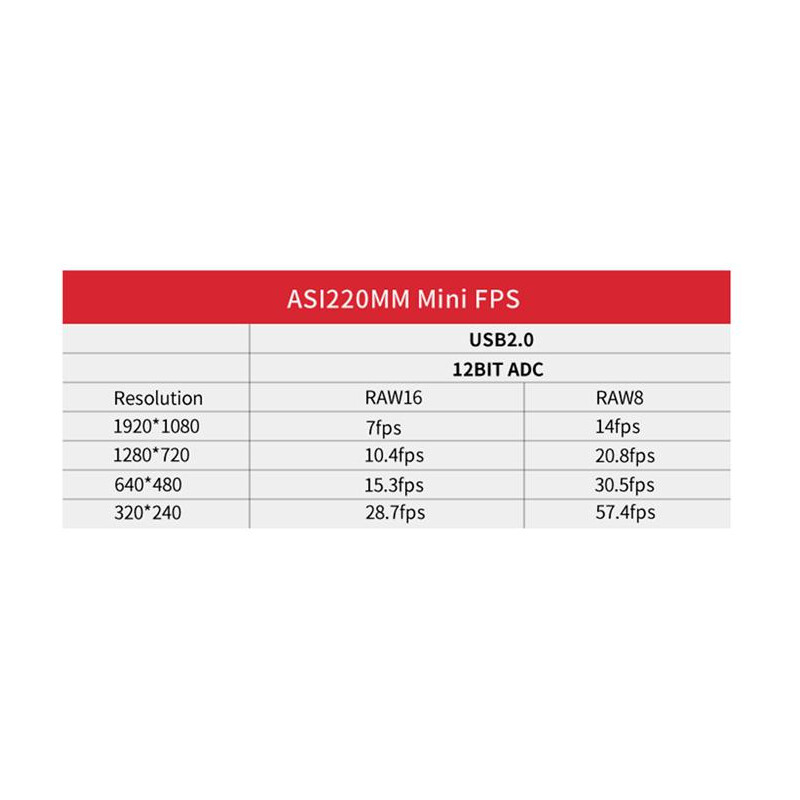

Images per second
ZWO Camera ASI 220 MM Mini Mono

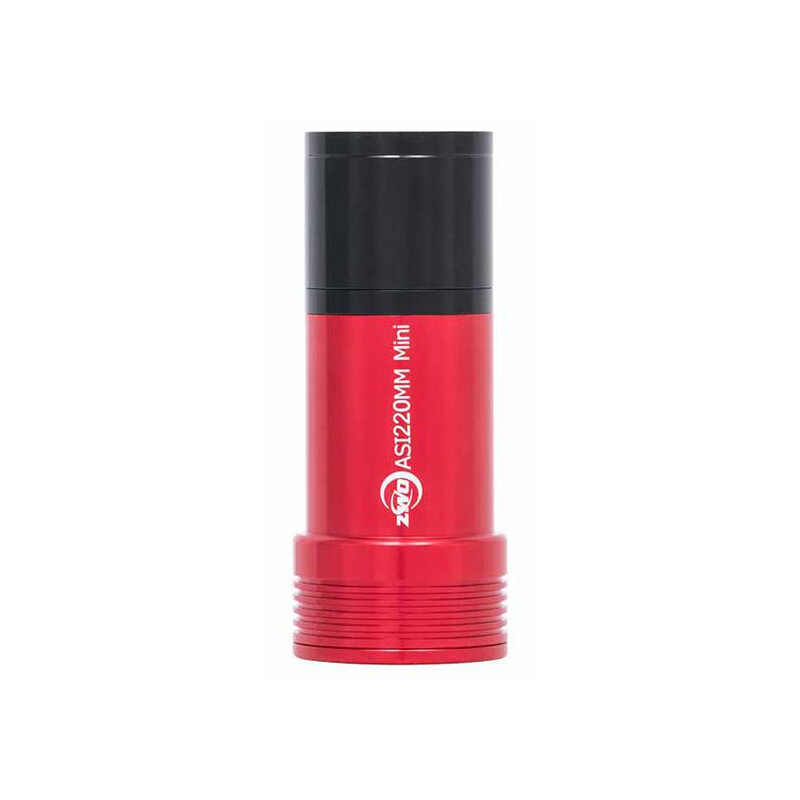

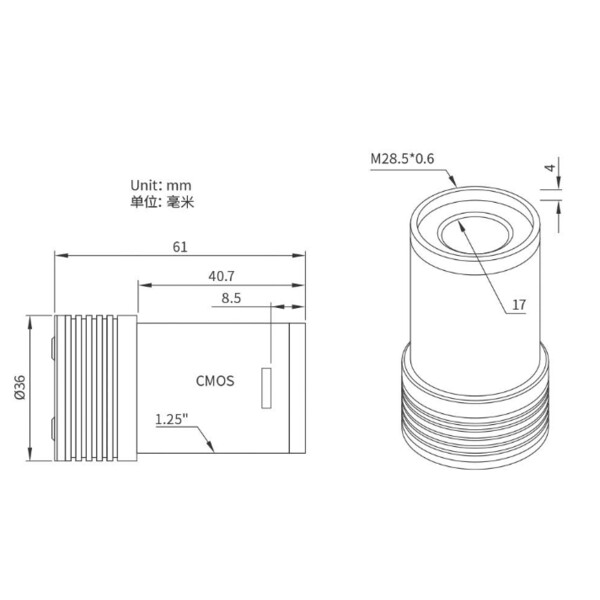

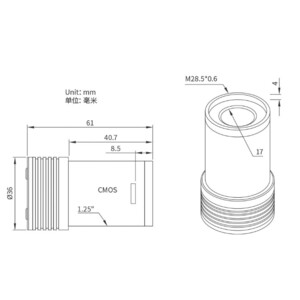

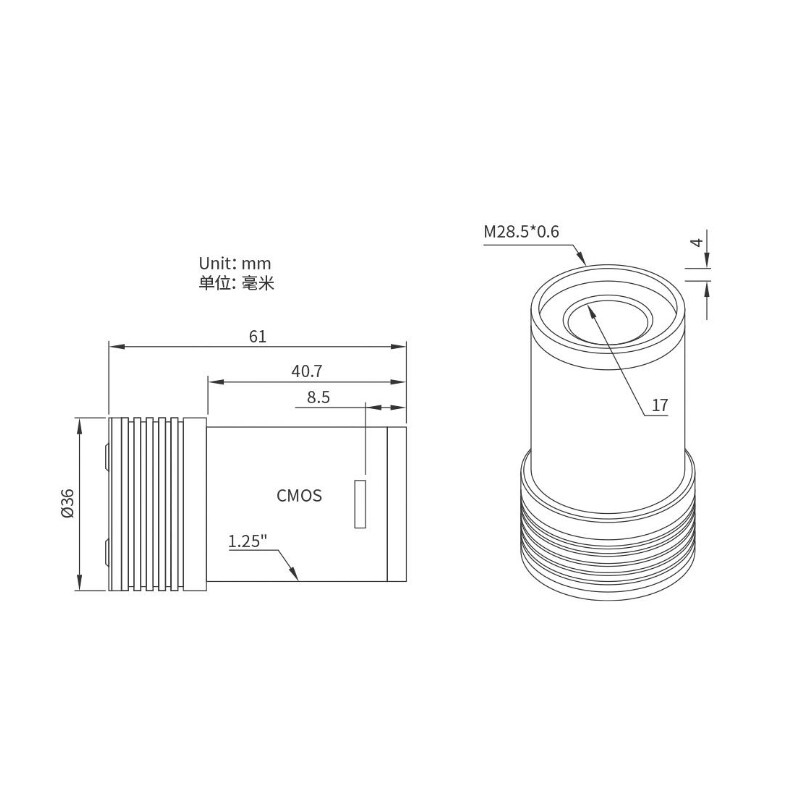

Dimensions

Customer reviews

Cool

Review by A. L. on 28.06.2024 20:52:57

( 5 / 5 )

Very sensitive and super guide-camera even for Off-Axis.
