Astrophotography > Cameras > Astronomical Cameras > ZWO > ASI 290 > ZWO Camera ASI 290 MM Mini Mono
Product no.: 55847

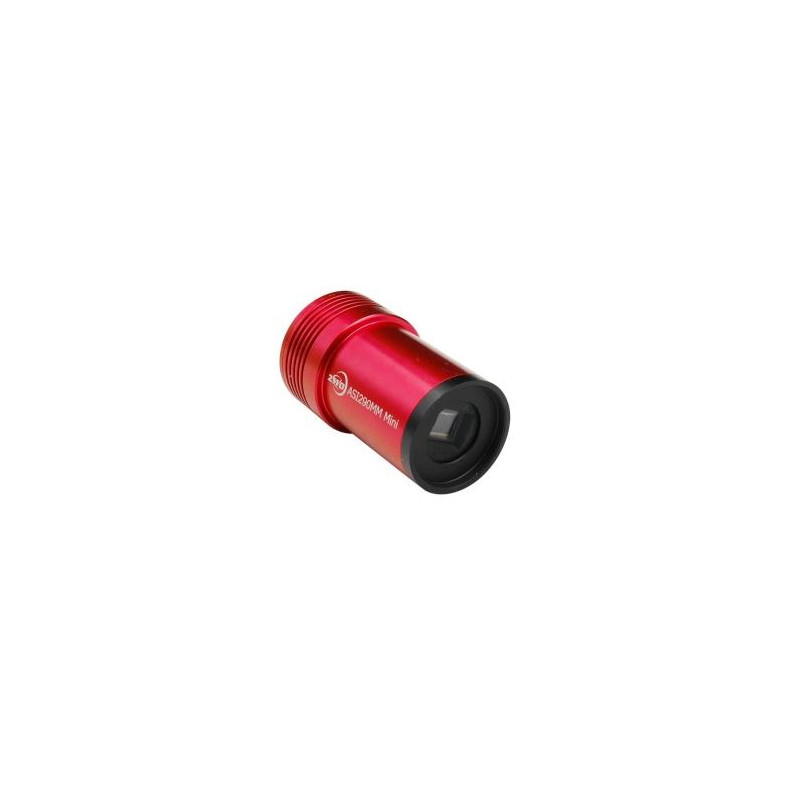

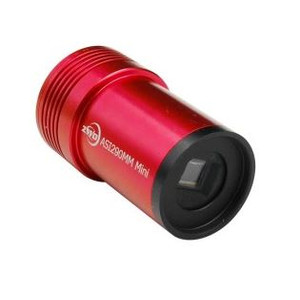

Camera ASI 290 MM Mini Mono

RRP: $ 520.00 Our price:
$ 363.00 incl. VAT, plus shipping costs
too expensive?
on stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery the day after tomorrow, 03.02.2023!

Product description

The ASI 290 Mini is one of the most sensitive autoguider cameras on the market - with a quantum efficiency of over 80%. Thanks to the small pixel size of 2.9ìm, you can also track telescopes with the increasingly popular short focal length Microguide guide scopes.
The camera is very light and no bigger than an eyepiece. This is also very convenient for use in the small guide scope or off-axis guider.
The small pixel size with the associated high resolution also make it ideal for use as a planetary camera. The relatively small sensor easily copes with the small angular size of planets. Also, the 'seeing' can be outsmarted by taking short exposures at a high frame rate. The camera allows exposures a short as 32ìs with the resolution dependent number in the number of frames per second (FPS):

  • 1936 × 1096: 20.4
  • 1280 × 960: 35.3
  • 640 × 480: 141.5
  • 320 × 240: 355.9
  • 968 × 548 (2x2Bin): 20.4


Additional resolutions can be freely selected. The camera also supports ROIs (Regions of Interest).
The ASI 290MM Mini is ideal if you need a very sensitive autoguider camera with small pixel size for high resolution.

Our expert comment:

I recommend the ASI 290 MM for refractors which are guided using a short guide scope ('Microguide'). However, if you work with off-axis guiders and a Schmidt-Cassegrain or Ritchey-Chretien telescope, a wider field of view and therefore the ASI 174 MM Mini camera is more suitable. The ASI 174 MM is a versatile astronomy camera, but also significantly more expensive than the ASI 290 MM.
(Stefan Taube)

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX290)
Megapixel
2,1
Resolution Photograph (Pixel)
1936 x 1096
Pixel size
2,9

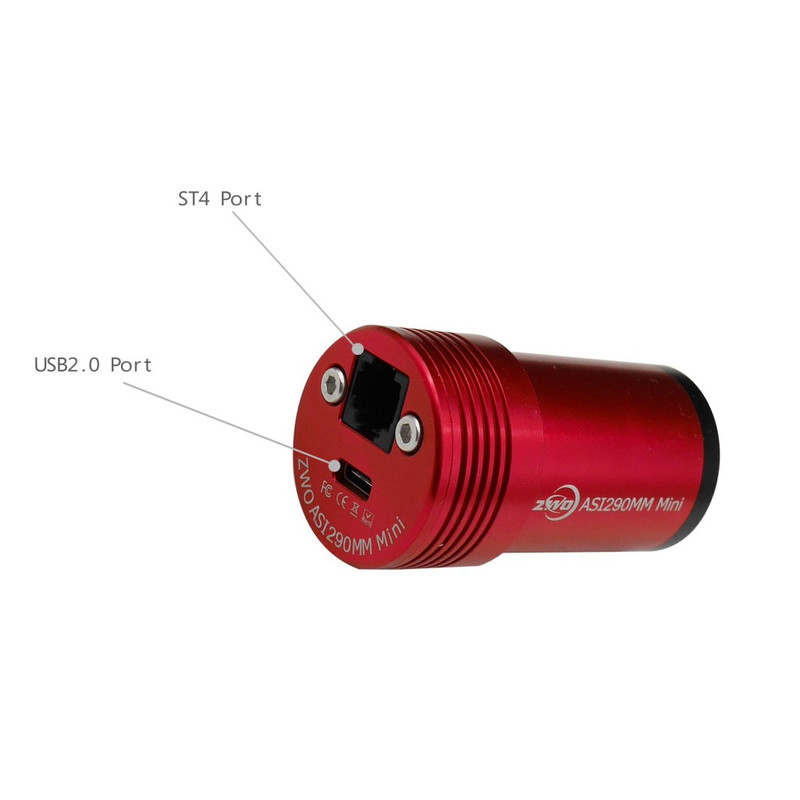

Interfaces
USB 2.0
Bit depth (Bit)
12
Connection (to the telescope)
1,25"
Active cooling
no
Colour camera
no
Size of chip (mm)
5,6 x 3,2

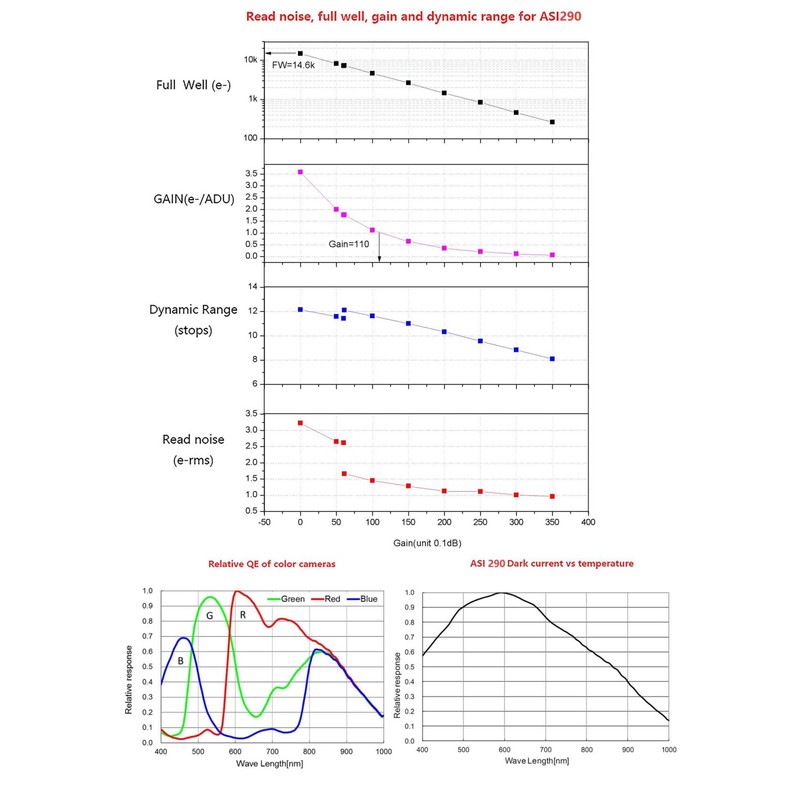

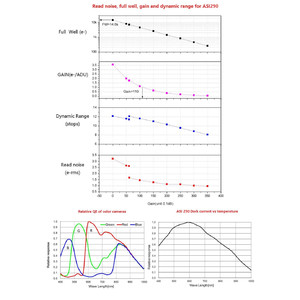

Quantal efficiency
80%
Reading noise
1,0
Max. exposure time (min)
5
Min. exposure time
32 µs
Connector (at camera end)
M28,5x0,6
Backfocus (mm)
8,5
Autoguider
yes
Chip - Diagonal (mm)
6,4

Special features


Infrared filters
no (Clear glass filter)

General


Diameter (mm)
36
Height (mm)
61
Colour
red
Series
ASI 290
Weight (g)
60
Material
Aluminium

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
no

Recommended accessories

Telescope accessories (2)
Filters

Optolong Filters Planetary Filter Set 1.25"

$ 292.00*
Filters (2)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Astrophotography > Controls & Shutter Release (3)

Ikarus Technologies StellarMate PLUS Astrophotography Controller

$ 357.00*
Astrophotography > Other (1)
Camera bracket

Omegon CMOS camera mount

$ 49.90*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 194.00*

*All prices include VAT plus shipping costs.

ZWO Camera ASI 290 MM Mini Mono

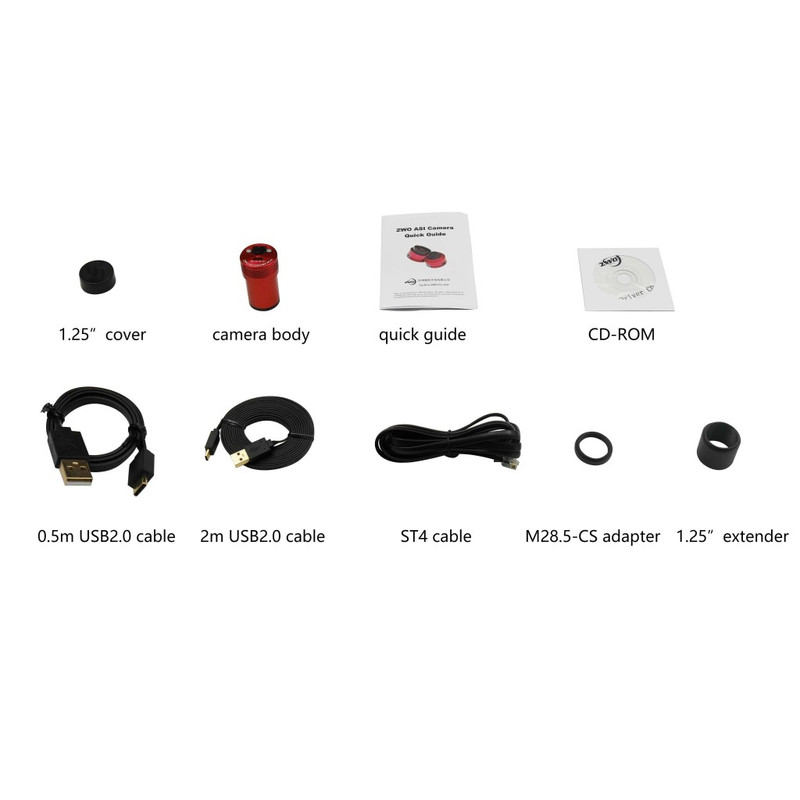

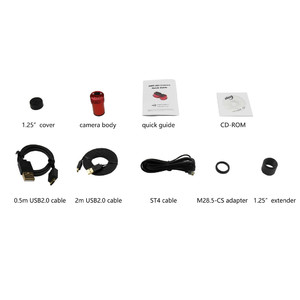

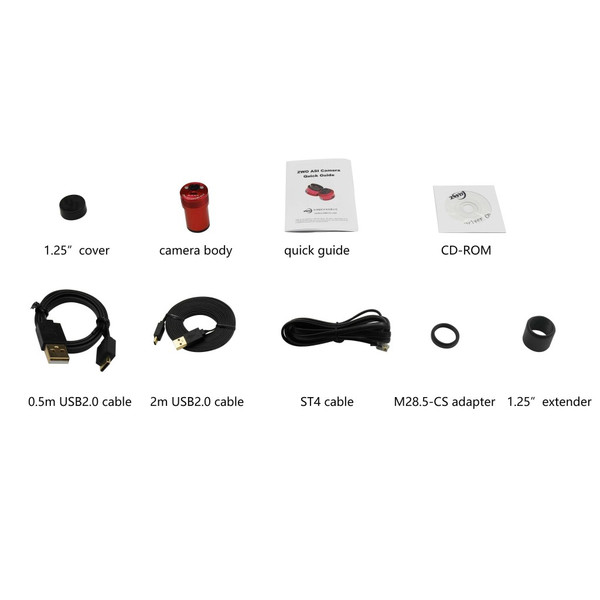

Included in delivery

ZWO Camera ASI 290 MM Mini Mono

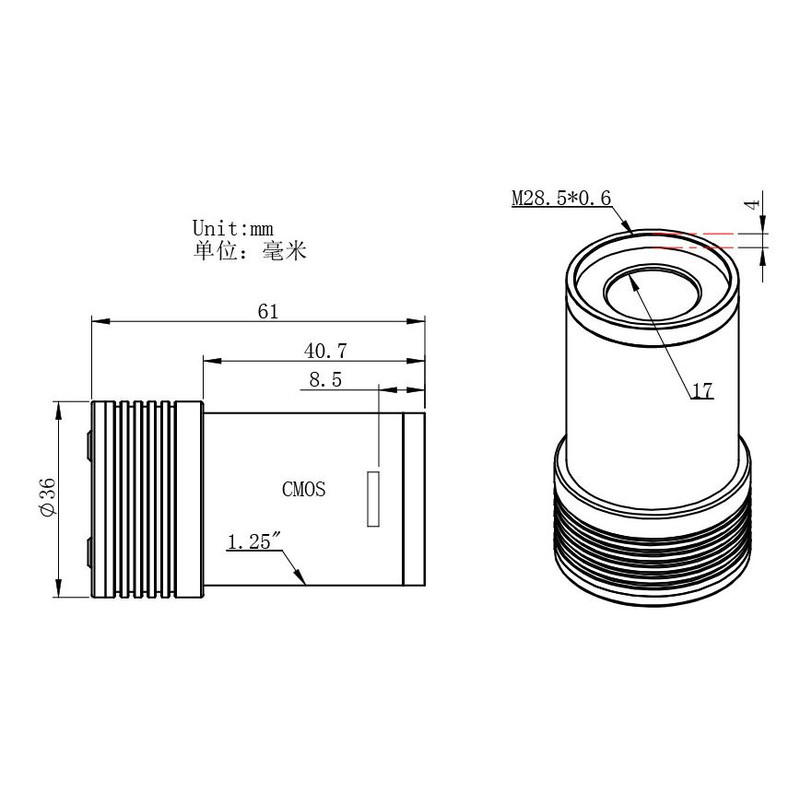

Dimensions
