Astrophotography > Cameras > Astronomical Cameras > ZWO > ASI 290 > ZWO Camera ASI 290 MM Mono
Product no.: 50243

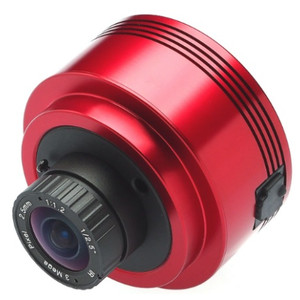

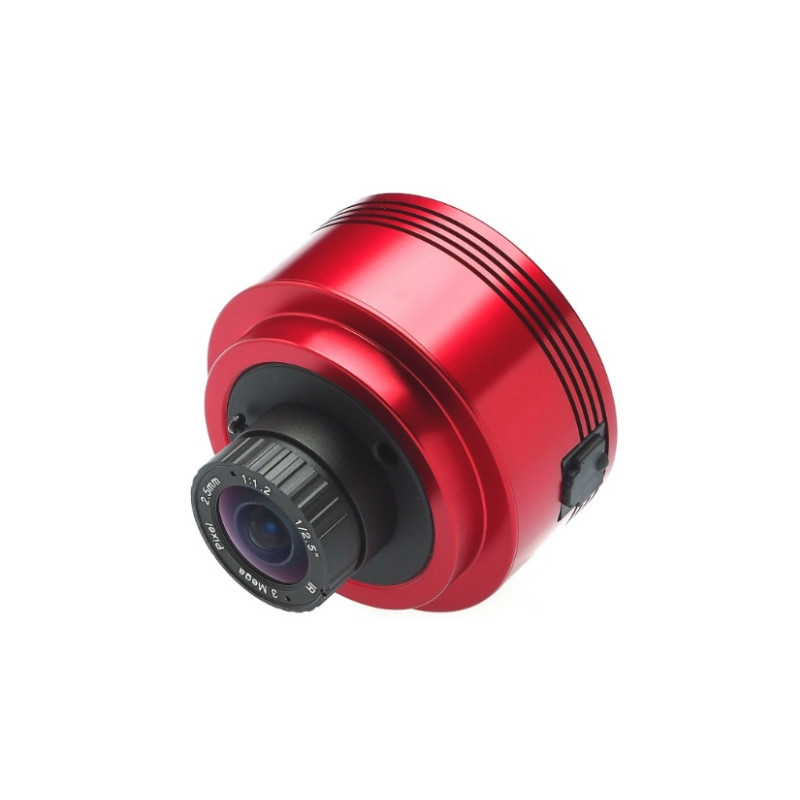

Camera ASI 290 MM Mono

RRP: $ 520.00 Our price:
$ 485.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

An excellent all-purpose camera with small pixel size, high frame rate and low readout noise.

This camera offers a back-illuminated Sony CMOS sensor camera at a very reasonable price. This technology combines the excellent noise-reduction characteristics of a CMOS sensor with the high light sensitivity of a CCD chip. Technically, 'back illuminated' means that the wiring of the pixels is carried on the surface of the sensor facing away from the incident light. This results in no shadowing on the active area. The advantage is high sensitivity that makes even the uncooled models from this series suitable for deep sky astrophotography.

Other features

  • extremely adaptable - the distance from the T2 thread to the sensor is 12.5 millimetres
  • high sensitivity in H-alpha and near infrared. An IR blocking filter should be used if this is not required.
  • large sensor for beautiful high-resolution, wide-view images - thanks to small pixel size.

Supported resolutions and frame rates (fps = frames per second):

USB2.0:

  • 1936×1096: 20,4fps
  • 1280×960: 35,3fps
  • 640×480: 141,5fps
  • 320×240: 355,9fps
  • 2X2Bin: 968×548: 20,4fps

USB3.0 12Bit ADC:

  • 1936×1096: 82.2fps
  • 1280×960: 93.6fps
  • 640×480: 184fps
  • 320×240: 355.9fps
  • 2X2Bin :968×548: 82.2fps

In addition to the camera and the adapters, a USB cable, an ST4 auto-guider cable and a CD with drivers for PC, Mac, Linux are also included.

A 2.5mm wide-angle lens is also included. This allows the camera to be used without any additional optics and also for all-sky exposures to be made.

Colour or mono? Black and white cameras have the advantage of higher sensitivity and resolution than colour cameras. However, more effort is required to obtain a colour image. You also need colour filters and a filter wheel

Software and drivers are available for free download on the manufacturer's website: software drivers

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX290)
Megapixel
2,13
Resolution Photograph (Pixel)
1936x1096
Pixel size
2,9
Interfaces
USB 3.0
Bit depth (Bit)
14
Active cooling
no
Connection (to the telescope)
1,25" & T2
Colour camera
no
Operating temperature
(-5) - (+45)
Max. exposure time (min)
30
Min. exposure time
32 µs
Images per second
170
Supported operating systems
Mac, Windows, Linux
Reading noise
1,0
Chip - Diagonal (mm)
6,4
Size of chip (mm)
5,6 x 3,1

Special features


Infrared filters
no

Equipment


Filter wheel
no

General


Weight (g)
120
Series
ASI 290
Diameter (mm)
62
Length (mm)
36
Outer material
Aluminium

Area of application


AllSky, Meteore
yes
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

Filters (6)
Blocking Filters

ZWO Blocking Filters UV/IR 1.25"

$ 76.00*
Astrophotography (4)

ZWO ADC Atmospheric Dispersion Corrector Mark II

$ 172.00*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 202.00*

*All prices include VAT plus shipping costs.

ZWO Camera ASI 290 MM Mono

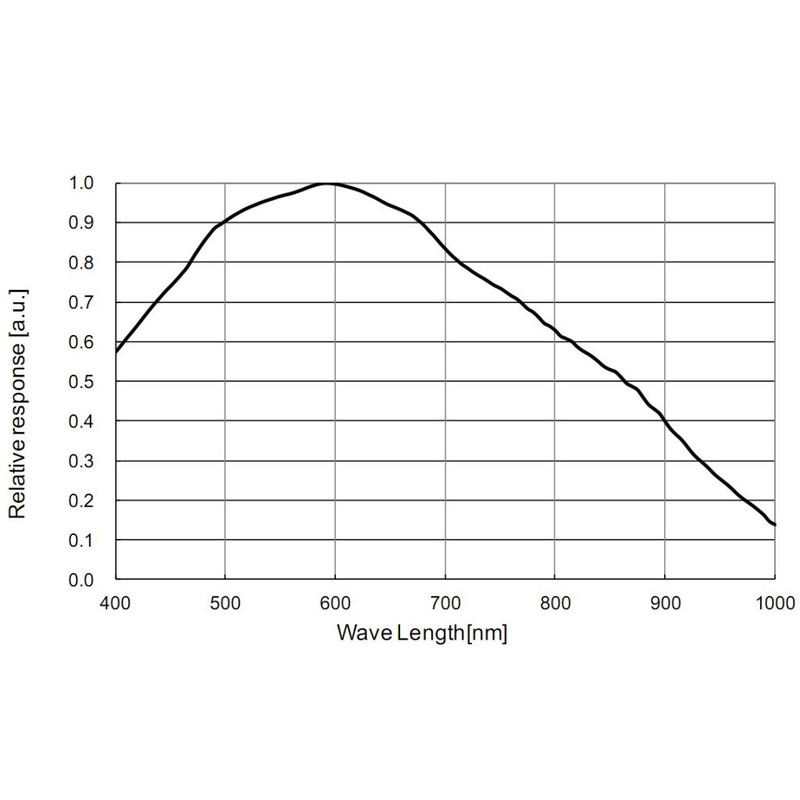

Quantum efficiency
