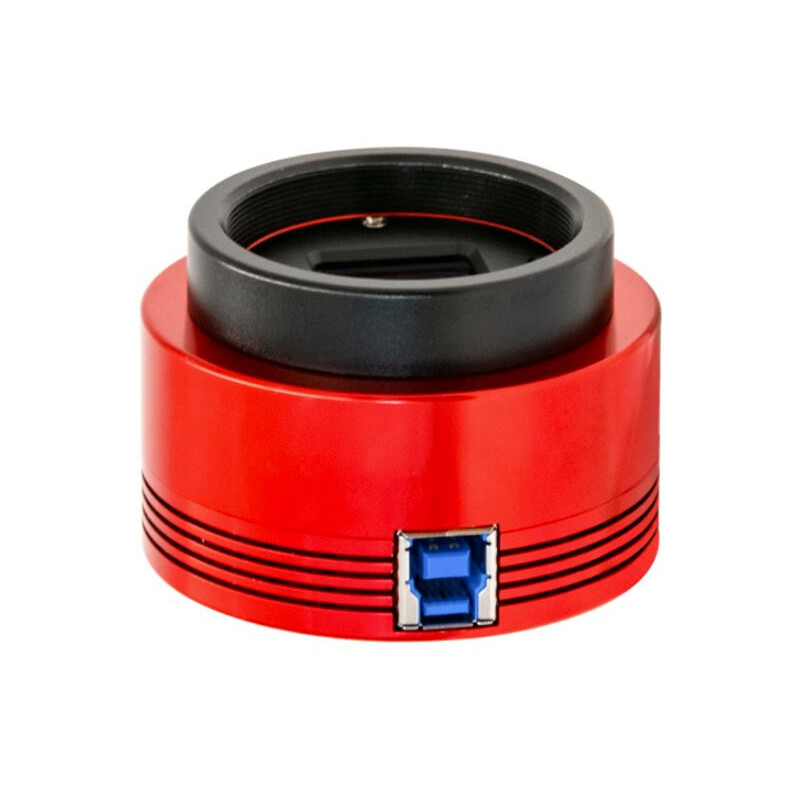

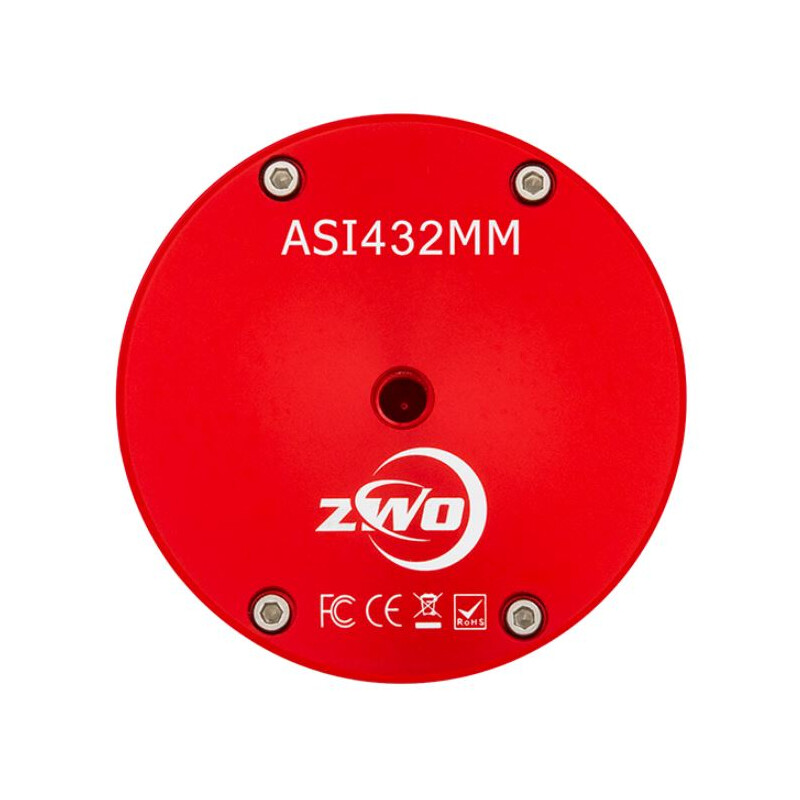

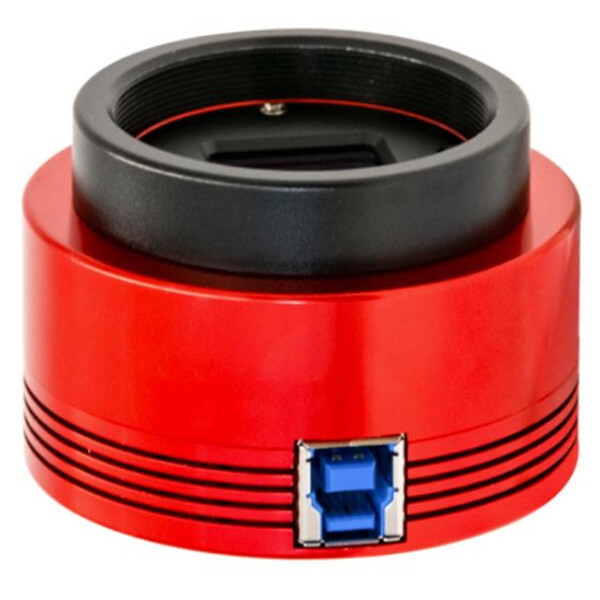

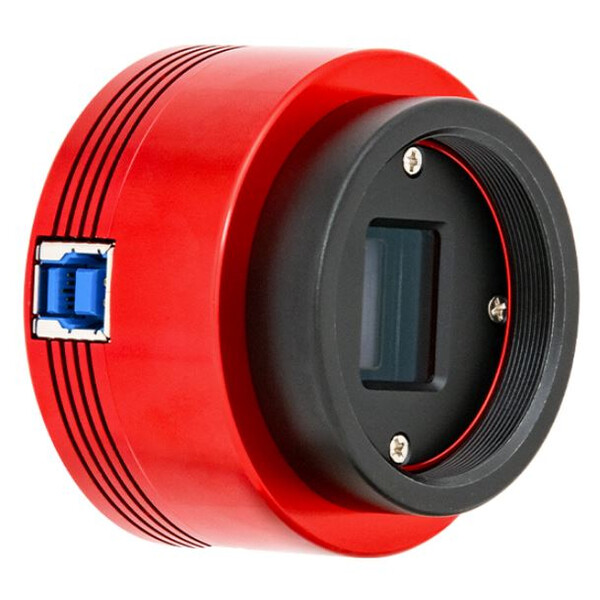

Camera ASI 432 MM Mono

RRP: $ 1,100.00 Our price:
$ 876.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 31.07.2025!
  • Large image field – ideal for the sun and moon
  • Starvis technology with back illumination
  • High frame rate even at high resolutions
  • No amp glow

Product description

This monochromatic ZWO camera with its large sensor is ideal for the sun and moon, but can also be used very well for deep sky photography due to its low noise.

The ASI 432MM is equipped with a modern Sony IMX432 sensor and impresses with its large image field, high frame rate and the complete absence of annoying amplifier glow (amp glow). This makes this camera not only interesting for images of the planetary system and our sun, but also for long exposure photography (deep sky photography).

The sensor is large enough for many deep sky objects and you can even do without an additional corrector in most cases. The ASI 432MM is very well suited for images of the entire moon, photography of the entire sun (with a suitable filter!!), long exposure of nebulae and galaxies, infrared images to reduce the effects of seeing, as an autoguider (an autoguiding connection is available), EAA (electronically assisted astronomy) for the moon and sun, and, to a limited extent, for photography of deep sky objects.

The clear glass filter prevents dust from entering the sensor. It also allows UV and infrared light to pass through, so you can take infrared photographs with the camera. The low noise and anti-ampglow circuit make this uncooled camera interesting for photographing deep sky objects such as faint nebulae, star clusters and galaxies.

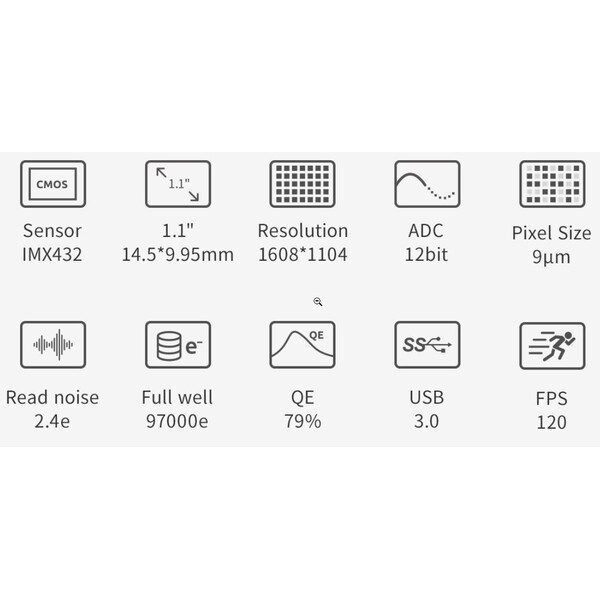

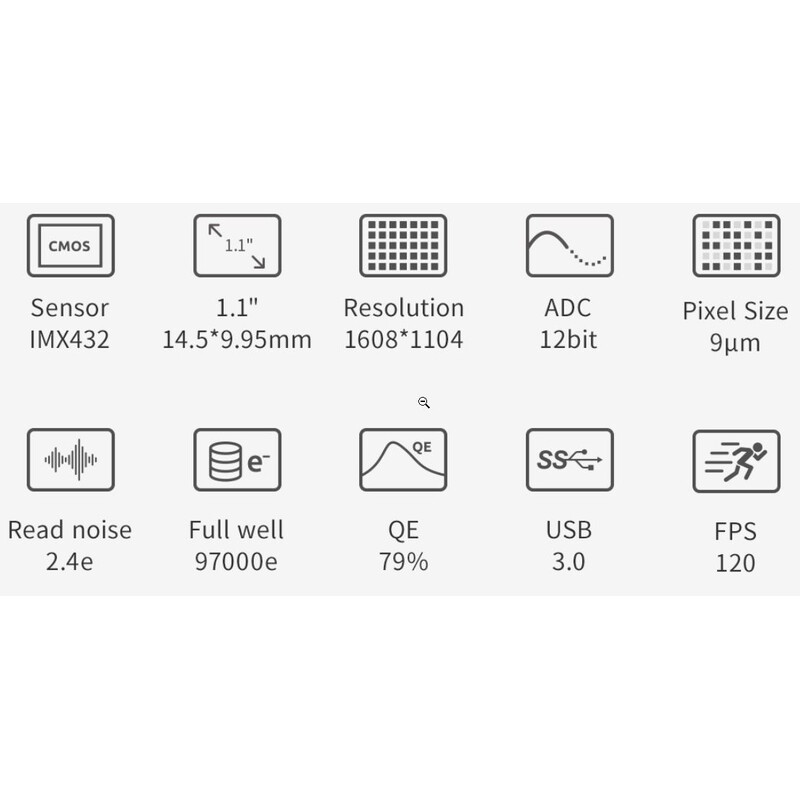

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX432)
Size of chip (mm)
14,5 x 9,95
Megapixel
1,77
Pixel size
9
Resolution Photograph (Pixel)
1608 x 1104
Bit depth (Bit)
12
Active cooling
no

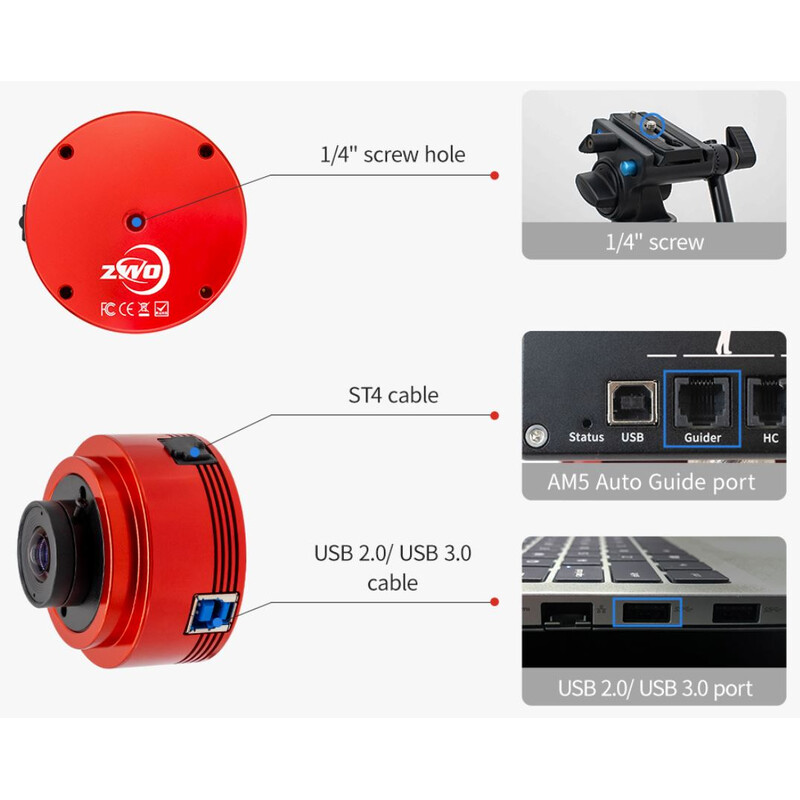

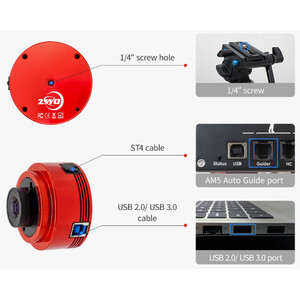

Interfaces
USB 3.0, ST-4

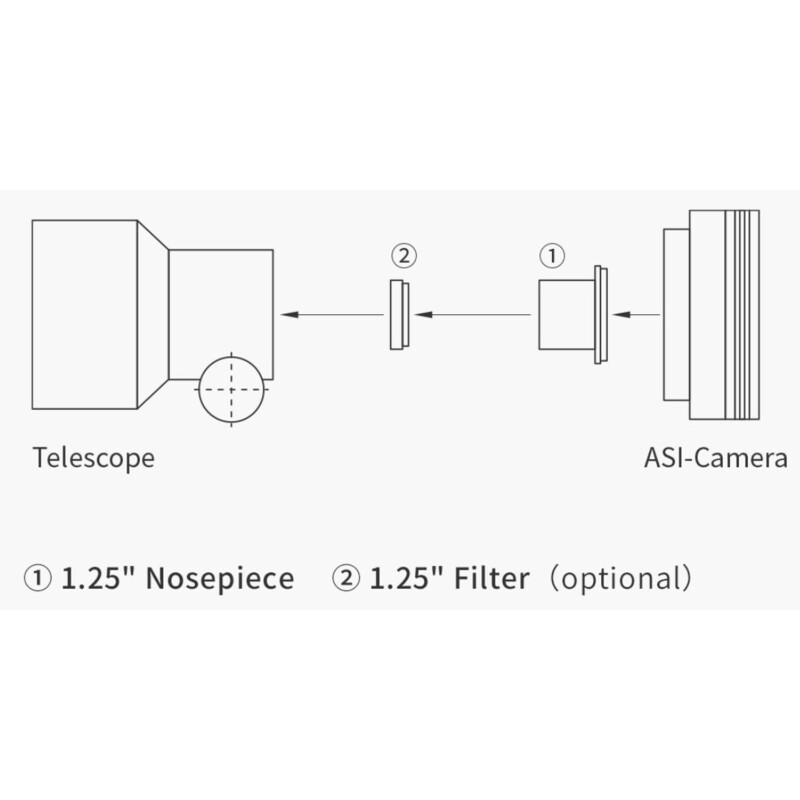

Connection (to the telescope)
1,25" & T2
Colour camera
no
Operating temperature
-5 - 50
Max. exposure time (min)
33,3
Min. exposure time
32µ
Images per second
120 (at full resolution)

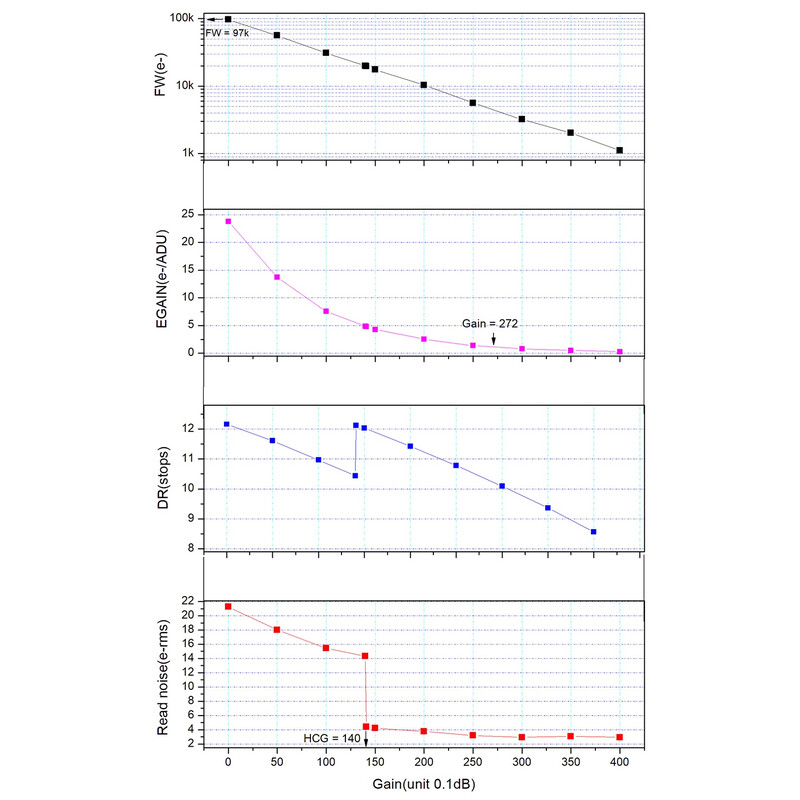

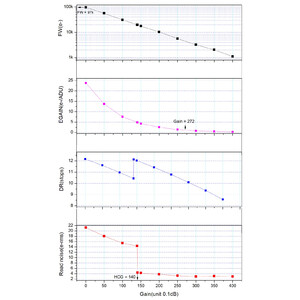

Reading noise
2,4
Full Well Capacity
97000
Flange focal distance (mm)
12,5
Power supply
5 (via USB)
Chip - Diagonal (mm)
17,6

Equipment


Filter wheel
no

General


Weight (g)
126
Series
ASI 432

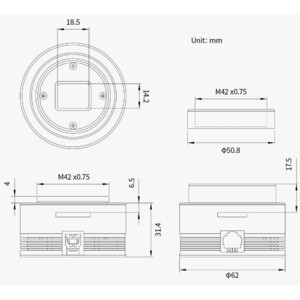

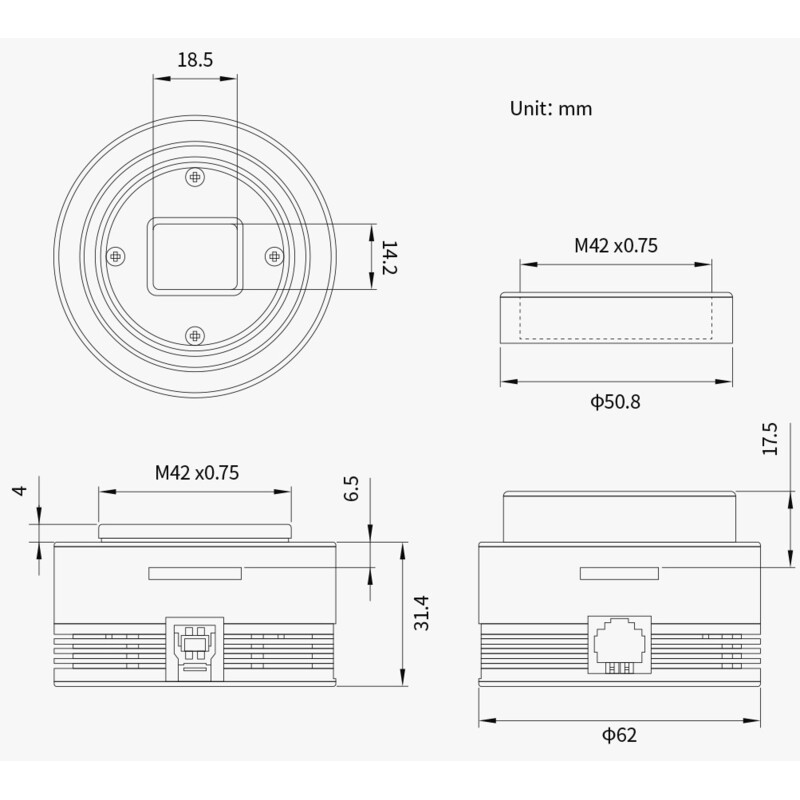

Diameter (mm)
62
Length (mm)
36

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes
