Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Bresser > Researcher > Bresser Microscope Researcher Bino
Product no.: 6144

Microscope Researcher Bino

$ 421.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series Researcher...

BRESSER Bino Researcher II 40-1000x Microscope

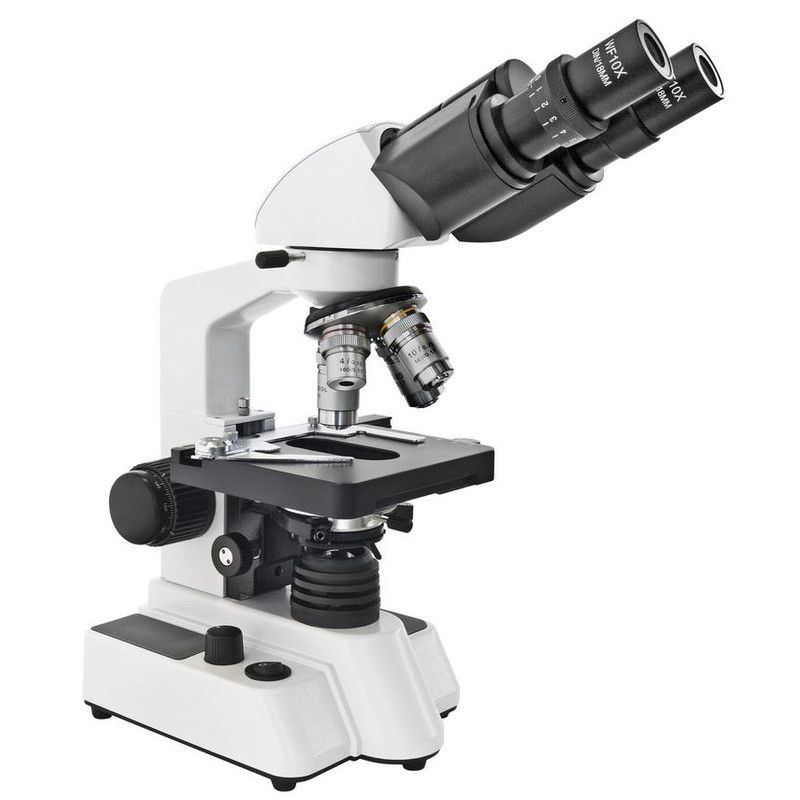

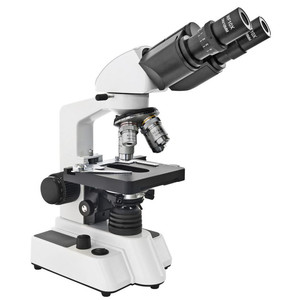

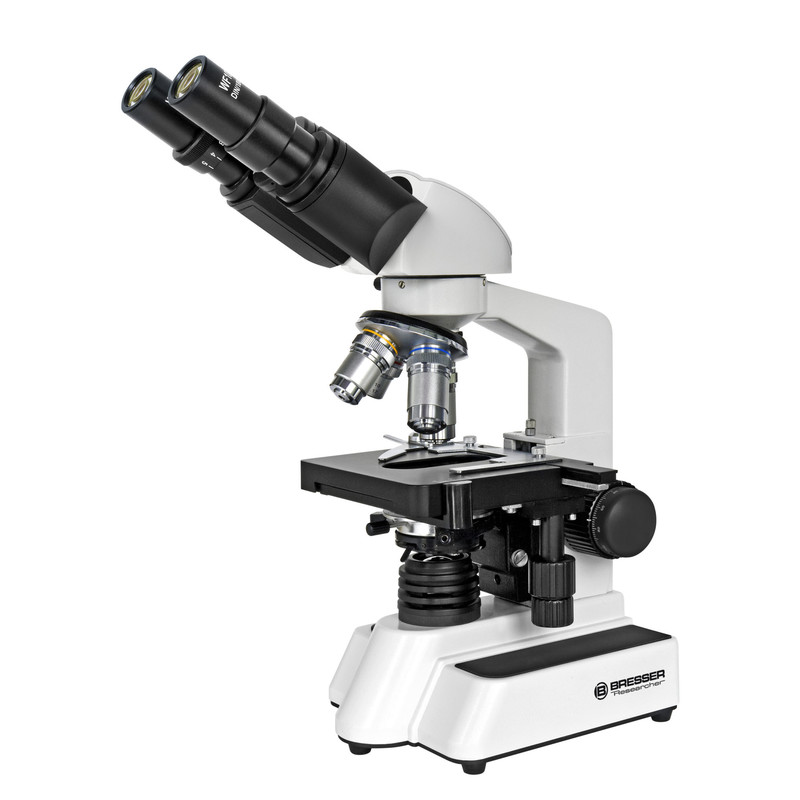

The Bino Researcher is a professional microscope with transmitted illumination, equipped with brilliant optics, a robust metal body and precise workmanship. It is perfect for use in school, studies, and occupation. The comfortable binocular head provides an exceptional bright image and can be individually adjusted according to the observer's needs. The objective turret, is fitted with 4 DIN objectives and offers a large variety of magnification possibilities. Focussing is done through the use of the coarse and fine adjustment wheels. The illuminator and the double-lens condensor with iris diaphragm guarantee the perfect illumination of the observed object.

Features
• Type: Biological microscope

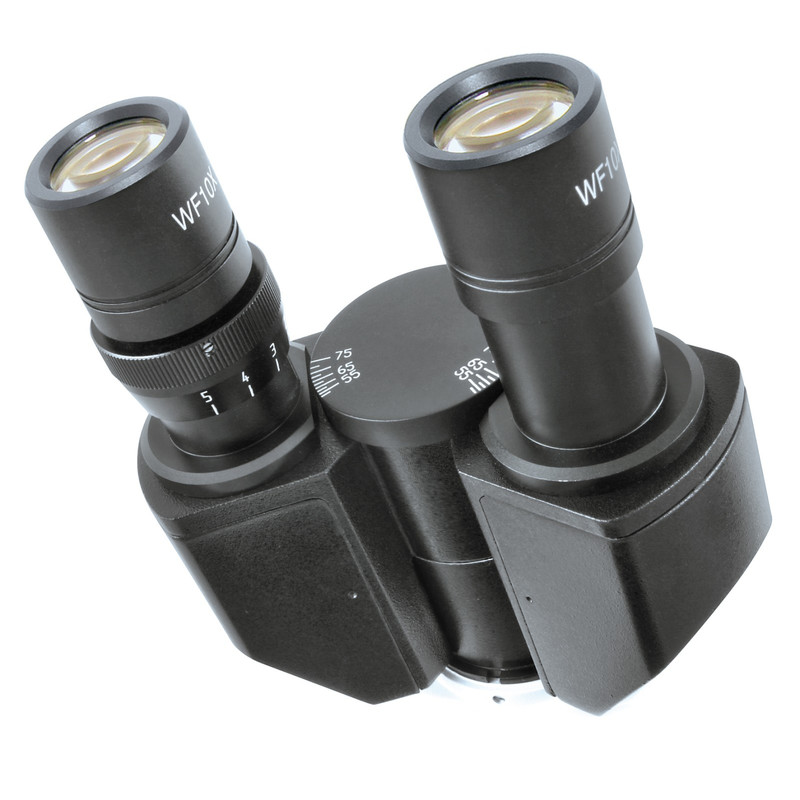

• View: Binocular Comfortable binocular view, 360° turnable head
• Application range: Biology, Botany, Education, Teaching, Entomology
• Illumination: LED Transmitted
• Level: Intermediate, Expert
• Warranty: 5 years
• Double-lens condensor with iris diaphragm
• Incl. mechanical stage
• Adjustable eye relief

Specifications
• Magnifications: 1000x max, 40-1000x Zoom
• Eyepieces: WF 10x
• Eyepiece diameter: 23.2 mm

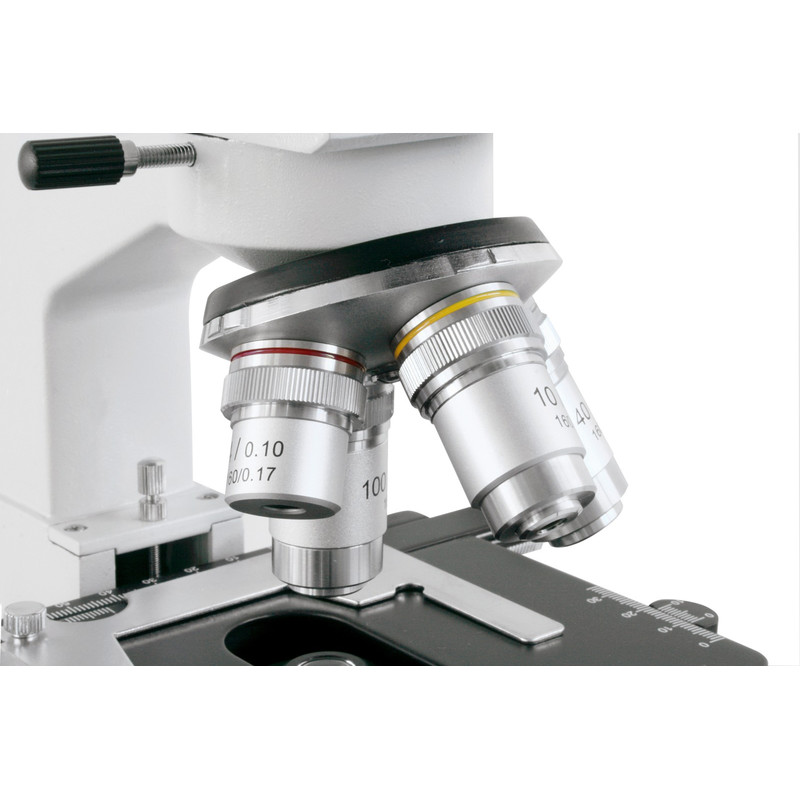

• Objectives: 4x, 10x, 40x, 100x (oil immersion)
• Power supply: 220/240V

Included Accessories
• 4 DIN-objectives
• 1x2 eyepieces
• Mechanical stage
• Condensor
• Binocular head

Specifications

Optics


Lighting
Transmitted light
Lamp type
LED
Magnification
1000 (50, 100, 500, 1000)
Image scale
4,10,40,100 (4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65), 100 (N.A. 1.25 oil immersion))
Eyepiece
10 (Wide-angle eyepiece)
Condensor
Abbe (N.A. 1.25, height adjustable, centerable)
Lens type
Achromatic
Power supply
Power plug
Optical system
DIN (160mm)

Capacity


brightfield
yes

Mechanics


Specimen stage
Cross table (with vernier scale)
Type of build
binocular
Viewing posture (°)
30° oblique viewing, 360° rotating head
Focusing
Coarse and fine movement

Special features


Built-in digital camera
-
Centering stage
-
Rechargeable battery operation
-
Dust cover bag
-
Filter holder
yes
Luminous field diaphragm
yes

General


Colour
black-white
Series
Researcher
Suitable from
12
Length (mm)
280
Width (mm)
360
Height (mm)
175
Weight (g)
3800

Suitable for


Pros
-
Beginners
-
Advanced
yes

Field of application


Education
yes

Area of application


Phase contrast
-
Polarization
-
Fluorescence
-
Interference contrast
-
Dark field
-
Metallurgy
-
school
yes
