Product no.: 9342

Microscope FE.2520

$ 3,780.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The Euromex microscopes of the F-series are routine and research microscopes, which are used in higher education, science and in biological, medical and industrial laboratories. The inverted microscopes in this range are suitable for studies of cell cultures and Hydrobiology. The microscopes give a crisp, flat image. The big eye lenses of the eyepieces suitable for eyeglass wearers and guarantee a relaxed observation.

The FE.2520

This model comes with a DIN eyepieces KHWF with a 10x zoom lens and a semi-plan with 4-fold and 2-phase plan objectives with a 10-fold and 40-fold magnification. The 40-fold objective has a spring-loaded version of the product to protect against damage. Thus a maximum of a 400-fold magnification is possible.

Under the table, the heating elements are mounted, which are controlled by a separate power supply. Infinitely adjustable up to 50 ° C. The desired and actual temperature are displayed on an LED display. The temperature remains stable during the study.

Specifications

Optics


Eyepiece
10 (HWF compensation eyepiece)
Condensor
Abbe (N.A. 1.25, height adjustable)
Lighting
Transmitted light
Lamp type
Halogen (6V/30W, continuously adjustable, Köhler illumination)
Lens type
Semi-Plan Achromatic
Image scale
4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65 with specimen protection)
Power supply
Power plug
Magnification
40, 100, 400

Mechanics


Focusing
Coarse and fine movement (coaxial, with 0.0025 mm division)
Type of build
binocular
Specimen stage
Cross table (75 x 40 mm, on specimen stage: 125 x 140mm, with vernier scale)
Viewing posture
30° oblique viewing, 360° rotating head

Special features


Built-in digital camera
-
Centering stage
-
Rechargeable battery operation
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General


Series
F-Serie
Colour
black-white
Weight (g)
11200
Suitable from
16

Suitable for


Beginners
-
Advanced
-
Pros
yes

Area of application


Phase contrast
-
Polarization
-
Fluorescence
-
Interference contrast
-
Metallurgy
-
Dark field
-
Biology, zoology & botany
yes
Veterinary medicine
yes
Cell culture
yes
Pathology and histopathology
yes

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de

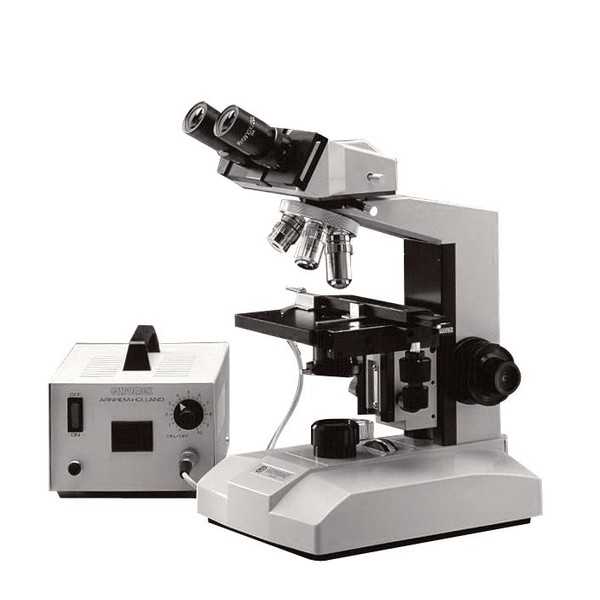

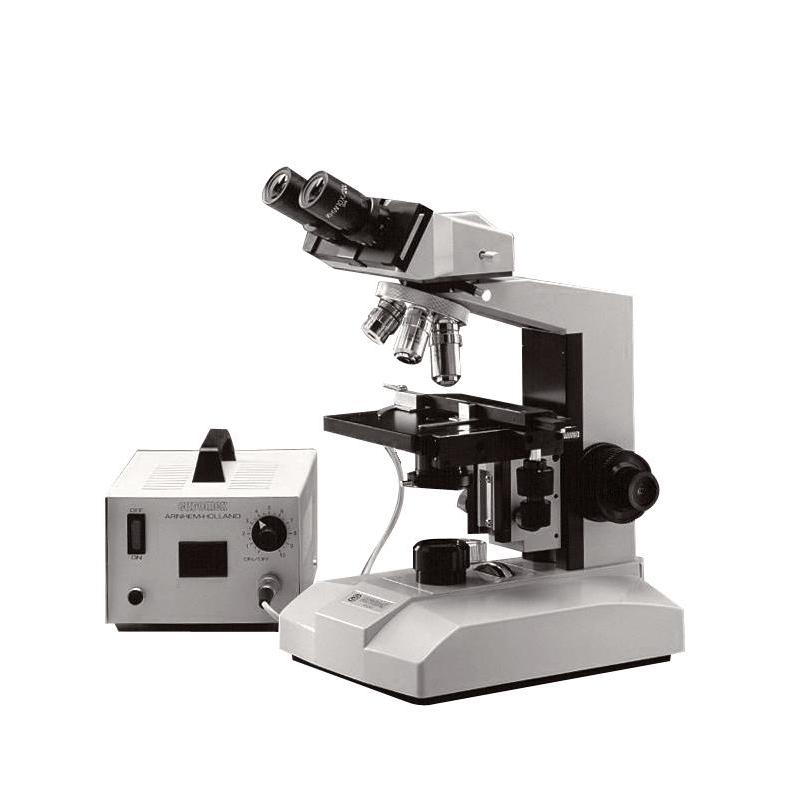

Euromex Microscope FE.2520
