Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Euromex > iScope > Euromex Microscope iScope IS.1152-EPL, bino, DIN, e-plan, 40x-1000x, iCare, LED
Product no.: 51448

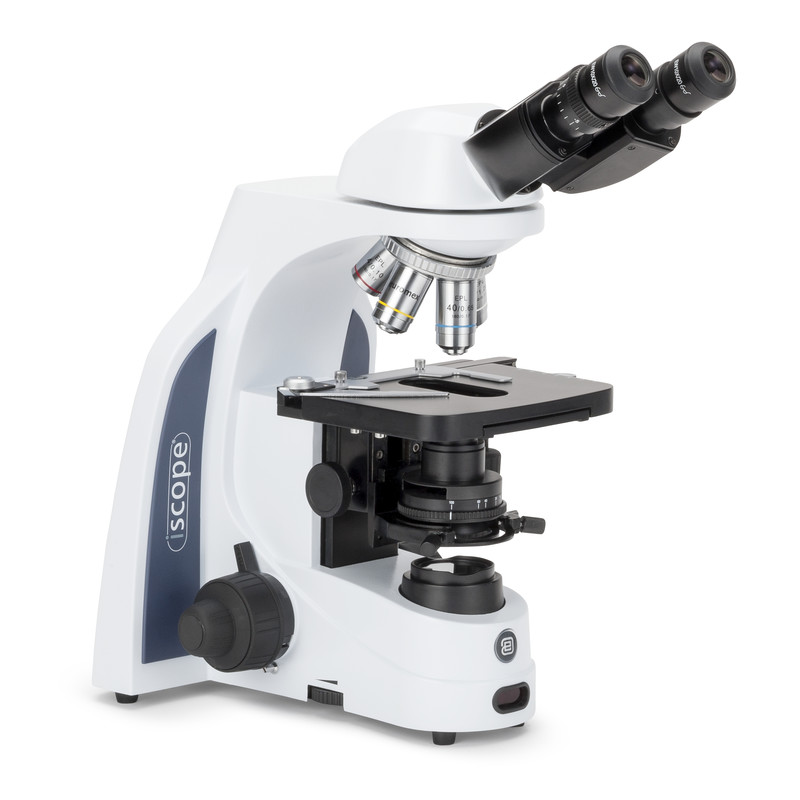

Microscope iScope IS.1152-EPL, bino, DIN, e-plan, 40x-1000x, iCare, LED

$ 1,350.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
This product is available in the following variants:
supplier product number Price
IS.1152-EPL, bino $ 1,350.00
IS.1153-EPL, trino $ 1,400.00
IS.1153-PLPH $ 2,490.00

Product description

More about the series iScope...

Euromex iScope for brightfield IS.1152-EPL

  • Eyepieces EWF10x/20 mm
  • Head Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on left eyepiece
  • Nosepiece Revolving quintuple reversed nosepiece on ball bearings
  • Objectives E-Plan EPL 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil-immersion DIN objectives. All optical parts are anti-fungus treated
  • Stage 140 mm x 160 mm stage equipped with integrated 79 x 52 mm mechanical stage
  • Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
  • Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ illumination with internal 100V-240V power supply (CE)
  • iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position

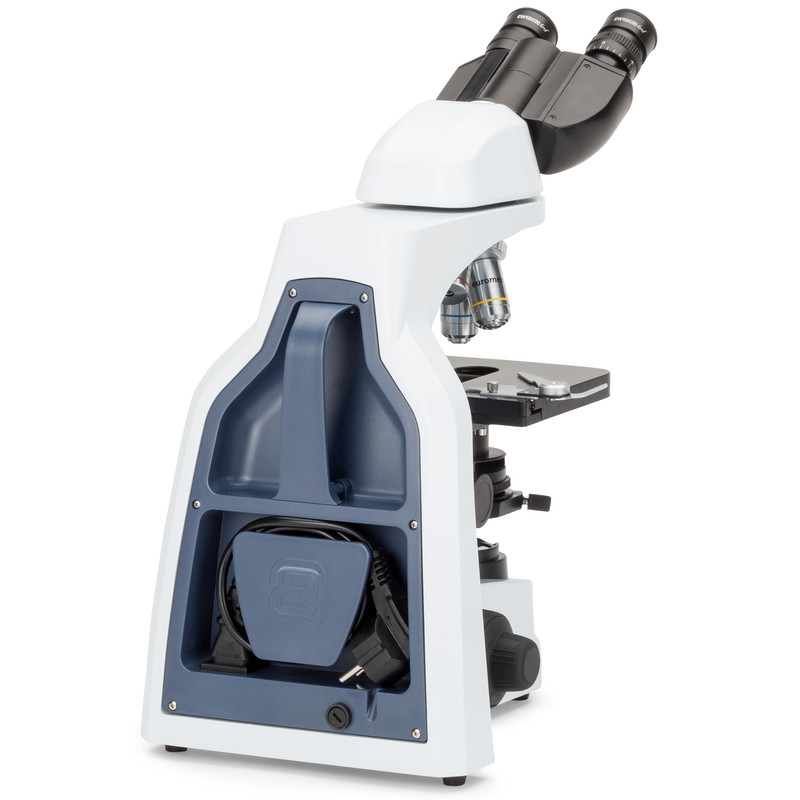

  • CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
  • Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover

Specifications

Optics


Magnification
40 - 1000
infinity corrected
no
Field curvature
Semi-planachromatic
Lighting
Transmitted light
Lamp type
LED
Eyepiece
EWF 10x / 20 mm (Ø 23.2 mm)
Number of objectives
4
Objective 1
4x / 0.10 (E-Plan)
Objective 2
10x / 0.25 (E-Plan)
Objective 3
S40x / 0.65 (E-Plan)
Objective 4
S100x / 1.25 (E-Plan)
Immersion lens
yes
Suspension
yes
Colour correction
achromatic
Condensor
without Köhler LED
Optical system
DIN (160mm)

Capacity


brightfield
yes

Mechanics


Type of build
binocular
Focusing
Coarse and fine movement (200 x 1µm)
Specimen stage
Cross table (140 x 160mm (x/y 79 x 52mm))
Revolver
5

General


Series
iScope
Weight (g)
9000
Width (mm)
210
Length (mm)
255
Height (mm)
407

Field of application


Education
yes
Hobby
yes

Area of application


Naturalist
yes
Parasite analysis
yes
Secondary school
yes

Miscellaneous


supplier product number
IS.1152-EPL, bino

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
